SP series
Washable snap-action pushbutton switches

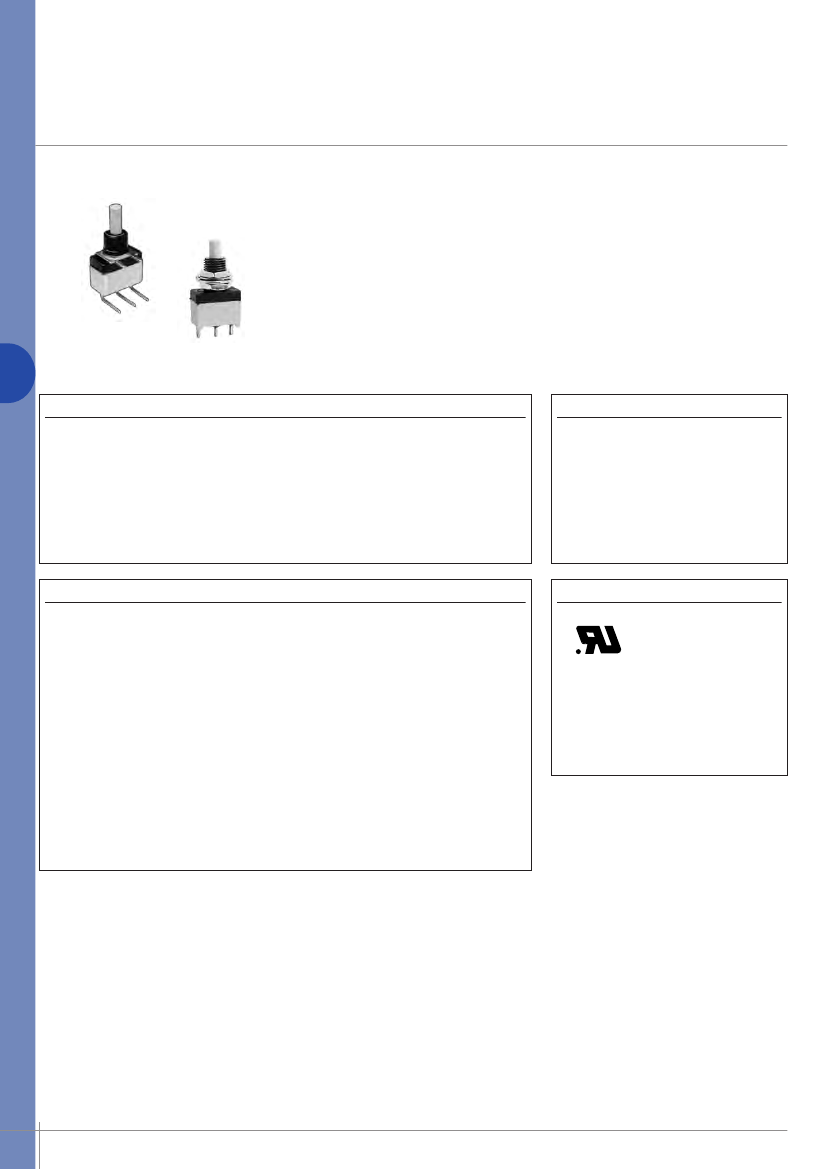

Distinctive features and specifications
UG1410A
K
Process sealed
• Secure assembly of the two case parts
• Internally sealed bushing
• Epoxy sealed terminals
K
Process compatible (plain bushing models)
• Wave solderable
• Washable
B2
ELECTRICAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- gold plated brass contacts : 100mA 30VDC
- silver or gold plated silver contacts : 1A 30VDC
• Initial contact resistance : 50 mΩ max.
• Insulation resistance : 1.000 MΩ min.
• Dielectric strength : 1.000 Vrms 50 Hz min.
• Electrical life : 60.000 cycles
• Case and cover : UL94-V0,
polyamide, glass filled or PES
• Actuator : polyamide, glass filled
• Contacts
0
: brass, gold plated
1
: silver
2
: silver, gold plated
• Terminal seal : epoxy
GENERAL SPECIFICATIONS
AGENCY APPROVAL
• Torque : 0,25 Nm (.18 Ft.lb) applied to nut (threaded bushing)
• Total travel : 0,50 mm (.019)
• Mechanical strength :
Terminals are strengthened by a bracket or a ground plate ensuring the
rigidity of the switch on the board. Actuator strength is 10N max.
• Operating temperature : -20°C to +85°C
• Storage temperature : -40°C to +85°C
• Moisture :
The insulating materials employed and the complete seal permit the
switches to withstand a 56 days moisture test (IEC 68-2-3).
• Soldering - thermal shock (plain bushing models only) :
The switches are especially designed for flow soldering at 260°C during
5 seconds owing to high temperature polymer parts.
• Iron soldering (threaded bushing models) : 300°C max., 5 seconds max.
• Solderability : The switches are tested at 235°C according to IEC 68-2-20
after accelerated aging.
1A 120VAC
Availability
: all models with silver
or gold plated silver contacts.
Marking
: to order switches marked
UL , complete appropriate box of
ordering format.
The company reserves the right to change specifications without notice.
B2-22
www.apem.com
APEM
SP series
Washable snap-action pushbutton switches
Overview
SP
SERIES
Number of poles
3
4
Single pole
Double pole
5
Electrical function
ON
-
MOM
P0
Y0
W0
WW
SO
Terminals
Straight PC
Straight PC and
bracket mounting
Right angle,
horizontal mounting
Right angle, vertical
mounting
Solder lug terminals,
(threaded bushing)
B2
Contact and terminal
materials
0
1
2
Brass, gold plated
Silver
Silver, gold plated
Plungers
00
02
Standard
Short
00
01
02
Options/Approval
Standard model
UL marking on
standard model
UL marking on
threaded bushing
model (SP only)
Short bushing for
plunger 02 (SP only)
Threaded bushing
10
20
30
40
80
70
50
Caps (mounted)
Ø 5 (.196)
Ø 8 (.314)
Ø 9,4 (.370)
Ø 10 (.393)
Ø 15 (.590)
Square
Height 4 (.157)
Square
Height 6 (.236)
76
77
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches
- options in the same order as above
Specifications are on previous page.
Dimensions
: first dimensions are in mm while inches are shown as bracketed numbers.
Mounting accessories :
standard hardware supplied with all models with Ø 6,35 (1/4) threaded bushing :
2 hex nuts 8 mm (.314) across flats, 1 locking ring and 1 lockwasher.
Standard and special hardware available are presented in section I.
Packaging unit
: 25 or 50 pieces depending on model.
APEM
www.apem.com
B2-23
SP series
Washable snap-action pushbutton switches
Plain or threaded bushing
• Solder lug, straight PC or right angle terminals
• Features of threaded bushing models :
- max. torque : 0,25 Nm (.18 Ft.lb)
- iron soldering : 300°C max., 5 seconds max.
• 1 and 2 pole configurations
1
2
3
2.45
(.096)
1.90
(.070)
1.10
(.043)
1.90
(.074)
4.25
(.167)
0.60
(.023)
B2

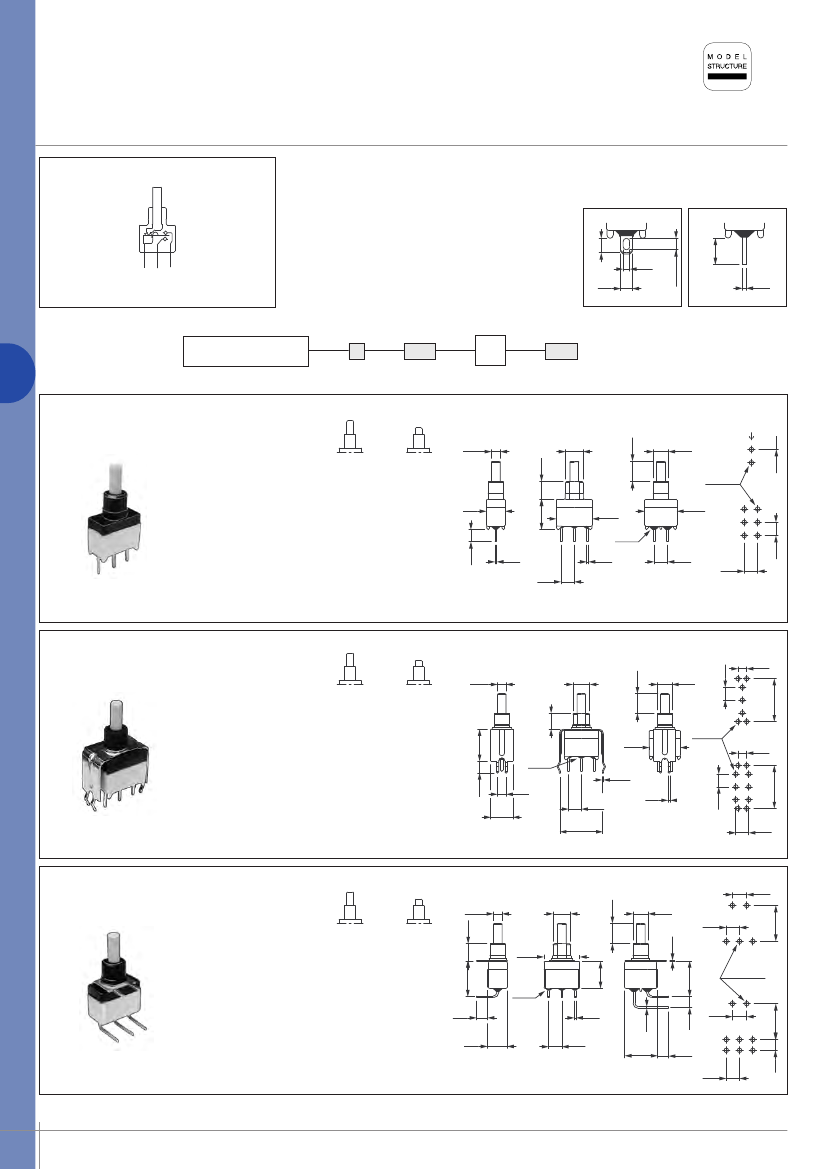

MODEL
STRUCTURE
Shown with standard plunger
Plain bushing - straight PC terminals
7.16
(.281)
Ø3.10
(.122 DIA)
6.30
(.248)
Ø6.20
(.244 DIA)
5.30
(.208)
Ø1.60
(.062 DIA)
4.70
(.185)
Single pole
SP35P0... 00
Double pole
1-3
ON
-
1-2
MOM
6.60
(.259)
10.80
(.425)
1
2
3
12.70
(.500)
0.60
(.023)
EPOXY
11.35
(.446)
4.25
(.167)
SP45P0... 00
ON
-
MOM
0.60
(.023)
4.70
(.185)
4.75
(.187)
4.75
(.187)
Plain bushing - bracket mounting
(.281)
Ø3.10
(.122 DIA)
Ø6.20
(.244 DIA)
5.30
(.208)
7.16
4.70
(.185)
Single pole
SP35Y0... 00
Double pole
SP45Y0... 00
5.90
(.232)
1-3
ON
-
1-2
11.70
(.460)
MOM
4.40
(.173)
ON
-
MOM
8.20
(.322)
15.75
(.620)
4.70
(.185)
4.70
(.185)
Plain bushing - right angle terminals - horizontal
7.16
(.281)
6.10
(.240)
Single pole
SP35W0... 00
Double pole
SP45W0... 00
1-3
ON
-
1-2
MOM
12.70
(.500)
9.50
(.374)
0.40
(.015)
12.70
(.500)
ON
-
MOM
6.90
(.271)
4.70
(.185)
0.60
(.023)
11.65
(.468)
3.81
(.150)
B2-24
www.apem.com
APEM
3.81
(.150)
3.90
(.153)
4.70
(.185)
12.70
(.500)
3.90
(.153)
EPOXY
3
2
1
12.70
(.500)
Ø1.60
(.062 DIA)
5.08
(.200)
0.60
(.023)
12.70
(.500)
Ø3.10
(.122 DIA)
Ø6.20
(.244 DIA)
5.30
(.208)
4.70
(.185)
15.75
(.620)
4.75
(.187)
3.18
(.125)
EPOXY
1
2
3
11.35
(.446)
0.40
(.015)
Ø1.60
(.062 DIA)
0.90
(.035)
15.75
(.620)
3.18
(.125)
4.70
(.185)
3.18
(.125)
5.08
(.200)
SP series
Washable snap-action pushbutton switches
Plain or threaded bushing
Shown with standard plunger

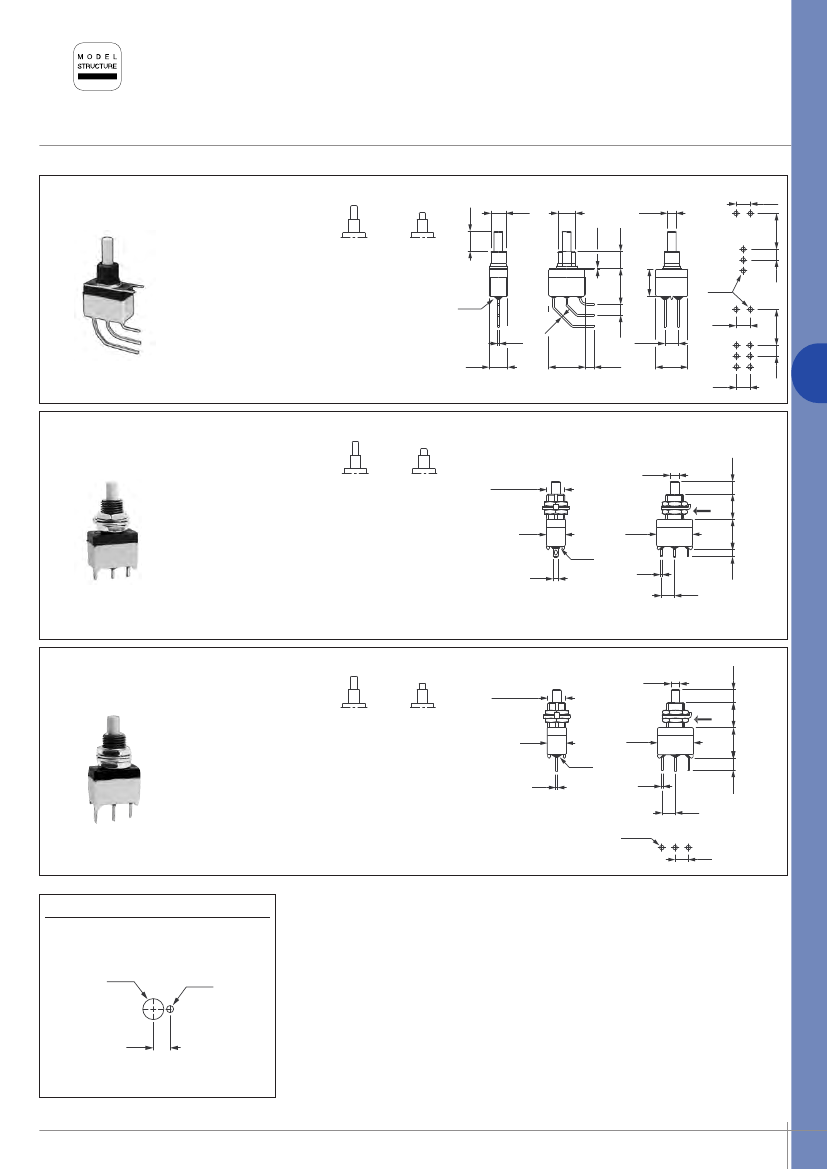

Plain bushing - right angle terminals - vertical
7.16
(.281)
5.30
(.208)
Ø6.20
(.244 DIA)
0.40
(.015)
6.10
(.240)
Ø3.10
(.122 DIA)
5.08
(.200)
SP35WW... 00
Double pole
SP45WW... 00
ON
-
MOM
EPOXY
0.60
(.023)
3
2
1
12.70
(.500)
9.50
(.374)
ON
-
MOM
3.81
(.150)
6.60
(.259)
13.00
(.511)
3.10
(.122)
4.75
(.187)
(.0 0.6
23 0
)
3.81
(.150)
11.35
(.446)
4.75
(.187)
12.70
(.500)
5.08
(.200)
3.81
(.150)
Single pole
1-3
1-2
Ø1.60
(.062 DIA)
12.70
(.500)
B2
Threaded bushing - solder lug terminals
©
Keyway
Ø6.35-40UNS
(1/4 40UNS)
6.60
(.259)
1.80
(.070)
EPOXY
Ø3.10
(.122 DIA)
4.56
(.179)
2
3
4.70
(.185)
2
3
4.70
(.185)
4.70
(.185)
4.25
(.167)
10.80
(.425)
8.90
(.350)
1
4.56
(.179)
2.45
(.096)
10.80
(.425)
8.90
(.350)
1
Single pole
SP35S0... 77
1-3
ON
-
1-2
MOM
12.70
(.500)
0.60
(.023)
Threaded bushing - straight PC terminals
©
Keyway
Ø6.35-40UNS
(1/4 40UNS)
Ø3.10
(.122 DIA)
Single pole
SP35P0... 77
1-3
ON
-
1-2
MOM
6.60
(.259)
0.60
(.023)
EPOXY
12.70
(.500)
0.60
(.023)
Ø1.60
(.062 DIA)
PANEL CUT
-
OUT
Ø6.50
(.255 DIA)
Ø2.20
(.086 DIA)
5.20
(.204)
APEM
www.apem.com
B2-25
SP series
Washable snap-action pushbutton switches
CONTACT AND TERMINAL MATERIALS
0
1
2
Brass, gold plated
Silver
Silver, gold plated
B2
PLUNGERS
4.56
(.179)
Ø3.10
(.122 DIA)
6.30
(.248)
Ø3.10
(.122 DIA)
5.10
(.200)
Ø3.10
(.122 DIA)
8.90
(.350)
00
Standard plunger
7.16
(.281)
02
Short (for models with plain bushing,
single pole only)
Order with option 76 below.
OPTIONS
/
AGENCY APPROVAL
00
01
02
76
77
Standard model
UL marking for standard model
UL marking for threaded bushing model (single pole models only)
Short plain bushing for 02 plunger (single pole models only)
Threaded bushing
(included in model numbers on previous page)
B2-26
www.apem.com
4.20
(.165)
APEM
