QSZH-125 Tubing
Sealing and protection
of inline wire splices
and grounding ring
terminals.

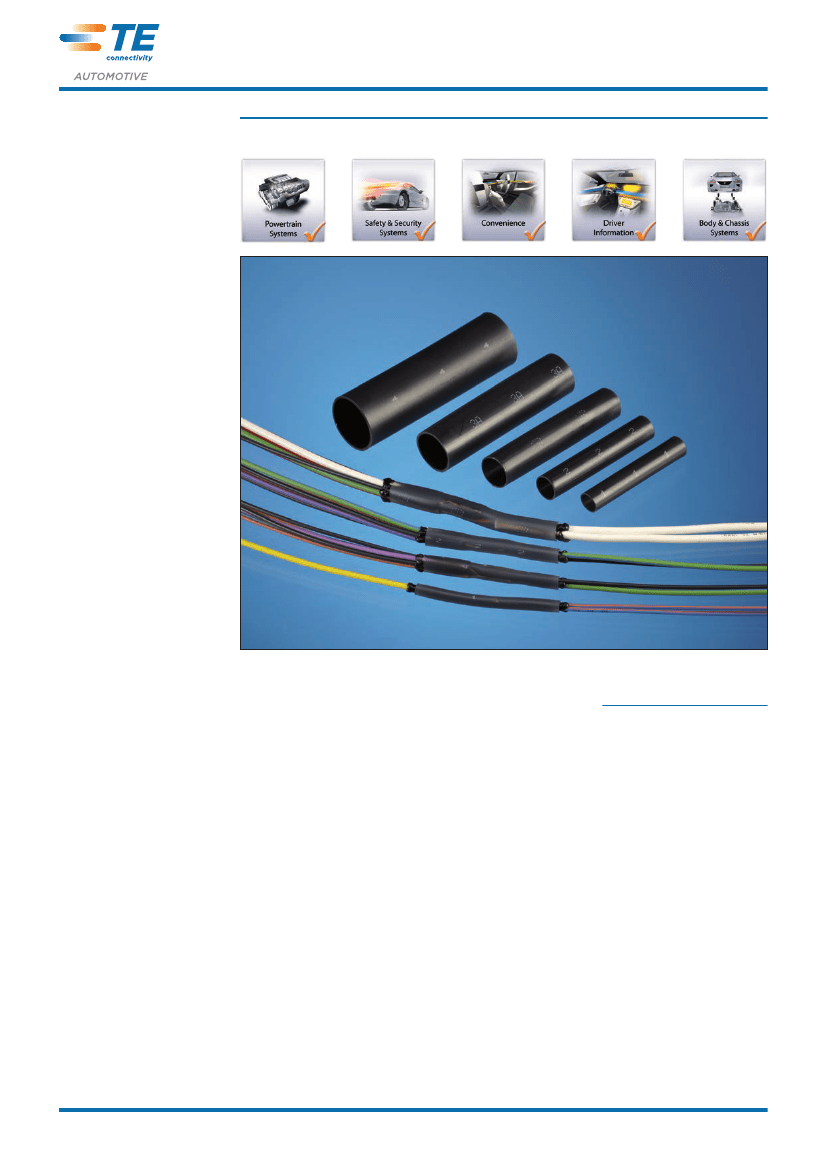

QSZH-125 Tubing
Zero halogen, dual wall heat-
shrinkable tubing designed to
provide environmental sealing,
mechanical and electrical
protection of in-line splices in
an automotive environment.
The tubing is centred over the
splice area and on heating the
adhesive melts and is squeezed
around where the wires are
crimped or welded and between
wire cores by the shrinking
action of the sleeve. The installed
QSZH-125 tube provides low
profile mechanical protection
against flexing, abrasion and
cut-through as well as electrical
insulation.
Benefits
There are five QSZH-125 sizes
to cover a wide range of typical
automotive splice configurations
having a maximum of seven
wires on either side.
The sleeves are marked
1, 2, 3, 3A and 4 to denote the
size.
n
Excellent Environmental
Sealing (2 x 10
8
Ohms
minimum after 24 hrs
immersion in 5% NaCl)
n
Quick installation
n
Zero Halogen
n
Inspectable after installation
n
Mechanical Protection
against flexing, abrasion and
cut-through
n
Applications versatility – one
tubing size covers a broad
range of ground wire sizes
and wire combinations
n
Small cross-sectional profile
n
Temperature rated to 125°C
n
RoHS/ELV compliant
16
All specifications subject to change. Consult TE Connectivity for latest specifications.
Protection Products
Harness Design
Catalog 1654296-3
Revised 10-2012
Dual-Wall, Moisture Proof, Heat-Shrinkable Tubing to Protect Electrical Splices
Product Features
QSZH-125 Tubing
n
Continuous operating
temperatures from –40°C up
to +125°C (3000 hrs)
n
4:1 shrink ratio
D
H*
W
d
W = Jacket only
d = Inner diameter of jacket only
H
Q
= Inner diameter of adhesive liner
L
Product Dimensions
Inside Diameter
Size
NR1
NR2
NR3
NR3A
NR4
D (min)
Expanded
as
Supplied
5.75
7.50
11.00
14.00
18.30
H (max)
Q
Recovered
after
Heating
1.25
1.65
2.40
3.00
4.35
d (max)
Recovered
Jacket after
Heating
2.65
3.45
4.65
5.90
7.40
Wall Thickness (mm)
W (min)
Recovered
Jacket after
Heating
0.6
0.7
0.8
0.9
0.9
W+
Adhesive
Liner
(min)
1.15
1.4
1.8
2.15
2.2
Length
QQ
L
(nom)
50
50
65
65
75
Ordering Description
QSZH-125-NR1
QSZH-125-NR2
QSZH-125-NR3
QSZH-125-NR3A
QSZH-125-NR4
Refer to the Installation Guidelines document before selecting size (PIP-101).
The wall thickness of the tubing will be less than specified if recovery is restricted during shrinkage.
Q
) Nominal values for reference only.
Other lengths are available subject to special order.
QQ
)
Ordering Information
Standard Colour
Jacket
Clear
Installation
Adhesive
Black
The product may be installed using a TE Automotive RBK-ILS Processor or other
recommended application equipment.
Consult your local TE Automotive office for more information.
Refer to PIP-101
Specify product name, size and colour (for example QSZH-125-NR)
Series
QSZH-125 Tubing
TE
RK-6771
Size Selection
Ordering Description
Specifications/Approvals
+125 °C
–40 °C
Operating
Temperature Range
Shrinking Ratio
4:1
Shrink
Temperature
+135 °C
Fluid Resistant
All specifications subject to change. Consult TE Connectivity for latest specifications.
17
