97-4101A2821S: DescriptionCircular MIL Spec Connector 37P Sz 28 Sckt Crimp Cable Mnt Receptacle; CategoryThe connector; File Size1002KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

97-4101A2821S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	97-4101A2821S	-	-	View	Buy Now

97-4101A2821S Overview

Circular MIL Spec Connector 37P Sz 28 Sckt Crimp Cable Mnt Receptacle

97-4101A2821S Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Amphenol
Product Category	Circular MIL Spec Connector
RoHS	Details
Number of Positions	37 Position
Insert Arrangement	28-21
Contact Gender	Socket (Female)
MIL Type	MIL-DTL-5015
Product	Receptacles
Shell Size	28
Shell Style	In-Line
Mounting Style	Wire
Termination Style	Crimp
Contact Plating	Silver
Contact Material	Copper Alloy
Mounting Angle	Straight
Shell Plating	Olive Drab Chromate over Cadmium
Mating Style	Threaded
Shell Material	Aluminum Alloy
Factory Pack Quantity	1

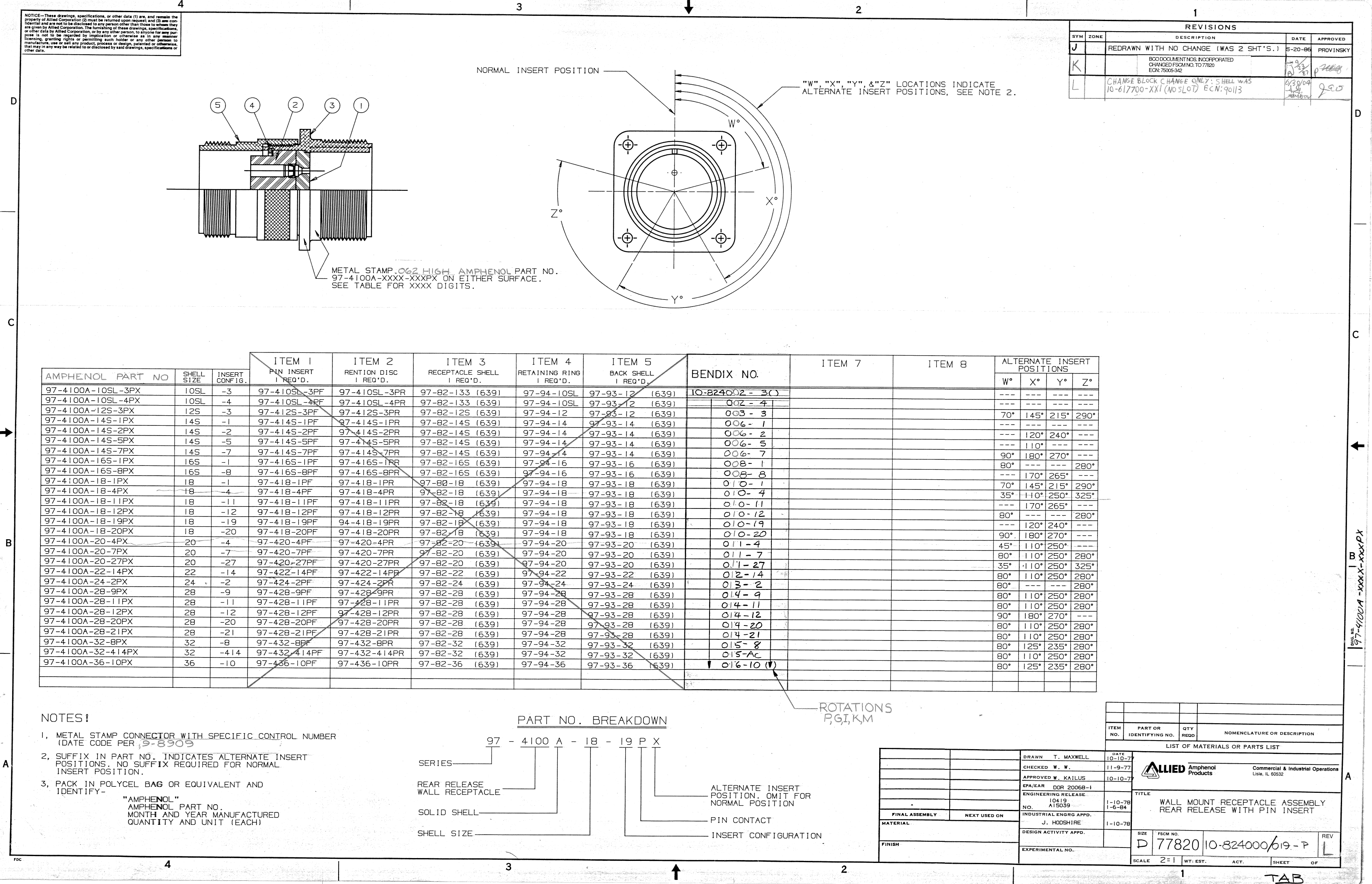

Preview

Download Datasheet

View All

97 series crimp type

how to order

Example of part number for crimp type connectors is given below.

4101

A – 28 – 21

(621)

Series Number

97 - designates

AMPHENOL 97 Series

Shell Type

4100 Wall Receptacle

4101 Cable Receptacle

4102 Box Receptacle

4106 Straight Plug

4107 Quick Disconnect Plug

4108 Angle Plug

Note: “4” in part number

designates crimp contact rear

release connector

Shell Finish Suffix

Omit for standard O.D.

cadmium finish

(604) Gray anodized

(608) Black anodized

(624) Green zinc alloy

(639) Clear cadmium

(640) Conductive black zinc alloy

(689) Electroless nickel

RoHS Compliant Suffix

(621) Black zinc alloy

plating

pheno

002

Shell Construction

A - Solid Backshell

B - Split Backshell

Shell Size

10SL, 12S, 14S, 16S, 18, 20,

22, 24, 28, 32, 36

Alternate Insert Positions

Omit for standard position

W, X, Y or Z for alternate positions,

depending on insert (see page 21 for

positions available)

Insert Configuration Number

See insert availability listing - page 21,

and see insert arrangement illustrations -

pages 22 and 23.

Contact Type*

P = Pin

S = Socket

* Contacts are not supplied with connectors, and

must be ordered separately. See following pages

for contact information.

Note:

Accessories for 97 Series Connectors should be

ordered with matching connector plating. See

accessory pages 33-39.
