DDR SDRAM 256Mb E-die (x4, x8)
DDR SDRAM
256Mb E-die DDR SDRAM Specification
60Ball FBGA (x4/x8)
INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS,
AND IS SUBJECT TO CHANGE WITHOUT NOTICE.
NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE,
TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL
INFORMATION IN THIS DOCUMENT IS PROVIDED
ON AS "AS IS" BASIS WITHOUT GUARANTEE OR WARRANTY OF ANY KIND.
1. For updates or additional information about Samsung products, contact your nearest Samsung office.
2. Samsung products are not intended for use in life support, critical care, medical, safety equipment, or similar
applications where Product failure couldresult in loss of life or personal or physical harm, or any military or
defense application, or any governmental procurement to which special terms or provisions may apply.
* Samsung Electronics reserves the right to change products or specification without notice.
Rev. 1.3 April, 2005
DDR SDRAM 256Mb E-die (x4, x8)
256Mb E-die Revision History
Revision 1.0 (June, 2003)
- First release
Revision 1.1 (August, 2003)
- Corrected typo
Revision1.2 (October, 2004)
- Corrected typo.
Revision1.3 (April, 2005)
- Added notice and corrected typo.
DDR SDRAM
Rev. 1.3 April, 2005
DDR SDRAM 256Mb E-die (x4, x8)
Key Features
• Double-data-rate architecture; two data transfers per clock cycle
• Bidirectional data strobe
[DQ] (x4,x8)
Four banks operation
• Differential clock inputs(CK and CK)
• DLL aligns DQ and DQS transition with CK transition
• MRS cycle with address key programs
-. Read latency 2, 2.5 (clock)
-. Burst length (2, 4, 8)
-. Burst type (sequential & interleave)
• All inputs except data & DM are sampled at the positive going edge of the system clock(CK)
• Data I/O transactions on both edges of data strobe
• Edge aligned data output, center aligned data input
• DM for write masking only (x4, x8)
• Auto & Self refresh
• 7.8us refresh interval(8K/64ms refresh)
• Maximum burst refresh cycle : 8
• 60Ball FBGA package
DDR SDRAM
Ordering Information
Part No.
K4H560438E-GC/LB3
K4H560438E-GC/LA2
K4H560438E-GC/LB0
K4H560838E-GC/LB3
K4H560838E-GC/LA2
K4H560838E-GC/LB0
32M x 8
64M x 4
Org.
Max Freq.
B3(DDR333@CL=2.5)
A2(DDR266@CL=2)
B0(DDR266@CL=2.5)
B3(DDR333@CL=2.5)
A2(DDR266@CL=2)
B0(DDR266@CL=2.5)
SSTL2
60 FBGA
SSTL2
60 FBGA
Interface
Package
Operating Frequencies
B3(DDR333@CL=2.5)
CL-tRCD-tRP
Speed @CL2
Speed @CL2.5
2.5-3-3
133MHz
166MHz
A2(DDR266@CL=2)
2-3-3
133MHz
133MHz
B0(DDR266@CL=2.5)
2.5-3-3
100MHz
133MHz
*CL : CAS Latency
Rev. 1.3 April, 2005
DDR SDRAM 256Mb E-die (x4, x8)
Ball Description (Bottom
View)
DDR SDRAM
64M x 4bit
1
2
3
7
8
9
VSSQ
NC
VSS
A
VDD
NC
VDDQ
NC
VDDQ
DQ3
B
DQ0
VSSQ
NC
NC
VSSQ
NC
C
NC
VDDQ
NC
NC
VDDQ
DQ2
D
DQ1
VSSQ
NC
NC
VSSQ
DQS
E
NC
VDDQ
NC
VREF
VSS
DM
F
NC
VDD
NC
CK
CK
G
WE
CAS
A12
CKE
H
RAS
CS
A11
A9
J
BA1
BA0
A8
A7
K
A0
A10/AP
A6
A5
L
A2
A1
A4
VSS
M
VDD
A3
32M x 8bit
1
2
3
7
8
9
VSSQ
DQ7
VSS
A
VDD
DQ0
VDDQ
NC
VDDQ
DQ6
B
DQ1
VSSQ
NC
NC
VSSQ
DQ5
C
DQ2
VDDQ
NC
NC
VDDQ
DQ4
D
DQ3
VSSQ
NC
NC
VSSQ
DQS
E
NC
VDDQ
NC
VREF
VSS
DM
F
NC
VDD
NC
CK
CK
G
WE
CAS
A12
CKE
H
RAS
CS
A11
A9
J
BA1
BA0
A8
A7
K
A0
A10/AP
A6
A5
L
A2
A1
A4
VSS
M
VDD
A3
Organization
64Mx4
32Mx8
Row Address
A0~A12
A0~A12
Column Address
A0-A9, A11
A0-A9
DM is internally loaded to match DQ and DQS identically.
Row & Column address configuration
Rev. 1.3 April, 2005
DDR SDRAM 256Mb E-die (x4, x8)

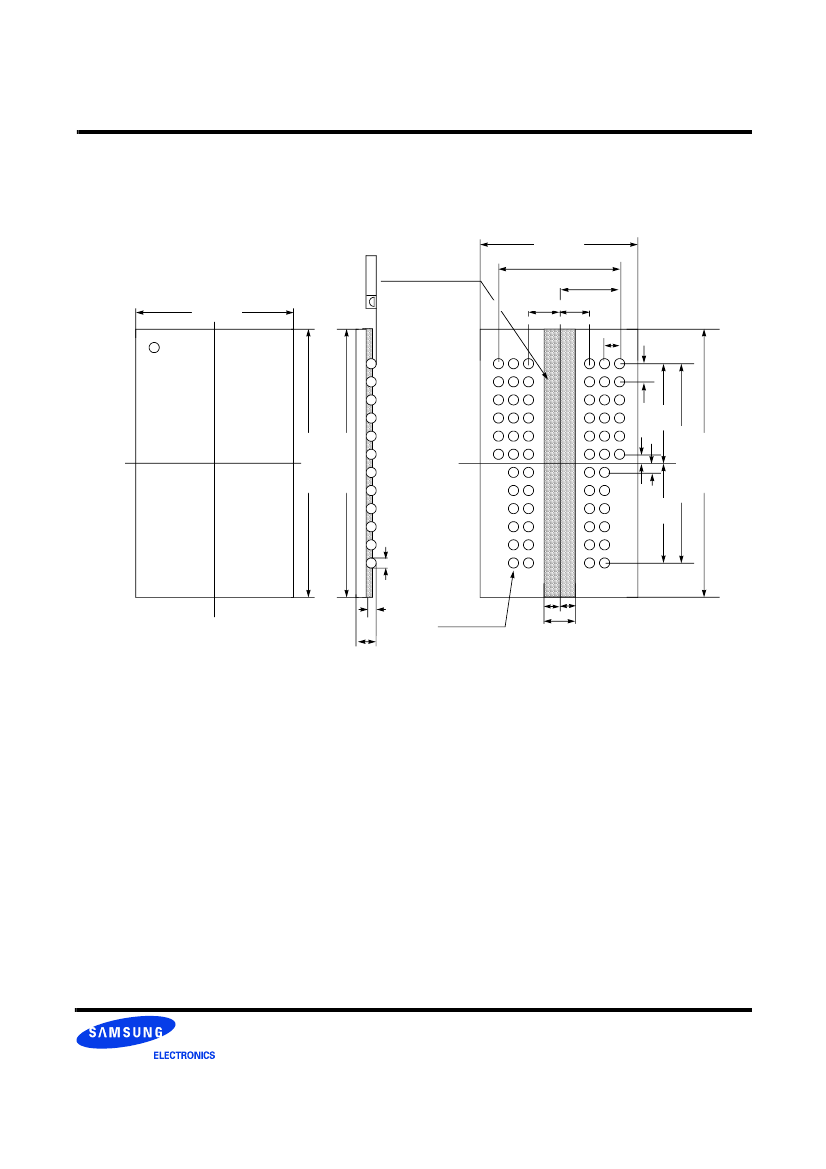

Package Physical Dimension
( Unit : mm )
DDR SDRAM
8.00
±
0.10
0.10 Max
0.80 x 8 = 6.40
ENCAPSULANT AREA
0.80 x 4 = 3.20
1.60
9
8
7
6
5
1.60
4
3
2
1
0.80
1.00
0.50
5.50
1.00 x 11 = 11.00
A
B
C
D
14.00
±
0.10
E
14.0
±
0.10
F
G
H
0.45
±
0.05
J
K
L
M
0.50
5.50
8.0 0± 0.10
0.35
±
0.05
60 - 0.45
π
±
0.05
(0.90)
(1.80)
(0.90)
TOP VIEW
1.10± 0.10
BOTTOM VIEW
60Ball FBGA Package Dimension
