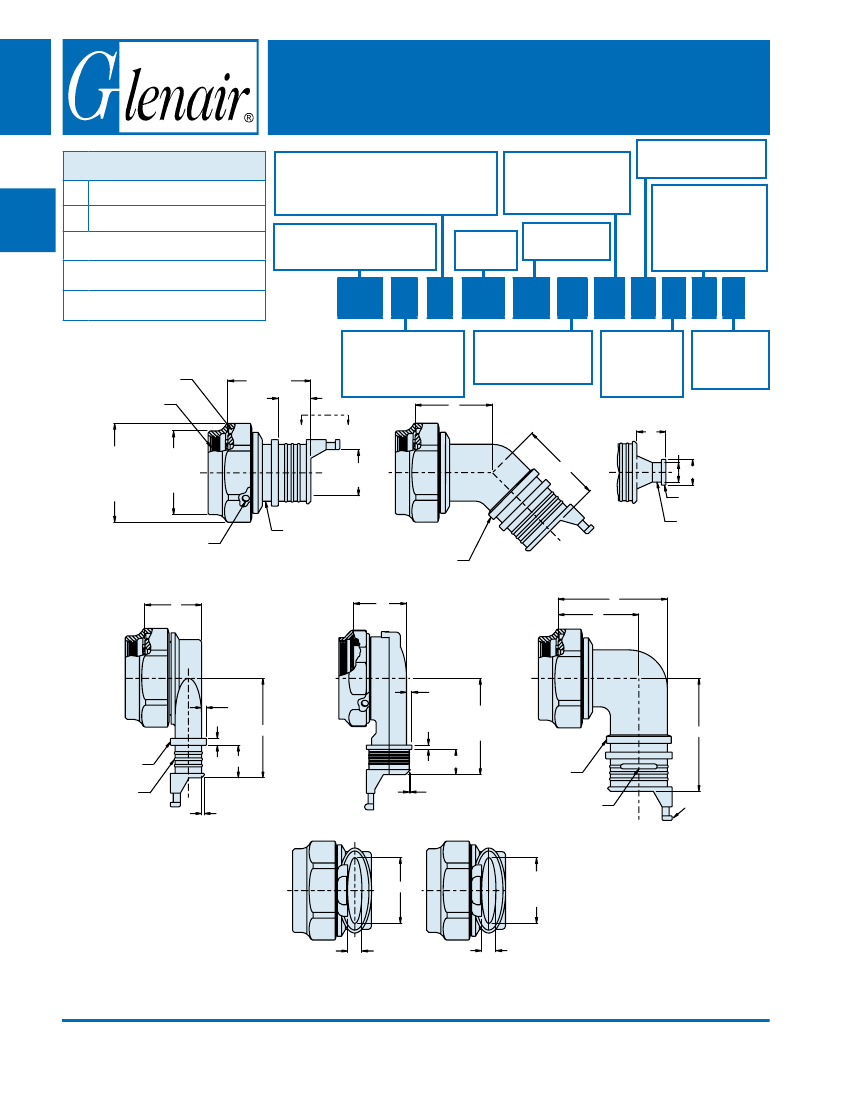

Micro-Banding Backshell with Qwik-Ty, Shrink Boot Porch

and Self-Locking Rotatable Coupling

CONNECTOR DESIGNATOR:

Angle and Profile

S

- Straight

A

- 90° Low Profile, Std

T

- 45° Elbow

E

- 90° Low Profile, Split

W

- 90° Low Profile, Solid

Product Series

440

- EMI/RFI Non-Environmental

Micro-Banding Backshells

Cable Entry

(See

Table II)

Omit for E and

W Option Only

Finish Symbol

(See

Table III)

Drain Hole Option

(Omit

"D" if not required)

Shrink Boot Option

Shrink boot supplied

with

T

option

O-Ring will not be supplied

with Connector Designator A

440-143

Composite Ultra Low Profile EMI/RFI

Composite

Backshells

A

F

H

MIL-DTL-38999 Series I, II

MIL-DTL-38999 Series III and IV

SELF-LOCKING

ROTATABLE COUPLING

ULTRA LOW PROFILE

Basic Part

Number

(Omit

for none)

440

H

S

143

XM 15 09 D B T S

Band Option

Band supplied

with

B

option

(Omit

for none)

Shield

Termination

Slot

(Omit

for none)

B

Anti Decoupling

Device Typ

A Thread

Typ

.962 Max

.320

Typ

Connector Designator

A, F or H

(See

Table I)

See Note 1

H

Connector Shell Size

(See

Table I)

See Note 1

A

D Dia

Typ

J

G

E

F

Qwik Ty

©

Strain Relief

AS33671 Tie Strap

or Equivalent

C

C Dia

Max

Typ

See

Note 1

B Dia

Max

See

Note 1

Optional Ø .125 Drain Holes

Minimum 3 Spaced

Equally - Typ

Sym S

Straight

Shrink Sleeve

or Boot Groove Typ

Raised Configuration

(Mfr's Option)

N

T

See

Note 4

R

P

Sym T

45°

View A-A

Typ

D

N

Sym W

90° - Low Profile

(Solid)

.025

.065

K

.32

.025

.065

E

Shrink Sleeve

or Boot Lip

Accommodates

600-057

Micro-Band

.07

Sym E

90° - Low Profile

(Split)

.07

.32

.02

K

See

Note 4

Sym A

90° - Std

S

Raised Configuration

(Mfr's Option)

Shield Termination Slot

Qwik Ty

©

Location Optional

Sym A Only

.021

F

M

L

See

Note 4

G

M

See

Note 4

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

A-74

REV 22 NOVEMBER 2013
