440-084

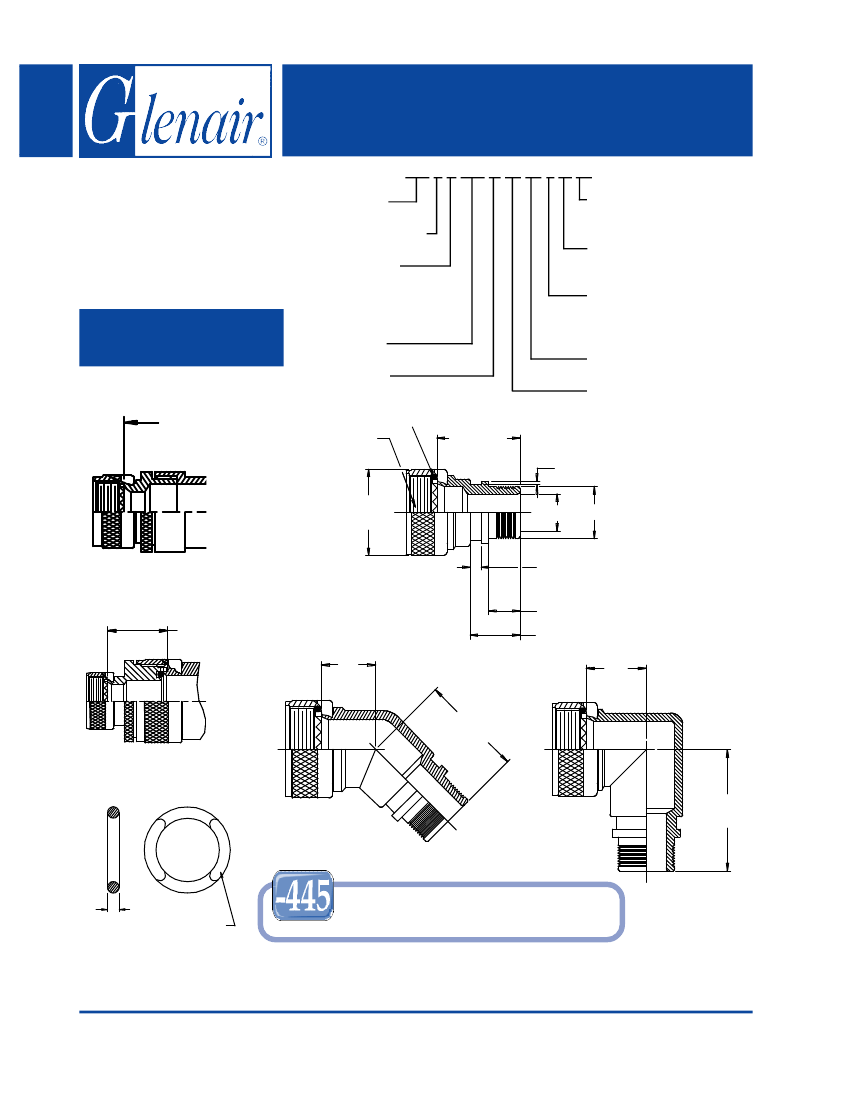

EMI/RFI Tinel-Lock
®
Ring Adapter
Rotatable Coupling - Standard Profile
440
CONNECTOR
DESIGNATORS
440 F S 084 M 20 12-8 AI T1
Product Series
Connector Designator
Angle and Profile
H = 45
J = 90
S = Straight
Basic Part No.
Cable Entry (Table IV)
Finish (Table II)
Shell Size (Table I)
O-Ring
A Thread
(Table I)
Length **
** Length ± .060 (1.52)
Min. Order Length 1.0 inch
(See Note 4)
L (Table IV)
J*
K*
* (Table IV)
.135 (3.4)
±.005 (.1)
.272 (6.9) Ref.
Tinel-Lock
fi
Ring Supplied
(Table V - Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Shrink Boot Options
(Table IV - Omit for none)
A-F-H-L-S
ROTATABLE
COUPLING
FOR TINEL-LOCK
®
RING TERMINATIONS
Length ± .060 (1.52)
Min. Order
Length 1.5 inch
C Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
E
(Table III)
.525 (13.3)
G
(Table III)
F (Table III)
STYLE 2
(45° & 90°
See Note 1)
H
(Table III)
.070 (1.8)
Thermochromic
Paint (Note 6)
Tinel-Lock
®
Ring
Option (See Table V)
© 2005 Glenair, Inc.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
Tinel-Lock
®
is a registered trademark of Tyco
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 60
Rotatable Coupling - Standard Profile
Shell Size
Conn. Desig.
H
A-F-L-S
03
09
08
10
11
13
12
14
15
17
16
18
19
21
20
22
23
25
24
28
32
36
40
44
48
61
TABLE III: ELBOW DIMENSIONS
E
Max
.64 (16.3)
.64 (16.3)
.66 (16.8)
.69 (17.5)
.71 (18.0)
.73 (18.5)
.75 (19.1)
.77 (19.6)
.80 (20.3)
.82 (20.8)
1.04 (26.4)
1.09 (27.7)
1.14 (29.0)
1.18 (30.0)
1.24 (31.5)
1.29 (32.8)
1.00 (25.4)
F
Max
.89 (22.6)
.89 (22.6)
.92 (23.4)
.94 (23.9)
.97 (24.6)
.99 (25.1)
1.00 (25.4)
1.02 (25.9)
1.06 (26.9)
1.09 (27.7)
1.26 (32.0)
1.30 (33.0)
1.35 (34.3)
1.39 (35.3)
1.44 (36.6)
1.49 (37.8)
1.21 (30.7)
G
Max
.75 (19.1)
.75 (19.1)
.81 (20.6)
.87 (22.1)
.92 (23.4)
.98 (24.9)
1.02 (25.9)
1.08 (27.4)
1.14 (29.0)
1.20 (30.5)
1.48 (37.6)
1.61 (40.9)
1.72 (43.7)
1.83 (46.5)
1.95 (49.5)
2.08 (52.8)
1.39 (35.3)
H
Max
1.00 (25.4)
1.00 (25.4)
1.06 (26.9)
1.12 (28.4)
1.19 (30.2)
1.25 (31.8)
1.27 (32.3)
1.33 (33.8)
1.41 (35.8)
1.48 (37.6)
1.72 (43.7)
1.81 (46.0)
1.92 (48.8)
2.03 (51.6)
2.16 (54.9)
2.28 (57.9)
1.57 (39.9)
Tinel-Lock
®
Ring Entry
Size
04
05
06
07
08
10
12
14
16
18
20
22
See inside back
cover fold-out or
pages 13 and 14 for
Tables I and II.
Dash
No.
04
05
06
07
08
10
12
14
16
18
20
22
J
I.D.
.250 (6.4)
.312 (7.9)
.375 (9.5)
.437 (11.1)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
K
Dia Max
.375 (9.5)
.437 (11.1)
.500 (12.7)
.562 (14.3)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
TABLE IV: CABLE ENTRY
L
+.008
(.2)
Shrink Boot
-.000
(.0)
Option T1*
.044 (1.1) 770-001S103W1
.044 (1.1) 770-001S104W1
.044 (1.1) 770-001S104W1
.044 (1.1) 770-001S105W1
.044 (1.1) 770-001S105W1
.044 (1.1) 770-001S106W1
.044 (1.1) 770-001S107W1
.069 (1.8) 770-001S107W1
.069 (1.8) 770-001S107W1
.069 (1.8) 770-001S108W1
.069 (1.8) 770-001S108W1
.084 (2.1) 770-001S108W1
Shrink Boot
Option T2**
770-001S203W1
770-001S204W1
770-001S204W1
770-001S205W1
770-001S205W1
770-001S206W1
770-001S206W1
770-001S207W1
770-001S207W1
770-001S208W1
770-001S208W1
770-001S208W1
*T1 Option: Glenair shrink boot supplied with W1 high temperature hot melt adhesive.
**T2 Option:
This is a halogen-free system.
Glenair shrink boot supplied with W1 high temperature hot melt adhesive.
1. When maximum cable entry (page 21) is exceeded, Style 2 will be sup-
plied. Dimensions E, F, G, and H will not apply. Please consult factory.
2. Interface O-Ring not supplied with Connector Designator A.
3. Consult factory for shorter lengths on straight backshells.
4. See pages 40 for Shrink Boot Reference Information.
5. The Tinel-Lock
®
ring designator must be specified according to the type of
cable braid used. Tinel-Lock
®
rings are marked with thermochromic paint
which changes color when the correct installation temperature is reached.
BI rings are identified with a red spot. CI rings are identified with a blue
spot.
© 2012 Glenair, Inc.
CAGE Code 06324
TABLE V: TINEL-LOCK
®
RING
Ring
Braid Type
Designator
Single Layer 36 AWG
AI
Single Layer 34 AWG
AI
Single Layer 32 AWG
BI
Single Layer 30 AWG
BI
Double Layer 36 AWG
BI
Double Layer 34 AWG
BI
Double Layer 32 AWG
CI
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 61
