SD Memory Card Connectors
DM1 Series
Withstands higher force of card insertion.
Card
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
Standard type
Metal cover extends over the back of the connector.
■

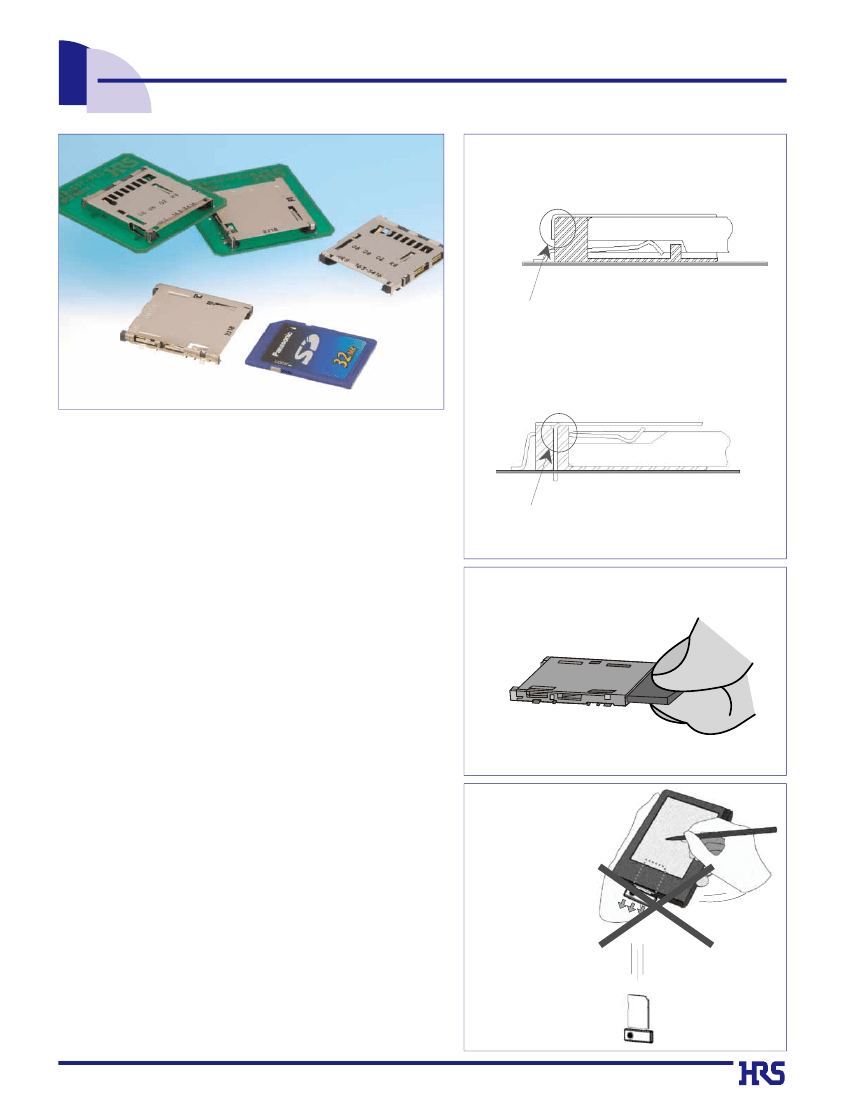

Features
1. Withstands higher force of card insertion
Metal cover extends over the back of the connector
allowing it to withstand force of up to 400N (static load)
when dropped or accidentally hit. (Fig.1)
Card
Reverse type
2. No damage to the card when accidentally
pulled-out
The connectors will release the card when a moderate
pull-out force of about 4N is applied. There will be no
damage to the lock components and all connector
functions will not be affected. (Fig.2)
Metal cover extends over the back of the connector.
Fig.1
No damage to the card when
accidentally pulled-out.
3. Accidental card fall-out prevention
Built-in lock feature holds the card securely in place.
(Fig.3)
4. Reliable Card Insertion and Withdrawal
Built-in Push-in / Push-out ejection mechanism assures
simple and reliable card insertion and withdrawal.
5. Designed to accept Secure Digital I/O card
(Built-in Ground Contact)
The connector allows use of various expansion
modules, including the Bluetooth communication
modules.
Accidental card
fall-out prevention
Fig.2
Fig.3
C39
■Product
Specifications
Rating
Current rating 0.5A DC
Voltage rating 125V AC
Operating temperature range : -25ç to +85ç (Note 1) Operating humidity range : Relative humidity 95%
max. (No condensation)
Storage temperature range : -40ç to +85ç (Note 2)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity
Specification
1000Mø min. (Initial value)
No flashover or insulation breakdown
100mø max. (Initial value)
No electrical discontinuity of 100ns or more
Contact resistance : 40mø max. from initial value
Insulation resistance : 100Mø min.
Contact resistance : 40mø max. from initial value
Insulation resistance : 100Mø min.
Conditions
500V DC
500V AC / one minute
100mA DC
Frequency : 10 to 55Hz, single amplitude of 0.75mm, 2 hours / 3 axis
96 hours at temperature of 40ç
±
2ç and
humidity of 90% to 95%
Temperature : -55ç
/
+5ç to +35ç
/
+85ç
/
+5ç to +35ç
Duration : 30
/
5
/
30
/
5 (Minutes) 5 cycles
10000 cycles at 400 to 600 cycles per hour
Reflow : At the recommended temperature profile
Manual soldering : 350ç for 3 seconds
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
6. Temperature cycle
7. Durability (mating/un-mating) Contact resistance : 40mø max. from initial value
8. Resistance to soldering heat No deformation of components affecting performance.
Note1 : Includes temperature rise caused by current flow.
Note2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during
transportation.
■Materials
/ Finish
Component
Insulator
Contacts
Cover
Others
Material
Heat resistant thermoplastic compound
Phosphor bronze
Stainless steel
Stainless steel
Piano wire
Finish
Color: Black
Contact area: Gold plating
Termination area: Tinned copper plating
Termination area: Tinned copper plating
----------
----------
Nickel plating
Remarks
UL94V-0
----------
----------
----------
----------
----------
----------
■Product
Number Structure
DM1 AA - SF - PEJ
1
1
Series name
2
Connector type
2
3
4
3
Terminal type
SF : Right angle surface mount
DSF : Reverse right angle surface mount
4
Eject mechanism codes
PEJ : Card Push insert/Push withdraw
:
DM1
:
AA : Standard receptacle
:
B : Reverse receptacle
C40

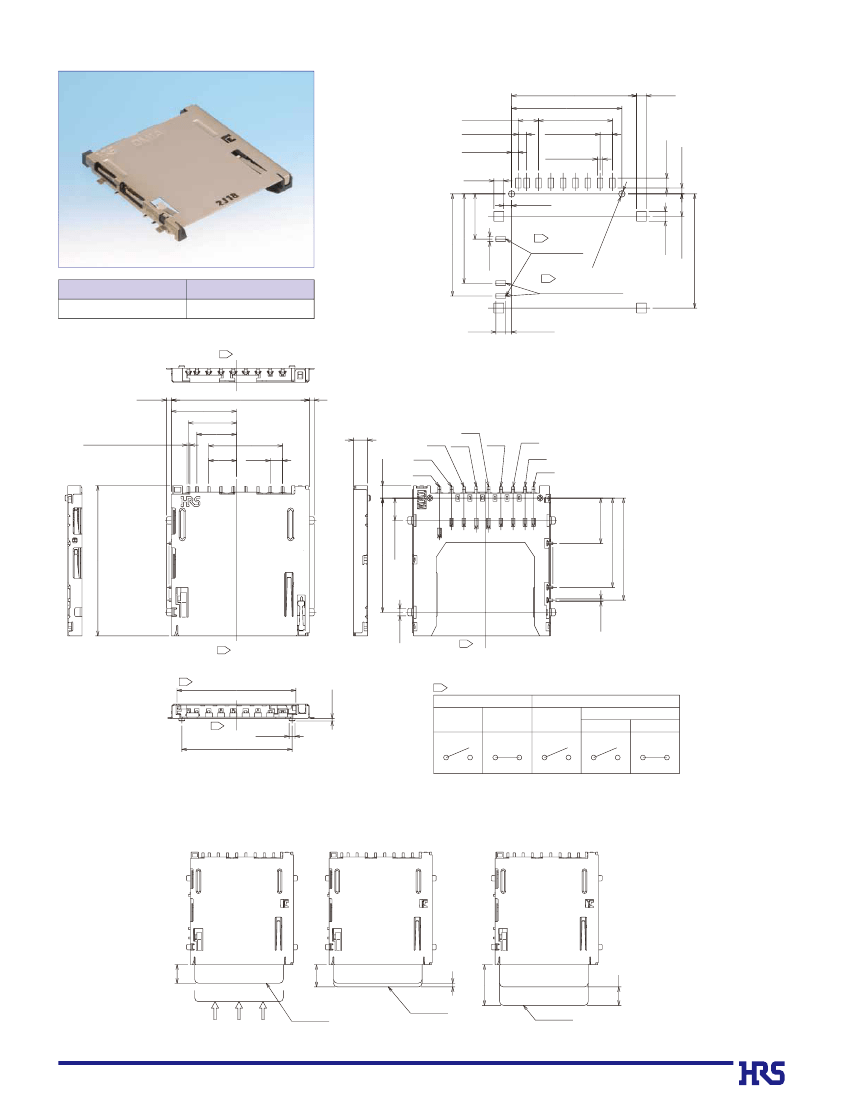

■Standard
type
BPCB
mounting pattern
25.4±0.05
4.125±0.05
1.7±0.05
1.35±0.05
2
+0.1
0
20.75±0.05
18.15±0.05
9.2±0.05
1.6±0.05
4.55±0.05
22.4±0.05
15±0.05
P=2.5±0.05
2±0.05
+0
0 .1
2
+0.1
0
9-1.1±0.05
4-2
+0.1
0
1.2±0.05
23.2±0.05
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
3-1
+0.1
0
Part No.
DM1AA-SF-PEJ(82)
HRS No.
609-0004-8 82
2
+0.1
0
1
C
L
2
Write protection switch
1.2±0.05
1
13.2
9.75
8.05
t=0.2,W=0.6
5.625
28
1
15
P2.5
2.9
No.4
No.2 No.3
No.5
2.5
No.1
No.9
No.6
No.7
No.8
9.2
30.5
23.2
4.55
4-1.5
1
C
L
1
C
L
1
24.15 (Card slot dimension)
0.55
1
C indicates the center line of card slot.
L
Card detection switch
When card When card
is ejected is inserted
OPEN
CLOSE
Write protection switch
When card is inserted
When card
is ejected WRITE PROTECT WRITE ENABLE
OPEN
OPEN
CLOSE
1
C
L
22.4
2-Ø1.2
Weight:2.2g
2-Ø
1.3
3-0.5
5
18.15
20.75
2
Card detection switch
BCard
insertion/withdrawal dimensions
5
6
1
SD Card
Card pushed-in for insertion
SD Card
11
SD Card
Card ejected
(Card ejected dimension)
Card fully inserted
C41

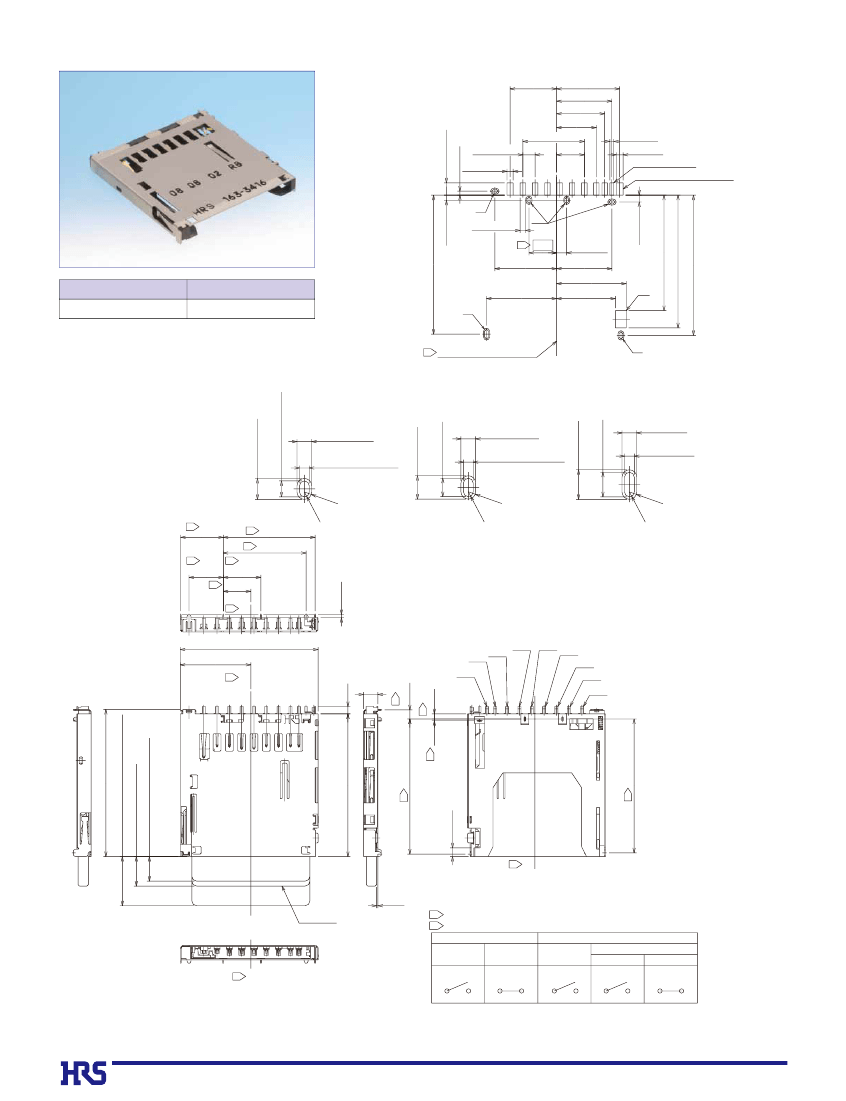

■Reverse
type
BPCB
mounting pattern
9.47±0.05
12.8±0.05
11.2±0.05
9.75±0.05
8.05±0.05
11-2.5±0.05
12.5±0.05
0.8±0.05
P=2.5±0.05
1.25±0.05
5.625±0.05
0.8±0.05
1.4±0.05
CARD DETECT
COMMON FOR CD & WP
1.05±0.05
8-1.1±0.05
3
A
5.62
1.4±0.05
A
23.48±0.05
28.25±0.05
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
12.57±0.05
11.23±0.05
14.13±0.05
WP
Part No.
DM1B-DSF-PEJ(82)
HRS No.
609-0003-5 82
14.25±0.05
C
11.93±0.05
3
A(5:1)
hole)
Center of Card dimension
C(5:1)
hole)
B
B(5:1)
hole)
+0.1
(Through
0
+0.1
(Through
0
+0.1
(Through
0
+0.1
-0.1
(Land)
(Land)
+0.1
(Land)
0
1.2
0.8
+0.1
(Land)
0
1.2
0.8
+0.1
(Land)
0
+0.1
(Through
0
1.2
0.8
+0.1
(Land)
0
+0.1
(Through
0
28.5±0.05
hole)
2.03±0.05
+0.1
-0.1
2.4
1.9
1.7
1.3
1.5
+0.1
(Through
0
hole)
(R0
.6)
(R0
.6)
2
hole)
(R0
.
(R0
.4)
6)
2
8.63
2
2
18.68
16.85
2
6.95
2
2
7.65
6-0.65
5.62
1
C
L
28
(14.35)
1
2.9
2
1.85
1.5
C
L
No.7
No.8
1.05
No.6
No.5
No.4
No.3
No.2
No.1
No.9
10:Card ejected(Card ejected dimension)
(5):Card pushed for insertion
(6):Card fully inserted
27.45
2
0.35
2
29.9
29
2
(1.77)
1
C
L
(0.25)
SD Card
1
2
C indicates the center line of the card slot.
L
indicates the dimension of DIP terminals.
Card detection switch
When card When card
is ejected
is ejected
1
C
L
OPEN
CLOSE
Write protection switch
When card is ejected
When card
is ejected WRITE PROTECT WRITE ENABLE
OPEN
OPEN
CLOSE
Weight:2.1g
C42
2
27.2
26.98±0.05
.4)
(R0
.4)
(R0

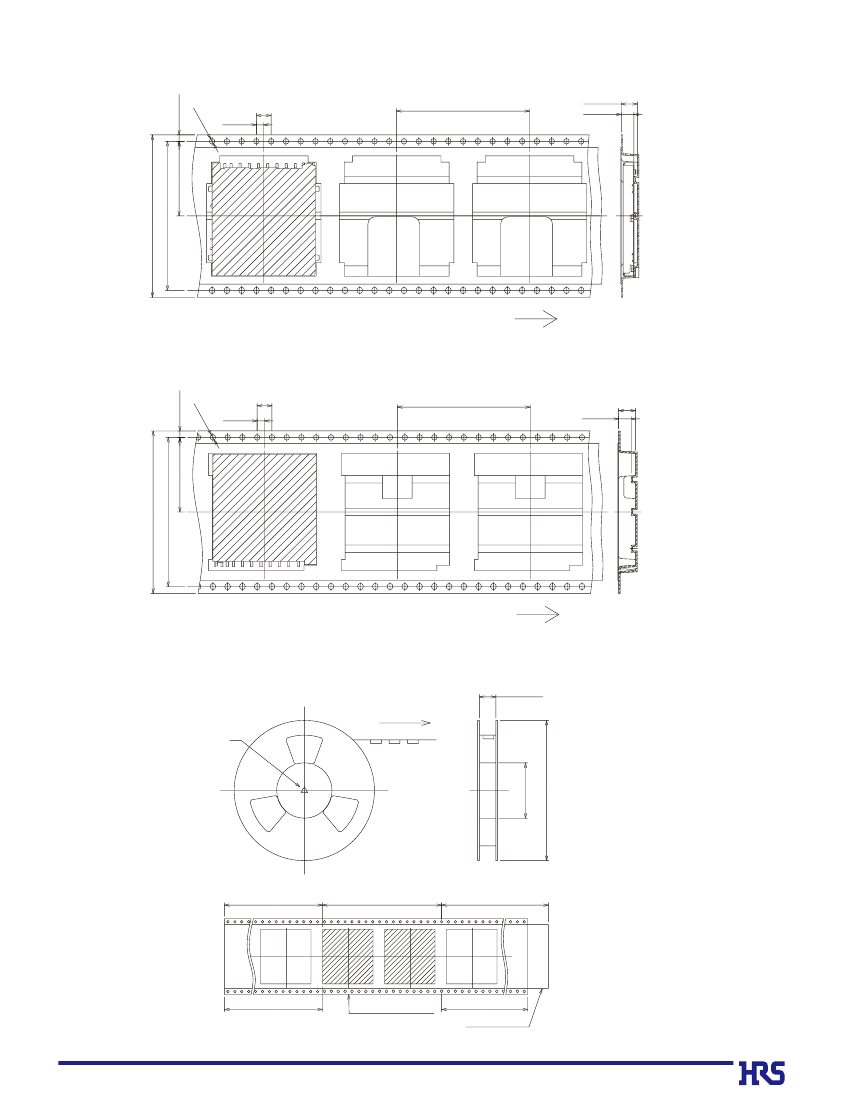

BPackaging
specifications
●
Embossed Carrier Tape Dimensions (Standard type) 450 pcs/reel
1.75±0.1
4±0.1
2±0.15
36±0.1
4.35±0.3
3.4±0.3
.5
Ø1
.1
+0
0
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
40.4±0.1
44±0.3
20.2±0.1
Unreeling direction
●
Embossed Carrier Tape Dimensions(Reverse type) 450 pcs/reel
1.75±0.1
4±0.1
2±0.15
36±0.1
3.4±0.3
4.6±0.3
.5
Ø1
.1
+0
0
40.4±0.1
44±0.3
20.2±0.1
Unreeling direction
●
Reel dimensions
44.4
+2
0
Unreeling direction
D
(Ø150)
End section
Mounting section(450)
Blank section(160mm min.)
Embossed carrier tape
Blank section (100mm min.)
Top cover tape
Lead section (400mm min.)
(Ø380)
C43
