MS3180-12: DescriptionCircular MIL Spec Tools, Hardware & Accessories PROT PLG CVR SH SZ12; CategoryThe connector Connector bracket; File Size173KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

MS3180-12 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS3180-12	-	-	View	Buy Now

MS3180-12 Overview

Circular MIL Spec Tools, Hardware & Accessories PROT PLG CVR SH SZ12

MS3180-12 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

G

Misc. Backshells

and Accessories

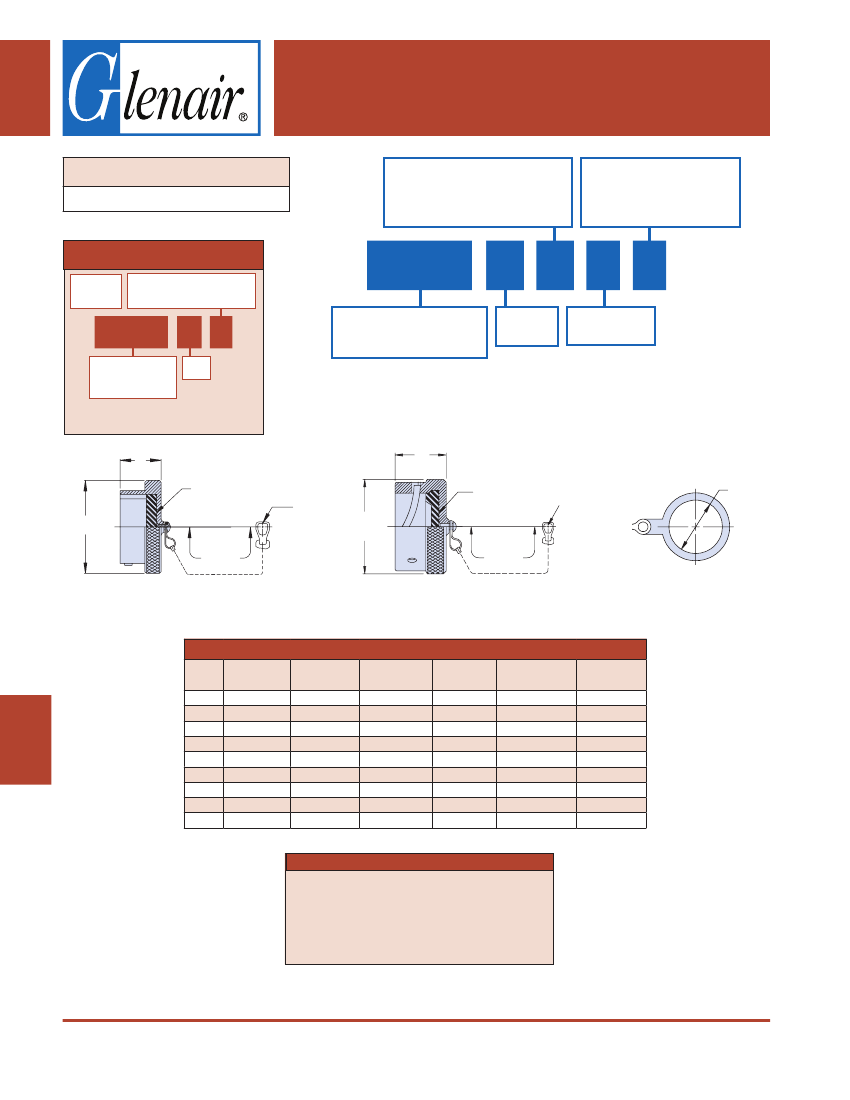

MATING CONNECTOR

MIL-DTL-26482

MS3180 and MS3181

Protective Plug and Receptacle Covers

Attachment Option

C

= Chain

N

= Chain with Ring (MS3181 Only)

R

= Wire Rope

Length

L

= Chain or Rope Length of 5

Inches (127.0 mm). Omit for

Standard (See K in Table I)

Prior Revision D Available:

Finish is

Cadmium

Olive Drab

Attachment Option

(Omit for None)

C

= Chain

N

= Chain with Ring (MS3181 Only)

MS3180

-

12

Basic Part Number

MS3180

= Plug Cover

MS3181

= Receptacle Cover

C

A

L

MS3180

-

12

Basic Part Number

MS3180

= Plug Cover

MS3181

= Receptacle

Cover

Shell

Size

C

Shell Size

(Table I)

Finish

A

= Anodize

NOTE: prior revision parts will NOT carry

the “JAN” marking

F

Gasket

G

K

J

Gasket

H

K

.167 (4.2)

Dia

.167 (4.2)

Dia

L

MS3180 Plug Cover

MS3181 Receptacle Cover

MS3181 Optional

Ring Attachment

TABLE I: Shell Size, Dimensions and Attachment

Shell

Size

8

10

12

14

16

18

20

22

24

F

Max

.562 (14.3)

.625 (15.9)

.658 (16.7)

G Dia

Max

.719 (18.3)

.844 (21.4)

1.000 (25.4)

1.125 (28.6)

1.250 (31.8)

1.375 (34.9)

1.500 (38.1)

1.625 (41.3)

1.750 (44.5)

H Dia

Max

.734 (18.6)

.859 (21.8)

1.000 (25.4)

1.125 (28.6)

1.250 (31.8)

1.375 (34.9)

1.500 (38.1)

1.625 (41.3)

1.750 (44.5)

J

Max

.562 (14.3)

.602 (15.3)

K Standard

Length

(Inches)

3.00 (76.2)

3.50 (88.9)

4.00 (101.6)

L Min

.578 (14.7)

.703 (17.9)

.891 (22.6)

1.016 (25.8)

1.141 (29.0)

1.266 (32.2)

1.391 (35.3)

1.516 (38.5)

1.641 (41.7)

APPLICATION NOTES

1.

2.

3.

Assembly identified with manufacturer’s name

and part number, space permitting.

For complete dimensions, see the applicable

Military Specification.

Metric dimensions (mm) are in parentheses.

Dimensions in inches (millimeters) and are subject to change without notice.

Mil-Spec Backshells and Accessories

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

G-10
