BM10JC-50DS-04V53

Description
Board to Board & Mezzanine Connectors 50P 2 ROW RECEPT SMT VERT .4MM PITCH
CategoryThe connector
File Size363KB,12 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Download Datasheet Parametric View All

BM10JC-50DS-04V53 Online Shopping

Suppliers Part Number Price MOQ In stock
BM10JC-50DS-04V53 - - View Buy Now

BM10JC-50DS-04V53 Overview

Board to Board & Mezzanine Connectors 50P 2 ROW RECEPT SMT VERT .4MM PITCH

BM10JC-50DS-04V53 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerHirose
Product CategoryBoard to Board & Mezzanine Connectors
RoHSDetails
ProductReceptacles
Number of Positions50 Position
Pitch0.4 mm
Number of Rows2 Row
Termination StyleSMD
Mounting AngleVertical
Current Rating300 mA
Voltage Rating30 V
PackagingReel
Contact PlatingGold
Housing MaterialLiquid Crystal Polymer (LCP)
Contact MaterialPhosphor Bronze
Insulation Resistance500 MOhms
Stack Height-
Factory Pack Quantity1000
0.4 mm Contact Pitch,Stacking Height 0.6mm 0.8mm Board-to-Board /Board-to-FPC Connectors
BM10 Series
Decrease in the board-occupied area
Series:
pos.
BM10
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BM10
×
×
figure.1
High contact reliability

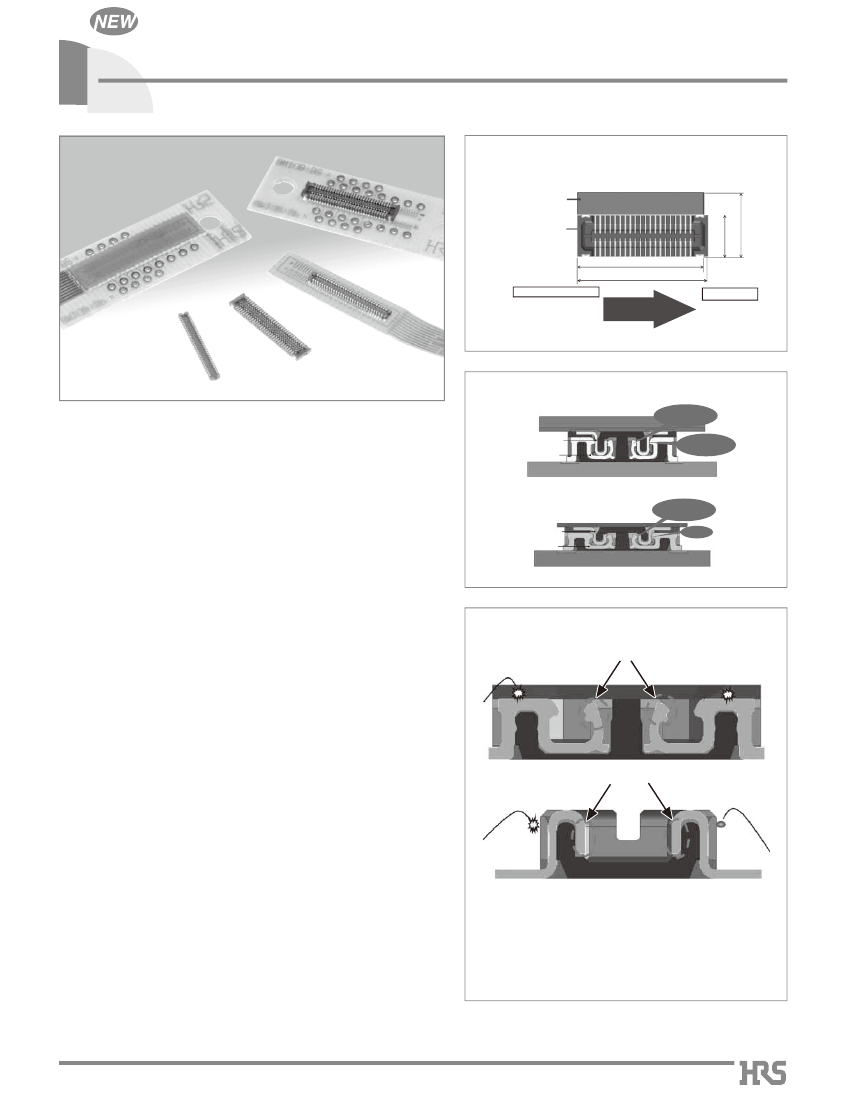

■Features
Header contact
Main contact
point
Auxiliary lock
point
1.H i g h e r d e n s i t y o f t h e b o a r d - m o u n t e d
components
Extremely small board mounting pattern and low abovethe-
board profile makes the connectors ideally suited for small
device applications.
Globally unrivalled compact depth:when mated 2.98mm
Header 2.46mm
Length - world’s smallest class:10.4mm
H=0.8
Receptacle contact
Main contact
point
Header contact
Receptacle contact
Lock
H=0.6
figure.2
2.Reliable electrical and mechanical connection
Despite its small mated height, unique contact configuration,
with a 2-point contacts and effective mating length of
0.2mm(height 0.8mm)and 0.1mm(height 0.6mm), assures
highly reliable connection while confirming a complete mating
with a definite tactile feel.
Splatter protection
3.Large self-alignment distance
The connectors will self-align within 0.3 mm.
4.Built-in shock absorbing feature
The protrusions and indents in the insulator bodies protect the
connectors from failures when exposed to sudden impact.
5.Solder wicking prevention
Nickel barriers prevent un-intentional solder wicking.
6.Contamination protection
Insulator walls protect the contact areas against flux splatter or
other physical particles contamination.
7.Conducive traces on the PCB can run under
the connector
No exposed contacts on the bottom of the connector.
figure.3
2010.9
1
