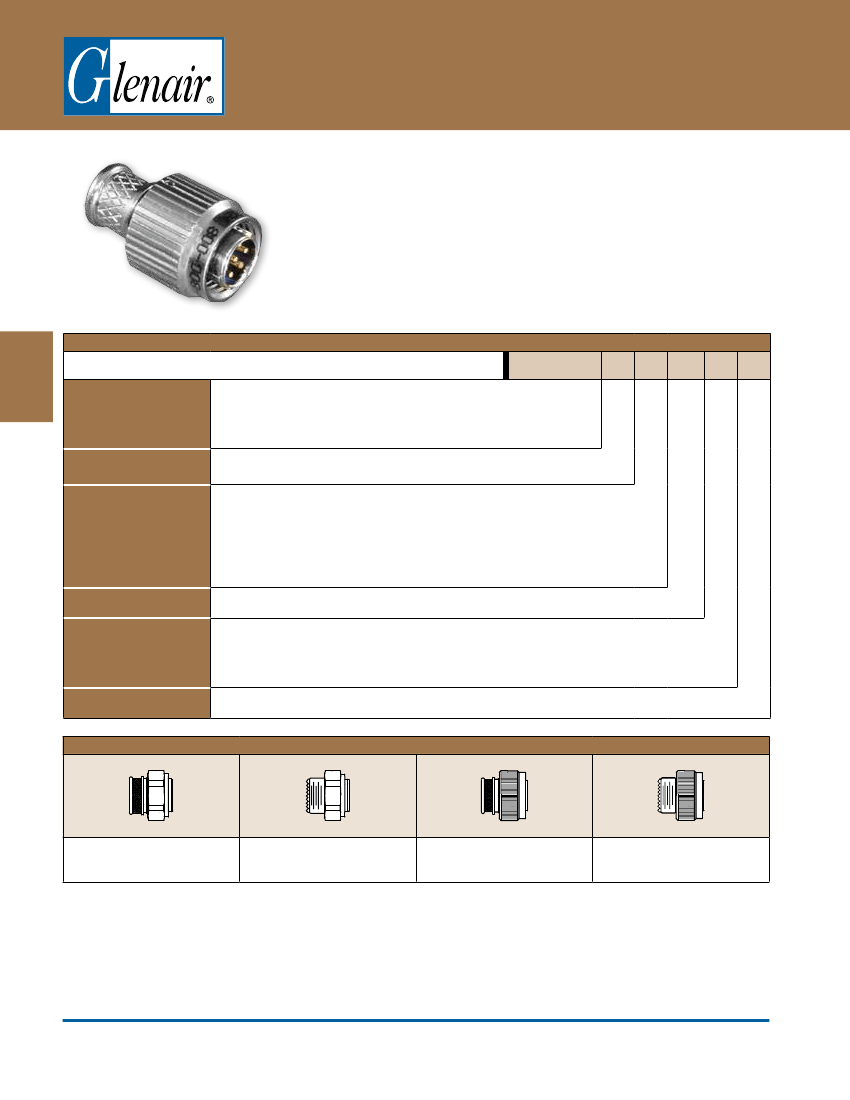

Series 800 Mighty Mouse UN Mating Thread Plug
800-006 Thru 800-009 Ordering Information
C
Series 800
Sample Part Number
Series (See Table I)
Shell Style
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
P
= Pin
S
= Socket
N
= Normal
Shell Key Positions
(See Table II)
800-006
Hex Plug with Banding Platform
© 2014 Glenair, Inc.
Glenair’s Smallest Mighty Mouse Connector
has compact size and rugged
design for hostile environments. UN mating thread. Connector shells are machined
aluminum or stainless steel. Supplied with crimp contacts, packaged separately.
Terminate contacts with standard M22520 tools. Metal clips inside the connector
body lock contact into place. Contacts are removable. Fluorosilicone seals and rear
grommet protect connector from water ingress. Choose hex or knurled coupling
nut. Terminate cable shield directly to connector body with Band-Master™ ATS
strap, or choose rear accessory thread to attach optional cable clamp or backshell.
Available in shell sizes 5 through 12 in 36 contact arrangements.
How To Order
800-006
800-006
= Hex Plug with Banding Platform
800-007
= Hex Plug with Accessory Thread
800-008
= Plug with Band Platform
800-009
= Plug with Accessory Thread
-06
= Standard Coupling Nut
-16
= Coupling Nut with Anti-Decoupling Wave Spring
C
= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
See Contact Arrangements page C-2
Connector supplied
with crimp contacts
Connector supplied
without contacts
A
= Pin Connector
B
= Socket Connector
X
= Pos. X
Y
= Pos. Y
Z
= Pos. Z
Connector supplied
with 30 AWG crimp contacts
G
= Pin
H
= Socket
-06
M
6-7
P
N
Table I: Series
800-007
Hex Plug with Accessory Thread
800-008
Knurled Round Plug with Band
Platform
800-009
Knurled Round Plug with Accessory
Thread
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
C-6
