portable
digital audio
solutions
------------------------------------------------------------------------------------
WM8711 WM8721 WM8731
www.wolfsonmicro.com
-------------------------------------------------------------------------------------------------

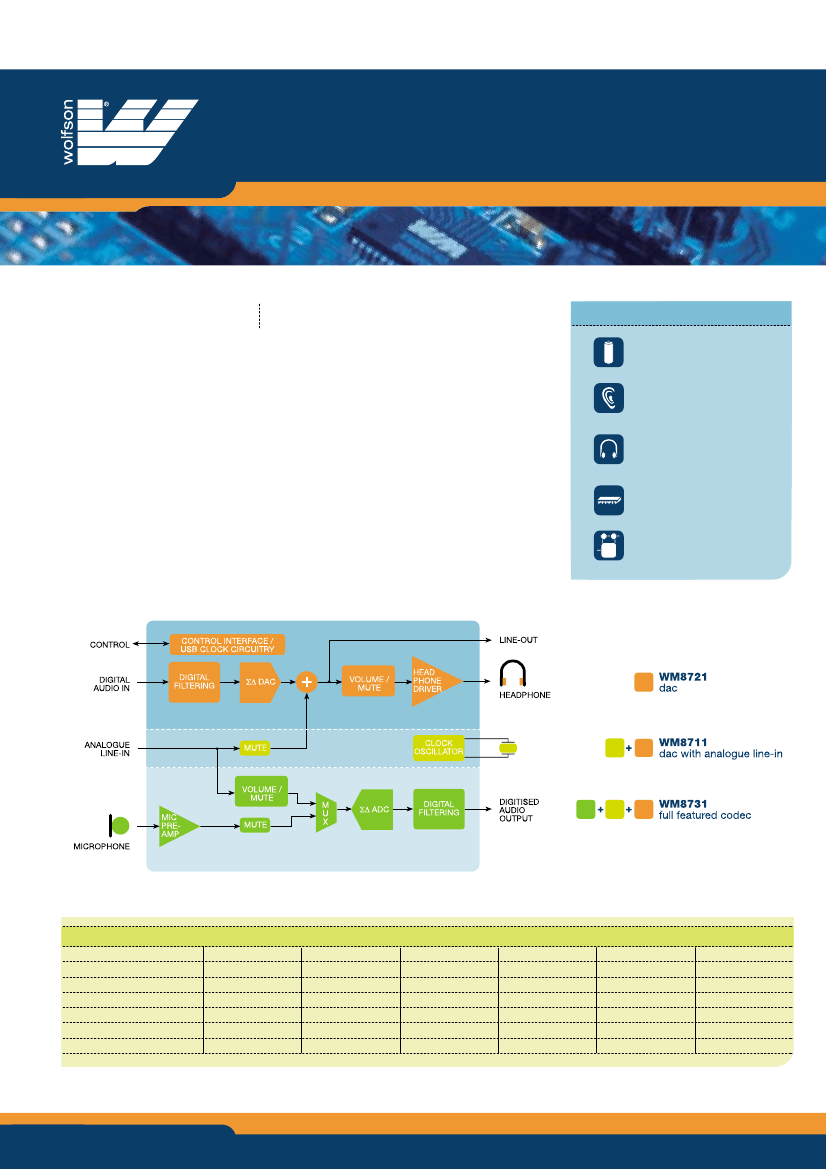

Wolfson’s new family of audio ICs for portable applications offers highly integrated, DSP
independent solutions that deliver CD quality sound at very low power consumption. The family
includes a full audio codec, WM8731, and two DACs, WM8711 and WM8721. All three devices
incorporate a powerful headphone amplifier whose output volume can be digitally controlled.
Each IC is available as a standard or low voltage part, operating at supply voltages down to
1.42V (digital) and 1.8V (analogue).
Using a unique USB clocking scheme, these ICs can generate 44.1kHz, 48kHz, 96kHz and other
commonly used sample rates directly from a 12 or 24MHz clock, eliminating the need for a PLL
in applications such as MP3 players. The WM8711 and WM8731 are pin-compatible and feature
an on-chip clock oscillator to supply the system clock.
Wolfson’s portable audio ICs have a very flexible audio interface which can interface to any
industry standard DSP or other digital audio chip, thereby providing designers with a higher
degree of flexibility.
long battery life
AUDIO DACs AND CODECS
FOR BATTERY-POWERED APPLICATIONS
productbenefits
cd sound quality
powerful headphone
amplifier
highly integrated solution
dsp independent
-----------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------
device
device type
digital supply voltage
analogue supply voltage
analogue line-in
microphone input
on-chip clock generator
package
WM8721
dac
1.42V – 3.6V
2.7V – 3.6V
no
no
no
20-pin SSOP
WM8721L
dac (low voltage)
1.42V – 3.6V
1.8V – 3.6V
no
no
no
20-pin SSOP
WM8711
dac
1.42V – 3.6V
2.7V – 3.6V
yes
no
yes
28-pin SSOP
WM8711L
dac (low voltage)
1.42V – 3.6V
1.8V – 3.6V
yes
no
yes
28-pin SSOP
WM8731
codec
1.42V – 3.6V
2.7V – 3.6V
yes
yes
yes
28-pin SSOP
WM8731L
codec (low voltage)
1.42V – 3.6V
1.8V – 3.6V
yes
yes
yes
28-pin SSOP
wolfson
microelectronics
::
leading world experts
in the design of signal processing electronics_
portable
digital audio
solutions
------------------------------------------------------------------------------------
WM8711 WM8721 WM8731
www.wolfsonmicro.com
------------------------------------------------------------------------
>
cd quality audio performance
»
dac 100dB snr, 88dB thd (‘A’ weighted @ 48kHz)
»
adc 97dB snr, 85dB thd (WM8731 only)
>
independent stereo line and headphone outputs
»
headphone output power: 40mW on 16Ω load
»
volume and mute controls
>
low supply voltage
»
1.42 – 3.6V digital supply
»
1.8 – 3.6V analogue supply for low-voltage parts
»
2.7 – 3.6V analogue supply for standard parts
>
very low power
»
playback only: 9mW @ 1.8V, 18mW @ 3.3V
»
simultaneous playback & record: 18mW @ 1.8V, 36mW @ 3.3V
»
standby: 30µW
>
programmable sample rates ::
8, 32, 44.1, 48, 88.2, 96kHz
>
on-chip clock generator
(WM8711 and WM8731 only)
>
programmable audio data interface
»
i
2
s, left/right justified or dsp modes
»
16/20/24/32-bit word lengths
»
master or slave clocking mode
>
2 or 3-wire serial control interface
>
temperature range ::
–10°C to +70°C
digital camcorders
digital still cameras
mp3
players /
recorders
palm tops /
web browsers
mobile
information
devices
usb headsets
mobile
phones
with mp3
productfeatures
------------------------------------------------------------------------
part number
WM8711EDS
WM8711LEDS
WM8721EDS
WM8721LEDS
WM8731EDS
WM8731LEDS
orderinginformation
productapplications
>
>
>
>
>
>
>
mp3 players and recorders
mobile information devices
palmtops
web browsers
mobile phones with mp3
digital camcorders and cameras
usb headsets
voltage supply
standard
low
standard
low
standard
low
standard
pack quantity
47
47
66
66
47
47
package
SSOP-28
SSOP-28
SSOP-20
SSOP-20
SSOP-28
SSOP-28
>>
all battery powered systems incorporating digital audio
