Part Number

Search

87631-3001

Description
Power to the Board Pwr Conn Hdr R/A THo THole .76AuLF 30Ckt
CategoryThe connector    The connector
File Size36KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

87631-3001 Online Shopping

Suppliers Part Number Price MOQ In stock
87631-3001 - - View Buy Now

87631-3001 Overview

Power to the Board Pwr Conn Hdr R/A THo THole .76AuLF 30Ckt

87631-3001 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
ECCN codeEAR99
Connector typeRECTANGULAR POWER CONNECTOR
Contact to complete cooperationGOLD (30)
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialCOPPER ALLOY
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Mixed contactsYES
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Shell materialGLASS FILLED LIQUID CRYSTAL POLYMER
Termination typeSOLDER
Total number of contacts30
UL Flammability Code94V-0
Base Number Matches1

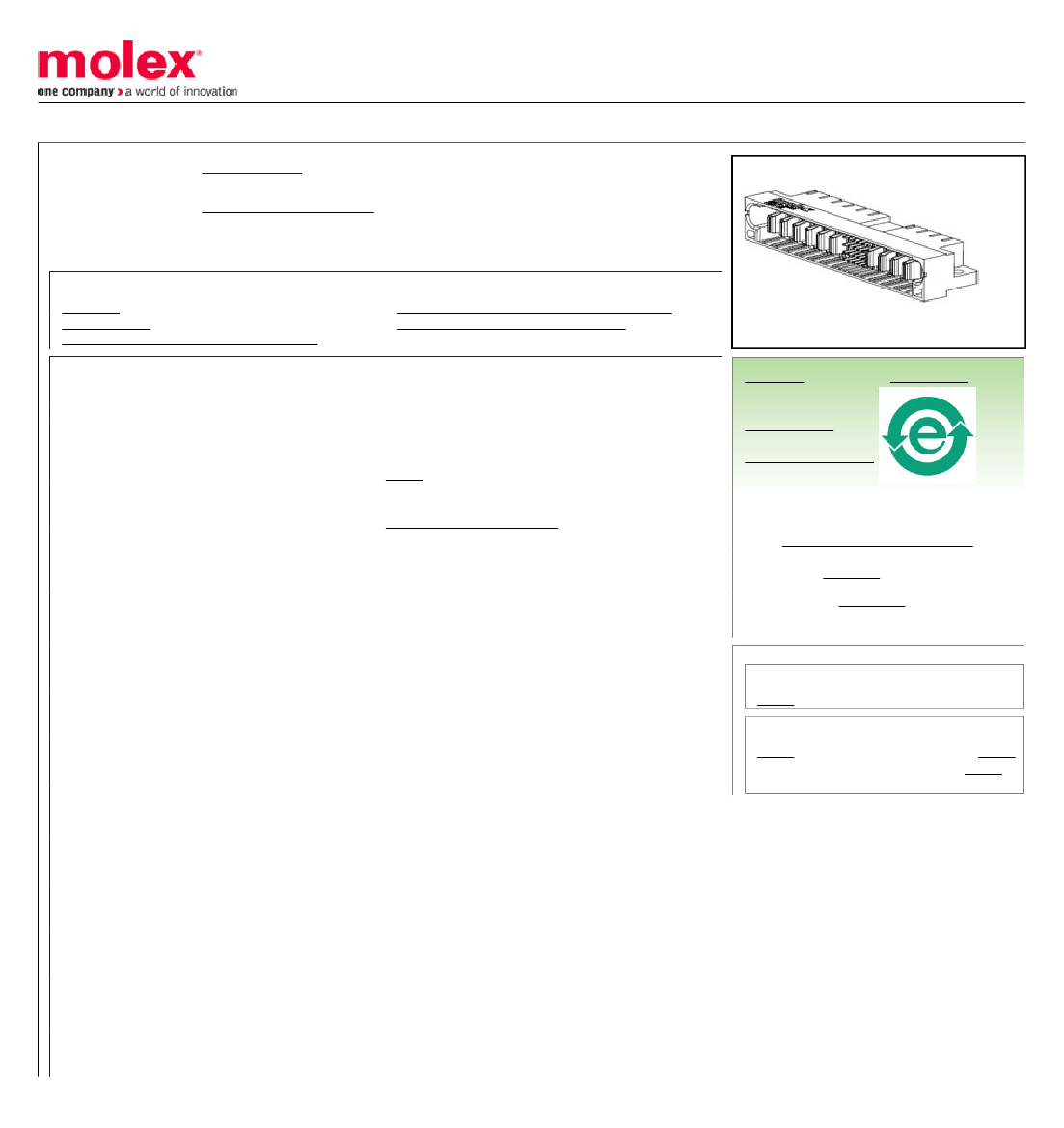

This document was generated on 10/19/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
87631-3001
Active
EXTreme PowerPlus™ (SSI)
6.35mm Pitch Power, 2.54mm Pitch Signal, EXTreme PowerPlus™ P-S-P Header,
Through Hole, Right Angle, Short Contacts, 30 Circuits, Power Alpha 6, Signal 20,
Power Beta 4, Recessed Signal Pin C2, Lead-Free
Documents:
3D Model
Drawing (PDF)
Product Specification PS-87631-006 (PDF)
Application Specification AS-87631-018 (PDF)
RoHS Certificate of Compliance (PDF)
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Series
Agency Certification
CSA
TUV
LR19980
R50078473
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
PCB Headers
87631
Board-to-Board, Power
<LI>Short Contacts|<LI>Recessed Signal Pin: C2
EXTreme PowerPlus™ (SSI)
EXTreme PowerPlus™
822348533558
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
(p)ower-(s)ignal Configuration
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Shrouded
6p - 20s - 4p
No
30
30
Black
100
Yes
94V-0
No
Yes
Yes
Yes
Copper Alloy
Gold
Tin
High Temperature Thermoplastic
33.332/g
4
Right Angle
3.43mm
Yes
Yes
1.60mm
Tray
2.54mm, 6.35mm
0.762µm
2.540µm
Yes
Yes
Fully
Search Parts in this Series
87631Series
Mates With
87633 Vertical Press-Fit Receptacle, 87622
Vertical Through Hole Receptacle, 87632
Right Angle Through Hole Receptacle
