54167-0408: DescriptionBoard to Board & Mezzanine Connectors 0.5 BtB Rec Hsg Assy ssy 40Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54167-0408 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54167-0408	-	-	View	Buy Now

54167-0408 Overview

Board to Board & Mezzanine Connectors 0.5 BtB Rec Hsg Assy ssy 40Ckt EmbsTp Pkg

54167-0408 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Board to Board & Mezzanine Connectors 0.5 BtB Rec Hsg Assy ssy 40Ckt EmbsTp Pkg
Other features	ANTI-FLUX DESIGN
body width	0.213 inch
subject depth	0.089 inch
body length	0.543 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (4) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7784 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.02 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9878 mm
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.1112 N

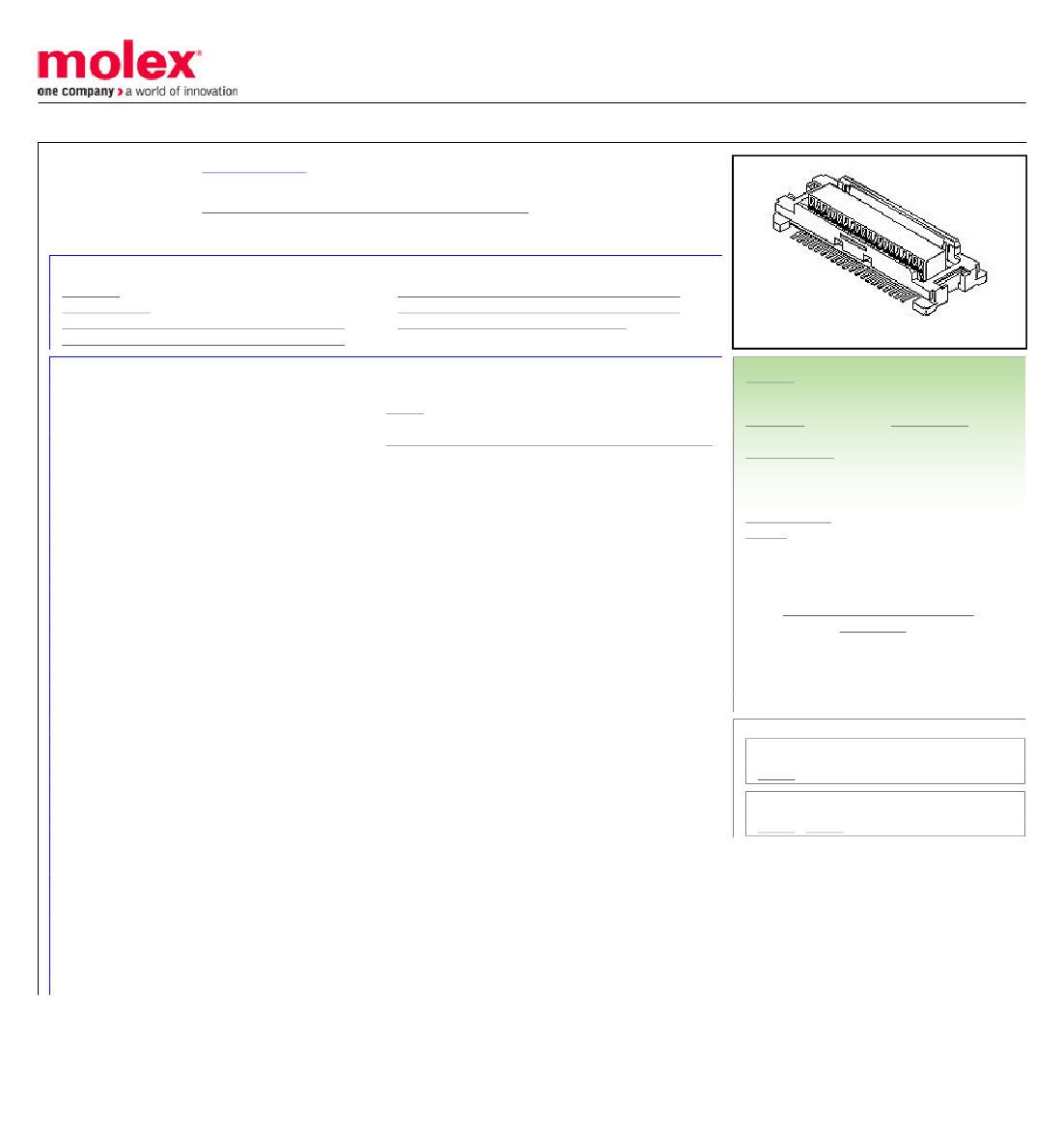

Preview

Download Datasheet

View All

This document was generated on 01/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0541670408

Active

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 3.00 and

4.00mm Stacking Heights, Lower Circuit Size Version, Black, 40 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52991-003-001 (PDF)

Product Specification PS-52991-008-001 (PDF)

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Glow-Wire Compliant

Mated Height

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Product Specification

Sales Drawing

Product Specification PS-54167-002-001 (PDF)

Product Specification PS-54167-003-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

PCB Receptacles

54167

Board-to-Board, Signal

SlimStack™ 0.50mm Pitch Board-to-Board Connectors

SlimStack

800753501607

3.00mm, 4.00mm

Gold

158.301/mg

Vertical

None

1.60mm

Embossed Tape on Reel

0.50mm

0.102µm

0.254µm

N/A

-40°C to +105°C

Surface Mount

0.5A

50V

Search Parts in this Series

54167 Series

Mates With

53916 , 53748

PS-52991-003-001, PS-52991-008-001,

PS-54167-002-001, PS-54167-003-001

SD-54167-001, SD-54167-002

This document was generated on 01/19/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
