KYZ25K6: Description25 A, 600 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size176KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KYZ25K6 Overview

25 A, 600 V, SILICON, RECTIFIER DIODE

KYZ25K6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
package instruction	ROHS COMPLIANT, PRESSFIT-1
Contacts	1
Reach Compliance Code	compli
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-MUPF-P1
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	25 A
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

KYZ 25A05 ... KYZ 25A6

KYZ 25K05 ... KYZ 25K6

Silicon Press-Fit-Diodes

Silizium-Einpreßdioden

Nominal current – Nennstrom

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

Metal press-fit case with glass seal

Metall-Einpreßgehäuse mit Glasdurchführung

Weight approx. – Gewicht ca.

Dimensions / Maße in mm

25 A

50…600 V

10 g

Standard packaging: bulk

Standard Lieferform: lose im Karton

Maximum ratings

Type / Typ

Wire to / Draht an

Anode

Cathode

KYZ 25A05

KYZ 25A1

KYZ 25A2

KYZ 25A3

KYZ 25A4

KYZ 25A6

KYZ 25K05

KYZ 25K1

KYZ 25K2

KYZ 25K3

KYZ 25K4

KYZ 25K6

Repetitive peak reverse voltage

Periodische Spitzensperrspanng.

V

RRM

[V]

50

100

200

300

400

600

Grenzwerte

Surge peak reverse voltage

Stoßspitzensperrspannung

V

RSM

[V]

60

120

240

360

480

700

Max. average forward rectified current, R-load

Dauergrenzstrom in Einwegschaltung mit R-Last

Repetitive peak forward current

Periodischer Spitzenstrom

Peak forward surge current, 50 / 60 Hz half sine-wave

Stoßstrom für eine 50 / 60 Hz Sinus-Halbwelle

Rating for fusing – Grenzlastintegral, t <10 ms

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Maximum pressure – Maximaler Einpreßdruck

T

C

= 100

/

C

f > 15 Hz

T

A

= 25

/

C

T

A

= 25

/

C

I

FAV

I

FRM

I

FSM

i

2

t

T

j

T

S

25 A

80 A

1

)

270 / 300 A

375 A

2

s

– 50...+175

/

C

– 50...+175

/

C

7 kN

1

86

) Max. case temperature T

C

= 150

/

C – Max. Gehäusetemperatur T

C

= 150

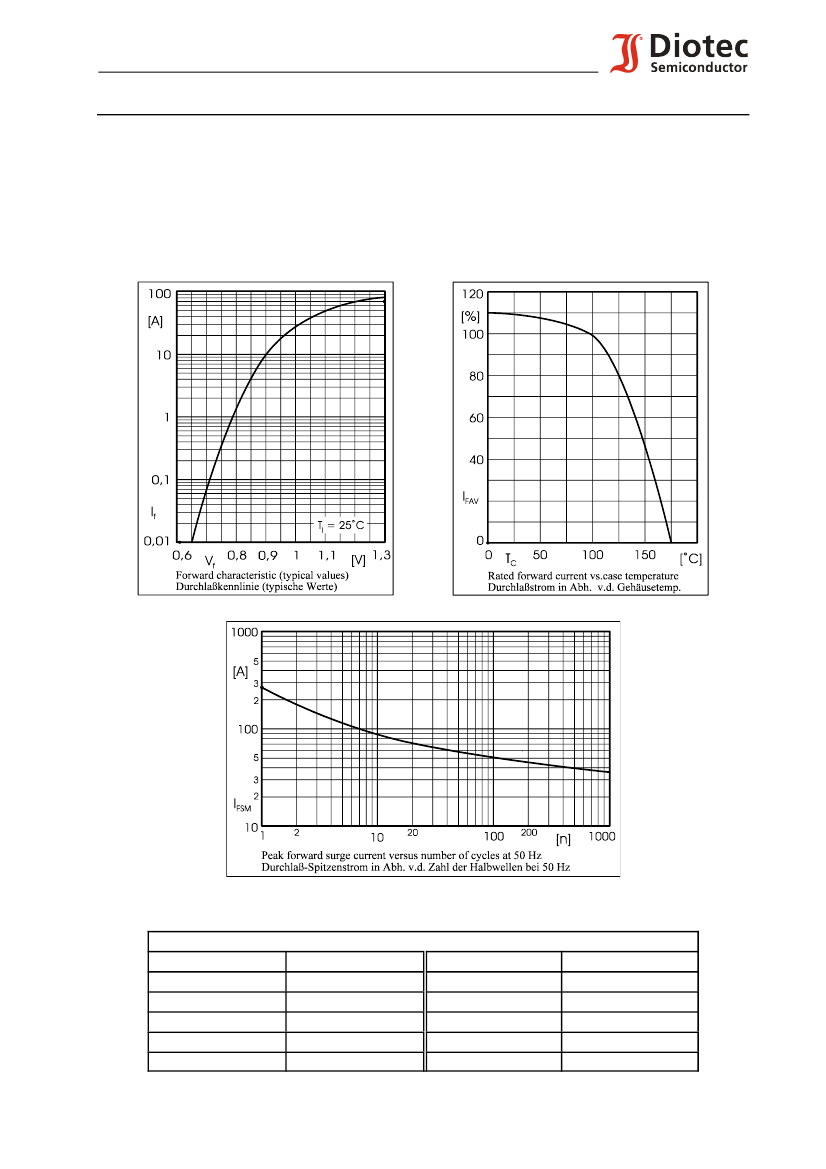

28.02.2002

KYZ25K6 Related Products

	KYZ25K6	KYZ25K4	KYZ25K3	KYZ25K1	KYZ25K2	KYZ25K05
Description	25 A, 600 V, SILICON, RECTIFIER DIODE	25 A, 400 V, SILICON, RECTIFIER DIODE	25 A, 300 V, SILICON, RECTIFIER DIODE	25 A, 100 V, SILICON, RECTIFIER DIODE	25 A, 200 V, SILICON, RECTIFIER DIODE	25 A, 50 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	DIOTEC	DIOTEC	DIOTEC	DIOTEC	DIOTEC	DIOTEC
package instruction	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1
Contacts	1	1	1	1	1	1
Reach Compliance Code	compli	compli	compli	compli	compli	compli
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1
Humidity sensitivity level	1	1	1	1	1	1
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	25 A	25 A	25 A	25 A	25 A	25 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	600 V	400 V	300 V	100 V	200 V	50 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
