KYW25K4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> KYW25K4

KYW25K4: Description25 A, 400 V, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size175KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

KYW25K4 Overview

25 A, 400 V, SILICON, RECTIFIER DIODE

KYW25K4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
package instruction	ROHS COMPLIANT, PRESSFIT-1
Contacts	1
Reach Compliance Code	compli
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	O-MUPF-P1
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	175 °C
Maximum output current	25 A
Package body material	METAL
Package shape	ROUND
Package form	PRESS FIT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal form	PIN/PEG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

KYW 25A05 ... KYW 25A6

KYW 25K05 ... KYW 25K6

Silicon Press-Fit-Diodes

Silizium-Einpreßdioden

Nominal current – Nennstrom

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

Metal press-fit case with glass seal

Metall-Einpreßgehäuse mit Glasdurchführung

Weight approx.

Gewicht ca.

Dimensions / Maße in mm

25 A

50…600 V

10 g

Standard packaging: bulk

Standard Lieferform: lose im Karton

Maximum ratings

Type / Typ

Wire to / Draht an

Anode

Cathode

KYW 25A05

KYW 25A1

KYW 25A2

KYW 25A3

KYW 25A4

KYW 25A6

KYW 25K05

KYW 25K1

KYW 25K2

KYW 25K3

KYW 25K4

KYW 25K6

Repetitive peak reverse voltage

Periodische Spitzensperrspanng.

RRM

[V]

100

200

300

400

600

= 100

f > 15 Hz

= 25

Grenzwerte

Surge peak reverse voltage

Stoßspitzensperrspannung

RSM

[V]

120

240

360

480

700

Max. average forward rectified current, R-load

Dauergrenzstrom in Einwegschaltung mit R-Last

Repetitive peak forward current

Periodischer Spitzenstrom

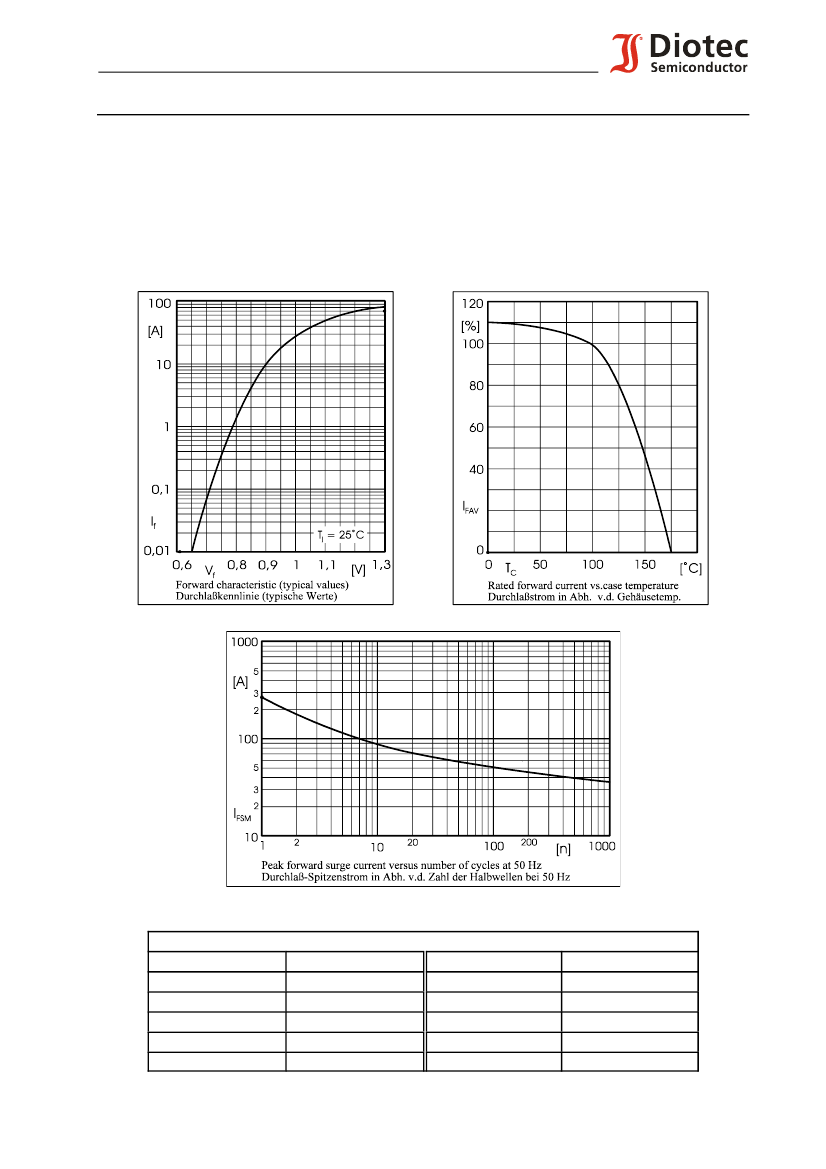

Peak forward surge current, 50 / 60 Hz half sine-wave

Stoßstrom für eine 50 / 60 Hz Sinus-Halbwelle

Rating for fusing, t <10 ms

Grenzlastintegral, t <10 ms

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Maximum pressure – Maximaler Einpreßdruck

FAV

FRM

FSM

25 A

80 A

)

270 / 300 A

375 A

– 50...+175

7 kN

) Max. case temperature T

= 150

C – Max. Gehäusetemperatur T

= 150

28.02.2002

KYW25K4 Related Products

	KYW25K4	KYW25K3	KYW25K6	KYW25K2	KYW25K1	KYW25K05	KYW25A05
Description	25 A, 400 V, SILICON, RECTIFIER DIODE	25 A, 300 V, SILICON, RECTIFIER DIODE	25 A, 600 V, SILICON, RECTIFIER DIODE	25 A, 200 V, SILICON, RECTIFIER DIODE	25 A, 100 V, SILICON, RECTIFIER DIODE	25 A, 50 V, SILICON, RECTIFIER DIODE	25 A, 400 V, SILICON, RECTIFIER DIODE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	DIOTEC	DIOTEC	DIOTEC	DIOTEC	DIOTEC	DIOTEC	DIOTEC
package instruction	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1	ROHS COMPLIANT, PRESSFIT-1
Contacts	1	1	1	1	1	1	1
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1	O-MUPF-P1
Humidity sensitivity level	1	1	1	1	1	1	1
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	25 A	25 A	25 A	25 A	25 A	25 A	25 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	300 V	600 V	200 V	100 V	50 V	50 V
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
