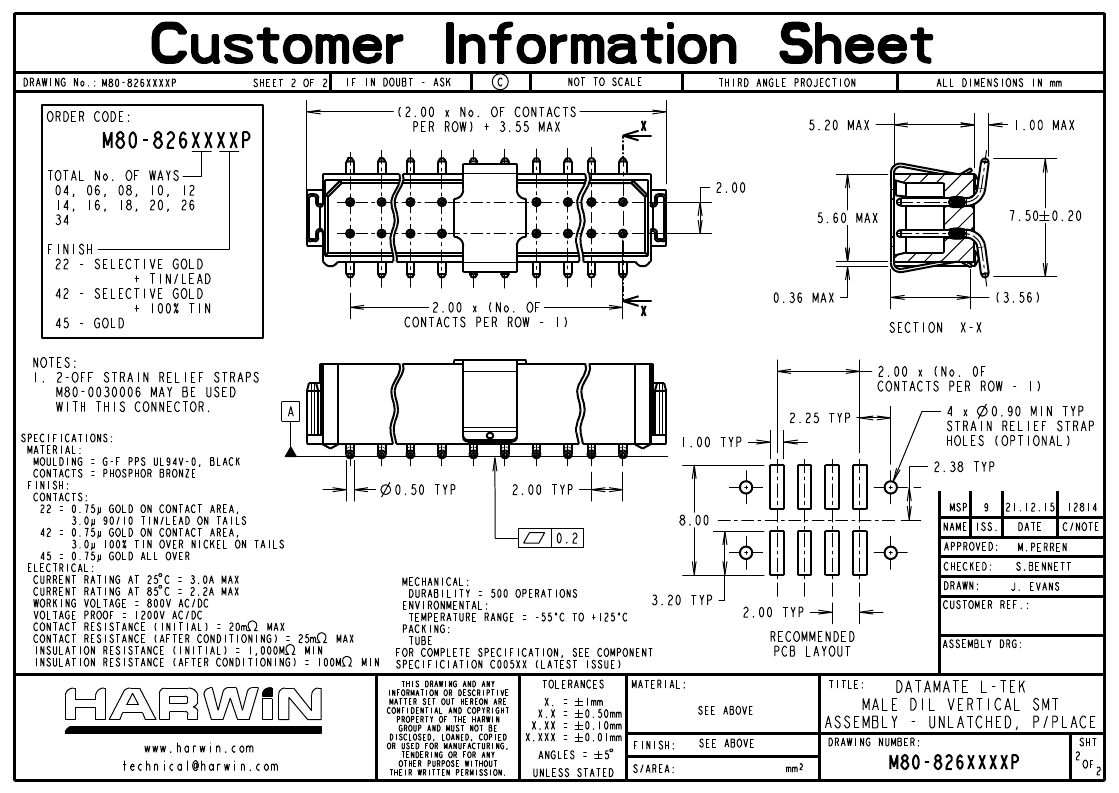

M80-8261242P: DescriptionHeaders & Wire Housings 12 WAY MALE VERT SMT P&P; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-8261242P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-8261242P	-	-	View	Buy Now

M80-8261242P Overview

Headers & Wire Housings 12 WAY MALE VERT SMT P&P

M80-8261242P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.235 inch
subject depth	0.244 inch
body length	0.612 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.8006 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

M80-8261242P Related Products

	M80-8261242P	M80-8263442P	M80-8261042P	M80-8261842P	M80-8262642P	M80-8260642P
Description	Headers & Wire Housings 12 WAY MALE VERT SMT P&P	Headers & Wire Housings 34 WAY MALE VERT SMT P&P	Headers & Wire Housings 10 WAY MALE VERT SMT P&P	Headers & Wire Housings 18 WAY MALE VERT SMT P&P	Headers & Wire Housings 26 WAY MALE VERT SMT P&P	Headers & Wire Housings 6 WAY MALE VERT SMT P&P
Is it lead-free?	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.235 inch	0.235 inch	-	0.235 inch	0.235 inch	0.235 inch
subject depth	0.244 inch	0.244 inch	-	0.244 inch	0.244 inch	0.244 inch
body length	0.612 inch	1.478 inch	-	0.848 inch	1.163 inch	0.376 inch
Body/casing type	PLUG	PLUG	-	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (30)	-	NOT SPECIFIED	GOLD (30)	GOLD (30)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	-	MALE	MALE	MALE
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE	-	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	-	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	-	NO	NO	NO
Durability	500 Cycles	500 Cycles	-	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	-	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	-	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	-	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK
insulator material	POLYAMIDE	POLYAMIDE	-	POLYAMIDE	POLYAMIDE	POLYAMIDE
JESD-609 code	e3	e3	-	e3	e3	e3
MIL compliance	NO	NO	-	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	-	NO	NO	NO
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE	ONE
PCB row number	2	2	-	2	2	2
Number of rows loaded	2	2	-	2	2	2
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.8006 mm	4.8006 mm	-	4.8006 mm	4.8006 mm	4.8006 mm
Plating thickness	30u inch	30u inch	-	30u inch	30u inch	30u inch
polarization key	POLARIZED KEY	POLARIZED KEY	-	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	3 A	3 A	-	3 A	3 A	3 A
Guideline	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm	-	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	34	-	18	26	6
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N	-	.1946 N	.1946 N	.1946 N
