34736-2001-Cut-Strip datasheet, PDF

Datasheet> All Categories > The connector> 34736-2001-Cut-Strip

34736-2001-Cut-Strip: DescriptionAutomotive Connectors MX64 TERM SLVR BWIND 22AWG CUT STRIP 100; CategoryThe connector; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

34736-2001-Cut-Strip Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34736-2001-Cut-Strip	-	-	View	Buy Now

34736-2001-Cut-Strip Overview

Automotive Connectors MX64 TERM SLVR BWIND 22AWG CUT STRIP 100

34736-2001-Cut-Strip Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Automotive Connectors
RoHS	Details
Product	Terminals
Termination Style	Crimp
Contact Plating	Silver
Packaging	Cut Tape
Contact Material	Copper
Contact Gender	Socket (Female)
Factory Pack Quantity	100
Wire Gauge	22 AWG
Unit Weight	0.009877 oz

Preview

Download Datasheet

View All

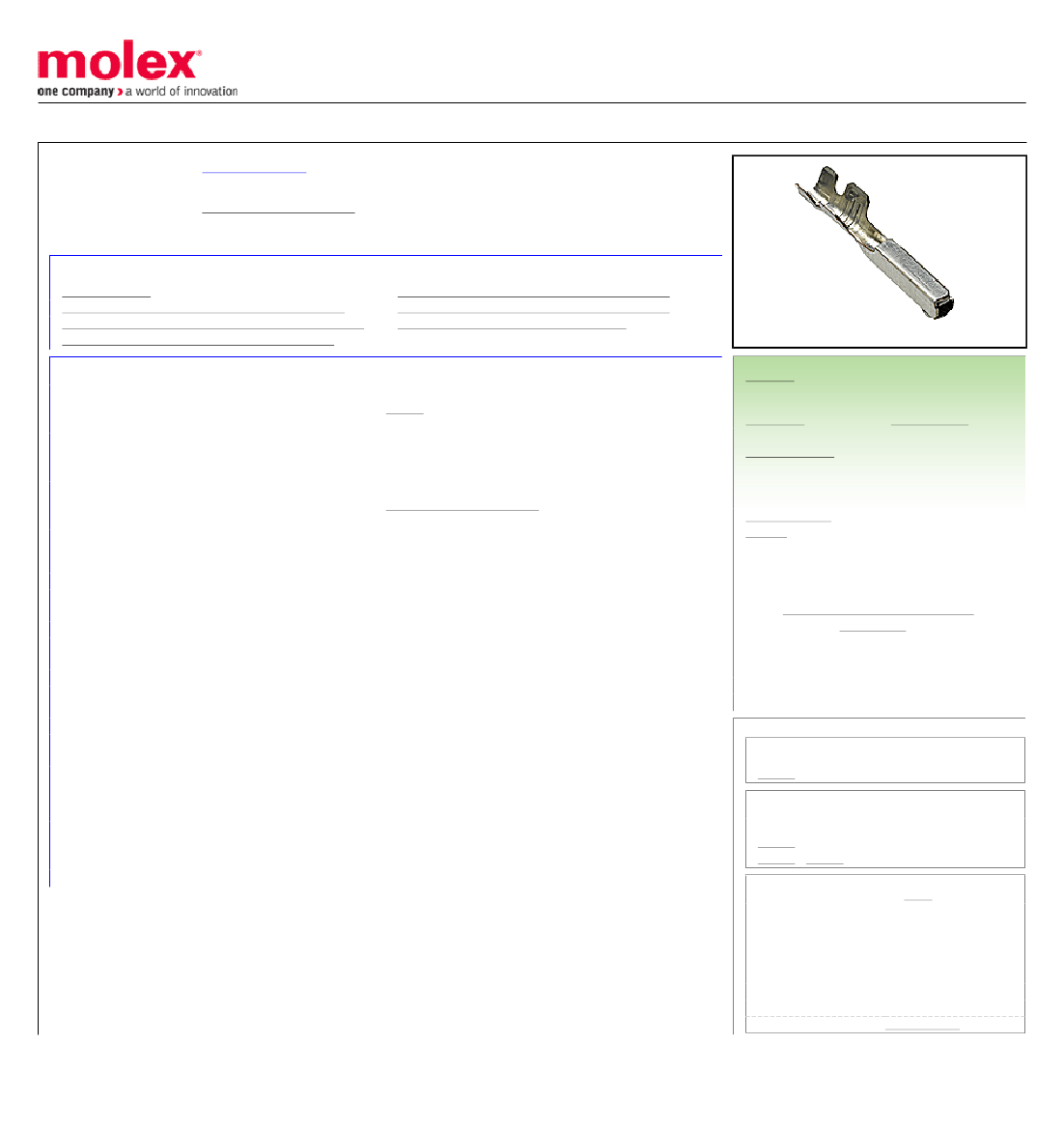

This document was generated on 02/26/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0347362001

Active

MX64 Sealed Connectors

2.54mm Pitch MX64 Terminal, Silver Plating, 22 AWG, Right Reel Payoff, Also used

with MX123 Female Receptacle Housing

Documents:

Drawing (PDF)

Product Specification PS-33468-001-001 (PDF)

Application Specification AS-33468-001-001 (PDF)

Packaging Specification PK-30907-759 (PDF)

General

Product Family

Series

Application

Comments

Packaging Specification PK-31300-516 (PDF)

Packaging Specification PK-31302-480 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Crimp Terminals

34736

Power

Right Reel Payoff <br><br>For automatic and semi-

automatic crimping, use Left Reel Payoff terminals. See

Sales Drawing for Left Reel Payoff Part Numbers.

Yes

MX64 Sealed Connectors

MX123, MX64

884982128804

Female

Copper

Silver

0.236/g

Reel

2.540µm

1.905µm

Crimp or Compression

1.50-2.06mm

N/A

Search Parts in this Series

34736 Series

Use With

MX64 Sealed Single Row Crimp Housing

31403 , MX123 Female Receptacle Housing

34566 , 34576

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Hand Crimp Tool

0638114200

AS-33468-001-001

PK-30907-759, PK-31300-516, PK-31302-480

PS-33468-001-001

SD-33468-001

This document was generated on 02/26/2018
