The KV1410 is specially made to be used as a tuning
element in radio cassettes, stereos, car radios, and other
consumer radios.
The KV1410 minimizes cross modulation, allowing good
signal-to-noise ratio in the overall design.
The KV1410 is available in the miniature SOT23-3 surface
mount package.
CLASSIFICATION
RANK
C
MIN
C
2
MAX
1
41.33
42.59
2
42.49
43.79
3
43.69
45.02
(Unit: pF)
4
44.92
46.29
20 P
KV1410
3
ORDERING INFORMATION
1
2
KV1410
Tape/Reel Code
TAPE/REEL CODE
TL: Tape Left
January 2000 TOKO, Inc.
Page 1
KV1410
ABSOLUTE MAXIMUM RATINGS
Reverse Voltage ........................................................ 18V
Forward Current .................................................... 50 mA
Power Dissipation .............................................. 100 mW
Storage Temperature Range ................... -55 to +150
°C
Operating Temperature Range ...................-55 to +85
°C
Lead Soldering Temperature (10 s) ...................... 235
°C
ELECTRICAL CHARACTERISTICS
Test conditions: T
A
= 25
°C
SYMBOL
V
REV
I
REV
C
2
C
4
C
6
C
8
R
S
A
PARAMETER
Reverse Voltage
Reverse Current
Diode Capacitance 2
Diode Capacitance 4
Diode Capacitance 6
Diode Capacitance 8
Series Resistance
Capacitance Ratio
TEST CONDITIONS
I
REV
= 10 µA
V
REV
= 10 V
V
REV
= 2.0 V, f = 1 MHz
V
REV
= 4.0 V, f = 1 MHz
V
REV
= 6.0 V, f = 1 MHz
V
REV
= 8.0 V, f = 1 MHz
V
REV
= 2.0 V, f = 70 MHz
C
2
/ C
8
MIN
16
TYP
MAX
UNITS
V
100
41.33
26.46
19.24
16.05
46.29
35.06
25.46
21.25
0.5
2.00
2.60
nA
pF
pF
pF
pF
Ω
Note 1: Diode Capacitance measured with HP 4279A or equivalent instruments (at OSC level 20 mVrms,
±
5 mVrms).
Note 2: Series Resistance measured with HP 4191A or equivalent instruments.
Note 3: The tolerance of two adjacent parts on a reel is within 3% at C2, C4, C6, and C8.
Page 2
January 2000 TOKO, Inc.
KV1410

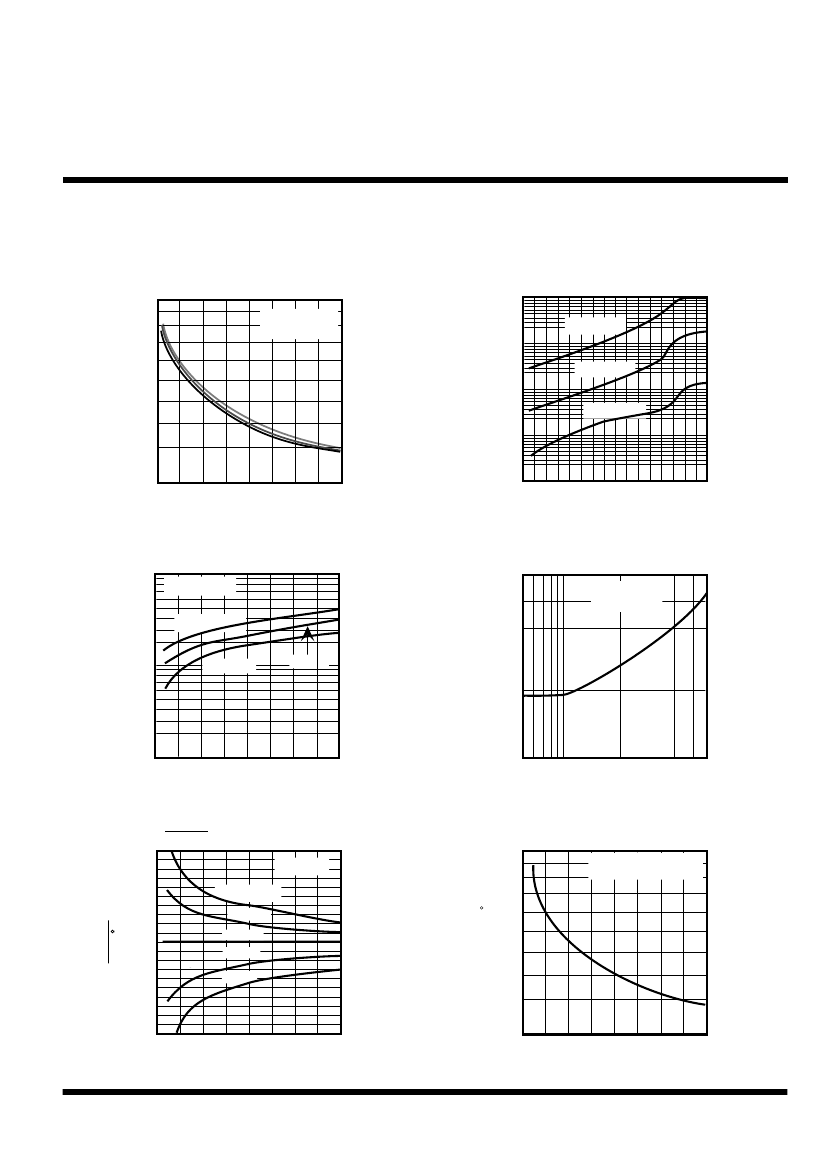

TYPICAL PERFORMANCE CHARACTERISTICS
CAPACITANCE vs.
REVERSE VOLTAGE
100
TA = 25
°C
f = 1 MHz
CAPACITANCE (pF)
REVERSE CURRENT vs.
REVERSE VOLTAGE
1n
TA = 85
°C
100 p
IREV (A)
TA = 55
°C
10 p
TA = 25
°C
1p
30
10
0
1
2
3
4
5
6
7
8
VREV (V)
QUALITY FACTOR vs.
REVERSE VOLTAGE
1000
TA = 25
°C
f = 50 MHz
100 f
0
2
4
6
8
10 12 14
16
VREV (V)
SERIES RESISTANCE vs.
FREQUENCY
0.6
VREV = 2 V
TA = 25
°C
0.4
Q
100
100 MHz
70 MHz
RS (Ω)
0.2
8
10
0
1
2
3
4
5
6
7
50
100
f (MHz)
300
500
VREV (V)
C (TA)
C (25
°C)
1.05
1.04
1.03
1.02
vs. REVERSE VOLTAGE
TEMPERATURE COEFFICIENT
vs. REVERSE VOLTAGE
1000
TA = -55
°C
to +85
°C
f = 1 MHz
f = 1 MHz
∆C
/∆ TA (ppm/ C)
TA = +85
°C
+55
°C
+25
°C
-15
°C
-55
°C
C (25 C)
C (TA)
1.01
1.00
0.99
0.98
0.97
0.96
0.95
0
1
2
300
3
4
5
6
7
8
100
0
1
2
3
4
5
6
7
8
VREV (V)
VREV (V)
January 2000 TOKO, Inc.
Page 3
KV1410
PACKAGE OUTLINE
Marking Information
Product Code
F1
SOT23-3
Mark
0.10
0.4
+ 0.05
Recommended Mounting Pad
0.1
M
1.3 max
1.1
0 ~ 0.1
0.15
+ 0.10
0.05
+ 0.1
2.8
Dimensions are shown in millimeters
Tolerance: x.x =
±
0.2 mm (unless otherwise specified)
Toko America, Inc. Headquarters
1250 Feehanville Drive, Mount Prospect, Illinois 60056
Tel: (847) 297-0070
Fax: (847) 699-7864
TOKO AMERICA REGIONAL OFFICES
Midwest Regional Office
Toko America, Inc.
1250 Feehanville Drive
Mount Prospect, IL 60056
Tel: (847) 297-0070
Fax: (847) 699-7864
Western Regional Office
Toko America, Inc.
2480 North First Street , Suite 260
San Jose, CA 95131
Tel: (408) 432-8281
Fax: (408) 943-9790
Eastern Regional Office
Toko America, Inc.
107 Mill Plain Road
Danbury, CT 06811
Tel: (203) 748-6871
Fax: (203) 797-1223
Semiconductor Technical Support
Toko Design Center
4755 Forge Road
Colorado Springs, CO 80907
Tel: (719) 528-2200
Fax: (719) 528-2375
Visit our Internet site at http://www.tokoam.com
