76155-1625 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 76155-1625

76155-1625: DescriptionHigh Speed / Modular Connectors Impact BP 4x16 Dual BP 4x16 Dual Wall Sn; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76155-1625 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76155-1625	-	-	View	Buy Now

76155-1625 Overview

High Speed / Modular Connectors Impact BP 4x16 Dual BP 4x16 Dual Wall Sn

76155-1625 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IMPACT
body width	0.819 inch
subject depth	0.47 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3336 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	76155
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.055 inch
Terminal pitch	1.9 mm
Termination type	SOLDER
Total number of contacts	192
Evacuation force-minimum value	.14734 N

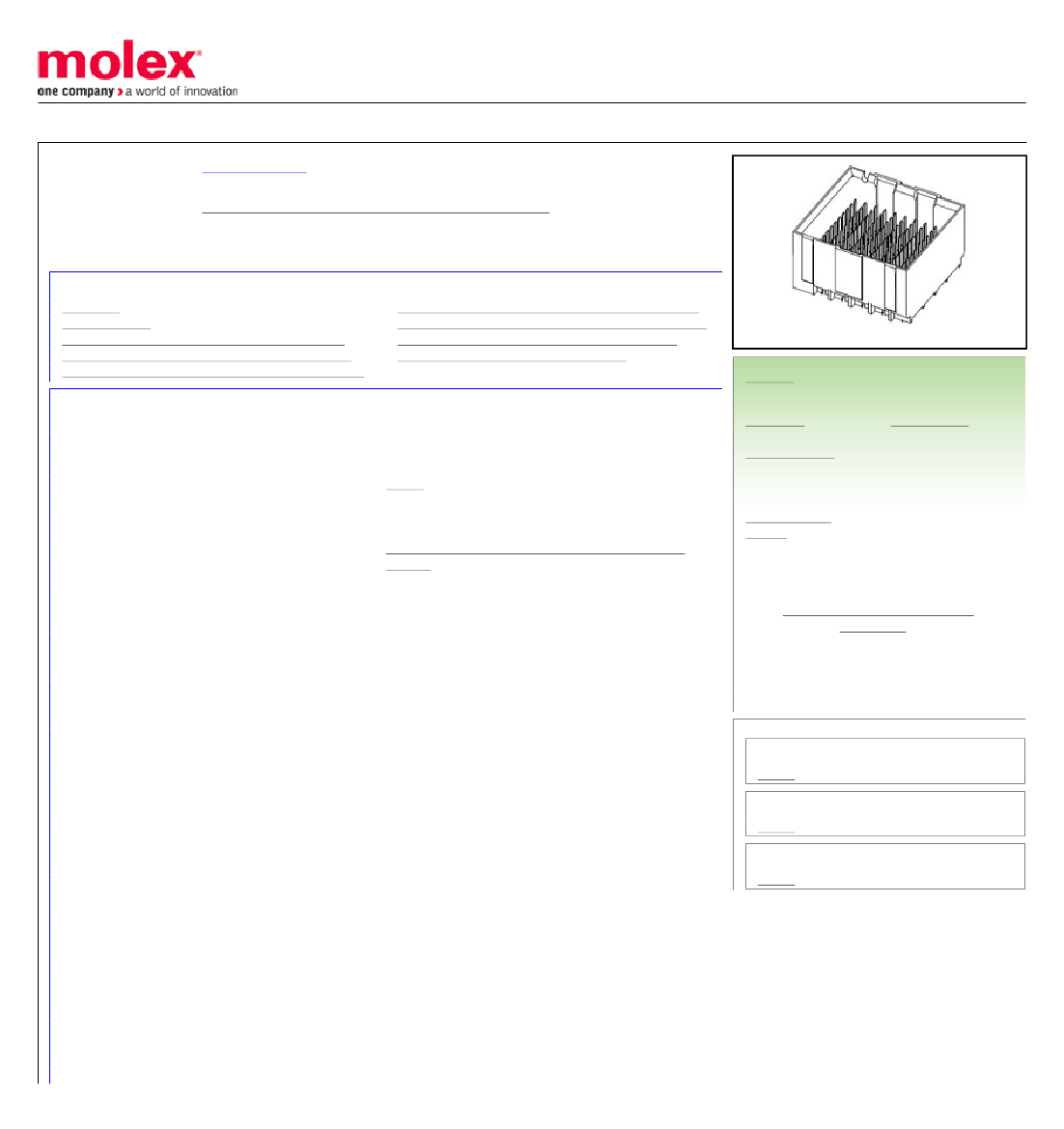

Preview

Download Datasheet

View All

This document was generated on 02/13/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0761551625

Active

Impact Backplane Connector and Cable Assembly System

Impact 100 Ohm 4 Pair Vertical Backplane Header, Unguided, Dual Endwall, 16

Columns, 192 Circuits, Pin Length 5.50mm, Plated Through Hole Dimension 0.46mm,

Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Product Specification TS-76160-0001-001 (PDF)

Application Specification AS-76060-990-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Application Specification AS-76060-994-001 (PDF)

Application Specification AS-76060-9999-001 (PDF)

Packaging Specification PK-70873-7701 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

E29179

Backplane Connectors

76155

Conventional

TM-622018799

PCB Header

Impact Backplane Connector and Cable Assembly

System

Impact

883906046798

192

Black

200

94V-0

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

4.921/g

Vertical

1.40mm

None

1.00mm

Tray

1.90mm

0.762µm

-55°C to +85°C

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

76155 Series

Mates With

76160 Impact 100 Ohm Daughtercard

Use With

75234 Backplane Free Standing Guide Pin
