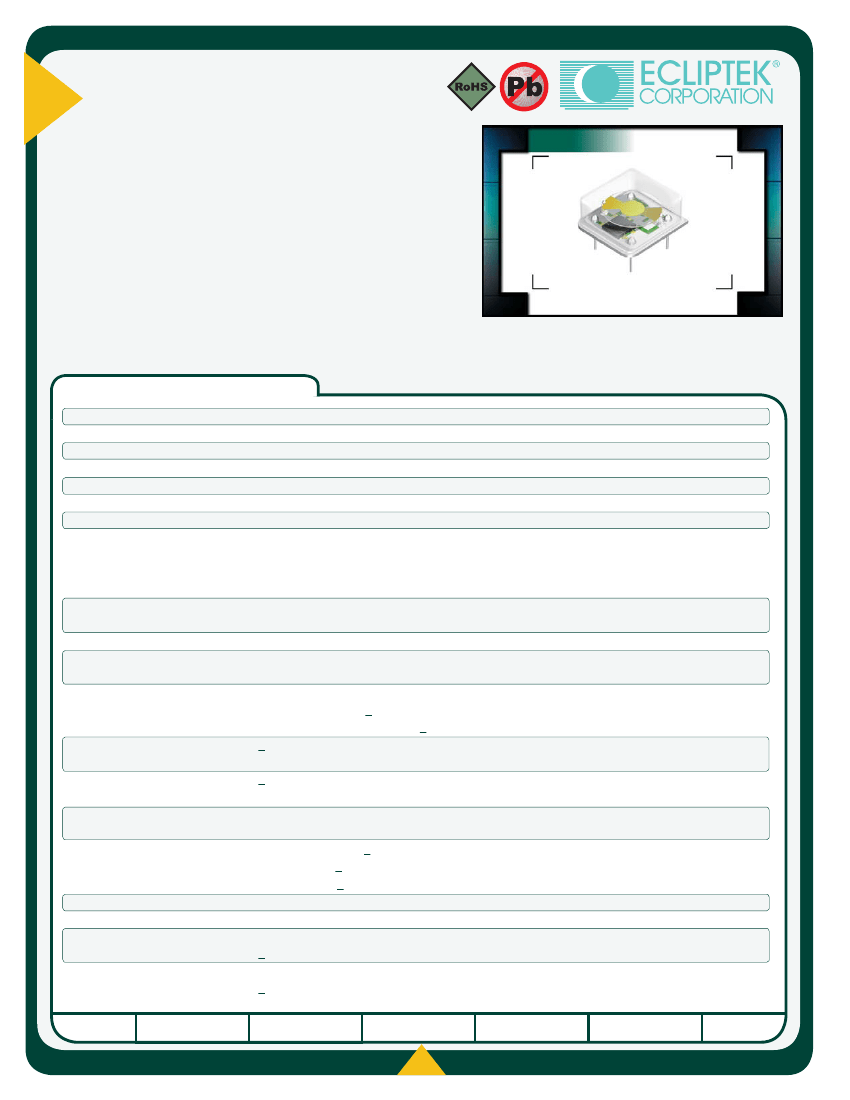

EP11
Series
• Programmable Crystal Oscillators
• HCMOS/TTL Output
• +5.0V Supply Voltage
• Tri-State and Power Down Options
• Custom Lead Length & Gull Wing Options
• 14 pin DIP Metal Package
• RoHS Compliant (Pb-free)
EP11
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
Disable Current (TS Option)
Standby Current (PD Option)
Frequency Tolerance / Stability
1.000MHz to 125.000MHz
-20°C to 70°C or -40°C to 85°C
-55°C to 125°C
5.0V
DC
±10%
45mA Maximum (Unloaded)
30mA Maximum (Pin 1=Ground)
50µA Maximum (Pin 1=Ground)
±100ppm or ±50ppm Maximum
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging
at 25°C, Shock, and Vibration
w/TTL Load
Output Voltage Logic High (V
OH
)
w/CMOS Load
w/TTL Load or w/CMOS Load
Output Voltage Logic Low (V
OL
)
0.8V
DC
to 2.0 V
DC
w/TTL Load or 20% to 80% of Waveform
Rise Time / Fall Time
w/CMOS Load
at 1.4V
DC
w/TTL Load; at 50% of waveform w/CMOS Load
Duty Cycle
at 1.4V
DC
w/TTL Load (<27.000MHz only), or
50% of waveform w/CMOS Load (<50.000MHz only)
<50.000MHz
Load Drive Capability /
>50.000MHz
Output Type-CMOS
<40.000MHz
Load Drive Capability /
>40.000MHz
Output Type-TTL
TS
Output Control Function
PD
Output Control Function Input Voltage
V
IH
: No Connection or >2.0V
DC
V
IL
: (TS Option) <0.8V
DC
V
IL
: (PD Option) <0.8V
DC
Aging (at 25°C)
Start Up Time
<12.000MHz
RMS Jitter
>12.000MHz
<12.000MHz
Peak to Peak Jitter
>12.000MHz
CATEGORY
SERIES
PACKAGE
VOLTAGE
I
OH
=-16mA
2.4V
DC
Minimum
I
OH
=-16mA
V
DD
-0.4V
DC
Minimum
I
OL
=+16mA
0.4V
DC
Maximum
4 nSeconds Maximum
50 ±10(%) (Standard)
50 ±5(%) (Optional)
50pF CMOS Load Maximum
15pF CMOS Load Maximum
10TTL Load Maximum
5TTL Load Maximum
Tri-State
Power Down
Enables Output
Disables Output: High Impedence
Disables Output: Logic Low
±5ppm / year Maximum
10 mSeconds Maximum
50pSec Maximum, 13pSec Typical
13pSec Maximum, 8pSec Typical
500pSec Maximum, 90pSec Typical
100pSec Maximum, 50pSec Typical
CLASS
REV
.
DATE
MANUFACTURER
ECLIPTEK CORP.
OSCILLATOR
EP11
14 pin DIP
5.0V
OS44
12/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EP11 00 ET T TS L - 24.000M - CL125
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum
45=±50ppm Maximum
OPERATING TEMP. RANGE
Blank=-20°C to 70°C , ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%) , T=50 ±5(%)
OUTPUT CONTROL FUNCTION
TS=Tri-State Enable High, PD=Power Down
AVAILABLE OPTIONS
Blank=None
CLXXX=Custom Lead Length
G=Full Size Gull Wing
FREQUENCY
OUTPUT TYPE
L=TTL, C=CMOS
NOTES
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

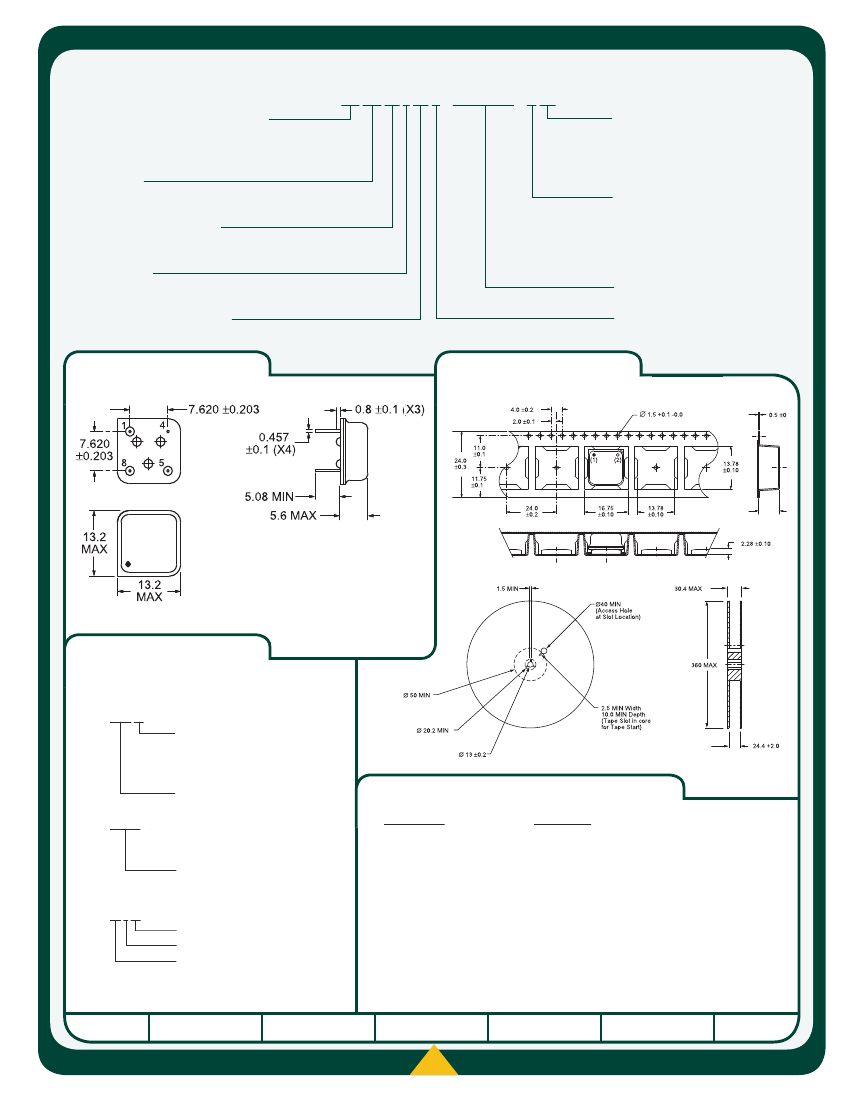

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Ø
Line 2: EP11 TS
Output Control Function
PD = Power Down
TS = Tri-State Enable High
Series Designator
Line 3: XX.XXX M
Frequency (5 Digits Maximum + Decimal)
Pin 1: Tri-State or Power Down
Pin 7: Case Ground
Pin 8: Output
Pin 14: Supply Voltage
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
Characteristic
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EP11
14 pin DIP
5.0V
OS44
12/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
EP11
Series
• Programmable Crystal Oscillators
• HCMOS/TTL Output
• +5.0V Supply Voltage
• Tri-State and Power Down Options
• Custom Lead Length & Gull Wing Options
• 8 pin DIP Metal Package
• RoHS Compliant (Pb-free)
EP11
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range
Storage Temperature Range
Supply Voltage (V
DD
)
Input Current
Disable Current (TS Option)
Standby Current (PD Option)
Frequency Tolerance / Stability
1.000MHz to 125.000MHz
-20°C to 70°C or -40°C to 85°C
-55°C to 125°C
5.0V
DC
±10%
45mA Maximum (Unloaded)
30mA Maximum (Pin 1=Ground)
50µA Maximum (Pin 1=Ground)
±100ppm or ±50ppm Maximum
Inclusive of all conditions: Calibration Tolerance at 25°C,
Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging
at 25°C, Shock, and Vibration
w/TTL Load
Output Voltage Logic High (V
OH
)
w/CMOS Load
w/TTL Load or w/HCMOS Load
Output Voltage Logic Low (V
OL
)
0.8V
DC
to 2.0 V
DC
w/TTL Load or 20% to 80% of Waveform
Rise Time / Fall Time
w/CMOS Load
at 1.4V
DC
w/TTL Load; at 50% of waveform w/CMOS Load
Duty Cycle
at 1.4V
DC
w/TTL Load (<27.000MHz only), or
50% of waveform w/CMOS Load (<50.000MHz only)
<50.000MHz
Load Drive Capability /
>50.000MHz
Output Type-HCMOS
<40.000MHz
Load Drive Capability /
>40.000MHz
Output Type-TTL
TS
Output Control Function
PD
Output Control Function Input Voltage
V
IH
: No Connection or >2.0V
DC
V
IL
: (TS Option) <0.8V
DC
V
IL
: (PD Option) <0.8V
DC
Aging (at 25°C)
Start Up Time
<12.000MHz
RMS Jitter
>12.000MHz
<12.000MHz
Peak to Peak Jitter
>12.000MHz
CATEGORY
SERIES
PACKAGE
VOLTAGE
I
OH
=-16mA
2.4V
DC
Minimum
I
OH
=-16mA
V
DD
-0.4V
DC
Minimum
I
OL
=+16mA
0.4V
DC
Maximum
4 nSeconds Maximum
50 ±10(%) (Standard)
50 ±5(%) (Optional)
50pF CMOS Load Maximum
15pF CMOS Load Maximum
10TTL Load Maximum
5TTL Load Maximum
Tri-State
Power Down
Enables Output
Disables Output: High Impedence
Disables Output: Logic Low
±5ppm / year Maximum
10 mSeconds Maximum
50pSec Maximum, 13pSec Typical
13pSec Maximum, 8pSec Typical
500pSec Maximum, 90pSec Typical
100pSec Maximum, 50pSec Typical
CLASS
REV
.
DATE
MANUFACTURER
ECLIPTEK CORP.
OSCILLATOR
EP11
8 pin DIP
5.0V
OS45
08/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
EP11 00 HS ET T TS L - 24.000M - G TR
FREQUENCY TOLERANCE / STABILITY
00=±100ppm Maximum
45=±50ppm Maximum
PACKAGE
HS=Half Size 8 Pin DIP
OPERATING TEMP. RANGE
Blank=-20°C to 70°C , ET=-40°C to 85°C
DUTY CYCLE
Blank=50 ±10(%) , T=50 ±5(%)
OUTPUT CONTROL FUNCTION
TS=Tri-State Enable High, PD=Power Down
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
PACKAGING OPTIONS
Blank=Bulk
TR=Tape & Reel (only offered with
Half Size G and Half Size G2 Options)
AVAILABLE OPTIONS
Blank=None
CLXXX=Custom Lead Length
G=Half Size Gull Wing
G2=Half Size Gull Wing
FREQUENCY
OUTPUT TYPE
L=TTL, C=CMOS
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1 Locator for Gull Wing
(1) For “G” Option
Ø
Pin 1: Tri-State or Power Down
Pin 4: Case Ground
Pin 5: Output
Pin 8: Supply Voltage
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Line 2: EP11 TS
Output Control Function
PD = Power Down
TS = Tri-State Enable High
700 Pieces Per Reel
Compliant to EIA-481A
Series Designator
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
Line 3: XX.XXX M
Frequency in MHz
(5 Digits Maximum + Decimal)
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EP11
8 pin DIP
5.0V
OS45
08/05
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
Product EOL Announcement
The Product EOL Announcement signifies that a product series has entered the final phase of the
Ecliptek Product Life Cycle, and serves as advance notice of product termination per the Ecliptek
End of Life (EOL) policy.
Ecliptek Corporation announces End of Life initiation for the following product series with the intent of
discontinuing its availability.
EOL Series
EP11 (8 Pin Dip)
Description
Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 8
Pin DIP Metal Thru-Hole
Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 14
Pin DIP Metal Thru-Hole
EP11 (14 Pin Dip)
EOL Timeline
The last date Ecliptek will accept orders (Stage 2) and the last date orders may be scheduled for
shipment (Stage 3) are listed in the table below.
Stage 1
EOL Announce Date
1-July-2012
Stage 2
Last Date to Order
31-December-2012
Stage 3
Last Date to Ship
31-January-2013
Alternative Products
In order to fulfill your requirements beyond this product’s discontinuation, we invite you to evaluate
the recommended alternative Ecliptek product series referenced below. Please click on the link to
view the data sheet.
Alternative Series
EPH11
Description
Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 8
Pin DIP Metal Thru-Hole
Quartz Crystal Clock Oscillators XO (SPXO) HCMOS/TTL (CMOS) 5.0Vdc 14
Pin DIP Metal Thru-Hole
EPF11
Automated EOL Notification
Ecliptek offers automated notification of Product EOL Announcements. Place part numbers for which
you’d like to receive EOL Notifications into your personalized
Parts List
on our website and we’ll email
you when EOL is announced.
Please do not hesitate to contact us if you have any questions or need further assistance.
Ecliptek Global Customer Support Team
(800) 433-1280 x300
customersupport@ecliptek.com
All product warranties for discontinued products will be honored in full according to Ecliptek
Terms and Conditions of Sale.
京公网安备 11010802033920号
EEWORLD
