C&K 1000 Series
Miniature Slide Switches
Features/Benefits
•
Variety of actuators and terminations
•
Panel mount tabs available
•
Epoxy terminal seal—compatible with
bottom-wash cleaning
•
RoHS compliant
Typical Applications
•
Test & measurement equipment
•
Telecommunications
•
Computer & peripherals
Models Available
Specifications
Materials
CASE: diallyl phthalate (DAP), (UL 94V-0).
ACTUATOR: Nylon, black, standard.
HOUSING: Stainless steel.
SWITCH SUPPORT: Brass or steel, matte-tin plated.
END CONTACTS: B contact material: Copper alloy, with gold plate over
nickel plate. Q contact material: Coin silver, silver plated. See
page I-16 for additional contact materials.
CENTER CONTACT & ALL TERMINALS: B contact material: Copper
alloy, with gold plate over nickel plate. Q contact material: Copper
alloy, silver plated. See page J-15 for additional contact materials.
TERMINAL SEAL: Epoxy. Refer to Soldering and Cleaning in Technical
Data chapter
NOTE:
Any models supplied with Q, B, G, P, S or R contact material are RoHS compliant.
For the latest information regarding RoHS compliance, please go to:
www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
J
Slide
CONTACT RATING: B contact material: 0.4 VA max. @
20 V AC or DC max. Q contact material: 6 AMPS @
120 V AC or 28 V DC, 3 AMPS @ 250 V AC.
See page J-15 for additional ratings.
ELECTRICAL LIFE: 100,000 make-and-break cycles at full
load on models with B, K or P contact material; 40,000 cycles
on models with G, Q, L, M, S or R contact material.
CONTACT RESISTANCE: Below 10 m
Ω
typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 109
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
OPERATING TEMPERATURE: –30ºC to 65ºC
SOLDERABILITY: Per MIL-STD-202F method 208D, or
EIA RS-186E method 9 (1 hour steam aging).
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J–11 through J–15. For additional options not shown in catalog, consult Customer Service Center. All models
have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.
Switch Function
1101
SP On-None-On
1103
SP On-Off-On
1108
SP Mom-None-On
1201
DP On-None-On
1203
DP On-Off-On
Mounting Style
M2
PC mount without tabs
M1
Panel mount with tabs
Actuator
S3
.200" high
S1
.040" high
S2
.140" high
S4
.285" high
S5
.370" high
S6
.485" high
T3
.200" high
Terminations
A
Right angle, PC thru-hole
C
PC Thru-hole
AV2
Vertical right angle, PC thru-hole
Z
Solder lug
V3
V-bracket
V4
V-bracket
W
.750" long, wire wrap
Z3
Quick connect
Contact Material
B
Gold
Q
Silver
K
Gold, tin-lead
M
Silver, tin-lead
G
Gold over silver
L
Gold over silver, tin-lead
P
Gold, matte-tin
S
Silver, matte-tin
R
Gold over silver, matte-tin
Seal
E
Epoxy
D
No epoxy seal
I
Epoxy potted base
Actuator Color
2
Black
1
White
3
Red
7
Blue
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
J–10
www.ittcannon.com
C&K 1000 Series
Miniature Slide Switches

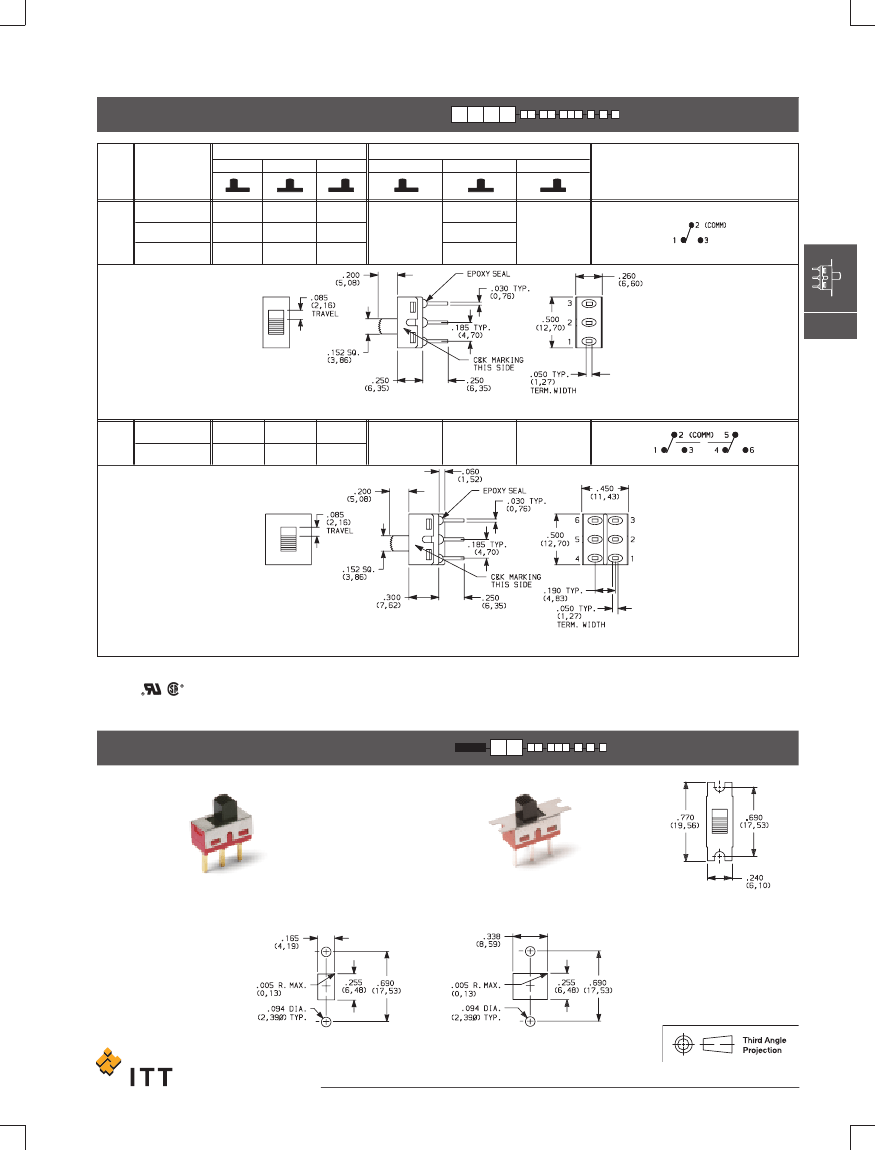

SWITCH FUNCTION
SWITCH FUNCTION
POS. 1
NO.
POLES
MODEL
NO.
POS. 2
POS. 3
POS. 1
CONNECTED TERMINALS
POS. 2
POS. 3
SCHEMATIC
ON
ON
MOM.
NONE
OFF
NONE
ON
ON
ON
1-2
N/A
OPEN
N/A
2-3
SPDT
1101
SP
1103
1108
SPDT
J
Slide
Actuator shown
in position 1
Terminal Nos.
For Reference Only
NONE
OFF
ON
2-1,5-4
OPEN
2-3,5-6
DPDT
ON
Part number shown: 1101M2S3CQE2
1201
DP
ON
ON
1203
DPDT
Actuator shown
in position 1
Part number shown: 1201M2S3CQE2
Terminal Nos.
For Reference Only
MOM. = Momentary
All models
with all options when ordered with G, L, M, S or R contact material.
MOUNTING STYLE
M2
PC MOUNTING WITHOUT TABS
M1
PANEL MOUNTING WITH TABS
NOTE:
Available with A, AV2, C, V3, V4, W terminations only.
NOTE:
Available with C, W, Z, Z3 terminations only.
No mounting hardware supplied.
PANEL MOUNTING
All actuators except T3.
Single pole
For T3 actuator only.
Double pole
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
J–11
www.ittcannon.com
C&K 1000 Series
Miniature Slide Switches

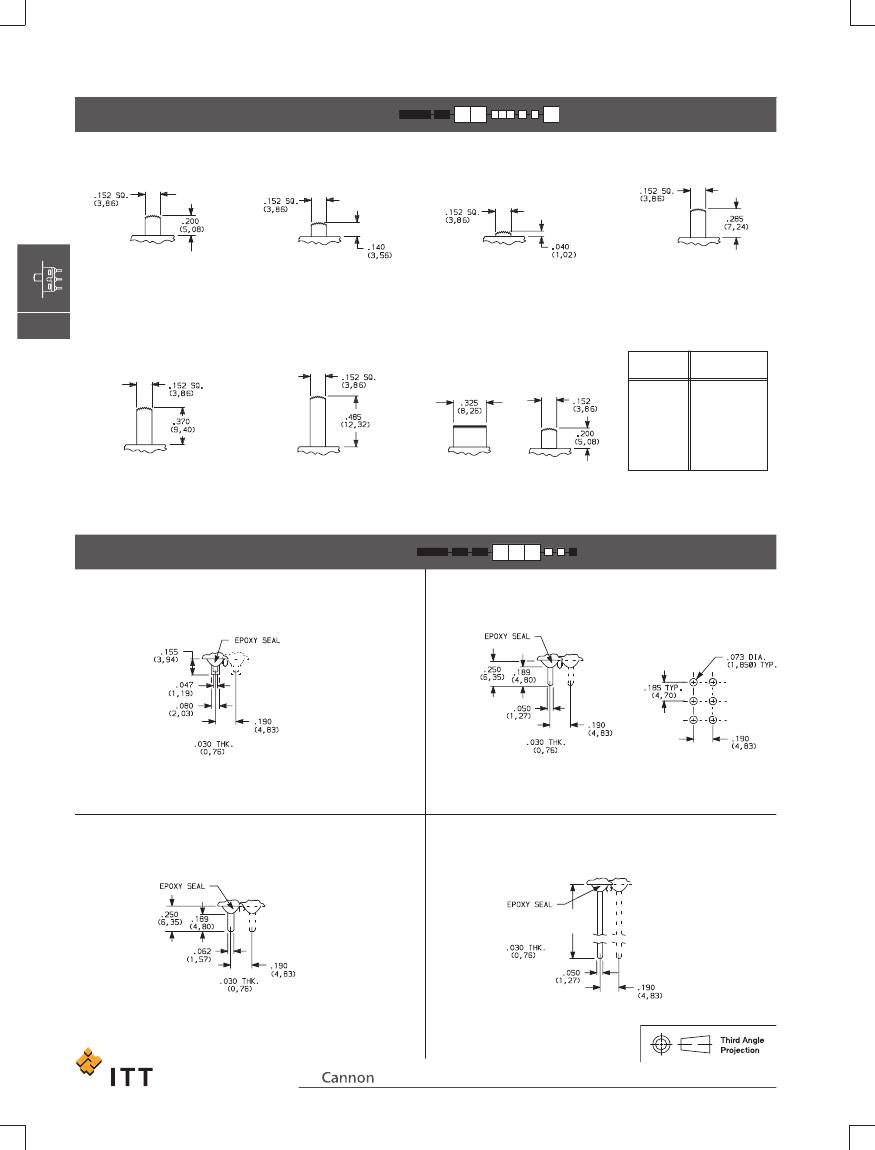

ACTUATOR COLOR
ACTUATOR
ACTUATOR
S3
.200" HIGH
S2
.140" HIGH
S1
.040" HIGH
S4
.285" HIGH
*
*
110X models only.
120X models only.
*
*
J
Slide
S5
.370" HIGH
S6
.485" HIGH
T3
.200" HIGH
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
BLUE
GRAY
2
*
*
*
1
3
7
9
120X models only.
Other colors available,
consult Customer Service Center.
* Subtract .014 (0,36) from actuator height, all models with A, AV2, V3, V4 terminations.
TERMINATIONS
Z
SOLDER LUG
C
PC THRU-HOLE
PC MOUNTING
SPDT & DPDT
Not available with K, L,
M, P, S or R contact materials.
SPDT & DPDT
Z3
QUICK CONNECT
W
WIRE WRAP
.750
(19,05)
Not available with K, L, M, P, S or R contact
materials. Mating quick connector available;
order part number 530100000, page J-15.
SPDT & DPDT
SPDT & DPDT
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
J–12
www.ittcannon.com
C&K 1000 Series
Miniature Slide Switches

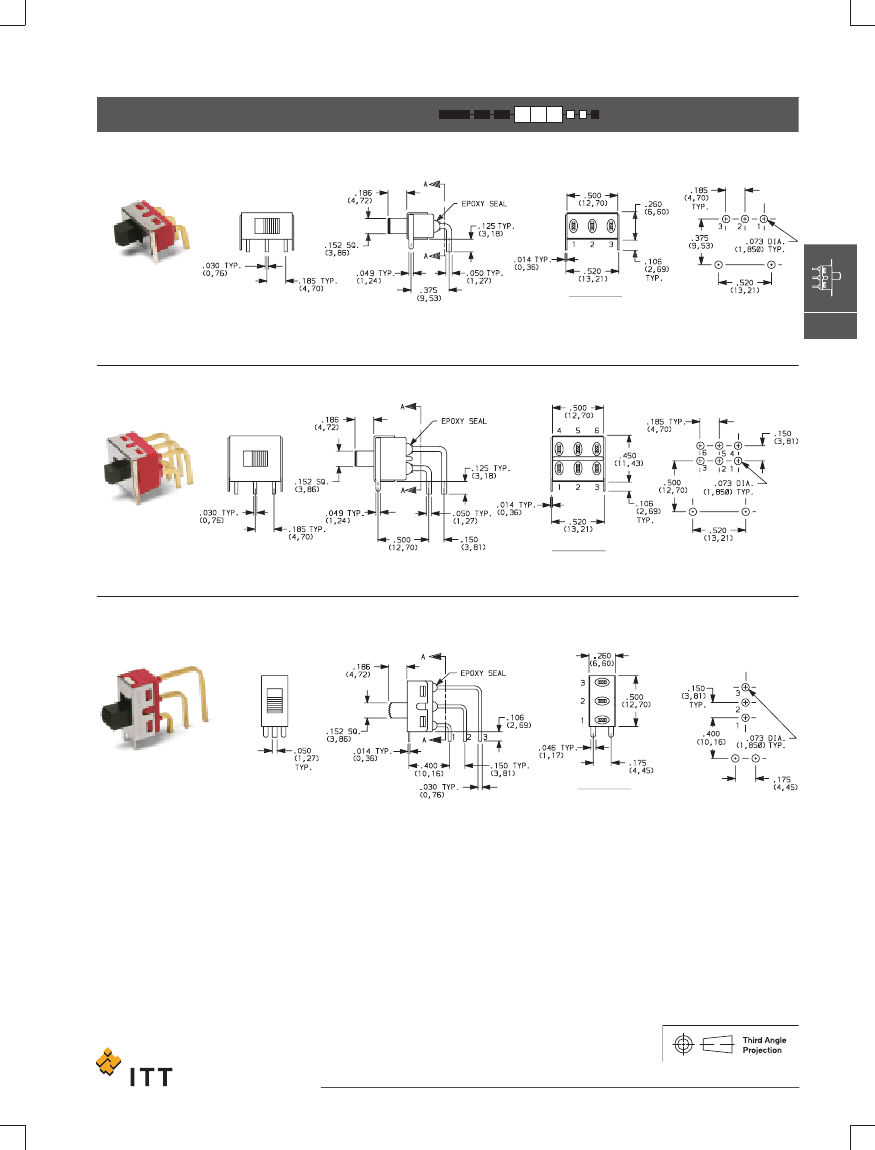

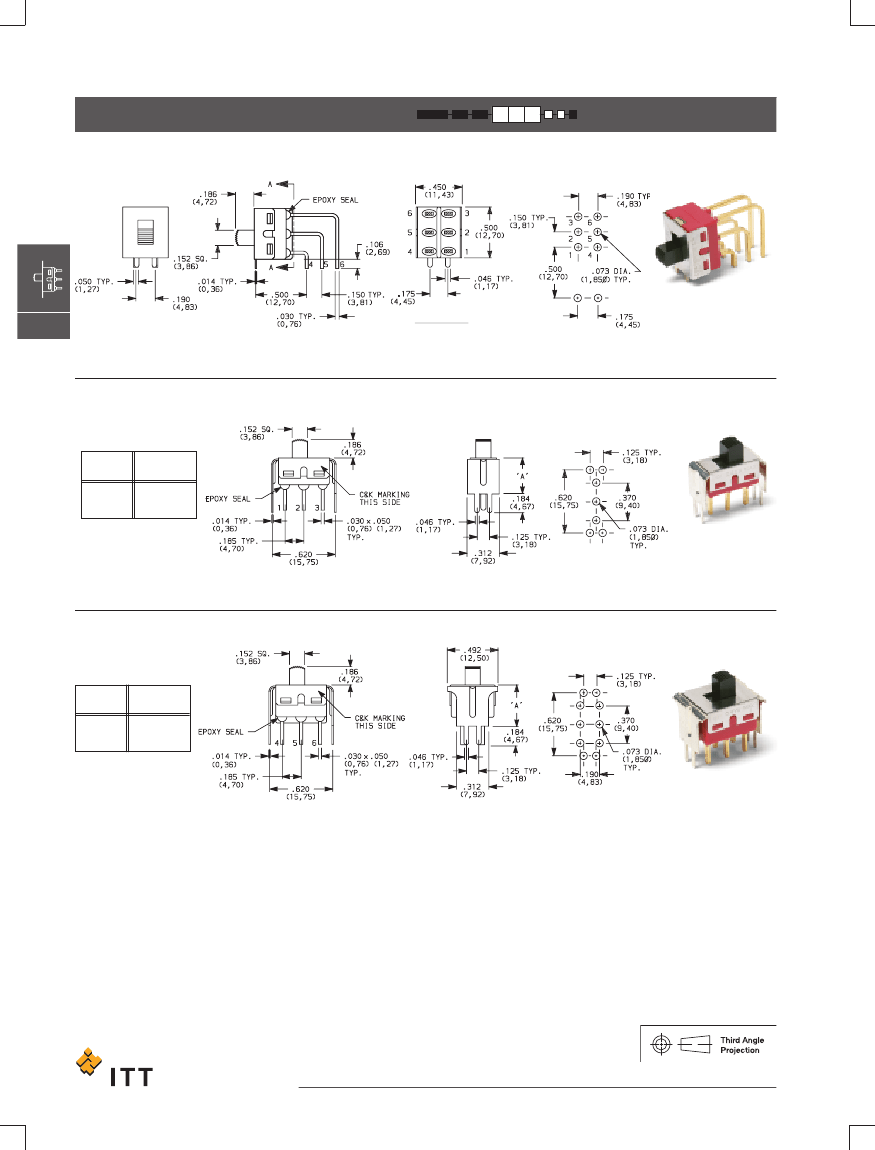

TERMINATIONS
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
1101M2S3ABE2
Horizontal Actuation
SECTION A-A
Actuator Shown In Pos. 1
SPDT
Not available with M1 mounting style, I seal option.
Terminal bend radii and lead-in manufacturing option.
J
Slide
A
RIGHT ANGLE, PC THRU-HOLE
PC MOUNTING
1201M2S3ABE2
Horizontal Actuation
DPDT
Actuator Shown In Pos. 1
SECTION A-A
Not available with M1 mounting style, I seal option.
Terminal bend radii and lead-in manufacturing option.
AV2
VERTICAL RIGHT ANGLE, PC THRU-HOLE,
.150" PITCH
PC MOUNTING
1101M2S3AV2BE2
Vertical Actuation
Actuator Shown In Pos. 1
SECTION A-A
SPDT
Not available with M1 mounting style, I seal option.
Terminal bend radii and lead-in manufacturing option.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
J–13
www.ittcannon.com
