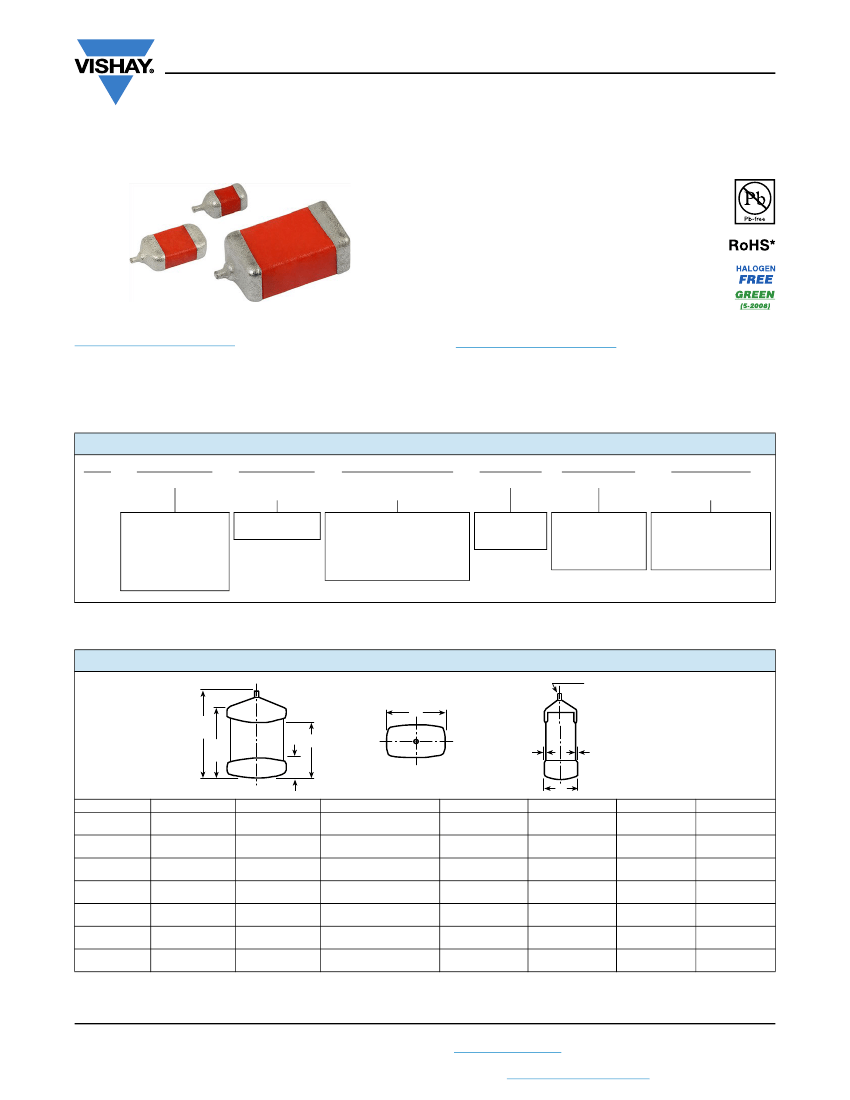

695D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors,
T
ANTAMOUNT
™, Conformal Coated
FEATURES
• Pad
compatible
with
MIL-PRF-55365/4 (CWR06)
194D
and
Available
• 8 mm, 12 mm 16 mm tape to EIA-481 and
reeling per IEC 286-3. 7" [178 mm] standard
13" [330 mm] available
• Terminations: 100 % tin (2) standard,
tin / lead available
Available
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40194
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
1.0 μF to 270 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 50 V
DC
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
Available
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
ORDERING INFORMATION
695D
TYPE
475
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
004
DC VOLTAGE RATING
AT +85 °C
This is expressed in volts.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
A
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = tape and reel
7" [178 mm] reel
W = 13" [330 mm] reel
See tape and reel
specifications
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros to
follow.
See Ratings
and Case
Codes table
2 = 100 % tin
4 = gold plated
8 = solder plated
(60/40)
Special order
Notes
• Preferred tolerance and reel sizes are in bold
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size
DIMENSIONS
in inches [millimeters]
Tantalum wire
nib identifies
anode (+)
terminal
J
MAX.
H
W
L
MAX.
D
REF.
A
B
J
MAX.
CASE CODE
A
B
D
E
F
G
H
L (MAX.)
0.134
[3.4]
0.185
[4.7]
0.185
[4.7]
0.236
[6.0]
0.256
[6.5]
0.300
[7.6]
0.303
[7.7]
D (REF.)
0.100
[2.54]
0.150
[3.81]
0.140
[3.56]
0.200
[5.08]
0.220
[5.59]
0.260
[6.60]
0.265
[6.73]
W
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.095 ± 0.015
[2.41 ± 0.38]
0.095 ± 0.015
[2.41 ± 0.38]
0.135 ± 0.015
[3.43 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.150 ± 0.015
[3.81 ± 0.38]
H
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
0.070 ± 0.015
[1.78 ± 0.38]
0.100 ± 0.015
[2.54 ± 0.38]
0.110 ± 0.015
[2.79 ± 0.38]
A
0.023 ± 0.010
[0.584 ± 0.25]
0.040 ± 0.015
[1.02 ± 0.38]
0.040 ± 0.015
[1.02 ± 0.38]
0.040 ± 0.015
[1.02 ± 0.38]
0.040 ± 0.015
[1.02 ± 0.38]
0.040 ± 0.015
[1.02 ± 0.38]
0.050 ± 0.015
[1.27 ± 0.38]
B
0.067 ± 0.015
[1.70 ± 0.38]
0.120 ± 0.015
[3.05 ± 0.38]
0.110 ± 0.020
[2.79 ± 0.51]
0.170 ± 0.020
[4.32 ± 0.51]
0.185 ± 0.020
[4.70 ± 0.51]
0.220 ± 0.020
[5.59 ± 0.51]
0.220 ± 0.020
[5.59 ± 0.51]
J (MAX.)
0.004
[0.10]
0.004
[0.10]
0.004
[0.10]
0.004
[0.10]
0.004
[0.10]
0.004
[0.10]
0.004
[0.10]
Note
• The anode termination (D less B) will be a minimum of 0.25 mm (0.010").
Revision: 21-Jun-17
Document Number: 40038
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
695D
www.vishay.com
Vishay Sprague
10 V
15 V
20 V
25 V
35 V
50 V
A
A
A
A
A
A
A
A
A
A
B
D
D
D
E
F
F
G
H
H
B
B
D
D
E
F
F
G
G
H
B
D
D
D
E
F
F
G
H
H
B
B
D
D
E
F
F
F
G
H
B
B
D
D
D
E
F
F
G
H
H
RATINGS AND CASE CODES
μF
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
120
150
180
220
270
A
B
B
D
D
E
F
F
F
G
G
H
H
H
A
B
D
D
D
E
F
F
G
G
H
H
H
B
D
D
D
E
F
F
G
G
H
H
4V
6V
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
8
8
8
8
8
8
MAX. ESR
AT +25 °C
100 kHz
(Ω)
11.000
9.000
8.500
2.200
2.000
1.500
1.000
0.900
0.900
0.700
0.650
0.400
0.350
0.350
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.07
0.09
0.09
0.20
0.21
0.25
0.33
0.35
0.35
0.41
0.43
0.61
0.65
0.65
4 V
DC
AT +85 °C; 2.7 V
DC
AT +125 °C
4.7
6.8
10
15
22
33
47
68
100
120
150
180
220
270
A
B
B
D
D
E
F
F
F
G
G
H
H
H
695D475(1)004A(2)(3)
695D685(1)004B(2)(3)
695D106(1)004B(2)(3)
695D156(1)004D(2)(3)
695D226(1)004D(2)(3)
695D336(1)004E(2)(3)
695D476(1)004F(2)(3)
695D686(1)004F(2)(3)
695D107(1)004F(2)(3)
695D127(1)004G(2)(3)
695D157(1)004G(2)(3)
695D187(1)004H(2)(3)
695D227(1)004H(2)(3)
695D277(1)004H(2)(3)
0.5
0.5
0.5
0.6
0.9
1.3
1.9
2.7
4.0
4.8
6.0
7.2
8.8
10.8
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”; for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”; for gold plated specify “4”, for solder plated 60/40 specify “8”
(3) Packaging code: for 7" reels specify “T”, for 13" reels specify “W”
Revision: 21-Jun-17
Document Number: 40038
2
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
695D
www.vishay.com
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
6
6
6
6
6
6
6
6
8
8
8
8
8
6
6
6
6
6
6
6
6
6
8
8
8
6
6
6
6
6
6
6
6
6
6
6
8
MAX. ESR
AT +25 °C
100 kHz
(Ω)
11.000
9.000
8.500
2.200
2.000
1.500
1.000
0.900
0.900
0.700
0.650
0.400
0.350
11.500
10.600
2.600
2.500
2.200
2.000
1.200
1.000
0.750
0.750
0.450
0.400
14.000
12.000
10.800
2.800
2.600
2.500
2.300
1.400
1.200
0.800
0.500
0.450
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.07
0.07
0.10
0.20
0.32
0.25
0.33
0.35
0.37
0.41
0.48
0.61
0.65
0.07
0.08
0.18
0.18
0.2
0.22
0.3
0.33
0.4
0.4
0.58
0.61
0.07
0.07
0.08
0.17
0.18
0.18
0.20
0.28
0.30
0.39
0.55
0.58
Vishay Sprague
6 V
DC
AT +85 °C; 4 V
DC
AT +125 °C
4.7
6.8
10
15
22
33
47
68
100
120
150
180
220
3.3
4.7
6.8
10
15
22
33
47
68
100
120
150
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
A
B
D
D
D
E
F
F
G
G
H
H
H
A
B
D
D
D
E
F
F
G
G
H
H
A
A
B
D
D
D
E
F
F
G
H
H
695D475(1)006A(2)(3)
695D685(1)006B(2)(3)
695D106(1)006D(2)(3)
695D156(1)006D(2)(3)
695D226(1)006D(2)(3)
695D336(1)006E(2)(3)
695D476(1)006F(2)(3)
695D686(1)006F(2)(3)
695D107(1)006G(2)(3)
695D127(1)006G(2)(3)
695D157(1)006H(2)(3)
695D187(1)006H(2)(3)
695D227(1)006H(2)(3)
695D335(1)010A(2)(3)
695D475(1)010B(2)(3)
695D685(1)010D(2)(3)
695D106(1)010D(2)(3)
695D156(1)010D(2)(3)
695D226(1)010E(2)(3)
695D336(1)010F(2)(3)
695D476(1)010F(2)(3)
695D686(1)010G(2)(3)
695D107(1)010G(2)(3)
695D127(1)010H(2)(3)
695D157(1)010H(2)(3)
695D155(1)015A(2)(3)
695D225(1)015A(2)(3)
695D335(1)015B(2)(3)
695D475(1)015D(2)(3)
695D685(1)015D(2)(3)
695D106(1)015D(2)(3)
695D156(1)015E(2)(3)
695D226(1)015F(2)(3)
695D336(1)015F(2)(3)
695D476(1)015G(2)(3)
695D686(1)015H(2)(3)
695D107(1)015H(2)(3)
0.5
0.5
0.6
0.9
1.3
2.0
2.8
4.1
6.0
7.2
9.0
10.8
13.2
0.5
0.5
0.7
1.0
1.5
2.2
3.3
4.7
6.8
10
12
15
0.5
0.5
0.5
0.7
1.0
1.5
2.3
3.3
5.0
7.1
10.2
15.0
10 V
DC
AT +85 °C; 7 V
DC
AT +125 °C
15 V
DC
AT +85 °C; 10 V
DC
AT +125 °C
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”; for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”; for gold plated specify “4”, for solder plated 60/40 specify “8”
(3) Packaging code: for 7" reels specify “T”, for 13" reels specify “W”
Revision: 21-Jun-17
Document Number: 40038
3
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
695D
www.vishay.com
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
4
6
6
6
6
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
(Ω)
15.000
12.000
11.000
3.000
2.800
2.550
1.800
1.500
0.900
0.800
0.500
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.06
0.08
0.08
0.17
0.17
0.19
0.25
0.27
0.37
0.39
0.55
Vishay Sprague
20 V
DC
AT +85 °C; 13 V
DC
AT +125 °C
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
A
B
B
D
D
E
F
F
G
G
H
695D105(1)020A(2)(3)
695D155(1)020B(2)(3)
695D225(1)020B(2)(3)
695D335(1)020D(2)(3)
695D475(1)020D(2)(3)
695D685(1)020E(2)(3)
695D106(1)020F(2)(3)
695D156(1)020F(2)(3)
695D226(1)020G(2)(3)
695D336(1)020G(2)(3)
695D476(1)020H(2)(3)
0.5
0.5
0.5
0.7
0.9
1.4
2.0
3.0
4.4
6.6
9.4
25 V
DC
AT +85 °C; 17 V
DC
AT +125 °C
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
A
A
B
D
D
D
E
F
F
G
H
H
695D474(1)025A(2)(3)
695D684(1)025A(2)(3)
695D105(1)025B(2)(3)
695D155(1)025D(2)(3)
695D225(1)025D(2)(3)
695D335(1)025D(2)(3)
695D475(1)025E(2)(3)
695D685(1)025F(2)(3)
695D106(1)025F(2)(3)
695D156(1)025G(2)(3)
695D226(1)025H(2)(3)
695D336(1)025H(2)(3)
0.5
0.5
0.5
0.5
0.6
0.8
1.2
1.7
2.5
3.8
5.5
8.3
4
4
4
6
6
6
6
6
6
6
6
6
17.000
15.000
13.000
4.200
3.500
3.000
2.750
2.000
1.800
1.000
0.700
0.800
0.06
0.06
0.08
0.14
0.16
0.17
0.19
0.23
0.25
0.35
0.46
0.50
35 V
DC
AT +85 °C; 23 V
DC
AT +125 °C
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
A
A
B
B
D
D
E
F
F
F
G
H
695D224(1)035A(2)(3)
695D334(1)035A(2)(3)
695D474(1)035B(2)(3)
695D684(1)035B(2)(3)
695D105(1)035D(2)(3)
695D155(1)035D(2)(3)
695D225(1)035E(2)(3)
695D335(1)035F(2)(3)
695D475(1)035F(2)(3)
695D685(1)035F(2)(3)
695D106(1)035G(2)(3)
695D156(1)035H(2)(3)
0.5
0.5
0.5
0.5
0.5
0.5
0.8
1.2
1.6
2.4
3.5
5.3
4
4
4
4
4
6
6
6
6
6
6
6
20.000
18.000
15.000
14.000
8.000
4.200
4.000
3.200
2.700
2.000
1.300
0.800
0.05
0.06
0.07
0.07
0.10
0.14
0.15
0.19
0.20
0.23
0.30
0.43
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”; for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”; for gold plated specify “4”, for solder plated 60/40 specify “8”
(3) Packaging code: for 7" reels specify “T”, for 13" reels specify “W”
Revision: 21-Jun-17
Document Number: 40038
4
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
695D
www.vishay.com
STANDARD RATINGS
CAPACITANCE
(μF)
CASE CODE
PART NUMBER
MAX. DCL
AT +25 °C
(μA)
MAX. DF
AT +25 °C
120 Hz
(%)
4
4
4
4
4
4
4
6
6
6
6
6
6
MAX. ESR
AT +25 °C
100 kHz
(Ω)
32.000
30.000
18.000
16.000
9.000
8.500
8.000
5.500
3.900
3.200
2.500
1.200
1.000
MAX. RIPPLE
100 kHz
I
RMS
(A)
0.04
0.04
0.06
0.07
0.10
0.10
0.10
0.13
0.17
0.19
0.22
0.35
0.39
Vishay Sprague
50 V
DC
AT +85 °C; 33 V
DC
AT +125 °C
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
A
A
B
B
D
D
D
E
F
F
G
H
H
695D104(1)050A(2)(3)
695D154(1)050A(2)(3)
695D224(1)050B(2)(3)
695D334(1)050B(2)(3)
695D474(1)050D(2)(3)
695D684(1)050D(2)(3)
695D105(1)050D(2)(3)
695D155(1)050E(2)(3)
695D225(1)050F(2)(3)
695D335(1)050F(2)(3)
695D475(1)050G(2)(3)
695D685(1)050H(2)(3)
695D106(1)050H(2)(3)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.8
1.1
1.7
2.4
3.4
5.0
Note
• Part number definitions:
(1) Tolerance: for 10 % tolerance, specify “X9”; for 20 % tolerance, change to “X0”
(2) Termination: for 100 % tin specify “2”; for gold plated specify “4”, for solder plated 60/40 specify “8”
(3) Packaging code: for 7" reels specify “T”, for 13" reels specify “W”

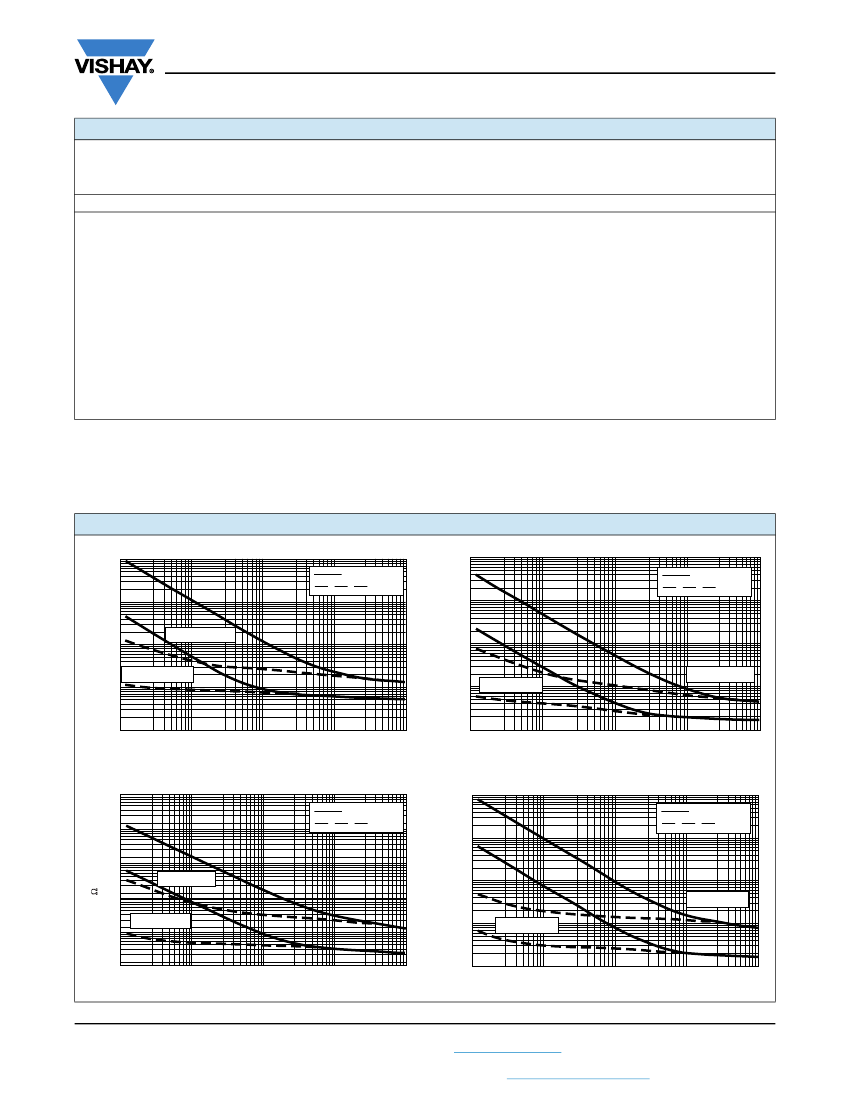

TYPICAL CURVES AT +25 °C, IMPEDANCE AND ESR VS. FREQUENCY
“A CASE”
10 000
IMPEDANCE
ESR
1000
1000
10 000
“B CASE”
IMPEDANCE
ESR
3.3
μ
F, 50 V
DC
10
10
100
0.15
μ
F, 50 V
DC
100
0.33
μ
F,50 V
DC
6.8
μ
F, 5 V
DC
1
100
1K
10K
FREQUENCY IN Hz
100K
1M
1
100
1K
10K
FREQUENCY IN Hz
100K
1M
“D CASE ”
“E CASE”
1000
IMPEDANCE
ESR
IMPEDANCE
ESR
1000
100
100
1
μ
F, 50 V
DC
10
22
μ
F, 6 V
DC
10
1.5
μ
F, 50 V
DC
1
1
22
μ
F, 10 V
DC
0.1
100
1K
10K
FRE QUENCY IN Hz
100K
1M
0.1
100
1K
10K
FREQUENCY IN Hz
100K
1M
Revision: 21-Jun-17
Document Number: 40038
5
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
