Ultra-Low Phase Jitter LVPECL SMD Clock Oscillator
ASVMX-156.250MHz-3BBA
Moisture Sensitivity Level – MSL 3
FEATURES:
• 156.25MHz LVPECL
• Typical phase noise: 110fs (Integration range: 1.875MHz-20MHz)
• ±50ppm total frequency stability over -40°C to +85°C temperature range
• Industry standard 6-Pin 7 x 5mm LGA package
ESD Sensitive
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 1.4mm
APPLICATIONS:
High Performance
• 10/40/400 Gigabit Ethernet
• Fibre Channel 10G/12G SERDES
KEY ELECTRICAL SPECIFICATIONS
Item
Supply Voltage
Storage Temp.
Lead Temp.(soldering, 10s)
ESD (HBM)
Parameters
Frequency
Operating Temperature (T
A
)
Overall Frequency Stability
(2)
Supply Voltage (V
DD
)
Supply Current (I
DD
)
Output Logic Level
Minimum
-0.3
-55
Maximum
+3.6
+125
+260
2
Minimum
-40
-50
+2.375
V
DD
-1.35
V
DD
-2.0
0.65
85
85
45
165
110
V
DD
-1.01
V
DD
-1.78
0.77
Unit
V
°C
°C
kV
Typical
156.250
Condition
VDD = 2.375 - 3.63V, TA = -40°C to +85°C, outputs terminated with 50 Ohms to VDD - 2.
(1)
Maximum
+85
+50
+3.63
120
V
DD
-0.8
V
DD
-1.6
0.95
20
350
350
55
V
OH
V
OL
Peak to Peak Output Swing (V
swing
)
Start-up Time
Rise Time (Tr)
Fall Time (Tf)
Duty Cycle
Integration Range:
12kHz to 20MHz
Phase Noise
Integration Range:
1.875MHz to 20MHz
Units
MHz
°C
ppm
V
mA
V
V
V
ms
ps
%
fsRMS
Notes
Single ended
RL=50Ω , CL=0pF
20% to 80%
Notes:
1.
2.
Guaranteed after thermal equilibrium
Inclusive of initial accuracy, temperature drift, aging, shock, vibration from -40°C to +85°C.
PART IDENTIFICATION
ASVMX-156.250MHz -3BBA -
Packing
Blank: Bulk or Tube
T: Tape & Reel (1k/reel)
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.27.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Ultra-Low Phase Jitter LVPECL SMD Clock Oscillator
ASVMX-156.250MHz-3BBA

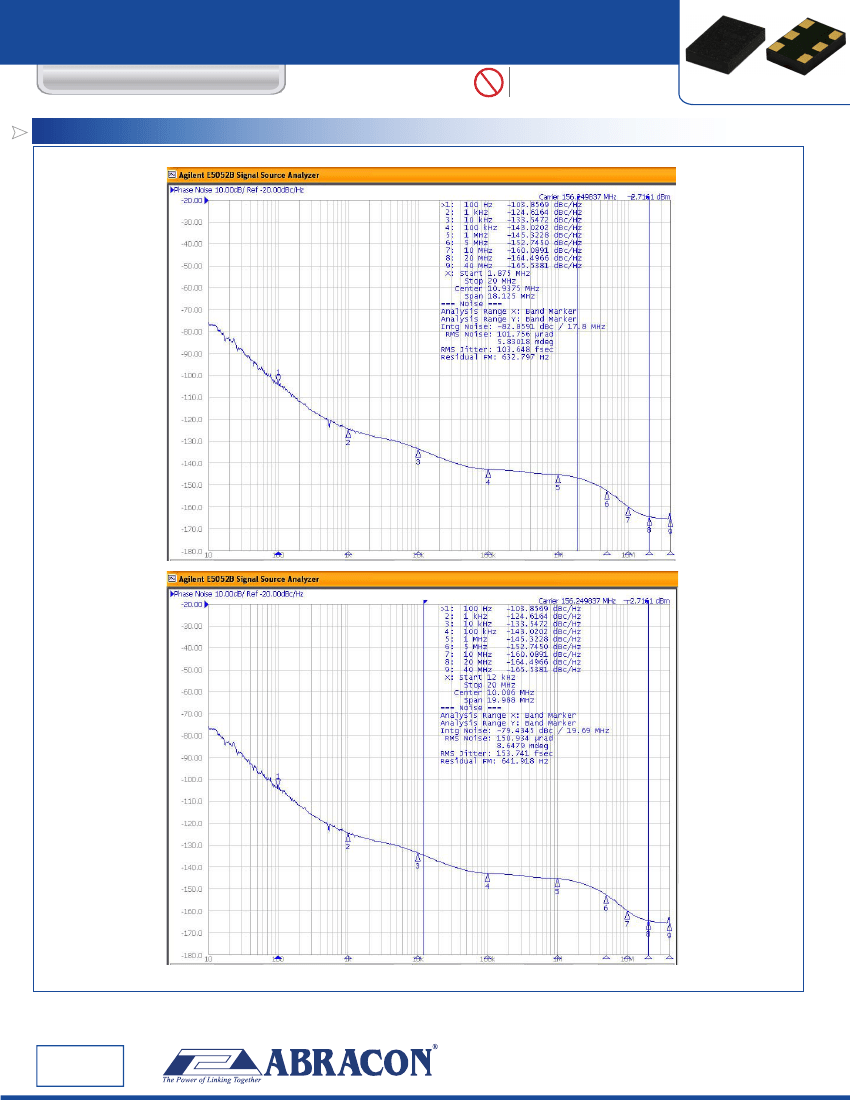

TYPICAL PHASE NOISE
DESCRIPTION:
ASVMP
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 1.4mm
Low Jitter
High Performance
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.27.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Ultra-Low Phase Jitter LVPECL SMD Clock Oscillator
ASVMX-156.250MHz-3BBA

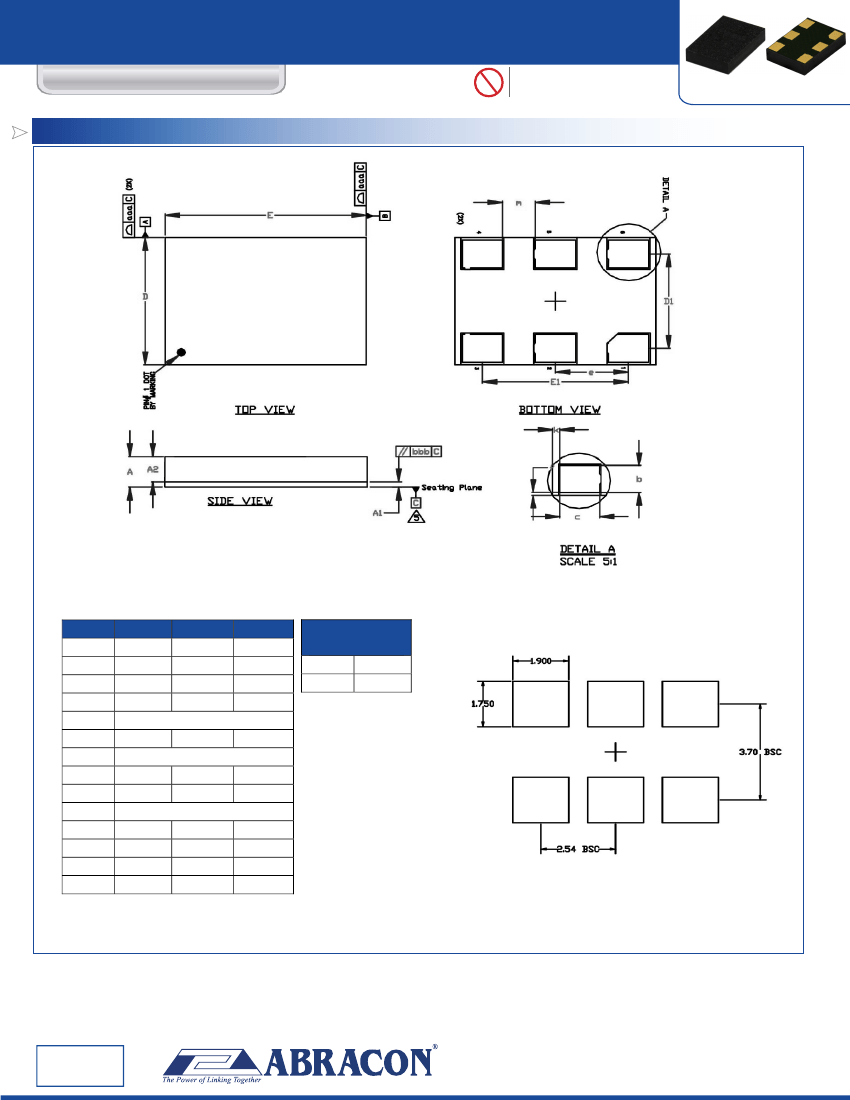

OUTLINE DIMENSION
DESCRIPTION:
ASVMP
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 1.4mm
Low Jitter
High Performance
Ref.
A
A1
A2
D
D1
E
E1
b
c
e
f
k
m
n
Min.
1.260
0.190
1.070
4.900
6.900
1.050
1.350
0.050
0.210
1.090
Nom.
1.330
0.230
1.100
5.000
3.700 BSC
7.000
5.080 BSC
1.100
1.400
2.540 BSC
0.100
0.260
1.140
36
Max.
1.400
0.270
1.130
5.100
7.100
1.150
1.450
0.150
0.310
1.190
Dimensional
Tolerance
aaa
0.100
bbb
0.070
Recommended Land Pattern
Dimensions: mm
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.27.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Ultra-Low Phase Jitter LVPECL SMD Clock Oscillator
ASVMX-156.250MHz-3BBA

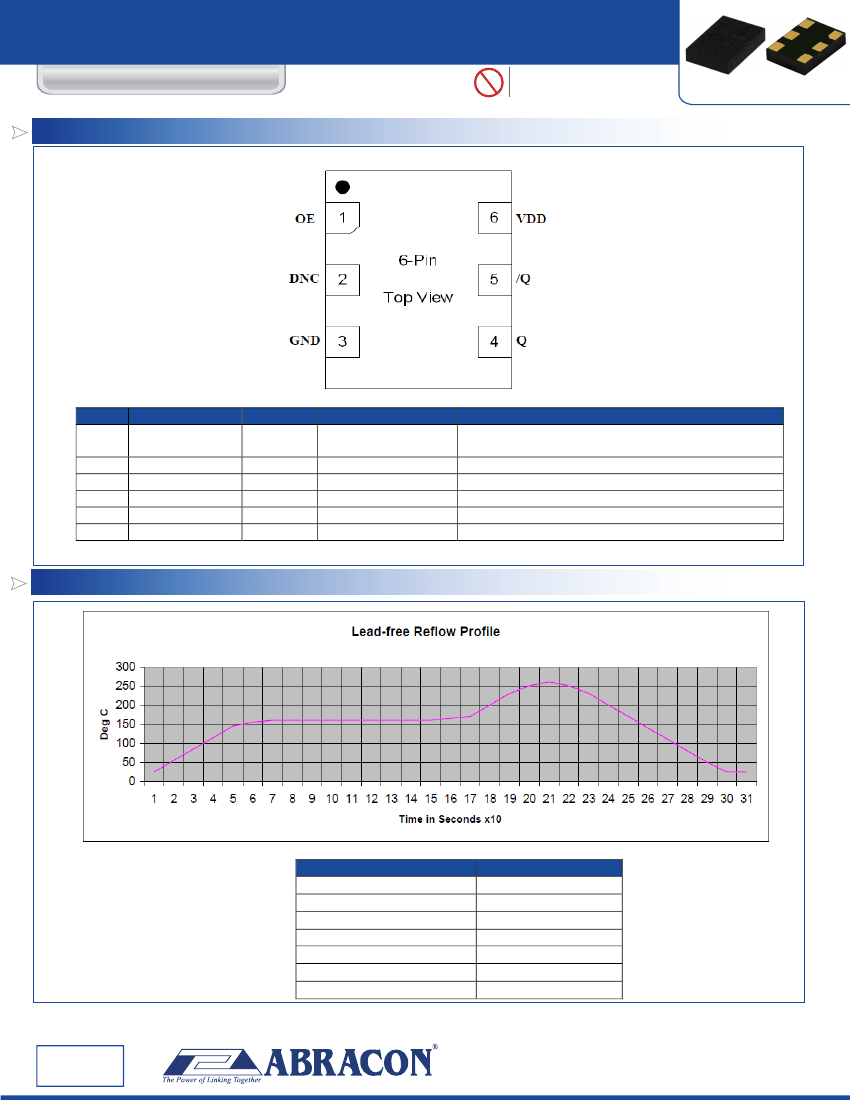

PIN CONFIGURATION
DESCRIPTION:
ASVMP
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 1.4mm
Low Jitter
High Performance
Pin #
1
2
3
4
5
6
Pin Name
OE
DNC
GND
Q
/Q
VDD
Pin Type
I, SE
PWR
O
O
PWR
Pin Level
LVCMOS
LVPECL
LVPECL
Pin Function
Output Enable, disables output to tri-state.
0 = Disabled, 1= Enabled, 50k
Ω
Pull-up
Make no connection, leave floating
Power Supply Ground
Clock Output
Complimentary Clock Output
Power Supply
REFLOW PROFILE
Parameters
Average Ramp-up Rate
Pre-Heat Temp 150 – 200°C
Temp > 217°C
Time @ Peak Temperature
Peak Temperature
Ramp-down Rate
Time 25°C to Peak Temp.
Specifications
3°C /second max.
60 – 180 second
60 – 150 second
20 – 40 second
260°C + 0°C / -5°C
-6°C / second max.
8 minutes max.
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.27.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Ultra-Low Phase Jitter LVPECL SMD Clock Oscillator
ASVMX-156.250MHz-3BBA

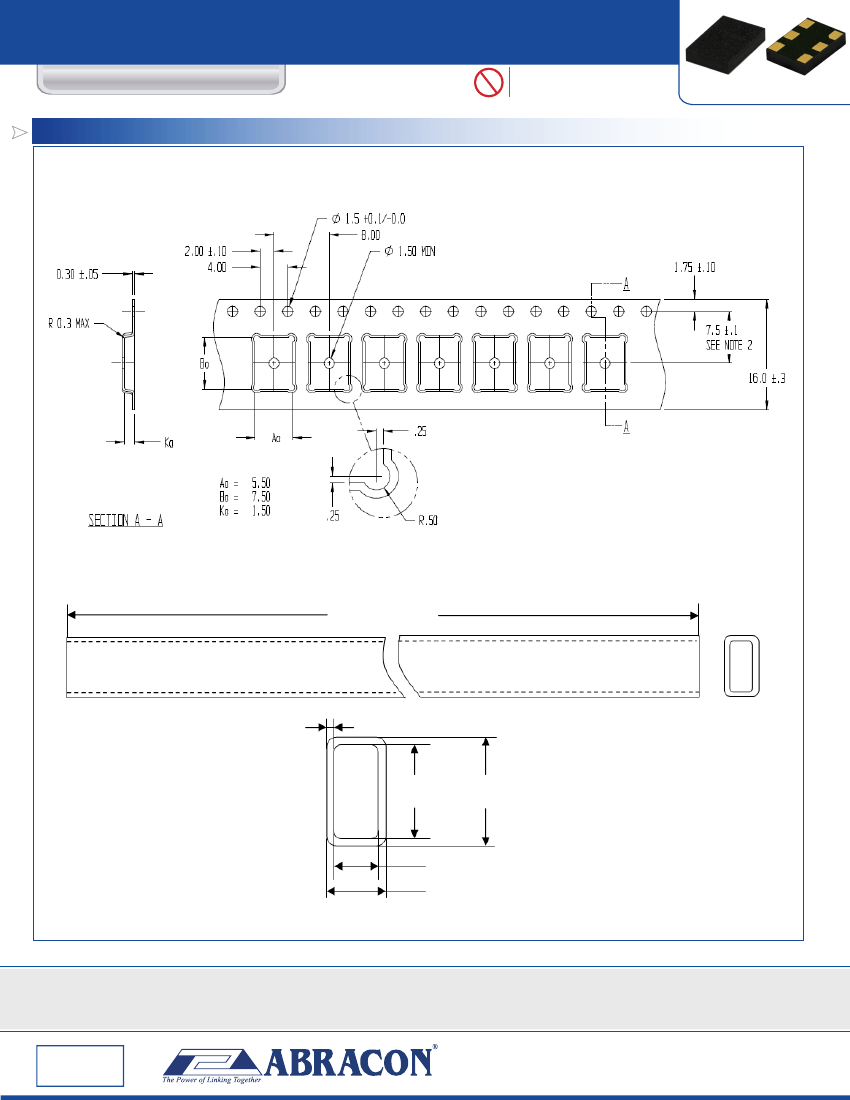

TAPE & REEL
DESCRIPTION:
ASVMP
Pb
RoHS/RoHS II compliant
7.0 x 5.0 x 1.4mm
T= Tape & Reel, 1000pcs/reel. Reel Size = 7-inch Reel
MSL-3 packaging applies to –T option.
Low Jitter
High Performance
Blank = Bulk or Tube (43pcs/tube)
MSL-3 packaging applies to MOQ=43 units (tube)
313.75 ~ 316.25
0.50±0.10
All sides
5.50±0.20
6.50 Ref.
1.80+0.20/-0.10
2.80 Ref.
Dimensions: mm
