Aluminum Organic Capacitor (AO-CAP)
A700 Polymer Aluminum, 2 – 16 VDC
Overview
The KEMET Aluminum Organic Capacitor (AO-CAP)
is a solid state aluminum capacitor. The cathode is a
conductive organic polymer which results in very low ESR
and improved capacitance retention at high frequency. AO-
CAPs may be operated at steady state voltages up to 100%
of rated voltage without the need to de-rate.
Since there is no liquid electrolyte, the A700 offers long
operational lifetimes, low ESR and high operational
temperatures. The inherent low ESR renders the A700
suitable for high ripple current handling. The small
package size, high ripple current capability, high operating
temperature, low parasistics and high capacitance makes the
A700 ideal for high performance microprocessor, FPGA and
ASIC decoupling designs.
Benefits
• ESR: 4.5 mΩ to 70 mΩ
• Voltage: 2 V to 16 V
• Capacitance: 6.8 µF to 560 µF
• Polymer cathode technology
• High frequency capacitance retention
• Non-ignition failure mode
• 100% accelerated steady state aging
• 100% surge current tested
• Volumetric efficiency
• Self-healing mechanism
• EIA standard case sizes

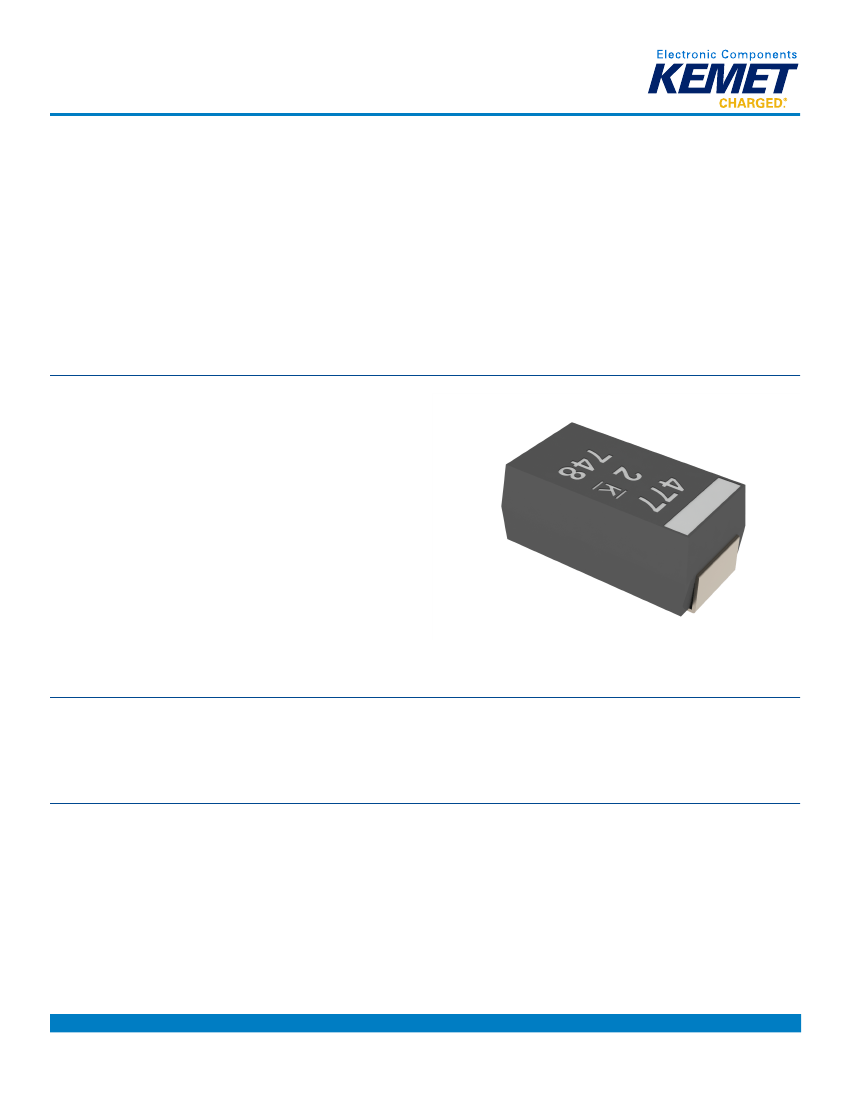

Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include DC/DC converters, notebook PCs, telecommunications, displays, and industrial applications.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2020_A700 • 12/6/2017
1
Aluminum Organic Capacitor (AO-CAP)
A700 Polymer Aluminum, 2 – 16 VDC
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET’s K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
Ordering Information
A
Capacitor
Class
A=
Aluminum
700
Series
700 =
Aluminum
Polymer
V
Case
Size
D
V
X
476
Capacitance
Code (pF)
First two digits
represent
significant
figures. Third
digit specifies
number of
zeros.
M
006
A
T
Termination
Finish
T = 100%
Matte Tin
(Sn) plated
E018
ESR Code
E = ESR
Last three
digits specify
ESR in mΩ
(018 = 18
mΩ)
Packaging
(C-Spec)
Blank = 7"
Reel
7280 = 13"
Reel
Capacitance Rated Voltage Failure Rate/
Tolerance
(VDC)
Design
M = ±20%
002 = 2
2R5 = 2.5
004 = 4
006 = 6.3
008 = 8
010 = 10
12R = 12.5
016 = 16
A = N/A
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
6.8 – 560 µF at 120 Hz/25°C
M Tolerance (20%)
2 – 16 V
6%
Refer to Part Number Electrical Specification Table
≤ 4 V Rating: ≤ 0.06 CV (µA) at rated voltage after 5 minutes
> 4 V Rating: ≤ 0.04 CV (µA) at rated voltage after 5 minutes
If there is any concern about leakage current, please perform pre-conditioning to the part
following below conditions:
* Temperature: 105°C maximum
* Voltage: Rated Voltage
* Series Resistor: 1000Ω
* Charge Time: 1 Hr minute
* Measuring: Discharge the capacitor(s), store them for 4 to 24 hours at room temperature and
RH < 60%
Performance Characteristics
−55°C to 105°C/125°C (Refer to part number for maximum temperature rating)
Leakage Current
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2020_A700 • 12/6/2017
2
Aluminum Organic Capacitor (AO-CAP)
A700 Polymer Aluminum, 2 – 16 VDC
Qualification
Test
Endurance
Condition
Δ C/C
105°C/125°C** at rated voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
60°C, 90% RH, 1,000 hours, rated voltage 60°C, 90% RH,
500 hours, No Load
Δ C/C
DF
DCL
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +85°C, +105°C/+125°C**
Δ C/C
DF
DCL
105°C/125°C**, 1.32 x rated voltage, 33 Ω Resistance,
1,000 cycles
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
≤ initial limit
Within 1.25 x initial limit
Within 2.0 x initial limit
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within 2.0 x initial limit
Within -5/+30% of initial value
A700V477M002AT PN: −30%/+70% of
initial value
≤ initial limit
Within 5.0 x initial limit
−55°C
±15%
IL
N/A
+85°C
±15%
1.2 x IL
10 x IL
+105°C/125°C
±20%
1.5 x IL
10 x IL
Storage Life
105°C/125°C** at 0 volts, 2,000 hours
Humidity
Temperature Stability
Within ±10% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
Mechanical Shock/
Vibration
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to
2,000 Hz, 20 G peak
*IL = Initial Limit
** Refer to part number specifications for individual temperature classification
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2020_A700 • 12/6/2017
3
Aluminum Organic Capacitor (AO-CAP)
A700 Polymer Aluminum, 2 – 16 VDC
Electrical Characteristics

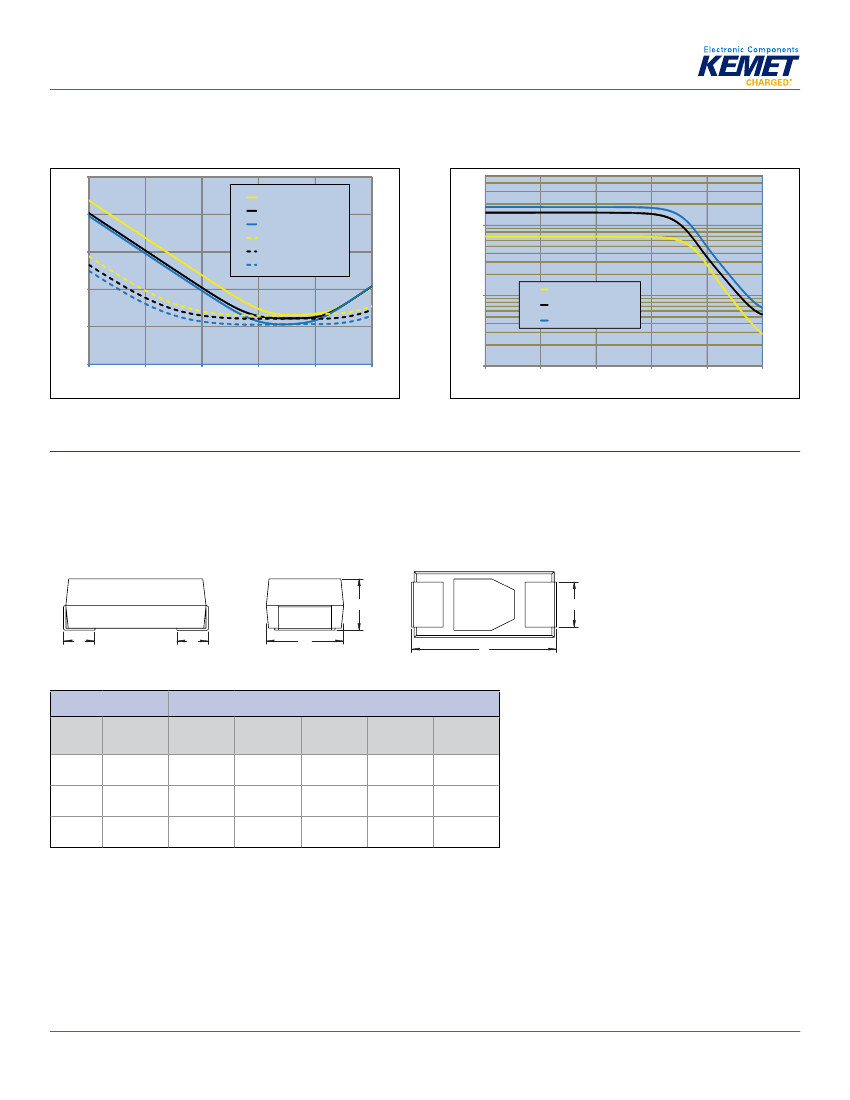

ESR vs. Frequency
100
Impedance, ESR (Ohms)
10
1
0.1
A700V686M006ATE018_Imp
A700D157M006ATE015_Imp
A700X187M006ATE010_Imp
A700V686M006ATE018_ESR
A700D157M006ATE015_ESR
A700X187M006ATE010_ESR
Capacitance vs. Frequency
100
Capacitance (µF)
10
A700V686M006ATE018
A700D157M006ATE015
A700X187M006ATE010
0.01
0.001
100
1,000
10,000
100,000
Frequency (Hz)
1,000,000
10,000,000
1
100
1,000
10,000
100,000
Frequency (Hz)
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
SIDE VIEW
END VIEW
BOTTOM VIEW
H
S
S
W
F
L
Case Size
KEMET
D
V
X
EIA
7343–31
7343–20
7343–43
Component
L
7.3±0.3
(0.287±0.012)
7.3±0.3
(0.287±0.012)
7.3±0.3
(0.287±0.012)
W
4.3±0.3
(0.169±0.012)
4.3±0.3
(0.169±0.012)
4.3±0.3
(0.169±0.012)
H
2.8±0.3
(0.098±0.012)
2.0(0.079)
Maximum*
4.0±0.3
(0.157±0.012)
F ±0.1
±(0.004)
2.4
(0.094)
2.4
(0.094)
2.4
(0.094)
S ±0.3
±(0.012)
1.3
(0.051)
1.3
(0.051)
1.3
(0.051)
Notes: (Ref) – Dimensions provided for reference only.
* Maximum Height is 2.1 for A700V477M002AT only.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2020_A700 • 12/6/2017
4
Aluminum Organic Capacitor (AO-CAP)
A700 Polymer Aluminum, 2 – 16 VDC
Table 1 – Ratings & Part Number Reference
Rated
Voltage
VDC at 105°C
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
VDC at 105°C
Rated
Capacitance
µF
100
100
100
100
150
150
150
150
180
180
220
220
220
220
220
220
220
270
270
270
270
330
330
330
330
330
390
390
470
470
470
470
470
470
470
470
560
68
68
82
82
82
100
100
100
120
120
150
150
180
µF
Case Code/
Case Size
KEMET/EIA
V/7343-20
V/7343-20
V/7343-20
V/7343-20
V/7343-20
V/7343-20
V/7343-20
V/7343-20
D/7343-31
D/7343-31
V/7343-20
V/7343-20
V/7343-20
D/7343-31
D/7343-31
D/7343-31
D/7343-31
D/7343-31
X/7343-43
X/7343-43
X/7343-43
D/7343-31
D/7343-31
D/7343-31
X/7343-43
X/7343-43
X/7343-43
X/7343-43
V/7343-21
V/7343-21
D/7343-31
D/7343-31
X/7343-43
X/7343-43
X/7343-43
X/7343-43
X/7343-43
V/7343-20
V/7343-20
V/7343-20
V/7343-20
V/7343-20
D/7343-31
D/7343-31
D/7343-31
D/7343-31
D/7343-31
D/7343-31
D/7343-31
D/7343-31
KEMET/EIA
KEMET Part
Number
(See below for
part options)
A700V107M002ATE016
A700V107M002ATE018
A700V107M002ATE025
A700V107M002ATE028
A700V157M002ATE015
A700V157M002ATE018
A700V157M002ATE025
A700V157M002ATE028
A700D187M002ATE015
A700D187M002ATE018
A700V227M002ATE009
A700V227M002ATE015
A700V227M002ATE018
A700D227M002ATE009
A700D227M002ATE012
A700D227M002ATE015
A700D227M002ATE018
A700D277M002ATE012
A700X277M002ATE010
A700X277M002ATE012
A700X277M002ATE015
A700D337M002ATE007
A700D337M002ATE009
A700D337M002ATE012
A700X337M002ATE010
A700X337M002ATE015
A700X397M002ATE010
A700X397M002ATE015
A700V477M002ATE4R5
A700V477M002ATE006
A700D477M002ATE005
A700D477M002ATE006
A700X477M002ATE005
A700X477M002ATE007
A700X477M002ATE010
A700X477M002ATE015
A700X567M002ATE005
A700V686M2R5ATE020
A700V686M2R5ATE028
A700V826M2R5ATE018
A700V826M2R5ATE025
A700V826M2R5ATE028
A700D107M2R5ATE018
A700D107M2R5ATE025
A700D107M2R5ATE028
A700D127M2R5ATE015
A700D127M2R5ATE018
A700D157M2R5ATE015
A700D157M2R5ATE018
A700D187M2R5ATE015
(See below for
part options)
DC
Leakage
µA at +25°C
Maximum/
5 Minutes
12
12
12
12
18
18
18
18
22
22
26
26
26
26
26
26
26
32
32
32
32
40
40
40
40
40
47
47
56
56
56
56
56
56
56
56
67
10
10
12
12
12
15
15
15
18
18
23
23
27
µA at +25°C
Maximum/
5 Minutes
DF
% at +25°C
120 Hz
Maximum
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
% at +25°C
120 Hz
Maximum
ESR
mΩ at 25°C
100 kHz
Maximum
16
18
25
28
15
18
25
28
15
18
9
15
18
9
12
15
18
12
10
12
15
7
9
12
10
15
10
15
4.5
6
5
6
5
7
10
15
5
20
28
18
25
28
18
25
28
15
18
15
18
15
mΩ at 25°C
100 kHz
Maximum
Ripple
Current
MSL
Maximum
Operating
Temp
°C
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
105
105
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
°C
mA at 100 kHz
with/T = +20°C at Reflow Temp
≤ 260°C
−55°C to 125°C
4100
3900
3300
3100
4200
3900
3300
3100
4100
3700
5500
4200
3900
5300
4600
4100
3700
4600
4700
4300
3900
6000
5300
4600
4700
3900
4700
3900
7750
6700
7100
6500
6700
5700
4700
3900
6700
3700
3100
3900
3300
3100
3700
3200
3000
4100
3700
4100
3700
4100
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
mA at 100 kHz Reflow Temp
with/T = +20°C at
≤ 260°C
−55°C to 125°C
Rated
Voltage
Rated
Capacitance
Case Code/
Case Size
KEMET Part Number
DC
Leakage
DF
ESR
Ripple Current
MSL
Maximum
Operating
Temp
Also available on large (13 inch) reels. Add 7280 to the end of the part number.
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitutions will
be marked with the higher voltage rating. Substitutions can include better than series.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
T2020_A700 • 12/6/2017
5
京公网安备 11010802033920号
EEWORLD
