Features
■
Bushing mount
■
Optional center tap and rear shaft extension
■
Optional AR lug feature
■
Gangable with common or concentric shafts
■
High torque available
■
Non-standard features and specifications
■
RoHS compliant*
*R
oH
S
CO
M
available

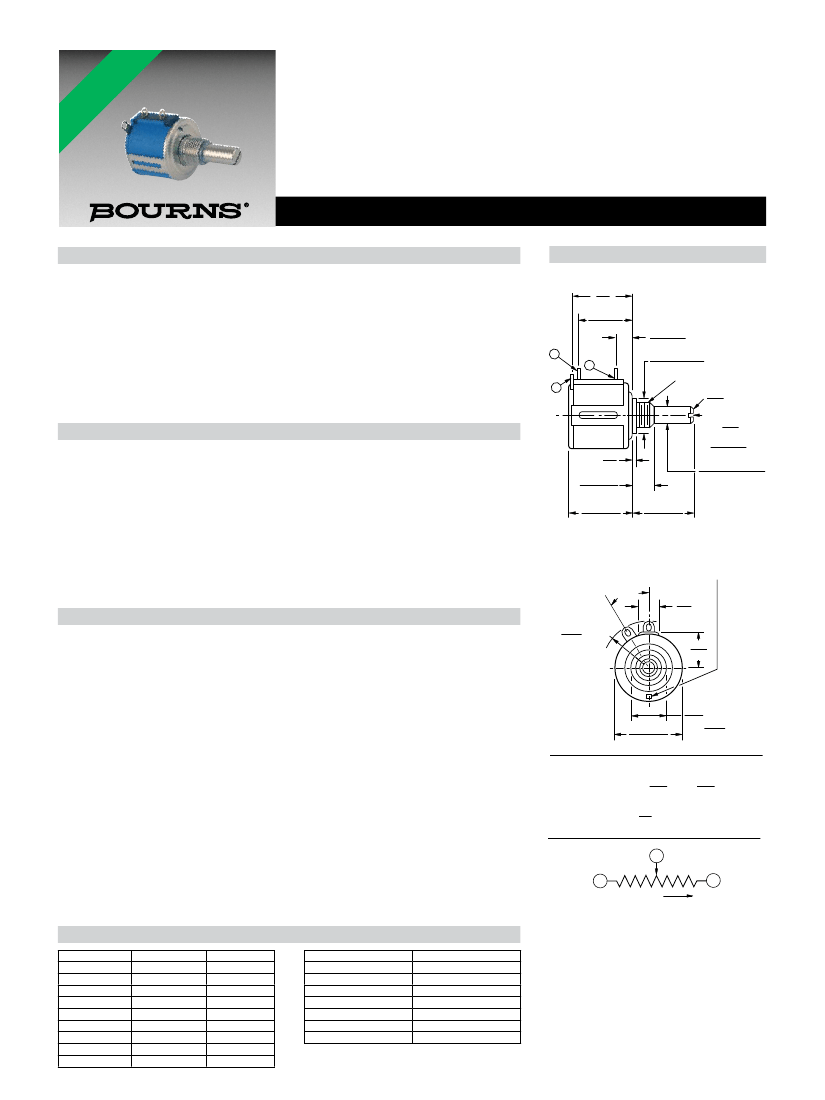

3540/3541 - Precision Potentiometer
Electrical Characteristics
1
3540 Wirewound Element
3541 Hybritron
®
Element
Product Dimensions
3540S-1/3541H-1
18.3
(.72)
14.35 ± .38
(.565±.015)
1
3
2
Standard Resistance Range................ 100 to 100 K ohms .....................1 K to 100 K ohms
Total Resistance Tolerance.................. ±5 % ...........................................±10 %
Independent Linearity .......................... ±0.25 % ......................................±0.25 %
Effective Electrical Angle ..................... 3600 ° +10 °, -0 ° .......................3600 ° +10 °, -0 °
Absolute Minimum Resistance/ ........... 1 ohm or 0.1 % maximum ..........0.2 % maximum
Minimum Voltage ............................. (whichever is greater)
Noise/Output Smoothness .................. 100 ohms ENR maximum ..........0.1 % maximum
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
Sea Level ......................................... 1,000 VAC minimum ..................1,000 VAC minimum
Power Rating (Voltage Limited By Power Dissipation or 447 VAC, Whichever Is Less)
+70 °C.............................................. 2 watts ........................................2 watts
+125 °C............................................ 0 watt..........................................0 watt
Insulation Resistance (500 VDC) ........ 1,000 megohms minimum ..........1,000 megohms minimum
Resolution............................................ See recommended part nos. .....Essentially infinite
5.72 ± .38
(.225±.015)
10.32 +.00/.05
DIA.
(.406+.000/-.002)
3/8 " 32-UNEF-2ATHD
.25
X 45 ° CHAMFER
(.010)
ADJUSTMENT
SLOT .81 WIDE
(.032)
.81±.25
X
DEEP
(.032±.010)
6.342 + .000/ - .023
(.2497+.0000/-.0009)
DIA.
20.62 ± .79
(.812 ± .031)
Environmental Characteristics
1
Operating Temperature Range ............ -40 °C to +125 °C .......................-40 °C to +125 °C
Storage Temperature Range ............... -55 °C to +125 °C .......................-55 °C to +125 °C
Temperature Coefficient Over
Storage Temperature Range
2
.......... ±50 ppm/°C maximum/unit .........±100 ppm/°C maximum/unit
Vibration .............................................. 15 G ...........................................15 G
Wiper Bounce .................................. 0.1 millisecond maximum ...........0.1 millisecond maximum
Shock................................................... 50 G ...........................................50 G
Wiper Bounce .................................. 0.1 millisecond maximum ...........0.1 millisecond maximum
Load Life .............................................. 1,000 hours, 2 watts ...................1,000 hours, 2 watts
Total Resistance Shift ...................... ±2 % ...........................................±5 %
Rotational Life (No Load)..................... 1,000,000 shaft revolutions
2
.....5,000,000 shaft revolutions
2
Total Resistance Shift ...................... ±5 % maximum ..........................±5 % maximum
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
Total Resistance Shift ...................... ±2 % maximum ..........................±5 % maximum
IP Rating .............................................. IP 40 ...........................................IP 40
1.52
(.06)
7.92 ± .38
(.312 ± .015)
19.05 ± .38
(.750 ± .015)
OPTIONAL ANTIROTATION LUG
(-91) 1.42 X .50 ON 7.4 RADIUS.
LENGTH 1.27 FROM MOUNTING SURFACE.
(SUGGESTED PANEL HOLE 1.6 DIA.)
30 °
±5°
6.35
(.25)
Mechanical
Characteristics
1
15.88
R MAX.
(.625)
Stop Strength.......................................................................................... 53 N-cm (75 oz-in.) minimum
Mechanical Angle ......................................................................................................3600 ° +10 °, -0 °
Torque
Starting & Running @ +25 °C ...............................................................0.49 N-cm (0.7 oz.-in.) max.
Starting & Running @ -40 °C................................................................1.76 N-cm (2.5 oz.-in.) max.
Mounting ..................................................................................... 170-200 N-cm (15-18 lb.-in.) max.
Shaft Runout.................................................................................................0.08 mm (0.003 in.) T.I.R.
Lateral Runout ..............................................................................................0.13 mm (0.005 in.) T.I.R.
Shaft End Play ..............................................................................................0.30 mm (0.012 in.) T.I.R.
Shaft Radial Play ..........................................................................................0.08 mm (0.003 in.) T.I.R.
Pilot Diameter Runout ..................................................................................0.08 mm (0.003 in.) T.I.R.
Backlash ....................................................................................................................... 1.0 ° maximum
Weight .................................................................................................................Approximately 21 gm
Terminals ......................................................................................................... Gold-plated solder lugs
Soldering Condition
Manual Soldering........................................................... 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean
rosin cored wire; 370 °C (700 °F) max. for 3 seconds
Wave Soldering .................... 96.5Sn/3.0Ag/0.5Cu solder with no-clean flux; 260 °C (500 °F) max.
for 5 seconds
Wash processes ..................................................................................................Not recommended
Marking ................................................. Manufacturer’s name and part number, resistance value and
tolerance, linearity tolerance, wiring diagram, and date code
Ganging (Multiple Section Pots.) ............................................................................... 2 cups maximum
Hardware .................................................... One lockwasher (H-37-2) and one mounting nut (H-38-2)
is shipped with each potentiometer.
1
At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
2
Consult manufacturer for complete specification details.
12.45
(.49)
22.23 ± .38
(.875 ± .015)
MTG. FACE
15.88
DIA. MIN.
(.625)
TOLERANCES: EXCEPT WHERE NOTED
.25
.13
DECIMALS: .XX ±
.XXX ±
(.010),
(.005)
FRACTIONS: ±1/64
MM
DIMENSIONS:
(IN.)
2
CCW
WIPER
1
CLOCKWISE
3
CW
Recommended Part Numbers
Part Number
3540S-1-201L
3540S-1-501L
3540S-1-102L
3540S-1-202L
3540S-1-502L
3540S-1-103L
3540S-1-203L
3540S-1-503L
3540S-1-104L
Resistance (Ω)
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
Resolution
.042
.031
.027
.021
.021
.019
.014
.011
.008
Part Number
3541H-1-102L
3541H-1-202L
3541H-1-502L
3541H-1-103L
3541H-1-203L
3541H-1-503L
3541H-1-104L
Resistance (Ω)
1,000
2,000
5,000
10,000
20,000
50,000
100,000
BOLDFACE
LISTINGS ARE IN STOCK AND READILY
AVAILABLE THROUGH DISTRIBUTION.
FOR OTHER OPTIONS CONSULT FACTORY.
ROHS IDENTIFIER:
L = COMPLIANT
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
