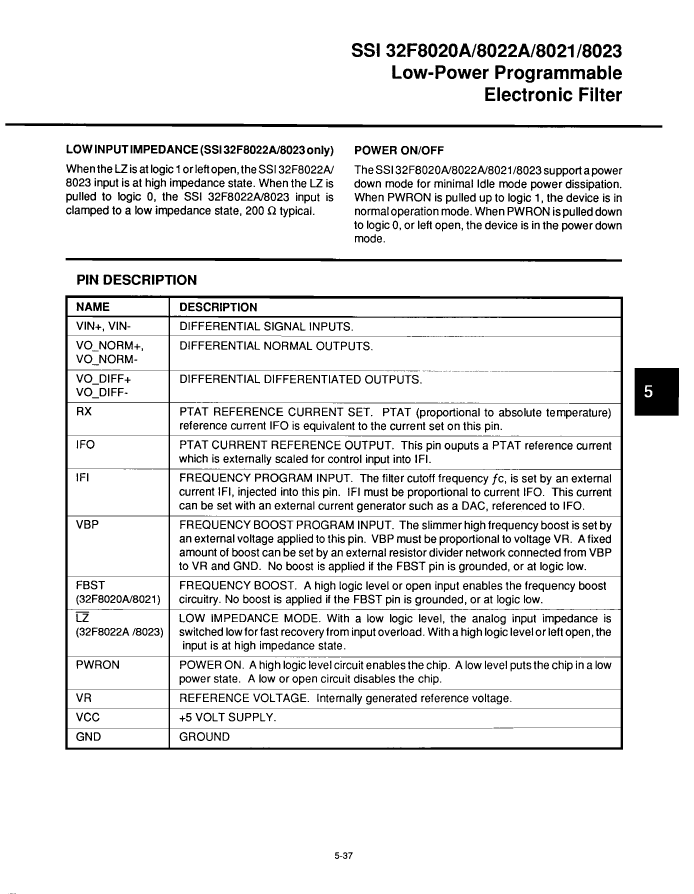

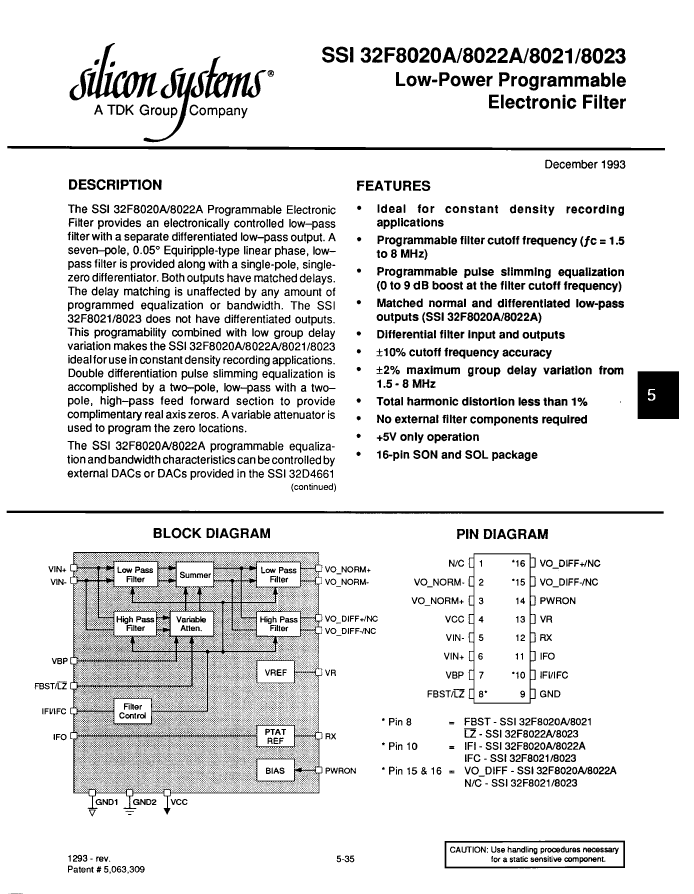

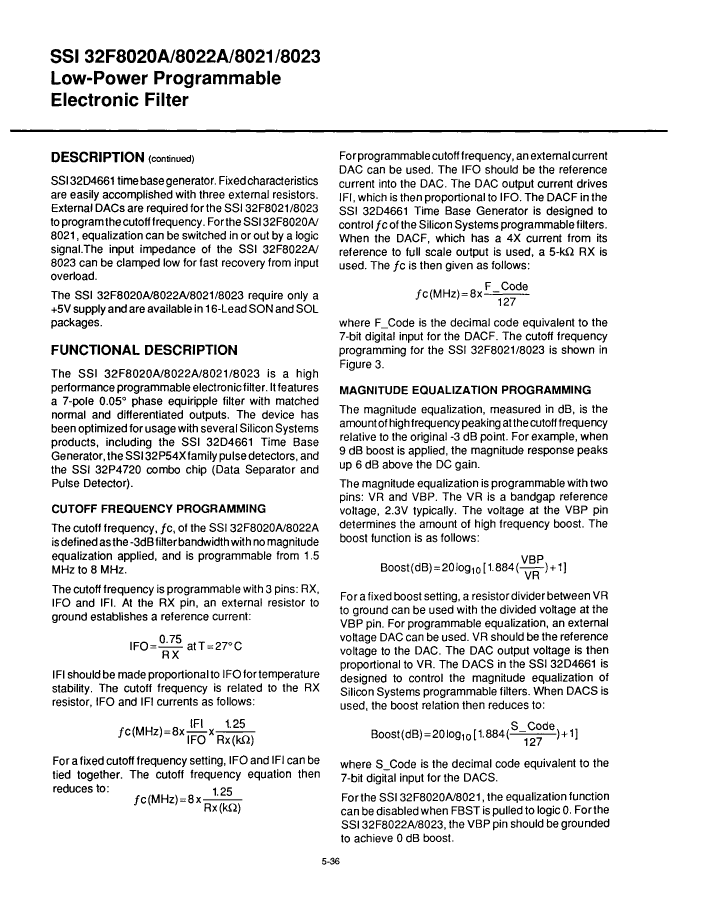

Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16

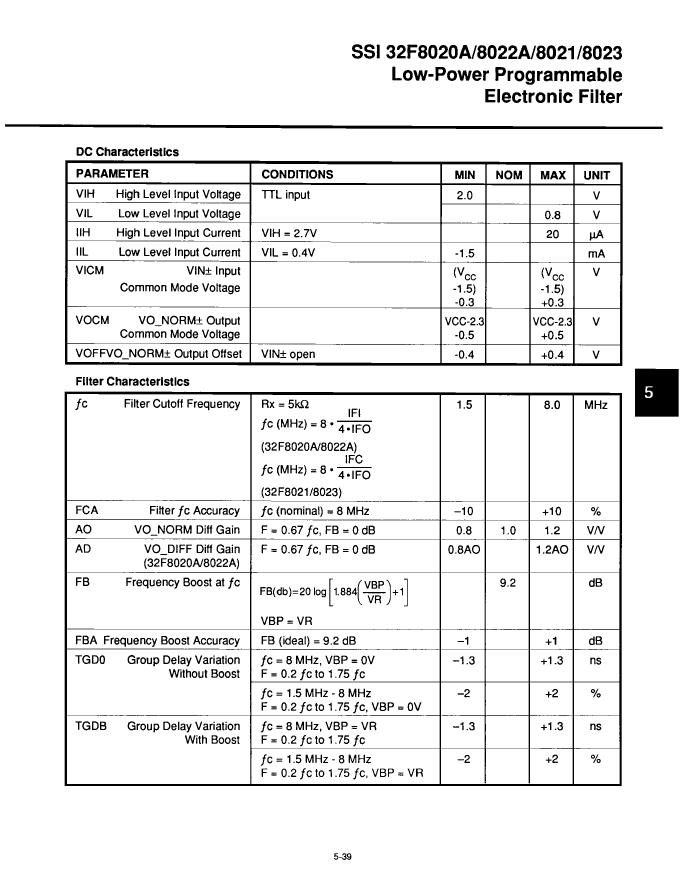

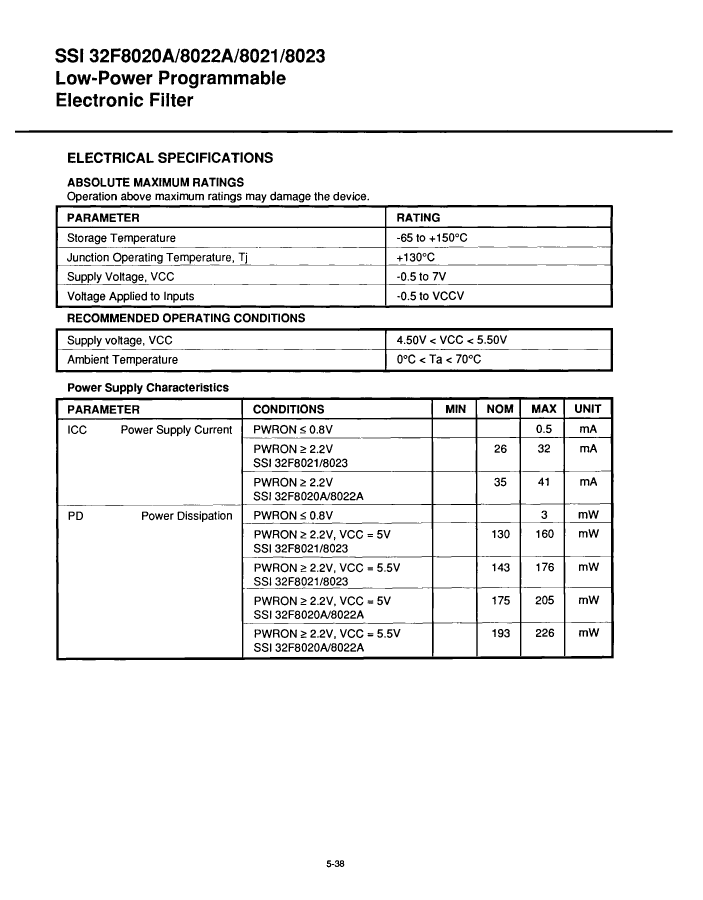

| Parameter Name | Attribute value |
| package instruction | , |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Active filter type | CONTINUOUS TIME FILTER |
| Other features | ADDITIONAL SINGLE-POLE SINGLE-ZERO DIFFERENTIATOR |
| Center frequency or cutoff frequency maximum range | 8000 kHz |
| Center frequency or cutoff frequency minimum range | 1500 kHz |
| JESD-30 code | R-PDSO-G16 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| poles and zeros | 7 AND 0 |
| Certification status | Not Qualified |
| response | LOWPASS |
| Maximum supply current (Isup) | 41 mA |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| transfer characteristics | BESSEL |
| Base Number Matches | 1 |
| 32F8020A-CN | 32F8022A-CL | 32F8022A-CN | 32F8021-CL | 32F8021-CN | 32F8023-CL | 32F8023-CN | 32F8020A-CL | |
|---|---|---|---|---|---|---|---|---|
| Description | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 | Continuous Time Filter, 1 Func, Bessel, Lowpass, PDSO16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Active filter type | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER | CONTINUOUS TIME FILTER |
| Center frequency or cutoff frequency maximum range | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz | 8000 kHz |
| Center frequency or cutoff frequency minimum range | 1500 kHz | 1500 kHz | 1500 kHz | 1500 kHz | 1500 kHz | 1500 kHz | 1500 kHz | 1500 kHz |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| poles and zeros | 7 AND 0 | 7 AND 0 | 7 AND 0 | 7 AND 0 | 7 AND 0 | 7 AND 0 | 7 AND 0 | 7 AND 0 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| response | LOWPASS | LOWPASS | LOWPASS | LOWPASS | LOWPASS | LOWPASS | LOWPASS | LOWPASS |
| Maximum supply current (Isup) | 41 mA | 41 mA | 41 mA | 32 mA | 32 mA | 32 mA | 32 mA | 41 mA |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| transfer characteristics | BESSEL | BESSEL | BESSEL | BESSEL | BESSEL | BESSEL | BESSEL | BESSEL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
