er
w
Po
SERIES
P1330R
P1330
L
TA
EN C)
EM A D
CR m
IN NT (
E
RR
CU
NG
TI )
RA C
T D
EN (mA
RR M
CU IMU
X
MA
CE
AN )
ST S
SI HM
RE M (O
DC MU
XI
MA
H)
(µ
CE kHz
AN 1
CT @
DU 0%
IN ±1
s
or
ct
du
In
SH
DA
E
MB
NU

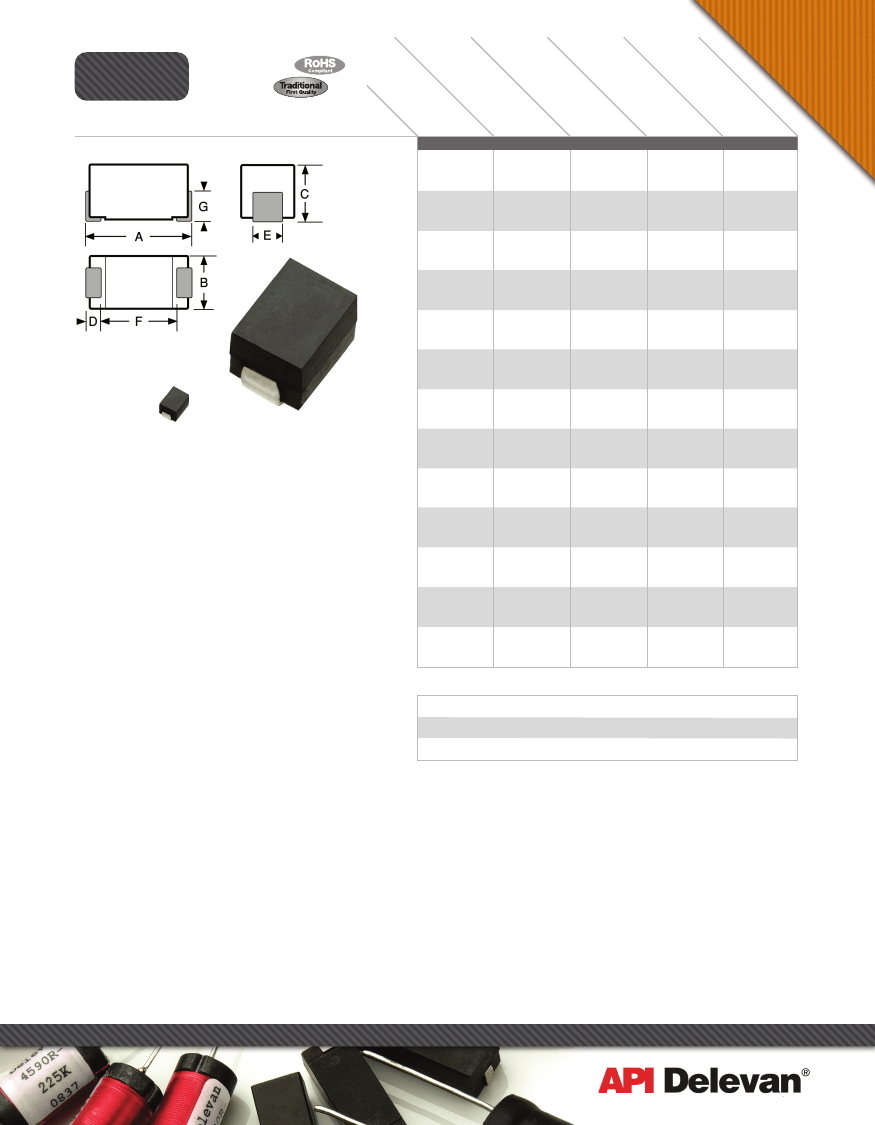

Surface Mount Power Inductors
R*
Actual Size
Physical Parameters
A
B
C
D
E
F
G
Inches
0.300 to 0.325
0.105 to 0.125
0.125 to 0.145
0.020 Min.
0.040 to 0.060
0.190 (Ref. only)
0.070 (Ref. only)
Millimeters
7.62 to 8.26
2.67 to 3.18
3.18 to 3.68
0.508 Min.
1.02 to 1.52
4.83 (Ref. only)
1.78 (Ref. only)
Weight Max
(Grams) 0.30
Operating Temperature Range
–55°C to +125°C
Current Rating at 90°C Ambient
35°C Rise
Maximum Power Dissipation at 90°C
0.210 W
Inductance
Measured at 1V with no DC current
Incremental Current
The current at which the inductance
will be decreased by a maximum of 5% from its initial zero
DC value.
Marking
API/SMD; inductance with units and tolerance
followed by a P; date code (YYWWL). Note: An R before
the date code indicates a RoHS component.
Example: P1330-104J
API/SMD
8.2uH±10%P
0719A
Packaging
Tape & reel (16mm): 7" reel, 500 pieces max.;
13" reel, 2200 pieces max.
Made In the U.S.A.
-102K
-122K
-152K
-182K
-222K
-272K
-332K
-392K
-472K
-562K
-682K
-822K
-103K
-123K
-153K
-183K
-223K
-273K
-333K
-393K
-473K
-563K
-683K
-823K
-104K
-124K
-154K
-184K
-224K
-274K
-334K
-394K
-474K
-564K
-684K
-824K
-105K
SERIES P1330 FERRITE CORE
1.0
0.035
2780
1.2
0.041
2690
1.5
0.043
2030
1.8
0.048
1950
2.2
0.075
1690
2.7
0.080
1550
3.3
0.108
1460
3.9
0.118
1390
4.7
0.125
1330
5.6
0.145
1110
6.8
0.165
1080
8.2
0.180
1020
10
0.216
946
12
0.252
912
15
0.288
858
18
0.328
817
22
0.384
694
27
0.425
657
33
0.538
568
39
0.600
488
47
0.792
467
56
0.900
442
68
1.020
384
82
1.380
362
100
1.680
347
120
1.800
327
150
2.040
272
180
2.400
261
220
2.648
223
270
4.320
191
330
4.800
179
390
5.640
171
470
6.000
161
560
6.960
138
680
8.760
130
820
9.960
113
1000
11.160
105
1526
1400
1291
1180
1104
936
840
732
720
612
600
600
564
516
432
420
348
324
270
270
246
216
174
150
132
111
106
89
72
60
57
48
41
35
30
26
22
Optional Tolerances: J = 5% H = 3% G = 2%
*Complete part # must include series # PLUS the dash #
For surface finish information, refer to www.delevanfinishes.com
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com
