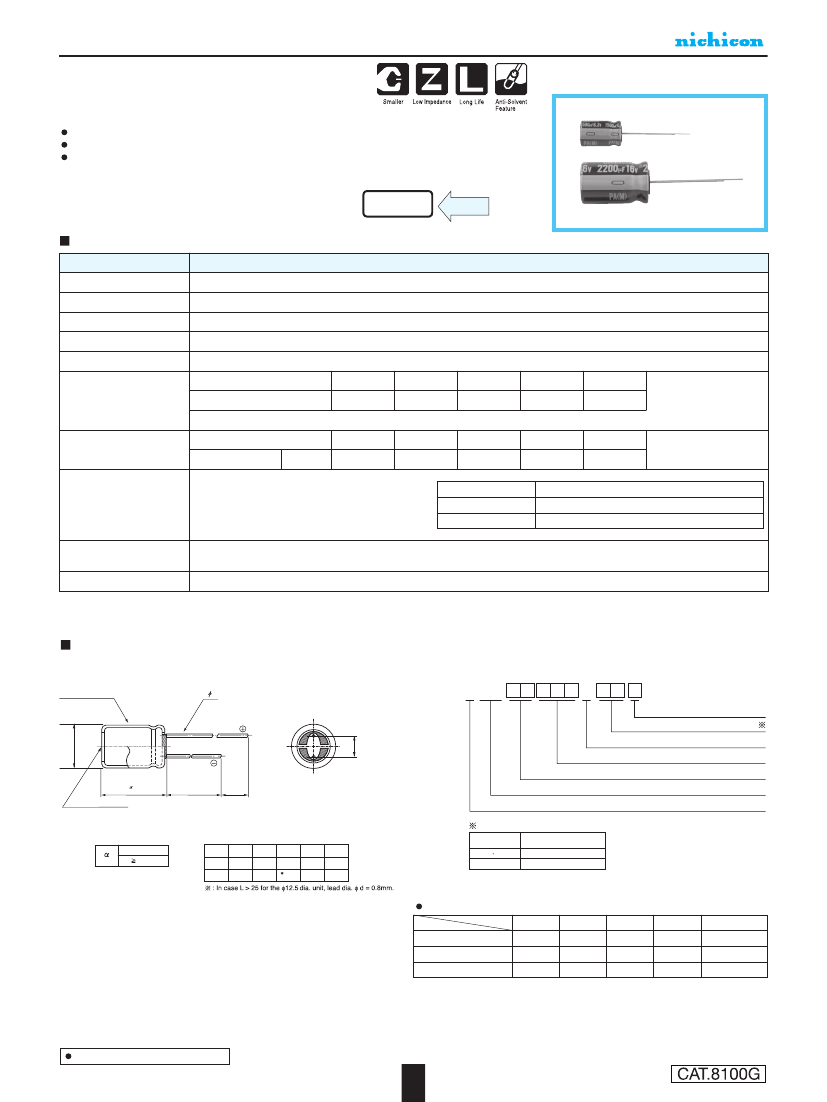

UPA
ALUMINUM ELECTROLYTIC CAPACITORS
Miniature Sized, Low lmpedance,
High Reliability For
Switching Power Supplies
Lower impedance than UPW.
Smaller case size and high ripple current.
Compliant to the RoHS directive (2011/65/EU).
UPA
Specifications
ltem
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Low
Impedance
UPW
Performance Characteristics
–55 to +105˚C
6.3 to 35V
180 to 10000µF
± 20% at 120Hz, 20˚C
After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03CV or 4 (µA), whichever is greater.
Rated voltage (V)
6.3
0.22
10
0.19
16
0.16
25
0.14
35
0.12
120Hz 20˚C
Tangent of loss angle (tan
δ)
tan
δ
(MAX.)
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Stability at Low Temperature
Rated voltage (V)
6.3
3
10
3
16
3
Capacitance change
tan
δ
Leakage current
25
3
35
3
120Hz
Impedance ratio ZT / Z20 (MAX.) Z–55˚C / Z+20˚C
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20˚C after D.C. bias plus
rated ripple current is applied for 5000 hours (3000
hours for
φD=8,
4000 hours for
φD=10)
at 105˚C, the
peak voltage shall not exceed the rated voltage.
Within ± 20% of the initial capacitance value (6.3V, 10V : ± 30%)
200% or less than the initial specified value (6.3V, 10V : 300%)
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on dark brown sleeve.
Radial Lead Type
Type numbering system (Example : 10V 470µF)
1
2
3
4
5
6
7
8
9
10 11
12
Sleeve (P.E.T.)
d
U PA 1 A 4 7 1 M P D
Size code
Configuration
P
±0.5
φ
D
+ 0.5MAX.
Capacitance tolerance ( ±20%)
Rated capacitance (470
µ
F)
Rated voltage (10V)
L
+
Pressure relief vent
MAX.
15
MIN
4
MIN
Series name
Type
Configuration
(mm)
φ
D
(L < 20) 1.5
(L 20) 2.0
φ
D
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
Pb-free leadwire
Pb-free PET sleeve
P
φ
d
8 10
12.5 to 18
PD
HD
Frequency coefficient of rated ripple current
Cap. (µF)
Frequency
50Hz
0.55
0.70
0.80
120Hz
0.65
0.75
0.85
300Hz
0.75
0.80
0.90
1kHz
0.85
0.90
0.95
10kHz or more
1.00
1.00
1.00
•
Please refer to page 20 about the end seal configuration.
180 to 330
390 to 1000
1200 to 10000
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
