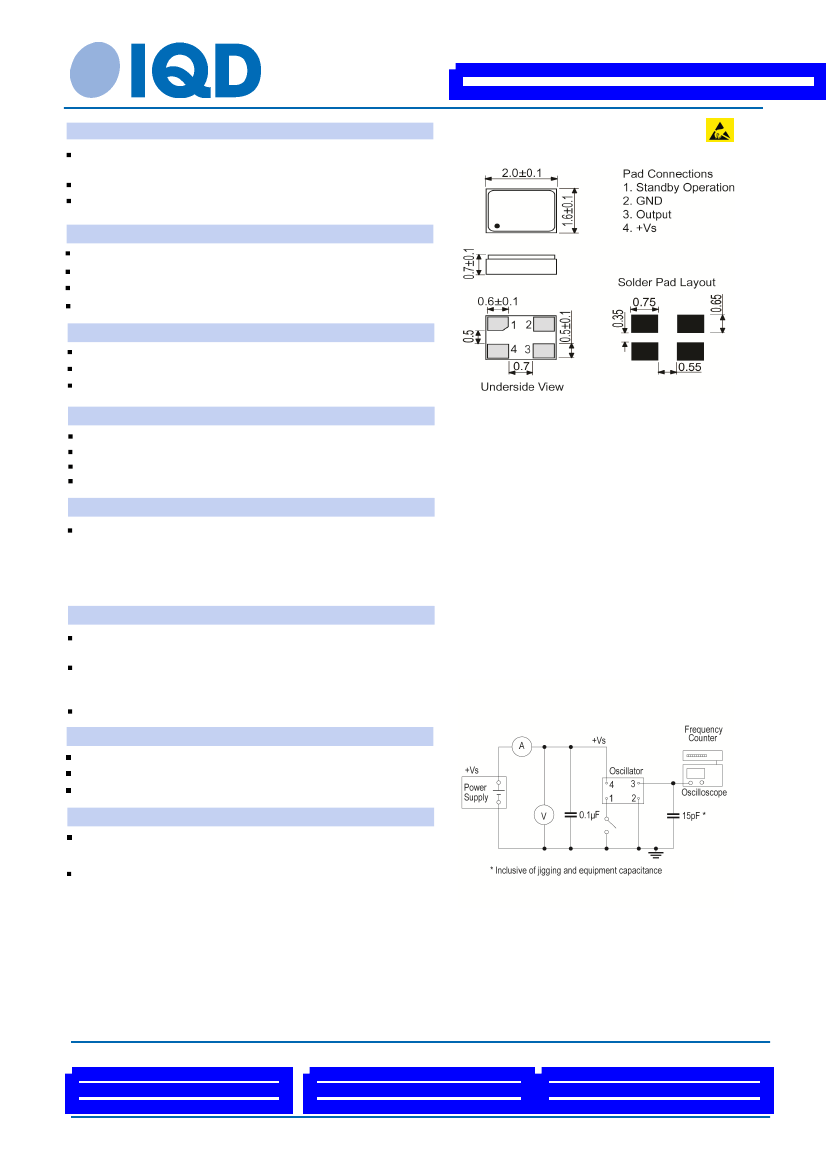

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO056220Cutt
Description
Standard 2 x 1.6 crystal oscillator in a ceramic package with a
seam sealed metal lid, hermetically sealed
Model
IQXO-542
Model Issue number
2
Frequency Parameters
Outline (mm)
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
27.0MHz
±50.00ppm
-40.00 to 85.00°C
±5ppm
1.8V ±10%
Supply Voltage
Current Draw
5.00mA
Standby Current: 10μA max (pad 1 at logic '0')
Output Details
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
CMOS
15pF max
5.0ns max
45/55%
Standby Operation: Logic ‘1’ (≥70%VS) to pad 1 enables
oscillator output
Logic ‘0’ (≤30%VS) to pad 1 disables oscillator output; when
disabled the oscillator output goes to the high impedance state
No connection to pad 1 enables oscillator output
Environmental Parameters
Impact: Weight of 10g dropped to centre of part from a height
of 6mm
Vibration: IEC 60068-2-6: 1.5mm amplitude, 10Hz-55Hz, 1min
in 3 mutually perpendicular planes, duration 2hrs each plane
(total 6hrs)
Storage Temperature Range: –40 to 85°C
Compliance
Test Circuit
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Cutt
Pack Size: 100
In tape, cut from a reel
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
