METAL WIRE-WOUND CHIP POWER INDUCTORS(MCOIL
TM
MB SERIES)
METAL WIRE-WOUND CHIP POWER INDUCTORS（MCOIL
TM
MB SERIES）
■PARTS
NUMBER
* Operating Temp.：-40½+105℃（Including self-generated heat）
REFLOW
REFLOW
M B
①
K
②
K
1
6
③
0
8
T
④
1
R 0
⑤
M △
⑥ ⑦
△＝Blank space
①Series name
Code
MB
②Dimensions（T）
Code
KK
MK
③Dimensions（L×W）
Code
1608
2012
2520
Series name
Metal Wire-Wound chip power inductor
④Packaging
Code
T
⑤Nominal inductance
Code
（example）
R24
1R0
4R7
※R＝Decimal point
⑥Inductance tolerance
Code
M
N
⑦Internal code
Packaging
Taping
Dimensions（T）［mm½
1.0
1.2
Nominal inductance［μH½
0.24
1.0
4.7
INDUCTORS POWER INDUCTORS
Type（inch）
1608（0603）
2012（0805）
2520（1008）
Dimensions
（L×W）［mm½
1.6×0.8
2.0×1.25
2.5×2.0
／
Inductance tolerance
±20％
±30％
■STANDARD

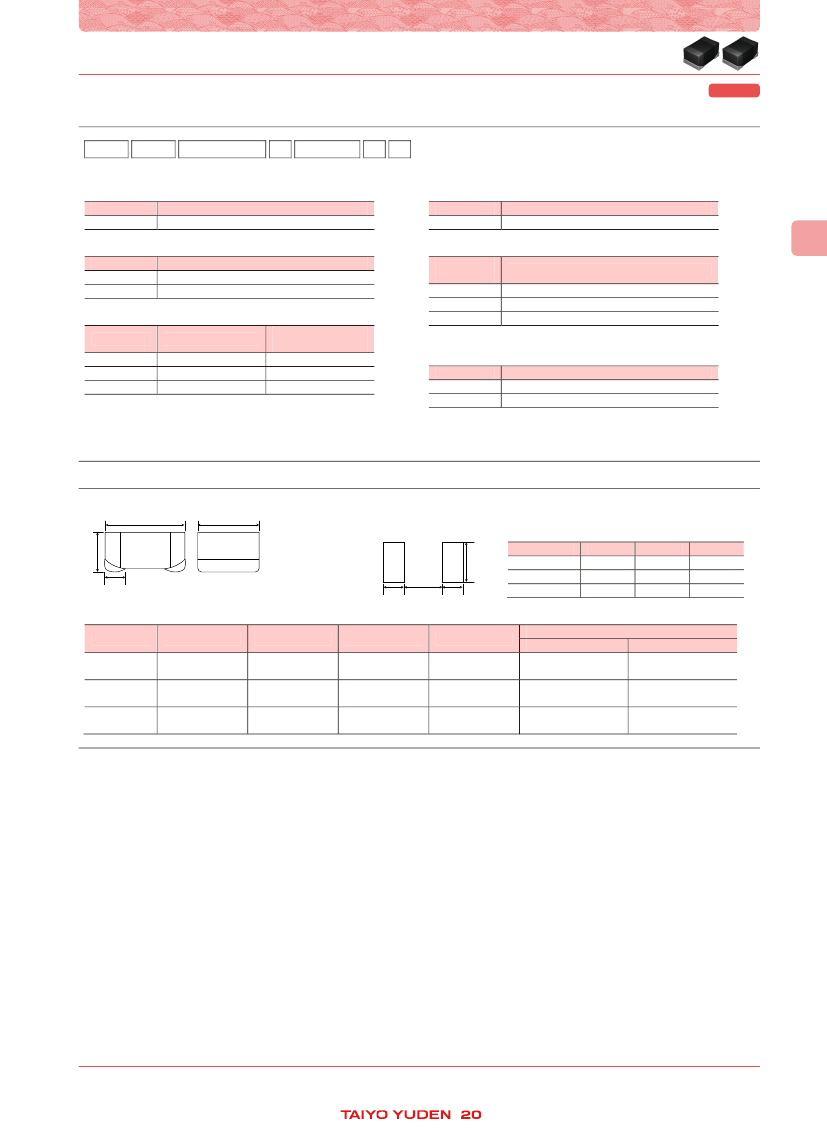

EXTERNAL DIMENSIONS / STANDARD QUANTITY
Recommended Land Patterns
Surface Mounting
L
W
・Mounting and soldering conditions should be checked beforehand.
・Applicable soldering process to these products is reflow soldering
Type
A
T
C
1608
0.55
2012
0.60
e
2520
0.60
B
A
A
only.
B
0.70
1.00
1.50
C
1.00
1.45
2.00
Unit：mm
Type
MBKK1608
MBKK2012
MBMK2520
L
1.6±0.2
（0.063±0.008）
2.0±0.2
（0.079±0.008）
2.5±0.2
（0.098±0.008）
W
0.8±0.2
（0.031±0.008）
1.25±0.2
（0.049±0.008）
2.0±0.2
（0.079±0.008）
T
1.0 max
（0.040 max）
1.0 max
（0.040 max）
1.2 max
（0.047 max）
e
0.45±0.15
（0.016±0.006）
0.5±0.2
（0.020±0.008）
0.5±0.2
（0.020±0.008）

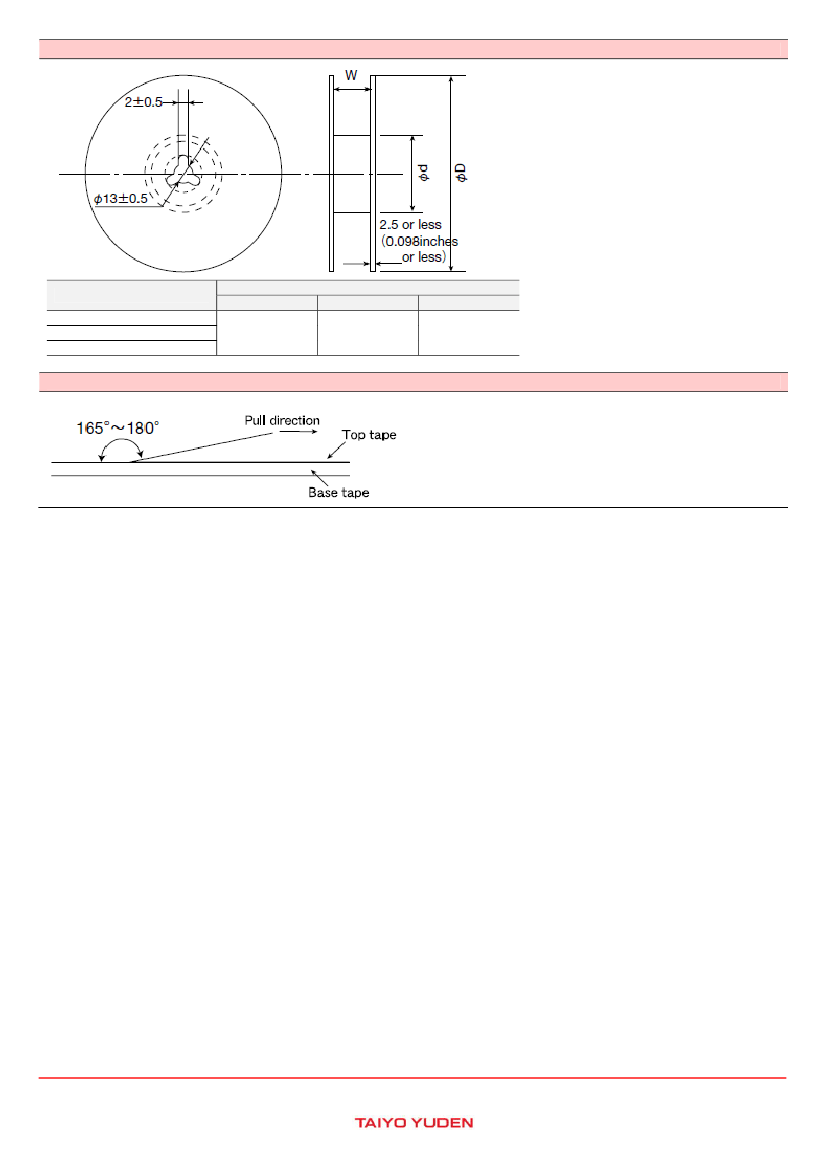

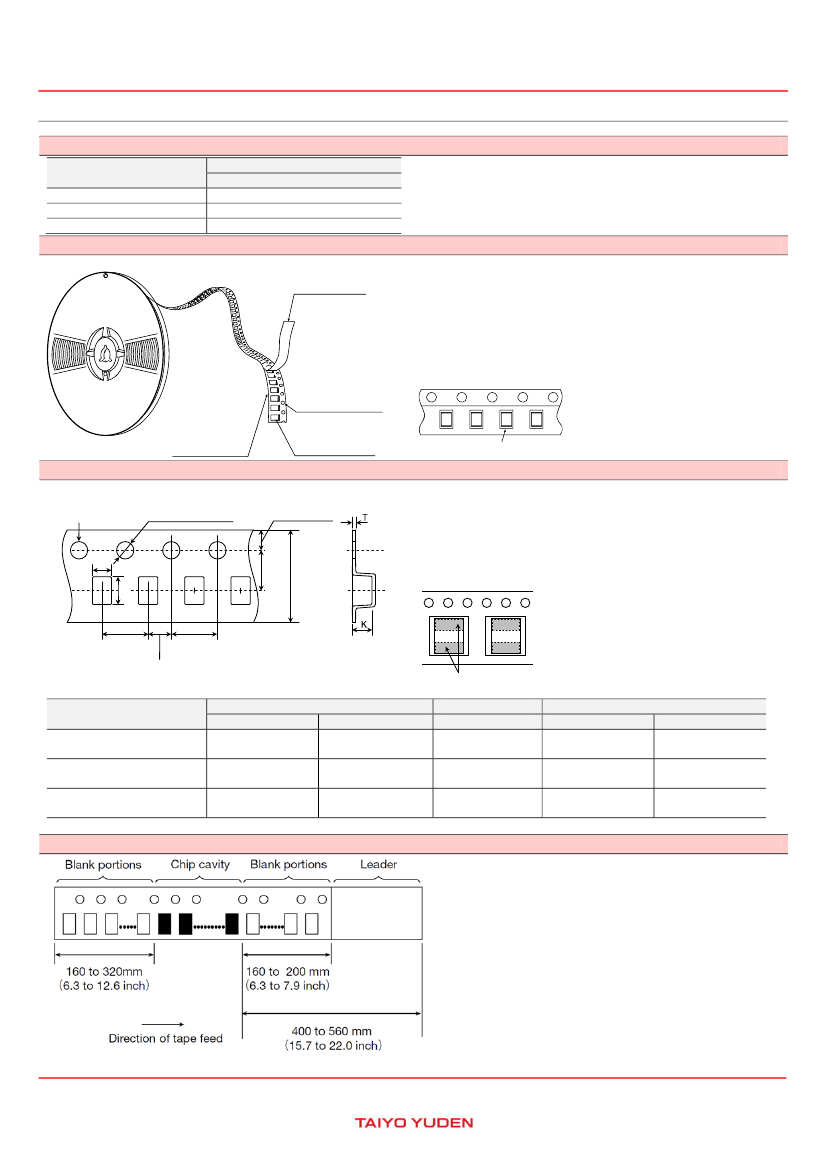

Standard quantity［pcs½
Paper tape
Embossed tape
－
－
－
3000
3000
3000
Unit：mm（inch）
i_wound_MB_e-E05R01
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our product specification sheets.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our website (http://www.ty-top.com/) .
1
8
59
■PARTS
NUMBER
●MBKK1608（0603）
type
Parts number
MBKK1608TR24N
MBKK1608TR47N
MBKK1608TR68N
MBKK1608T1R0M
MBKK1608T1R5M
MBKK1608T2R2M
MBKK1608T3R3M
MBKK1608T4R7M
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
【Thickness：1.0mm max.】
Nominal inductance
［μH½
0.24
0.47
0.68
1.0
1.5
2.2
3.3
4.7
Inductance tolerance
±30％
±30％
±30％
±20％
±20％
±20％
±20％
±20％
Self-resonant
frequency
［MH½½（min.）
-
-
-
-
-
-
-
-
DC Resistance
［Ω½（max.）
0.049
0.104
0.120
0.150
0.200
0.345
0.512
0.730
Rated current ※） ［½A½
Measuring
Saturation current Temperature rise current frequency［MHz½
Idc1
Idc2
1,650
2,300
1.0
1,100
1,400
1.0
950
1,200
1.0
800
1,150
1.0
650
1,000
1.0
520
750
1.0
450
600
1.0
370
500
1.0
●MBKK2012（0805）
type
Parts number
MBKK2012TR24N
MBKK2012TR47N
MBKK2012TR68N
MBKK2012T1R0M
MBKK2012T1R5M
MBKK2012T2R2M
MBKK2012T3R3M
MBKK2012T4R7M
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
【Thickness：1.0mm max.】
Nominal inductance
［μH½
0.24
0.47
0.68
1.0
1.5
2.2
3.3
4.7
Inductance tolerance
±30％
±30％
±30％
±20％
±20％
±20％
±20％
±20％
Self-resonant
frequency
［MH½½（min.）
-
-
-
-
-
-
-
-
DC Resistance
［Ω½（max.）
0.041
0.078
0.090
0.106
0.173
0.290
0.500
0.615
Rated current ※） ［½A½
Measuring
Saturation current Temperature rise current frequency［MHz½
Idc1
Idc2
3,000
2,400
1.0
2,000
1,650
1.0
1,800
1,500
1.0
1,500
1,450
1.0
1,200
1,100
1.0
900
850
1.0
700
650
1.0
600
600
1.0
INDUCTORS POWER INDUCTORS
／
60
●MBMK2520（1008）
type
Parts number
MBMK2520TR24N
MBMK2520TR47N
MBMK2520TR68N
MBMK2520T1R0M
MBMK2520T1R5M
MBMK2520T2R2M
MBMK2520T3R3M
MBMK2520T4R7M
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
【Thickness：1.2mm max.】
Nominal inductance
［μH½
0.24
0.47
0.68
1.0
1.5
2.2
3.3
4.7
Inductance tolerance
±30％
±30％
±30％
±20％
±20％
±20％
±20％
±20％
Self-resonant
frequency
［MH½½（min.）
-
-
-
-
-
-
-
-
DC Resistance
［Ω½（max.）
0.026
0.042
0.058
0.072
0.106
0.159
0.260
0.380
Rated current ※） ［½A½
Measuring
Saturation current Temperature rise current frequency［MHz½
Idc1
Idc2
4,750
3,500
1.0
3,900
2,600
1.0
3,150
2,150
1.0
2,350
1,850
1.0
2,050
1,500
1.0
1,800
1,250
1.0
1,400
970
1.0
1,150
800
1.0
※）The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※）The temperature rise current value (Idc2) is the DC current value having temperature increase by 40℃. (at 20℃)
※）The rated current value is following either Idc1 or Idc2, which is the lower one.
