DSC8002 Series
1.8 to 3.3V
Programmable Low-Power CMOS Oscillator
General Description
The DSC8002 is a programmable MEMS
based PureSilicon™ Oscillator. Using the
DragonFly™ or TimeFlash™ handheld
programmer, the end user can program the
DSC8002 within seconds to any frequency
from 1 to 150MHz in increments of 100Hz
(up to four decimal point resolution). The
nominal operational range spans from 1.8
to 3.3 Volts, without any need for
additional external components, providing
ease of use and flexibility in multi-voltage
applications.
The DSC8002 incorporates an all silicon
resonator that is extremely robust and
nearly immune to stress related fractures,
common to crystal based oscillators.
Without sacrificing the performance and
stability required of today’s systems, a
crystal-less design allows for a higher level
of reliability, making the DSC8002 ideal for
rugged,
industrial,
and
portable
applications where stress, shock, and
vibration can damage quartz crystal based
systems.
Available in industry standard packages,
the DSC8002 can be “dropped-in” to the
same PCB footprint as standard crystal
oscillators.
Features
Frequency Range: 1 to 150MHz
Exceptional Stability over Temperature
o
±25 PPM, ±50 PPM
Operating voltage
o
1.8 to 3.3V (nominal)
o
1.65 to 3.60V (absolute max)
Operating Temperature Range
o
Industrial -40ºC to 85ºC
o
Ext. Commercial -20ºC to 70ºC
o
Commercial 0ºC to 70ºC
Low Operating and Standby Current
o
3mA Operating (40MHz)
o
1uA Standby
Ultra Miniature Footprint
o
2.5 x 2.0 x 0.85 mm
o
3.2 x 2.5 x 0.85 mm
o
5.0 x 3.2 x 0.85 mm
o
7.0 x 5.0 x 0.85 mm
Excellent shock and Vibration
Resistance
Lead Free, RoHS & Reach SVHC
Compliant
Handheld programmer available for
purchase
Benefits
Pin for pin “drop in” replacement for
industry standard oscillators
Semiconductor level reliability,
significantly higher than quartz
Frequency Resolution to 4 decimals
Fully Programmable Operating Voltage
and Frequency
Longer Battery Life / Reduced Power
Compact Plastic package
Cost Effective

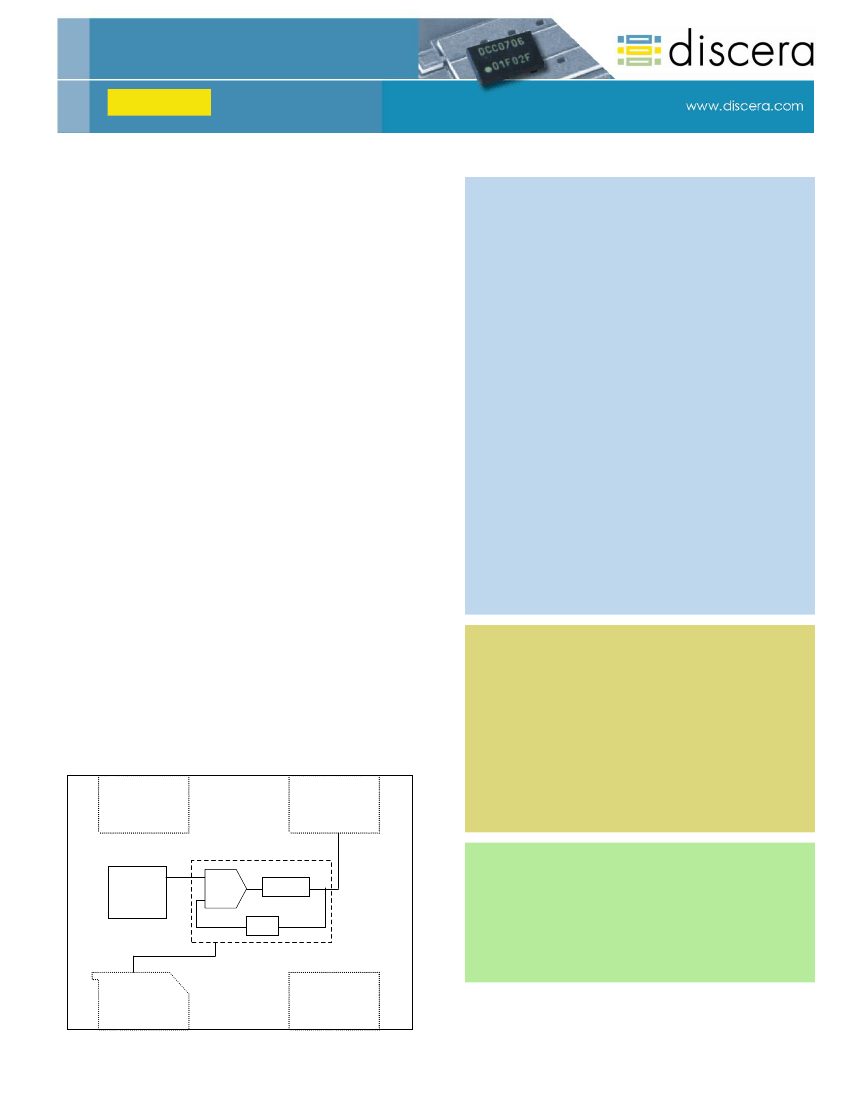

Block Diagram
V
DD
Output
Applications
Resonator
PFD
VCO
Frac-N
PLL
Mobile Applications
Consumer Electronics
Portable Electronics
CCD Clock for VTR Cameras
Low Profile Applications
Industrial
Standby#
(pin1)
GND
_____________________________________________________________________________________________________________________________ _________________
DSC8002
Page 1
MK-Q-B-P-D-031809-06-8
DSC8002 Series
1.8 to 3.3V
Programmable Low-Power CMOS Oscillator
Absolute Maximum Ratings
1
Item
Supply Voltage
Input Voltage
Junction Temp
Storage Temp
Soldering Temp
ESD
HBM
MM
CDM
Min.
-0.3
-0.3
-
-55
-
-
2000
200
500
Max
+4.0
VDD+0.3
+150
+150
+260
Unit
V
V
°C
°C
°C
V
40 sec max.
Condition
Ordering Code
DSC8002
Family
Package, Temp
& Stability
Output Freq
1.0 to 150MHz
Tape/
Reel
CE1
-
032.0000
T
* See Ordering Information for details
Recommended Operating Conditions
Parameter
Supply Voltage
Output Load
Operating Temperature
Option 1
Option 2
Option 3
Symbol
V
DD
Z
L
T
Range
1.65 – 3.60V
R>10KΩ, C≤15pF
-40 − +85 °C
-20 − +70 °C
0 − +70 °C
Specifications
Parameter
Frequency
Frequency Tolerance
Option 1
Option 2
Option 3
Supply Current, no
load
Symbol
f
0
Condition
Single Frequency
-40°C to +85°C
-20°C to +70°C
0°C to +70°C
C
L
=0p
1 to 40MHz
R
L
=∞
40 to 80MHz
T=25°C
80 to 125MHz
125 to 150MHz
T=25°C
Min.
1
Typ.
Max.
150
±25,±50
±25,±50
±25,±50
3
4
5
6
Unit
MHz
ppm
Δf
I
DD
mA
10
1.0
uA
Supply Current,
standby
Output Logic Levels
Output logic high
Output logic low
Output Transition time
Rise Time
Fall Time
Output Startup Time
2
Output Disable Time
Output Duty Cycle
Input Logic Levels
Input logic high
Input logic low
Jitter, Cycle to Cycle
I
DD
V
OH
V
OL
t
R
t
F
t
SU
t
DA
SYM
V
IH
V
IL
J
CC
C
L
=15pF
C
L
=15pF; T=25°C
20%/80%*V
DD
T=25°C
0.8*V
DD
-
1.3
1.3
3
20
45
0.75*V
DD
-
-
0.2*V
DD
2
2
10
100
55
-
0.25* V
DD
95
Volts
ns
ms
ns
%
Volts
ps
F = 100MHz
3
Notes:
1.
Absolute maximum ratings are those values beyond which the safety of the device cannot be guaranteed. The device should not be
operated beyond these limits.
2.
Output frequency to within 100ppm of final stable output frequency.
3.
See typical cycle to cycle jitter graph for frequency dependence.
_____________________________________________________________________________________________________________________________ _________________
DSC8002
Page 2
MK-Q-B-P-D-031809-06-8
