PM54-220M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PM54-220M

PM54-220M: DescriptionFixed Inductors 22uH; CategoryPassive components inductor; File Size209KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric Compare View All

PM54-220M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PM54-220M	-	-	View	Buy Now

PM54-220M Overview

Fixed Inductors 22uH

PM54-220M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bourns
package instruction	2320
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	2320
structure	Bobbin Core
core material	FERRITE
DC Resistance	0.18 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	PM54
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Package height	4.5 mm
Package length	5.8 mm
Package form	SMT
Package width	5.2 mm
method of packing	TR
Maximum rated current	1.11 A
self resonant frequency	19 MHz
series	PM54 SERIES
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	2.52 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Features

■

Formerly

■

Available in E12 series

■

Small diameter of only 5.8 mm maximum

■

Proﬁle of 4.8 mm

■

RoHS compliant*

Applications

model

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

Camcorders

LCD TVs

Car radios

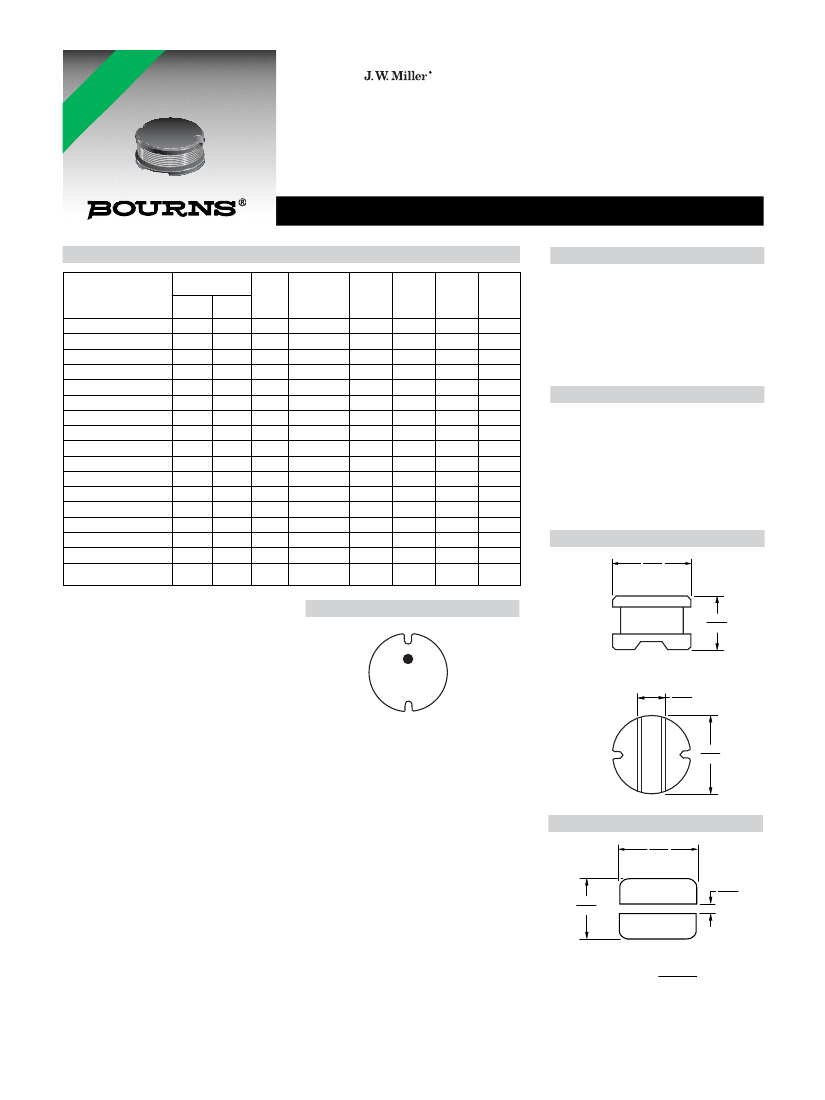

PM54 Series - SMD Power Inductor

Electrical Speciﬁcations

Inductance 1 kHz

General Speciﬁcations

Test

Frequency

(MHz)

2.52

0.796

SRF

Min.

(MHz)

Irms

Max.

(A)

1.45

1.40

1.30

1.25

1.10

1.00

0.88

0.80

0.72

0.68

0.62

0.58

0.52

0.48

0.40

0.38

0.35

Isat

Typ.

(A)

2.00

1.90

1.60

1.50

1.40

1.30

1.10

1.00

0.90

0.84

0.75

0.68

0.60

0.54

0.50

0.44

Bourns Part No.

PM54-100M-RC

PM54-120M-RC

PM54-150M-RC

PM54-180M-RC

PM54-220M-RC

PM54-270M-RC

PM54-330L-RC

PM54-390L-RC

PM54-470L-RC

PM54-560K-RC

PM54-680K-RC

PM54-820K-RC

PM54-101K-RC

PM54-121K-RC

PM54-151K-RC

PM54-181K-RC

PM54-221K-RC

(µH)

100

120

150

180

220

Tol. %

± 20

± 15

± 10

Ref.

RDC

(Ω)

0.10

0.12

0.14

0.15

0.19

0.22

0.25

0.32

0.37

0.42

0.52

0.60

0.70

0.93

1.10

1.38

1.57

Test Voltage .......................................1 V

Reﬂow soldering .... 230 °C, 50 sec max.

Operating Temperature

................................-40 °C to +125 °C

(Temperature rise included)

Storage Temperature .. -40 °C to +125 °C

Resistance to Soldering Heat

................................. 260 °C for 5 sec.

Materials

Core ............................... Ferrite DR core

Wire ............................Enameled copper

Terminal: ...................................Ag/Ni/Sn

Rated Current

...................Ind. drop 10 % typ. at Isat

Temperature Rise

.....................40 °C max. at rated Irms

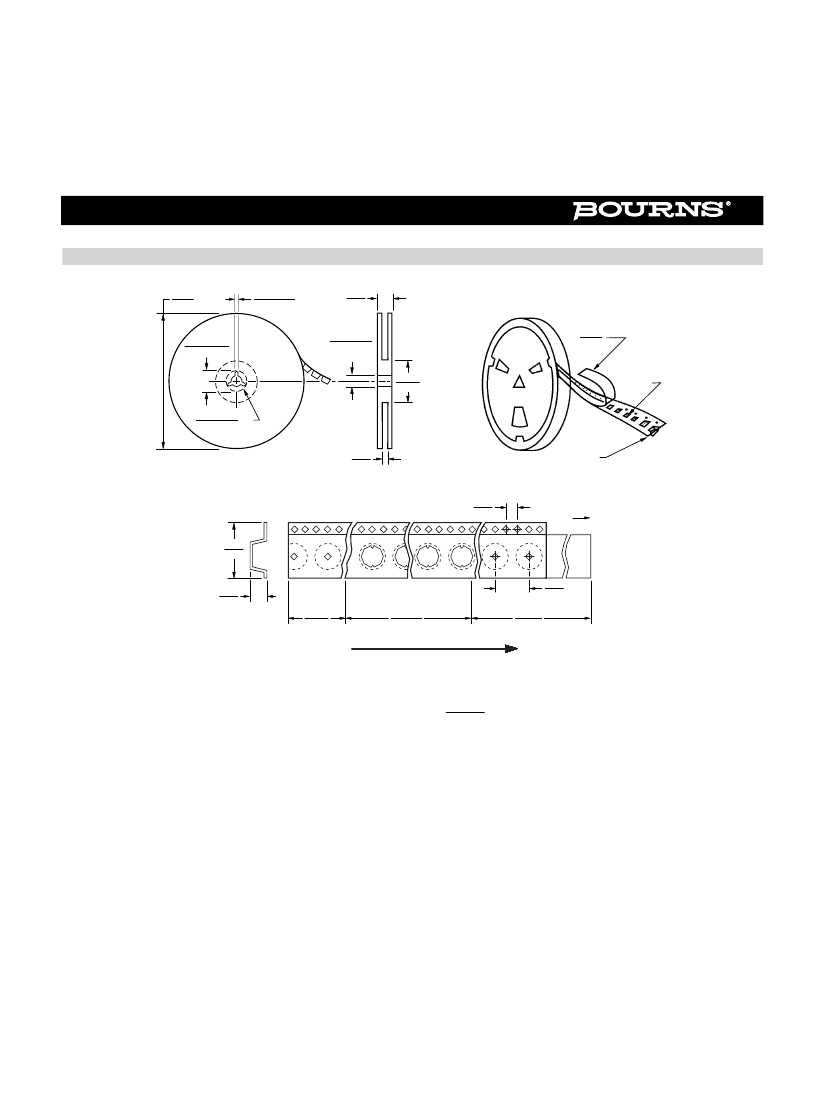

Packaging .................. 1500 pcs. per reel

Product Dimensions

5.8

(.228)

MAX.

Typical Part Marking

4.8

MAX.

(.189)

101

1.8

TYP.

(.071)

5.8

MAX.

(.228)

Recommended Layout

5.8

(.228)

6.0

(.236)

1.8

(.071)

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

PM54-220M Related Products

	PM54-220M	PM54-101K	PM54-680K	PM54-560K	PM54-330L	PM54-820K	PM54-100M	PM54-150M	PM54-120M	PM54-390L
Description	Fixed Inductors 22uH	Fixed Inductors 100UH 5.2X5.8X4.5MM	Fixed Inductors 68 UH 5.2X5.8X4.5 MM	Fixed Inductors 56uH	Fixed Inductors 33 UH 5.2X5.8X4.5 MM	Fixed Inductors 82uH 10%	Fixed Inductors 10 UH 5.2X5.8X4.5 MM	Fixed Inductors 15uH 20%	Fixed Inductors 12uH 20%	Fixed Inductors 39uH 15%
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
package instruction	2320	2320	2320	2320	2320	2320	2320	2320	2320	2320
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	2320	2320	2320	2320	2320	2320	2320	2320	2320	2320
structure	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core	Bobbin Core
core material	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE
DC Resistance	0.18 Ω	0.7 Ω	0.46 Ω	0.42 Ω	0.23 Ω	0.6 Ω	0.1 Ω	0.14 Ω	0.12 Ω	0.32 Ω
Nominal inductance(L)	22 µH	100 µH	68 µH	56 µH	33 µH	82 µH	10 µH	15 µH	12 µH	39 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Package height	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm	4.5 mm
Package length	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm	5.8 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
method of packing	TR	TR	TR	TR	TR	TR	TR	TR	TR	TR
Maximum rated current	1.11 A	0.52 A	0.61 A	0.68 A	0.88 A	0.58 A	1.44 A	1.3 A	1.4 A	0.8 A
self resonant frequency	19 MHz	9 MHz	11 MHz	12 MHz	16 MHz	10 MHz	30 MHz	25 MHz	27 MHz	15 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	2.52 MHz	0.001 MHz	2.52 MHz	2.52 MHz	2.52 MHz	2.52 MHz	2.52 MHz	2.52 MHz	2.52 MHz	2.52 MHz
Tolerance	20%	10%	10%	10%	15%	10%	20%	20%	20%	15%
Manufacturer's serial number	PM54	-	PM54	PM54	PM54	PM54	PM54	PM54	PM54	PM54
series	PM54 SERIES	-	PM54 SERIES	PM54 SERIES	PM54 SERIES	PM54 SERIES	PM54 SERIES	PM54 SERIES	PM54 SERIES	PM54 SERIES
