Trimmer Potentiometers

Lead Sealed Type Multiturn PV36 Series

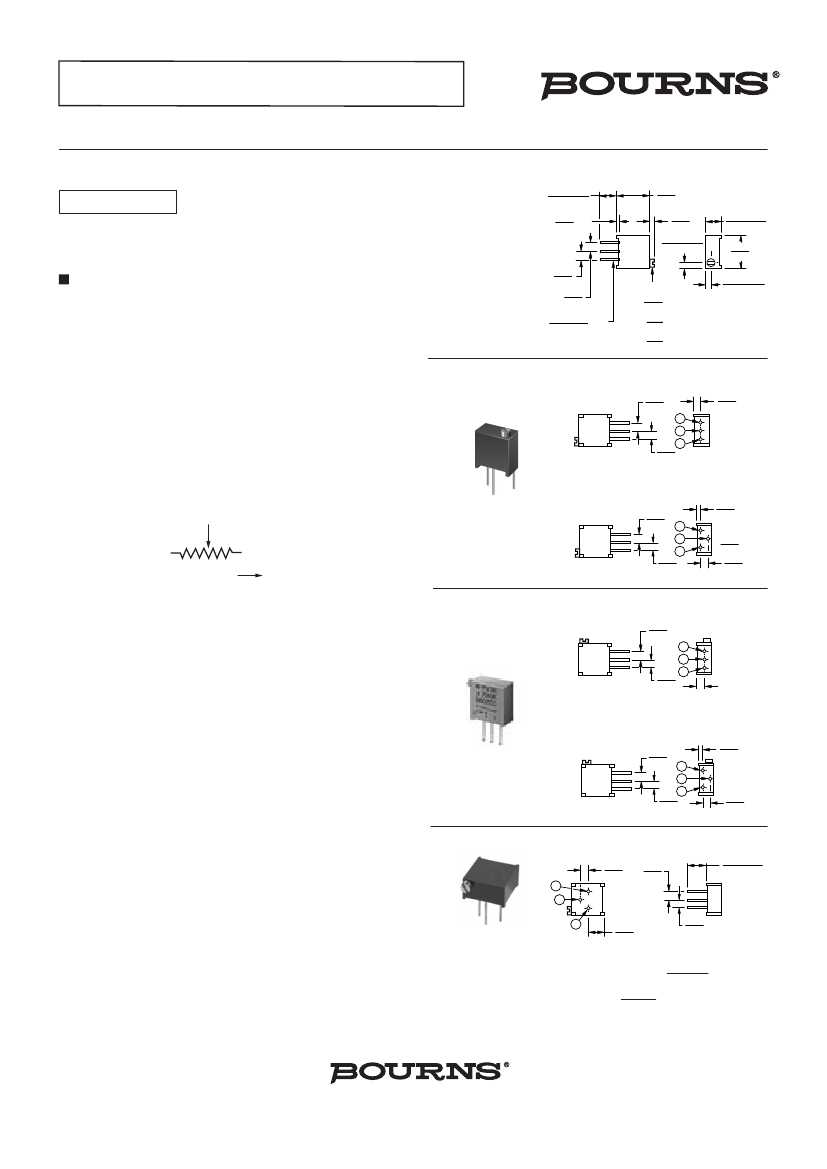

COMMON DIMENSIONS

PV36 Series

6.40 ± 1.32

(.252 ± .052)

.38

MIN.

(.015)

10.03

(.395)

1.52

(.060)

1.27 ± 0.1

(.050 ± .004)

4.83

± .13

(.190

± .005)

9.53

(.375)

1.27 ± 0.1

(.050 ± .004)

Features

Multiturn

/ Cermet / Sealed

2. Available in both top and side adjustment

2.54

(.100)

2.54

(.100)

.51

± .03

DIA.

(.020 ± .001)

3. Units can be pre-adjusted at clockwise, counter-clockwise

or standard 50 % position

4. Standoffs allow thorough PC board washing

5. Chevron seal design

6. RoHS compliant*

7. For trimmer applications/processing guidelines,

click here

ADJ. SLOT

2.19 DIA.

(.086)

.56

WIDE

(.022)

.76

DEEP

(.030)

PV36W

2.54

(.100)

2.41

(.095)

2.54

(.100)

PV36Y

#2 (Wiper)

2.54

(.100)

1.14

(.045)

Clockwise

2.54

(.100)

2.54

(.100)

PV36X

2.54

(.100)

2.54

(.100)

2.41

(.095)

PV36Z

2.54

(.100)

1.14

(.045)

2.54

(.100)

2.54

(.100)

PV36P

2.54

(.100)

2.54

(.100)

8.26

± .64

(.325

± .025)

5.23

(.206)

2.54

(.100)

DIMENSIONS:

TOLERANCES: ±

0.25

(.010)

(INCHES)

EXCEPT WHERE NOTED

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.
