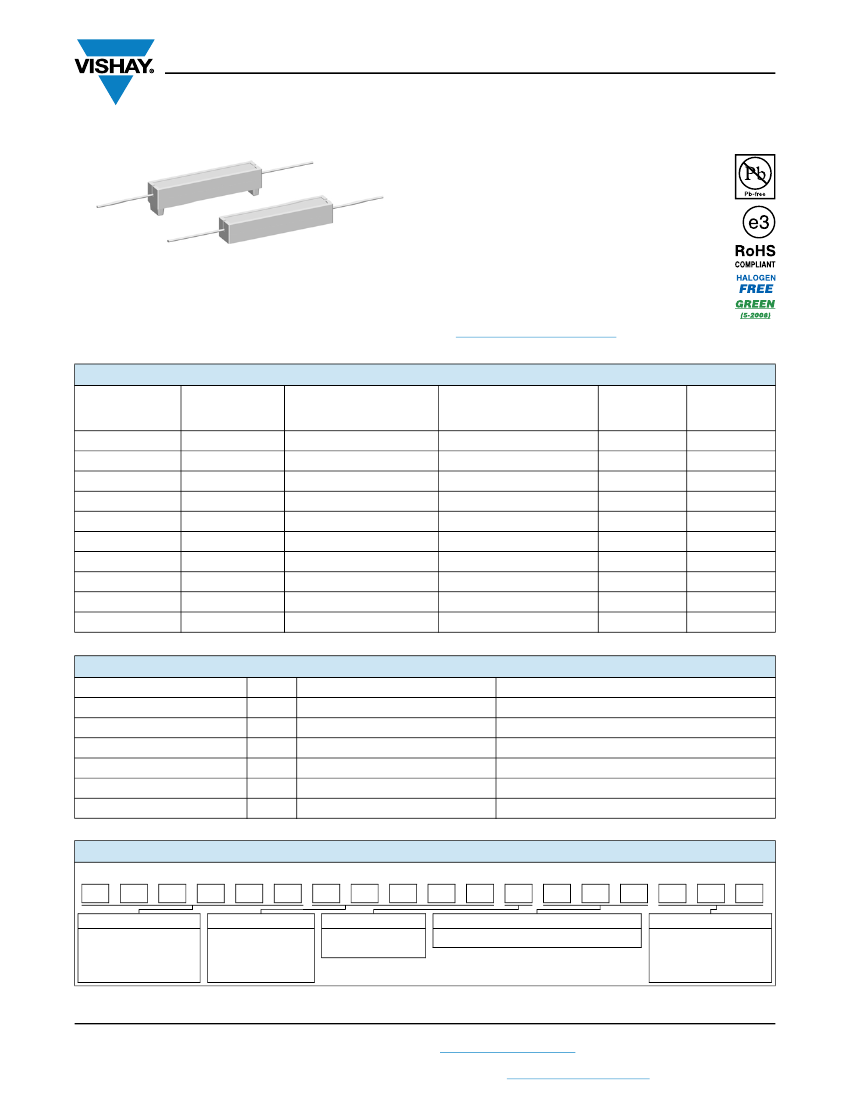

CP High Volume
www.vishay.com
Vishay Dale
Wirewound/Metal Oxide Resistors, Commercial Power, Axial Lead
FEATURES
• High performance for low cost
• High power to size ratio
• Ceramic cases are available with circuit board
stand-offs (designated with a ...3 model ending)
• Special cement potting compound and ceramic
case provide high thermal conductivity in a
fireproof package
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
CP0002
CP0003
CP0005
CP0005...3
CP0007
CP0007...3
CP0010
CP0010...3
CP0015
CP0020
POWER RATING
P
40 °C
W
2
3
5
5
7
7
10
10
15
20
RESISTANCE RANGE
WIREWOUND
(1)
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
0.1 to 100
RESISTANCE RANGE
METAL OXIDE
(1)
101 to 30K
101 to 33K
101 to 50K
101 to 50K
101 to 50K
101 to 50K
101 to 50K
101 to 50K
101 to 50K
101 to 50K
TOLERANCE
±%
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
5, 10
WEIGHT
(typical)
g
2.0
3.4
3.6
4.8
5.0
6.8
9.5
9.9
16.8
22.8
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Short Time Overload
Terminal Strength
Operating Temperature Range
Dielectric Withstanding Voltage
Maximum Working Voltage
UNIT
ppm/°C
-
lb
°C
V
AC
V
WIREWOUND CHARACTERISTICS
± 400
5 x rated power for 5 s
10 minimum
-65 to +275
1000
(P x R)
1/2
METAL OXIDE CHARACTERISTICS
± 400
5 x rated power for 5 s
10 minimum
-65 to +225
1000
(P x R)
1/2
GLOBAL PART NUMBER INFORMATION
Global Part Numbering example: CP000515R00JE663
C
P
0
0
0
5
1
5
R
0
0
J
E
6
6
3
SPECIAL
(Dash Number)
(up to 3 digits)
From
1 to 999
as applicable
GLOBAL MODEL
(See Standard Electrical
Specifications Global
Model column for
options)
VALUE
R
= Decimal
K
= Thousand
R1500
= 0.15
1K500
= 1500
TOLERANCE
J
= ± 5.0 %
K
= ± 10.0 %
PACKAGING
E66
= Lead (Pb)-free bulk pack
Revision: 12-Oct-15
Document Number: 30113
1
For technical questions, contact:
ww2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CP High Volume
www.vishay.com
DIMENSIONS
in inches [millimeters]
CPxxxx
LL
L
LD
W
H
0.125 [3.18]
typical
LD
Vishay Dale
CPxxxx...3
LL
L
H1
W
H
DIMENSIONS
in inches [millimeters]
GLOBAL MODEL
CP0002
CP0003
CP0005
CP0005...3
CP0007
CP0007...3
CP0010
CP0010...3
CP0015
CP0020
L
(1)
± 0.060 [1.5]
0.71 [18]
0.87 [22]
0.87 [22]
0.87 [22]
1.38 [35]
1.38 [35]
1.89 [48]
1.89 [48]
1.89 [48]
2.36 [60]
W
± 0.040 [1.0]
0.276 [7]
0.315 [8]
0.394 [10]
0.394 [10]
0.394 [10]
0.394 [10]
0.394 [10]
0.394 [10]
0.492 [12.5]
0.551 [14]
H
± 0.040 [1.0]
0.276 [7]
0.315 [8]
0.354 [9]
0.354 [9]
0.354 [9]
0.354 [9]
0.354 [9]
0.354 [9]
0.453 [11.5]
0.531 [13.5]
H1
± 0.060 [1.5]
-
-
-
0.413 [10.5]
-
0.472 [12]
-
0.472 [12]
-
-
LD
± 0.002 [0.05]
0.0256 [0.65]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
0.031 [0.8]
LL
± 0.120 [3.0]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
1.378 [35]
Notes
(1)
Potting compound may extend outside of ceramic case up to 0.060 [1.52] maximum per side.
MATERIAL SPECIFICATIONS
Element:
Wirewound = copper-nickel alloy or
nickel- chrome alloy, depending on resistance value.
Metal oxide = high temperature fired metal oxide film.
Core:
Wirewound = ceramic
Metal Oxide = ceramic
Body:
Steatite ceramic case with inorganic potting
compound
End Caps:
Tin plated steel
Terminals:
Tinned copper
Part Marking:
DALE, model, wattage, value, tolerance, date
code
DERATING
RATED POWER IN %
120
100
80
60
40
20
0
- 55
Metal Oxide
Wirewound
- 25
25
40
75
125
175
275
225
AMBIENT TEMPERATURE IN °C
PERFORMANCE
TEST
Thermal Shock
Short Time Overload
Dielectric Withstanding Voltage
Low Temperature Storage
Humidity
Load Life
Terminal Strength
Resistance to Solder Heat
CONDITIONS OF TEST
-55 °C to +275 °C (+225 °C for Metal Oxide), 5 cycles, 30 min dwell time
5 x rated power for 5 s
1000 V
RMS
, for 1 min
-65 °C, full rated working voltage for 45 min
75 °C, 90 % to 100 % RH, 240 h
1000 h at rated power, + 25 °C, 1.5 h “ON”, 0.5 h “OFF”
5 pounds for 30 s; body twisted about axis, 3 x 360° rotations
Terminal immersed 3.5 s in molten solder at 1/8" to 3/16" from body
TEST LIMITS (EIA-344)
± (5.0 % + 0.05
) R
± (4.0 % + 0.05
) R
± (2.0 % + 0.05
) R
± (3.0 % + 0.05
) R
± (5.0 % + 0.05
) R
± (10.0 % + 0.05
) R
± (2.0 % + 0.05
) R
± (4.0 % + 0.05
) R
Revision: 12-Oct-15
Document Number: 30113
2
For technical questions, contact:
ww2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
