NT
Features
■
Compact
■
Sealed
■
Long life
■
Infinite resolution
■
Free shaft rotation
■
AC or DC
■
Shaft options available
■
Flexible wire leads
■
Economical
■
RoHS compliant*
*R
oH
S
CO
M
PL
IA

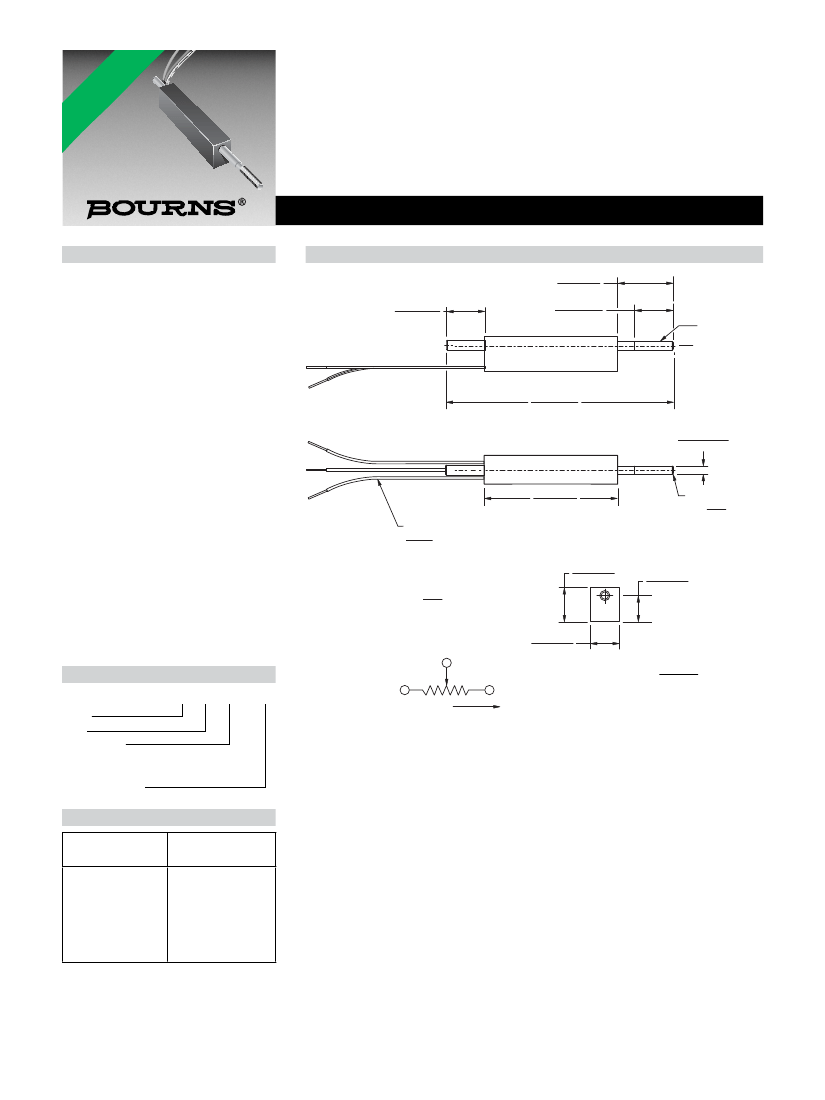

3046 Linear Motion Potentiometer
Specifications
†
Standard Electrical Travel
.............................. 0.15, 0.25, 0.35 in.
(3.81, 6.35, 8.89 mm)
Standard Resistances
.................... 1K to 50K ohms (±20 %)
Independent Linearity .................... ±5 %
Resolution ................................... Infinite
Power Rating @ 70 °C (158 °F)
........................................... 0.125 watt
Operating Temperature Range
............................... -55 °C to +125 °C
Temperature Coefficient ...1000 PPM/°C
Insulation Resistance ........50 megohms
@ 500 VDC
Backlash ................................. Negligible
Shaft Actuating Force .. 2N max. @ 21 °C
Life ..................................500,000 cycles
Shock ................................ 50 G for 7ms
Vibration ........................ 20 G, 10-2K Hz
Marking.........Manufacturer’s trademark,
resistance code, wiring diagram,
date code, manufacturer’s model
number and style
Specifications are typical. Contact factory for
special requirements.
† Specifications applicable from 5 % to 95 %
of electrical travel.
Product Dimensions
10.46 ± 0.05
(.412 ± .002)
10.26 ± 0.05
(.404 ± .002)
6.604 ± 1.016
(.260 ± .040)
#0-80 UNF-2A
THREADED SHAFT
(STANDARD).
SHAFT SHOWN IN
RETRACTED
POSITION
40.41 ± 0.05
(1.591 ± .002)
1.59 ± .013
DIA.
(.0625 ± .0005)
19.68 ± 0.13
(.775 ± .005)
3 ELECTRICALLY INSULATED LEADWIRES
152.40
MINIMUM LENGTH (28 AWG INSULATED CONDUCTOR)
(6.00)
6.58 ± 0.07
(.259 ± .003)
TOLERANCES: ±
.010
EXCEPT WHERE NOTED
(0.25)
CHAMFER:
0.25
45° X
(0.10)
4.5 ± 0.38
(.177 ± 0.15)
RED
2 WIPER
YELLOW
1
SHAFT EXTENDED
GREEN
3
5.69 ± 0.07
(.224 ± .003)
How to Order
DIMENSIONS:
MM
(INCHES)
3046 L - 2 - 502
Model
Style
Range (Travel)
1 = 0.15 ” (3.81 mm)
2 = 0.25 ” (6.35 mm)
3 = 0.35 ” (8.89 mm)
Resistance Value
WIRING DIAGRAM
Standard Resistance Table
Resistance
(Ohms)
1,000
2,500
5,000
10,000
20,000
50,000
Resistance
Code
102
252
502
103
203
503
REV. 04/15
