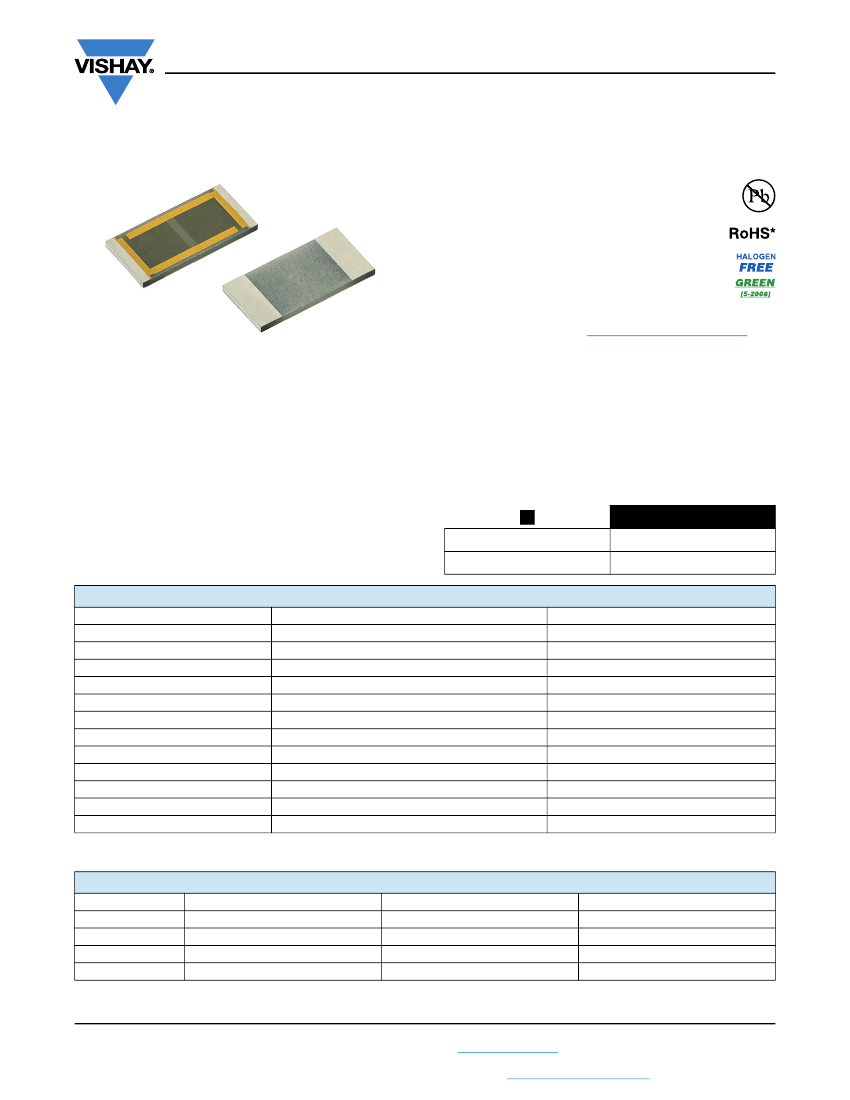

PCAN
www.vishay.com
Vishay Dale Thin Film
High Power Aluminum Nitride, Wraparound Surface Mount,
Precision Thin Film Chip Resistor (up to 6 W)
FEATURES
• High thermal conductivity aluminum nitride
Available
substrate
• Power rating up to 6.0 W
Available
• Resistance range 2
to 30.1 k
• Resistor tolerance to ± 0.1 %
• TCR to ± 25 ppm/°C
• Flame resistant UL 94 V-0
Available
• Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
PCAN series chip resistors are designed on aluminum
nitride ceramic substrates with enlarged backside
terminations to reduce the thermal resistance between the
topside resistor layer and the solder joint on the end users
circuit assembly.
Actual power handling capability is limited by the end user
mounting process. As with any high power chip resistor the
ability to remove the heat is critical to the overall
performance of the device.
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
APPLICATIONS
• Power supplies
• Power switching
• Braking system
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
0.1
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Power Rating: Resistor
Stability: Absolute
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
Note
(1)
Dependant on component mounting by user.
SPECIFICATIONS
Passivated nichrome
2
to 30.1 k
25 ppm/°C (standard) and 100 ppm/°C
0.1 %, 0.25 %, 0.5 %, 1.0 % and 5.0 %
0.5 W to 6.0 W
R
1.0 %
< 0.1 ppm/V
75 V to 200 V
-55 °C to +155 °C
-55 °C to +155 °C
< -30 dB
± 0.01 %
(1)
CONDITIONS
-
-
-
-55 °C to +150 °C
Maximum at +70 °C
1000 h at +70 °C
-
-
-
-
-
1 year at +25 °C
COMPONENT RATINGS
CASE SIZE
0603
0805
1206
2512
POWER RATING (mW)
500
2000
6000
(2)
WORKING VOLTAGE (V)
75
100
200
200
RESISTANCE RANGE ()
2 to 30.1K
2 to 30.1K
2 to 30.1K
2 to 30.1K
1000
(2)
(2)
(2)
Note
(2)
Dependant on component mounting by user.
Revision: 13-Oct-17
Document Number: 60125
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PCAN
www.vishay.com
Vishay Dale Thin Film
LIMITS MIL-PRF-55342
CHARACTERISTIC “H”
± 50 ppm/°C
+70 °C
+150 °C
± 0.25 %
± 0.25 %
± 0.1 %
± 0.2 %
± 0.25 %
± 0.4 %
± 0.5 %
TYPICAL VISHAY
PERFORMANCE
± 25 ppm/°C
+70 °C
+150 °C
± 0.10 %
± 0.10 %
± 0.10 %
± 0.10 %
± 0.10 %
± 0.50 %
± 1.00 %
ENVIRONMENTAL TESTS
ENVIRONMENTAL TEST
Resistance temperature characteristic
Maximum ambient temperature at rated wattage
Maximum ambient temperature at power derating
Thermal shock
Low temperature operation
Short time overload
High temperature exposure
Resistance to soldering heat
Moisture resistance
Life at +70 °C for 1000 h
DIMENSIONS
in inches
D
T
D
W
E
L
L
T
CASE SIZE
0603
0805
1206
2512
LENGTH
L
0.064 ± 0.006
0.080 ± 0.006
0.126 ± 0.008
0.259 + 0.009 / - 0.015
WIDTH
W
0.032 ± 0.005
0.050 ± 0.005
0.063 ± 0.005
0.124 ± 0.005
THICKNESS
T
MIN./MAX.
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
TOP PAD
D
0.012 ± 0.005
0.016 ± 0.005
0.020 + 0.005 / - 0.010
0.020 ± 0.005
BOTTOM PAD
E
0.021 ± 0.005
0.025 ± 0.005
0.040 ± 0.005
0.050 ± 0.005
LAND PATTERN DIMENSIONS
in inches
0603 Land Pattern
0.0920
0.0340
0.0710
0.0140
0.0390
0.0755
0.0220
1206 Land Pattern
0.1730
0805 Land Pattern
0.1050
2512 Land Pattern
0.2910
0.0520
0.0200
0.0425
0.1260
0.1090
0.0910
Revision: 13-Oct-17
Document Number: 60125
2
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PCAN
www.vishay.com
Vishay Dale Thin Film
Passivated nichrome
Aluminum nitride
Tin/lead solder over nickel barrier
Tin/silver/copper (Sn96.5/Ag3.0/Cu0.5) solder over nickel barrier
STANDARD MATERIAL SPECIFICATIONS
Resistive element
Substrate material
Terminations (Tin/lead)
Terminations (Lead (Pb)-free)
PCAN0603 CHIP TEMP VS. APPLIED POWER
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
20
Ω
200
Ω
PCAN0805 CHIP TEMP VS. APPLIED POWER
8.0
7.0
6.0
Applied Power (W)
50
Ω
Applied Power (W)
5.0
4.0
3.0
2.0
1.0
0.0
200
Ω
70
150
Chip
Surface
Temperature Temperature (°C)
200
70
150
Chip
Surface
Temperature Temperature (°C)
200
Note
• Chip surface temperature measured using FLIR SC645 thermal
imaging system with an approximate testcard surface
temperature of 75 °C.
Note
• Chip surface temperature measured using FLIR SC645 thermal
imaging system with an approximate testcard surface
temperature of 75 °C.
PCAN1206 CHIP TEMP VS. APPLIED POWER
12.0
PCAN2512 CHIP TEMP VS. APPLIED POWER
12.0
30
Ω
150
Ω
10.0
Applied Power (W)
30
Ω
Applied Power (W)
10.0
8.0
175
Ω
8.0
6.0
6.0
4.0
4.0
2.0
2.0
0.0
70
150
Chip
Surface
Temperature Temperature (°C)
200
0.0
70
150
Chip
Surface
Temperature Temperature (°C)
200
Note
• Chip surface temperature measured using FLIR SC645 thermal
imaging system with an approximate test card surface
temperature of 85 °C.
• Thermal imaging was conducted under ambient conditions
resulting in a steady state test card surface temperature of 85 °C
over the full range of power levels.
• Thermal imaging and load life testing was conducted mounting
one device to a 1.6" x 3.7" test card with 3.5 mil copper plating
on both surfaces. Thermal vias on 50 mil centers were utilized for
heat transfer between surfaces of the test card.
Note
• Chip surface temperature measured using FLIR SC645 thermal
imaging system with an approximate test card surface
temperature of 85 °C.
Revision: 13-Oct-17
Document Number: 60125
3
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PCAN
www.vishay.com
Vishay Dale Thin Film
DERATING CURVE
100
Percent of Rated Power
80
60
40
20
0
0
70
125
155
Ambient Temperature °C
SINGLE PULSE LOAD TESTING
100
100
Ω
- 2512
Peak Power (W)
10
100
Ω
- 1206
1
0.1
0.00001
0.0001
0.001
0.01
0.1
1
10
Pulse Duration (s)
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: PCAN1206H1000BBT1
P
GLOBAL
MODEL
PCAN
C
CASE
SIZE
0603
0805
1206
2512
A
N
1
2
0
6
H
1
0
0
0
B
B
T
1
TCR
CHARACTERISTIC
E
= ± 25 ppm/°C
H
= ± 50 ppm/°C
K
= ± 100 ppm/°C
(1)
RESISTANCE
The first 3 digits are
significant figures and
the last digit specifies
the number of zeros
to follow.
“R” designates the
decimal point.
Example:
10R0
= 10
1000
= 100
TOLERANCE
B
= ± 0.1 %
(2)
C
= ± 0.25 %
D
= ± 0.5 %
F
= ± 1.0 %
(1)
G
= ± 2.0 %
TERMINATION
B
= Wraparound
Sn/Pb solder
w/ nickel barrier
S
= Wraparound
lead (Pb)-free
solder (e1)
RoHS compliant
G
= Wraparound Au,
over Ni (gold)
termination
epoxy bondable
RoHS compliant
(e4)
PACKAGING
BS
= BULK
100 min., 1 mult
WS
= WAFFLE
100 min., 1 mult
W0
= 100 pc min. waffle,
1 mult
WI
= 100 min., 1 mult
(package unit single lot
date code)
TAPE AND REEL
T0
= 100 min., 100 mult
T1
= 1000 min., 1000 mult
T3
= 300 min., 300 mult
T5
= 500 min., 500 mult
TF
= Full reel
TS
= 100 min., 1 mult
TI
= 100 min., 1 mult
(item single lot date code)
TP
= 100 min., 1 mult
(package unit single lot
date code)
Notes
(1)
Less than 10
.
100 ppm/°C and 1 % tolerance best.
(2)
Available on 10
and higher.
Revision: 13-Oct-17
Document Number: 60125
4
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
