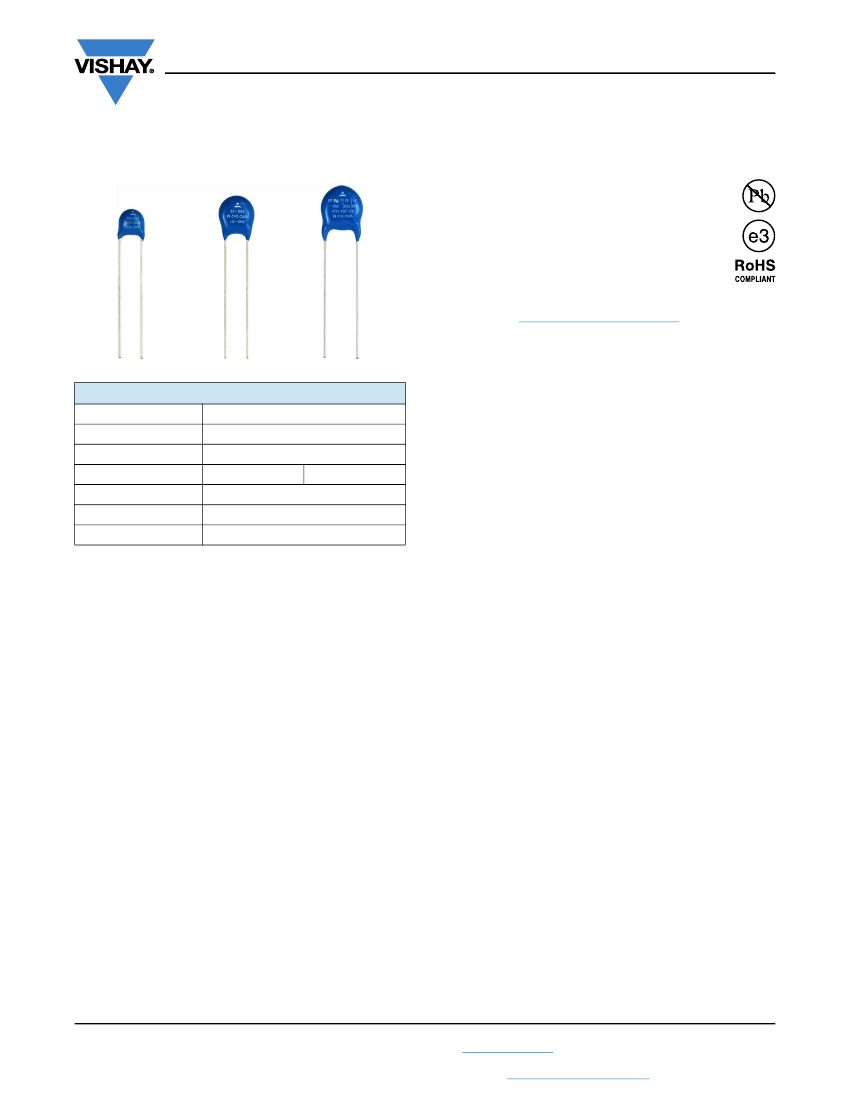

WYO Series
www.vishay.com
Vishay Draloric
AC Line Rated Ceramic Disc Capacitors
Class X1, 440 V
AC
, Class Y2, 250 V
AC
FEATURES
• Complying with IEC 60384-14 4
th
edition
• High reliability
• Wide range of capacitance values
• Wide range of different leadstyles
• Singlelayer AC disc safety capacitors
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• X1, Y2 according to IEC 60384-14.4
• Line-by-pass
VALUE
2
Y5U
440
1000
12 000
Radial
250
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
AC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
DESIGN
The capacitors consist of ceramic disc both sides of which
are silver plated. Connection leads are made of tinned
copper having diameters of 0.6 mm.
The capacitors may be supplied with straight or kinked
leads having a lead spacing of 5.0 mm or 7.5 mm.
Coating is made of blue colored flame retardant epoxy resin
in accordance with UL 94 V-0.
MARKING
Marking indicates series, AC rating, capacitance, tolerance
code, and approvals.
CAPACITANCE RANGE
1.0 nF to 12 nF
TOLERANCE ON CAPACITANCE
± 20 %
OPERATING TEMPERATURE RANGE
-40 °C to +125 °C
RATED VOLTAGE
• X1:
• Y2:
440 V
AC
, 50 Hz (IEC 60384-14.4)
440 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
250 V
AC
, 50 Hz (IEC 60384-14.4)
250 V
AC
, 50 Hz / 60 Hz (US/UL/CSA 60384-14)
TEMPERATURE CHARACTERISTICS
Class 2
Y5U
SECTIONAL SPECIFICATIONS
Climatic category (according to EN 60058-1)
Class 2
40/125/21
TEST VOLTAGE
• 2500 V
AC
, 50 Hz, 2 s
Component test (100 %)
Random sampling test (destructive)
Voltage proof of coating (destructive)
• 1500 V
AC
, 50 Hz, 60 s
• 2000 V
AC
, 60 Hz, 60 s
APPROVALS
IEC 60384-14.4
UL 60384-14.1
CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
INSULATION RESISTANCE AT 500 V
DC
6000
M (60 s)
DISSIPATION FACTOR
Class 2: max. 2.5 % (1 kHz)
Revision: 19-Feb-16
Document Number: 22202
1
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WYO Series
www.vishay.com
Vishay Draloric

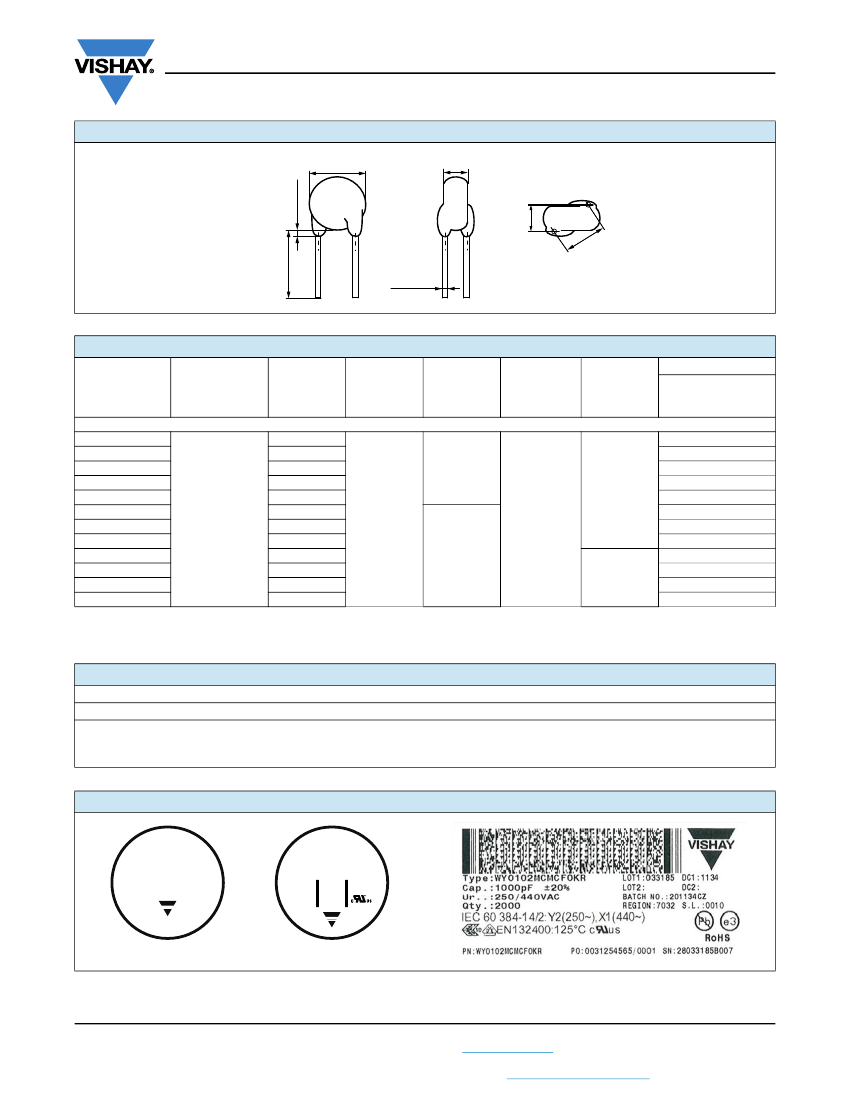

DIMENSIONS
in millimeters
D
max.
3.0 max.
S
max.
V
F
30 - 3
or 10 ± 1
Ø d ± 0.05
TECHNICAL DATA
CAPACITANCE
C (pF)
Y5U (2E3)
1000
1500
1800
2200
2500
3300
4700
5000
6800
8200
10 000
12 000
CAPACITANCE
TOLERANCE
BODY
DIAMETER
D
MAX.
(mm)
6.5
8.0
8.0
9.0
9.0
11.0
12.5
12.5
17.0
17.0
21.0
21.0
BODY
THICKNESS
S
MAX.
(mm)
LEAD
SPACING
(1)
F (mm)
± 1 mm
LEAD
DIAMETER
(1)
d (mm)
± 0.05 mm
WIDTH
(1)
V (mm)
± 0.5 mm
PART NUMBER
MISSING DIGITS
SEE ORDERING
CODE BELOW
WYO102#CM###KR
WYO152#CM###KR
WYO182#CM###KR
WYO222#CM###KR
WYO252#CM###KR
WYO332#CM###KR
WYO472#CM###KR
WYO502#CM###KR
WYO682#CM###KR
WYO822#CM###KR
WYO103#CM###KR
WYO123#CP###KR
5.0
1.4
4.5
7.5
1.6
0.6
± 20 %
Note
(1)
Standard lead configuration, other lead spacing and diameter available on request
ORDERING CODE
#
###
Example
10
th
7
th
digit
to
12
th
digit
WYO
Series
Capacitance tolerance
Lead configuration
103
Capacitance
value
M
Tolerance code
± 10 % = K, ± 20 % = M
see “General Information”
CM
Voltage code
CF0
Lead
configuration
K
Internal code
R
RoHS
compliant
MARKING
440~X1
WYO 2n2 M
250~Y2
WYO 4n7 M
IEC 384-14/2
440 250 250~
X1 Y2
WYO 1.0 nF to 2.5 nF
WYO 3.3 nF to 12 nF
Revision: 19-Feb-16
Document Number: 22202
2
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WYO Series
www.vishay.com
Vishay Draloric
APPROVALS
IEC 60384-14.4 - Safety tests
This approval together with CB test certificate substitutes all national approvals.
CB Certificate
Y2-capacitor: CB test certificate:
X1-capacitor: CB test certificate:
Minimum thickness of insulation: 0.4 mm
VDE
Y2-capacitor: VDE marks approval:
X1-capacitor: VDE marks approval:
DIN EN 60384-14 VDE 0565-1-1:2006-04 - Safety tests
Minimum thickness of insulation: 0.4 mm
Underwriters Laboratories Inc. / Canadian Standards Association
Y2-capacitor: UL-test certificate:
X1-capacitor: UL-test certificate:
E183844
E183844
1 nF to 12 nF
1 nF to 12 nF
250 V
AC
440 V
AC
133769
133769
1 nF to 12 nF
1 nF to 12 nF
250 V
AC
440 V
AC
US-26154-UL
US-26154-UL
1 nF to 12 nF
1 nF to 12 nF
250 V
AC
440 V
AC
UL 60384-14.1, CSA E60384-1:03 2
nd
edition, CSA E60384-14:09 2
nd
edition
Across-the-line, antenna-coupling and line-by-pass component
Minimum thickness of insulation: 0.4 mm
LEAKAGE CURRENT VS. VOLTAGE
(typical)
I (μA)
4000
8.2 nF
3000
IMPEDANCE VS. FREQUENCY
(typical)
Z (Ω)
100
10
2000
4.7 nF
3.3 nF
1
0
0
500
1000
1500
2000
1 nF
0.01
2500
0.1
1
10
12 nF
5 nF
2.5 nF
1 nF
100
1000
2.2 nF
0.1
U
R
(V~)
f (MHz)
RELATED DOCUMENTS
General Information
CB Test Certificate
VDE Marks Approval
UL Test Certificate
www.vishay.com/doc?22001
www.vishay.com/doc?22225
www.vishay.com/doc?22227
www.vishay.com/doc?22226
Revision: 19-Feb-16
Document Number: 22202
3
For technical questions, contact:
slcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
