Part Number

Search

MAL214099614E3

Description
Aluminum Electrolytic Capacitors - Leaded 1000uF 25V 16x16x21 mm 125 C 5000h
CategoryPassive components    capacitor
File Size154KB,13 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

MAL214099614E3 Online Shopping

Suppliers Part Number Price MOQ In stock
MAL214099614E3 - - View Buy Now

MAL214099614E3 Overview

Aluminum Electrolytic Capacitors - Leaded 1000uF 25V 16x16x21 mm 125 C 5000h

MAL214099614E3 Parametric

Parameter NameAttribute value
MakerVishay
package instruction, 6363
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance1000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
high21 mm
JESD-609 codee3
leakage current0.25 mA
length16 mm
Installation featuresSURFACE MOUNT
multi-layerNo
negative tolerance20%
Number of terminals6
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formSMT
method of packingTR, BLISTER, 15 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)25 V
GuidelineAEC-Q200
ripple current840 mA
size code6363
surface mountYES
Delta tangent0.16
Terminal surfaceMatte Tin (Sn)
Terminal shapeFLAT
width16 mm

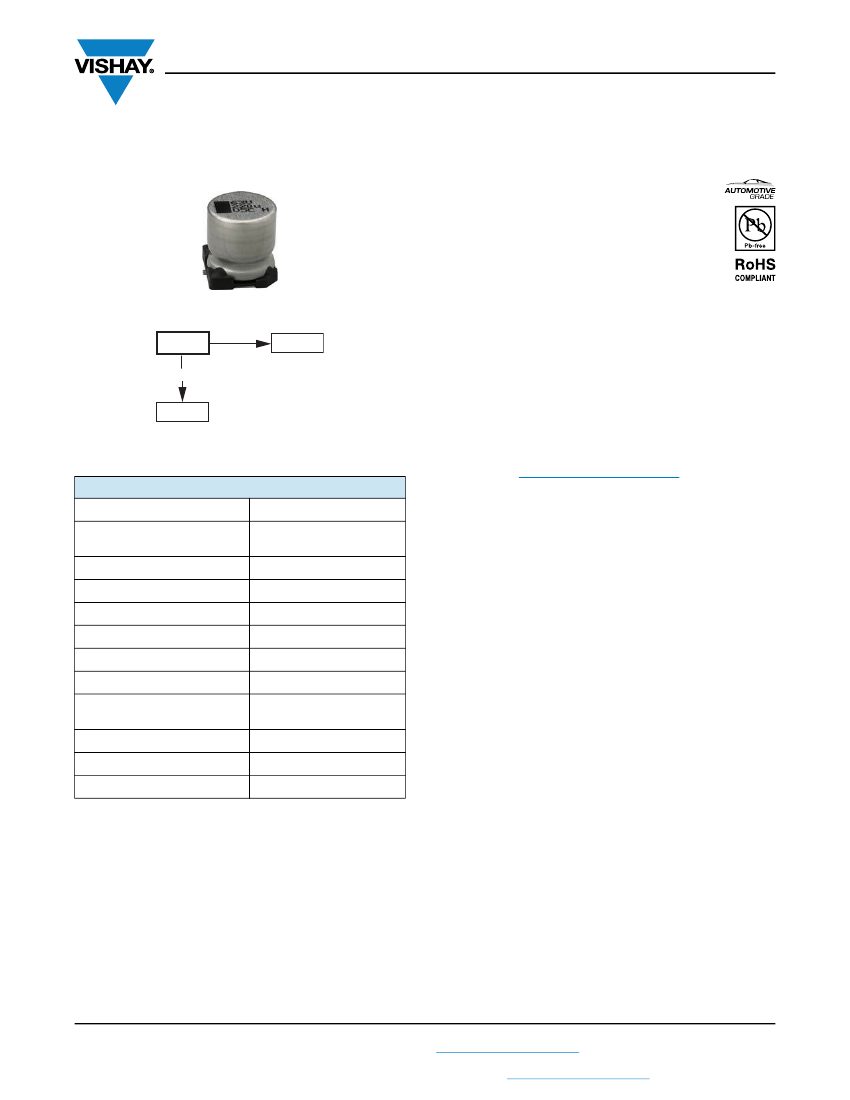

140 CRH
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
SMD (Chip), High Temperature
FEATURES
• Extended useful life: up to 6000 h at 125 °C
for MAL214099...E3 parts
• Parts for advanced high temperature reflow
soldering according to JEDEC
®
J-STD-020
available
• Vibration proof, 4-pin version and 6-pin version
• AEC-Q200 qualified
140 CRH
125 °C
Lower temp.
Lower Z
146 CTI
• Polarized aluminum electrolytic capacitors, non-solid
electrolyte, self healing
• SMD-version with base plate, lead (Pb)-free reflow
solderable
• Charge and discharge proof, no peak current limitation
• High reliability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
150 CRZ
Fig. 1
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes
(L x W x H in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 125 °C
Useful life at 125 °C
Useful life at 40 °C
1.8 x l
R
applied
Shelf life at 0 V, 125 °C
VALUE
8 x 8 x 10
to 18 x 18 x 21
10 μF to 4700 μF
± 20 %
6.3 V to 63 V
-55 °C to +125 °C
1000 h to 5000 h
1500 h to 6000 h
150 000 h to 500 000 h
1000 h
APPLICATIONS
• SMD technology, for high temperature reflow soldering
• Industrial and professional applications
• Automotive, general industrial, telecom
• Smoothing, filtering, buffering
MARKING
• Rated capacitance (in μF)
• Rated voltage (in V)
• Date code, in accordance with IEC 60062
• Black mark or “-” sign indicating the cathode (the anode is
identified by beveled edges)
• Code indicating group number (H)
Based on sectional specification IEC 60384-18 / CECC 32300
Climatic category IEC 60068
55 / 125 / 56
PACKAGING
Supplied in blister tape on reel
Revision: 31-Jan-17
Document Number: 28396
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
