Pulse Jack
Shielded Drum Core Inductor
PA4302.XXXNLT Series
Electronics
Height:
5.6mm Max
Footprint:
7.5 x 7.5 mm Max
Current Range:
0.5A to 7.5A
Inductance Range:
1uH to 330uH
Electrical Specifications @ 25°C
—
Operating Temperature -40°C to 125°C
Pulse Part Number
PA4302.102NLT
PA4302.332NLT
PA4302.472NLT
PA4302.682NLT
PA4302.103NLT
PA4302.473NLT
PA4302.683NLT
PA4302.104NLT
PA4302.224NLT
PA4302.334NLT
Inductance (uH)
1.0
3.3
4.7
6.8
10
47
68
100
220
330
Rated Current (A) Max
7.5
5.6
4.8
4
3
1.45
1.2
1
0.72
0.5
DC Resistance (mΩ) Max
20
22.8
26.8
36.8
55
185
265
380.5
765
1344

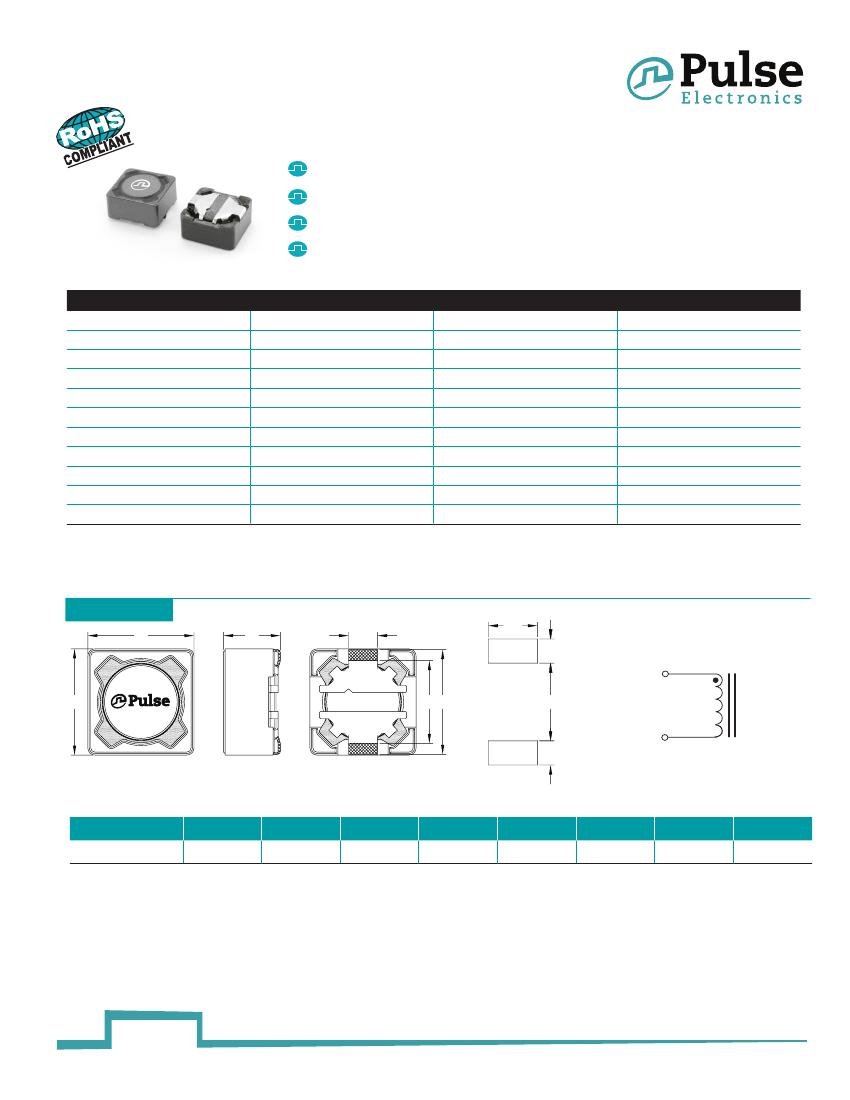

Mechanical
PA4302.XXXNLT
A
B
C
F
G
Schematic
1
A
E D
H
2
G
FINAL OUTLINE
SUGGESTED PAD LAYOUT
Part Number
PA4302.XXXNLT
A (max)
7.5 MAX
B (max)
5.6 MAX
C
(2.0)
D
(7.2)
E
(5.0)
F
(2.3)
G
(1.6)
H
(4.8)
1
pulseelectronics.com
P747.A (12/14)
Pulse Jack
Shielded Drum Core Inductor
PA4302.XXXNLT Series
Electronics

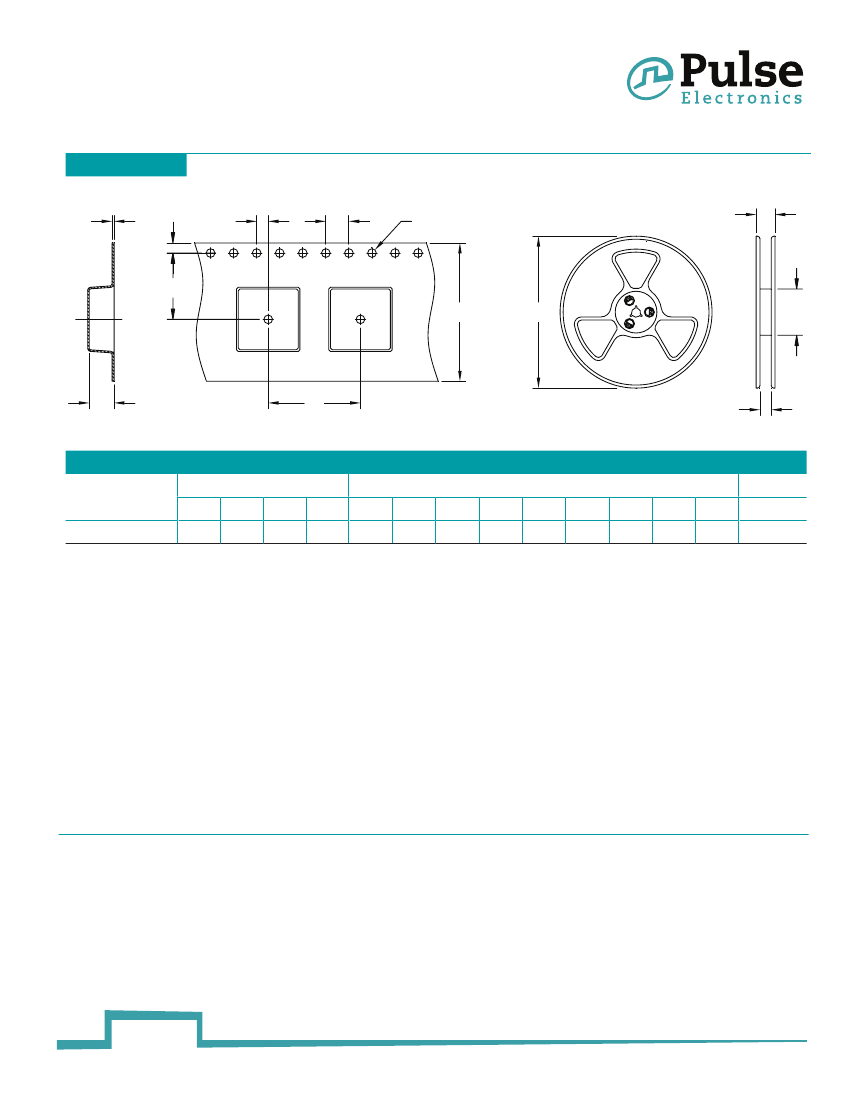

TAPE & REEL INFO
T
E
P
2
P
0
ØD
0
B
F
W
A
N
K
0
P
1
G
SURFACE MOUNTING TYPE, REEL/TAPE LIST
TYPE
PA4302.XXXNLT
NOTES:
1. Inductance tolerance is +/-30% for inductance values between 1uH and 6.8uH and +/-20% for values
between 10uH and 330uH.
2. Inductance is measured at 100kHz, 250mV
3. The rated current as listed is the rms or heating current that the part can withstand with acceptable
temperature rise in typical applications. At the listed current the inductance typically drops to
85-90% of the no load value when measured at 25C.
4. The temperature of the component (ambient plus temperature rise) must be within the stated
operating tem
perature.
REEL SIZE (mm)
A
0330
B
21
G
16.5
N
100
E
1.75
F
7.5
D
0
1.5
P
12
TAPE SIZE (mm)
P
0
4
P
2
2
W
16
T
0.40
K
0
5.6
QTY
PCS/REEL
900
