LFXTAL072335Bulk datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFXTAL072335Bulk

Preview

LFXTAL072335Bulk: DescriptionCrystals 14.31818MHz 20pF -20C 70C; CategoryPassive components; File Size273KB，1 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFXTAL072335Bulk Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL072335Bulk	-	-	View	Buy Now

LFXTAL072335Bulk Overview

Crystals 14.31818MHz 20pF -20C 70C

LFXTAL072335Bulk Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	5 mm x 3.2 mm
Load Capacitance	20 pF
Frequency	14.31818 MHz
Tolerance	50 PPM
Frequency Stability	50 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 20 C
Maximum Operating Temperature	+ 70 C
Length	5 mm
Width	3.2 mm
Height	1 mm
Diameter	-
Packaging	Bulk
Product	Crystals
Type	Quartz Crystal
ESR	70 Ohms
Mounting Style	SMD/SMT
Lead Spacing	-
Factory Pack Quantity	100

Preview

Download Datasheet

View All

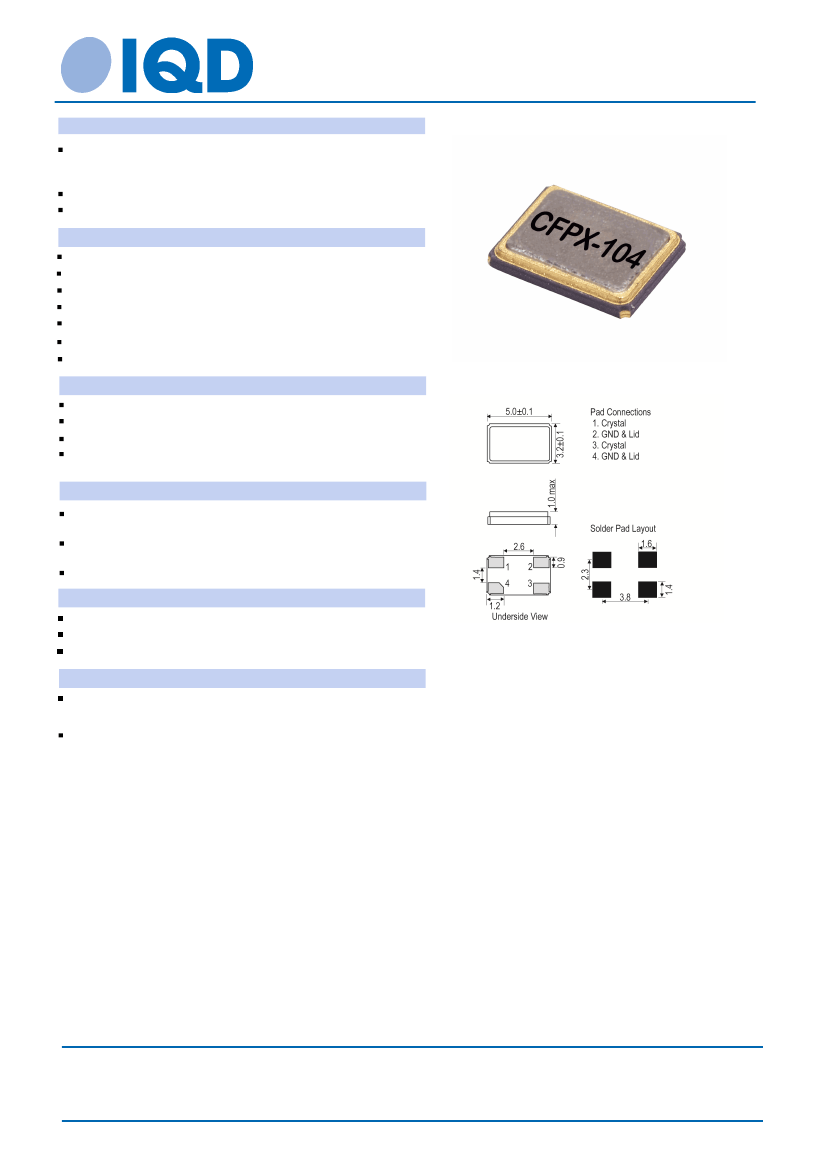

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL072335Bulk

Description

Standard 5x3.2mm SMD crystal with four pads.

Ceramic package with a seam sealed metal lid, hermetically

sealed.

Model

CFPX-104

Model Issue number

9

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

14.318180MHz

±50.00ppm

@ 25°C

±

50.00ppm

-20.00 to 70.00°C

Fundamental

±3ppm max per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

20.00pF

7pF max

100µW max

70.00Ω max

Shock: 1500G, 0.5ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins in

3 mutually perpendicular planes, 4 cycles

Storage Temperature Range: -55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 10 May 16 9:11 using Part Data Sheet V1.00014
