LFXTAL009706Reel datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LFXTAL009706Reel

Preview

LFXTAL009706Reel: DescriptionCrystals 32.7680kHz 3.2 x 1.5 x 0.9mm; CategoryPassive components; File Size213KB，1 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFXTAL009706Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFXTAL009706Reel	-	-	View	Buy Now

LFXTAL009706Reel Overview

Crystals 32.7680kHz 3.2 x 1.5 x 0.9mm

LFXTAL009706Reel Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	IQD
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	3.2 mm x 1.5 mm
Load Capacitance	9 pF
Frequency	32.768 kHz
Tolerance	20 PPM
Frequency Stability	-
Drive Level	1 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	3.2 mm
Width	1.5 mm
Height	0.9 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Product	Crystals
Type	Quartz Crystal
ESR	80 kOhms
Mounting Style	SMD/SMT
Factory Pack Quantity	3000
Unit Weight	0.000564 oz

Preview

Download Datasheet

View All

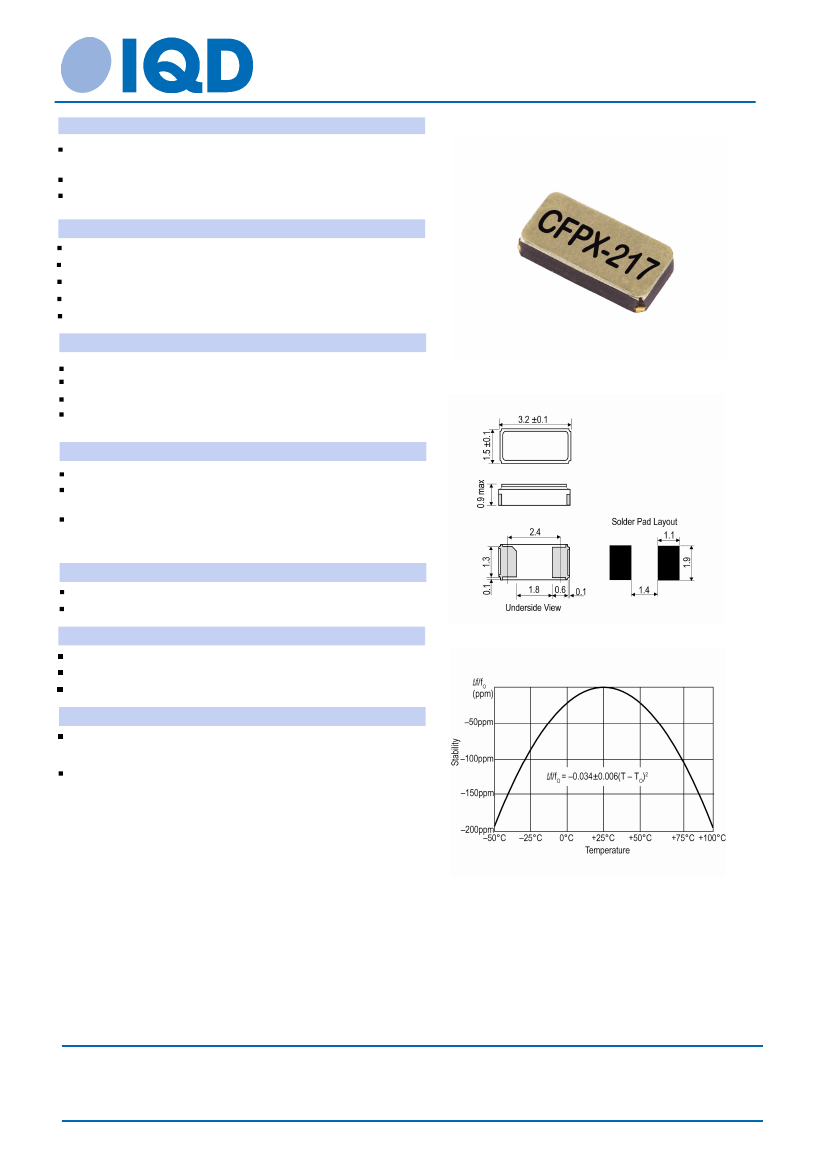

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL009706Reel

Description

A 3.2 x 1.5mm SMD crystal in a ceramic package with a seam

sealed metal lid, hermetically sealed

Model

CFPX-217

Model Issue number

4

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Overtone Order

Ageing

Electrical Parameters

32.7680kHz

±20.00ppm

@ 25°C ±5°C

Fundamental

±3ppm max in 1st year @ 25°C

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

9.00pF

1.05pF typical

1µW max

70.00kΩ max

Outline (mm)

Storage Temperature Range: –55 to 125°C

Drop: 100g dummy, 150cm drop (3 directions x 10 times) onto

concrete

Vibration: 1.5mm amplitude, 10Hz-500Hz, full sine wave or

acceleration 10G, 1.5mins in 3 mutually perpendicular planes,

duration 2hrs each plane

Manufacturing Details

RoHS Terminations

RoHS Reflow Temp

Compliance

SnAu

260°C max for10secs max

Typical Frequency Stability Characteristics

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 19 Sep 17 12:29 using Part Data Sheet V1.00015
