TS68EN360
32:BIT QUAD INTEGRATED
COMMUNICATION CONTROLLER
DESCRIPTION
The TS68EN360 QUad Integrated Communication Controller
(QUICCt) is a versatile one-chip integrated microprocessor and
peripheral combination that can be used in a variety of controller
applications. It particularly excels in communications activities.
The QUICC (pronounced ”quick”) can be described as a next-
generation TS68302 with higher performance in all areas of
device operation, increased flexibility, major extensions in capa-
bility, and higher integration. The term ”quad” comes from the fact
that there are four serial communications controllers (SCCs) on
the device; however, there are actually seven serial channels:
four SCCs, two serial management controllers (SMCs), and one
seral peripheral interface (SPI).
MAIN FEATURES
H
CPU32+ Processor (4.5 MIPS at 25 MHz)
- 32-Bit Version of the CPU32 Core (Fully Compatible with
the CPU32)
- Background Debug Mode
- Byte-Misaligned Addressing
R suffix

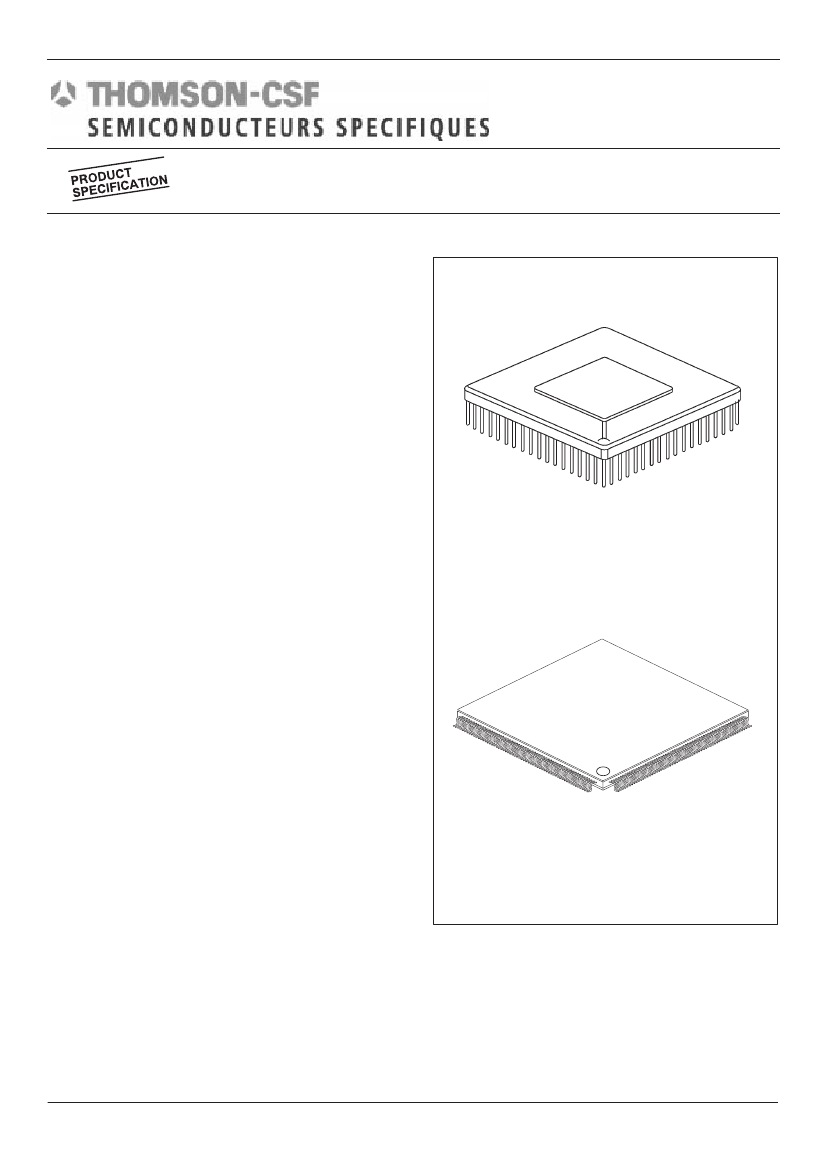

PGA 241
Ceramic Pin Grid Array
Cavity Up
H
Up to 32-Bit Data Bus
(Dynamic Bus Sizing for 8 and 16 Bits)
H
Up to 32 Address Lines (At Least 28 Always Available)
H
Complete Static Design (0-25 MHz Operation)
H
Slave Mode To Disable CPU32+
(Allows Use with External Processors)
- Multiple QUICCs Can Share One System Bus (One Master)
- TS68040 Companion Mode Allows QUICC To Be an
TS68040 Companion Chip and Intelligent Peripheral
(22 MIPS at 25 MHz)
- Peripheral device of TSPC603e (see DC415/D note)
H
Four General-Purpose Timers
- Superset of MC68302 Timers
- Four 16-Bit Timers or Two 32-Bit Timers
- Gate Mode Can Enable/Disable Counting
H
H
H
H
H
H
H
H
H
H
Two Independent DMAs (IDMAs)
System Integration Module (SIM60)
Communications Processor Module (CPM)
Four Baud Rate Generators
Four SCCs (Ethernet/IEEE 802.3 Optional on SCC1-Full
10-Mbps Support) (see § 6.4)
Two SMC
V
CC
=
+5 V
±
5 %
f
max
=
25 MHz and 33 MHz
Military temperature range : –55°C < T
C
< +125°C
P
D
=
1.4 W
at 25 MHz ; 5.25 V
2 W
at 33 MHz ; 5.25 V
A suffix
CERQUAD 240
Ceramic Leaded Chip Carrier
Cavity Down
SCREENING / QUALITY
This product is manufactured in full compliance with :
H
MIL-STD-883 (class B)
H
QML (class Q)
H
or according to TCS standard
1/72
April 1999
TS68EN360
SUMMARY
A. GENERAL DESCRIPTION . . . . . . . . . . . . 3
1.
2.
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
PIN ASSIGNMENTS . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1.
2.2.
3.
3.1.
3.2.

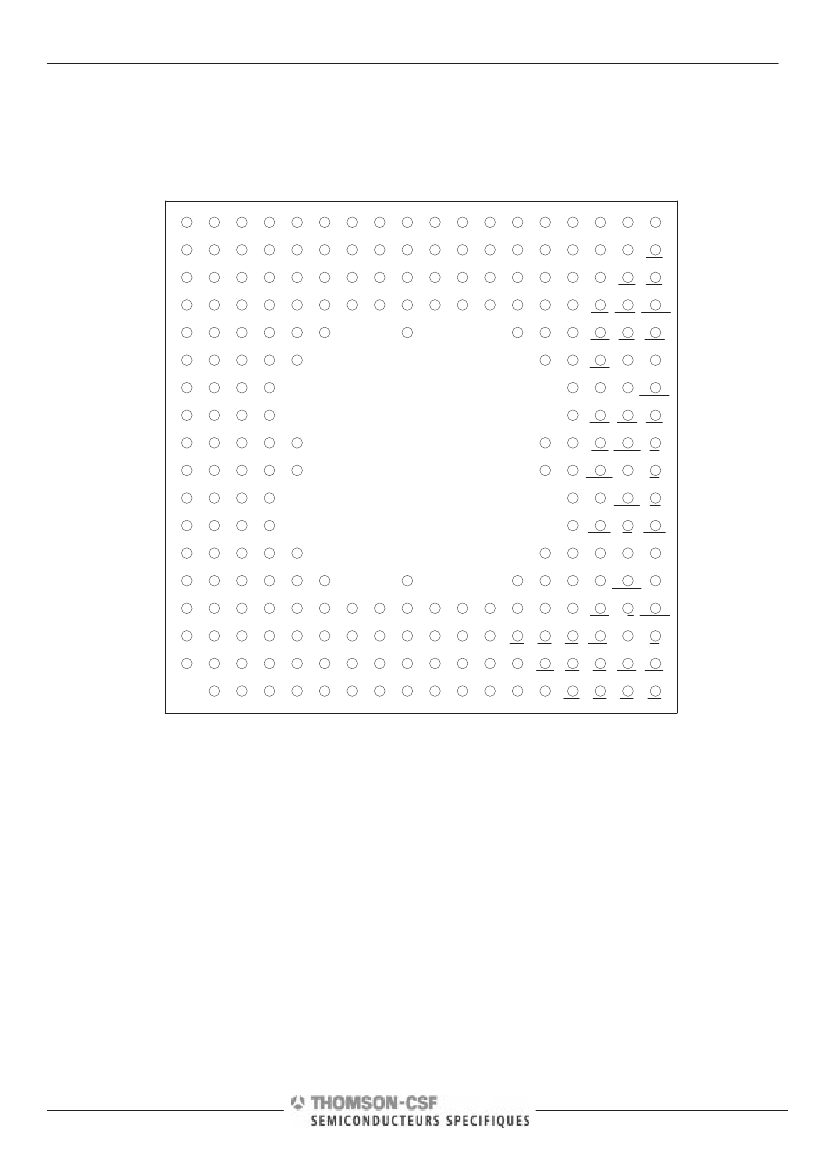

241 Lead Pin Grid Array (PGA) . . . . . . . . . . . . 4
240 Lead Cerquad . . . . . . . . . . . . . . . . . . . . . . . 5
Functional Signal Groups . . . . . . . . . . . . . . . . . . 6
Signal Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5.11. 040 Bus Type Sram/Dram Cycles AC Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.12. IDMA AC Electrical Specifications . . . . . . . . 47
5.13. PIP/PIO Electrical Specifications . . . . . . . . . . 48
5.14. Interrupt Controller AC Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.15. Baud Rate Generator AC Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
5.16. Timer Electrical Specifications . . . . . . . . . . . . 51
5.17. SI Electrical Specifications . . . . . . . . . . . . . . . . 52
5.18. SCC in NMSI Mode-external Clock Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SIGNAL DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . 6
B. DETAILED SPECIFICATIONS . . . . . . . . 10
1.
2.
3.
SCOPE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
APPLICABLE DOCUMENTS . . . . . . . . . . . . . . . . 10
REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.1.
3.2.
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Design and Construction . . . . . . . . . . . . . . . . . 10
3.2.1. Terminal connections . . . . . . . . . . . . . . . . . . . 10
3.2.2. Lead material and finish . . . . . . . . . . . . . . . . . 10
3.2.3. Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.19. SCC in NMSI Mode-internal Clock Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
5.20. Ethernet Electrical Specifications . . . . . . . . . . 58
5.21. SMC Transparent Mode Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
5.22. SPI Master Electrical Specifications . . . . . . . . 61
5.23. SPI Slave Electrical Specifications . . . . . . . . . 62
5.24. JTAG Electrical Specifications . . . . . . . . . . . . 63
6.
FUNCTIONAL DESCRIPTION . . . . . . . . . . . . . . . 65
6.1.
6.2.
6.3.
6.4.
6.5.
CPU32+ Core . . . . . . . . . . . . . . . . . . . . . . . . . . 65
System Integration Module (SIM60) . . . . . . . 65
Communications Processor Module (CPM) . 65
Ethernet on QUICC . . . . . . . . . . . . . . . . . . . . . 65
Upgrading Designs from the TS68302 . . . . . . 66
6.5.1. Architectural Approach . . . . . . . . . . . . . . . . . 66
6.5.2. Hardware Compatibility Issues . . . . . . . . . . . 66
6.5.3. Software Compatibility Issues . . . . . . . . . . . . 67
3.3.
Electrical characteristics . . . . . . . . . . . . . . . . . . 10
3.3.1. Absolute maximum ratings . . . . . . . . . . . . . . . 10
3.3.2. Recommended conditions of use . . . . . . . . . . 11
3.4.
3.5.
3.6.
3.7.
4.
5.
Thermal characteristics . . . . . . . . . . . . . . . . . . . 11
Power considerations . . . . . . . . . . . . . . . . . . . . 11
Mechanical and environment . . . . . . . . . . . . . . 11
Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
QUALITY CONFORMANCE INSPECTION . . . . 12
ELECTRICAL CHARACTERISTICS . . . . . . . . . . 12
5.1.
5.2.
5.3.
5.4.
5.5.
5.6.
5.7.
5.8.
5.9.
General requirements . . . . . . . . . . . . . . . . . . . . 12
Static characteristics . . . . . . . . . . . . . . . . . . . . . 13
Dynamic characteristics . . . . . . . . . . . . . . . . . . 14
AC Power Dissipation . . . . . . . . . . . . . . . . . . . . 15
Ac Electrical Specifications Control Timing . 16
External Capacitor For PLL . . . . . . . . . . . . . . 17
Bus Operation AC Timing Specifications . . . . 18
Bus Operation - Dram Accesses AC Timing
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
040 Bus Type Slave Mode Bus Arbitration AC
Electrical Specifications . . . . . . . . . . . . . . . . . . 37
8.
9.
7.
PREPARATION FOR DELIVERY . . . . . . . . . . . . . 67
7.1.
7.2.
Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Certificate of compliance . . . . . . . . . . . . . . . . . 67
HANDLING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
PACKAGE MECHANICAL DATA . . . . . . . . . . . . . 68
9.1.
9.2.
241 pins - PGA . . . . . . . . . . . . . . . . . . . . . . . . 68
240 PINS - CERQUAD . . . . . . . . . . . . . . . . . 69
10. ORDERING INFORMATION . . . . . . . . . . . . . . . . . 70
10.1. Hi-REL product . . . . . . . . . . . . . . . . . . . . . . . 70
10.2. Standard product . . . . . . . . . . . . . . . . . . . . . . . . 70
5.10. 040 Bus Type Slave Mode Internal
Read/Write/Iack Cycles AC Electrical
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2/72
