9C-8912MAAJ-T: DescriptionCrystals 8.912MHz 30ppm -20 to 70C 12pF; CategoryPassive components; File Size308KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/

Download Datasheet Parametric View All

9C-8912MAAJ-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	9C-8912MAAJ-T	-	-	View	Buy Now

9C-8912MAAJ-T Overview

Crystals 8.912MHz 30ppm -20 to 70C 12pF

9C-8912MAAJ-T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TXC Corporation
Product Category	Crystals
RoHS	Details
Termination Style	SMD/SMT
Package / Case	HC-49/S
Load Capacitance	18 pF
Frequency	8.912 MHz
Tolerance	30 PPM
Frequency Stability	30 PPM
Drive Level	100 uW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	11.4 mm
Width	4.8 mm
Height	3.8 mm
Packaging	Reel
Product	Crystals
Type	Surface Mount Quartz Crystal
Mounting Style	SMD/SMT
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

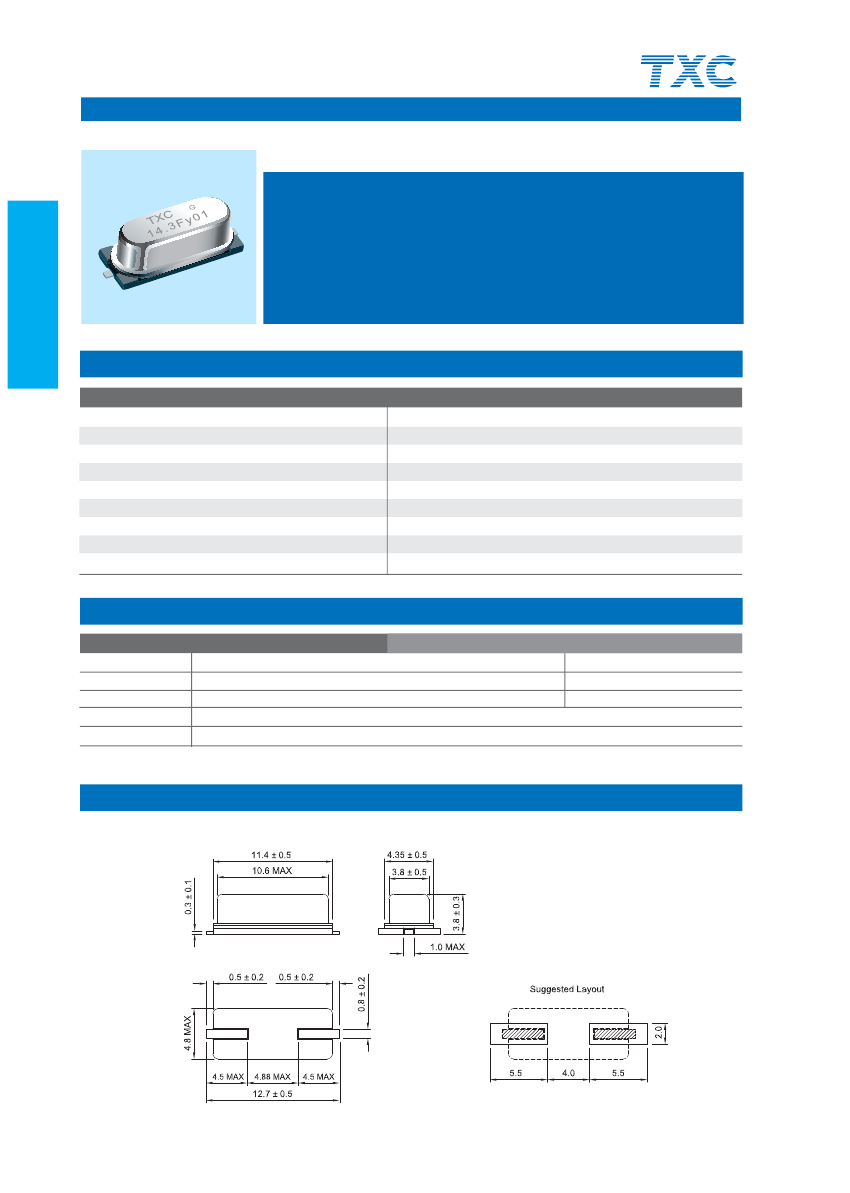

Quartz Crystals

SMD HC-49S

9C SERIES

Features

>

Surface mount type crystal units.

>

A great number of standard frequencies.

>

High frequency pullability and low equivalent series resistance.

>

Highly mass production capability.

>

The best choice of PC, STB, LCDM, and Cable Modem.

>

RoHS Compliant / Pb Free.

Quartz Crystals

04

Electrical Specifications

Item / Type

Frequency Range

Frequency Tolerance (at 25 ºC)

Frequency Stability Over Operating Temperature Range

Operating Temperature Range

Shunt Capacitance (C0)

Drive Level

Load Capacitance

Aging (at 25 ºC)

Storage Temperature Range

9C

3.2 ~ 90 MHz

± 30 ppm, or specify

± 30 ppm (-20 ~ +70 ºC), or specify

- 40 ~ + 85 ºC

7 pF Max.

1 ~ 500 μW (100 μW typical)

18 pF, or specify

± 3 ppm / year Max.

- 55 ~ + 125 ºC

Equivalent Series Resistance(ESR)

Fundamental

3.2 ~ 3.686 MHz

3.686 ~ 5 MHz

5 ~ 10 MHz

10 ~ 14 MHz

14 ~ 30 MHz

200 Ω Max.

150 Ω Max.

80 Ω Max

40 Ω Max.

30 Ω Max.

3rd Overtone

27 ~ 30 MHz

30 ~ 50 MHz

50 ~ 90 MHz

100 Ω Max.

80 Ω Max.

60 Ω Max.

Dimensions

Units:mm

Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
