TDK multilayer ceramic chip capacitor_Soft termiantion_General grade_C series is a product which conductive resin layers are included in termina-
tions. Soft termiantion series has higher mechanical endurance by the flexible resin layers which absorbs thermal and mechanical stress.
■
FEATURES
• Higher mechanical endurance is realized by flexible resin layers.
• X8R type which maximum temperature is up to 150°C is applicable.
• C0G temperature characteristic which has excellent stable tempera-
ture and DC-bias characteristcs is applicable.
■
APPLICATIONS
•
•
•
•
Fail-safe design in battery line.
Prevention of ceramic body cracks by board bending.
Prevention of solder cracks by thermal shock.
The set having a high probability of fall.
■

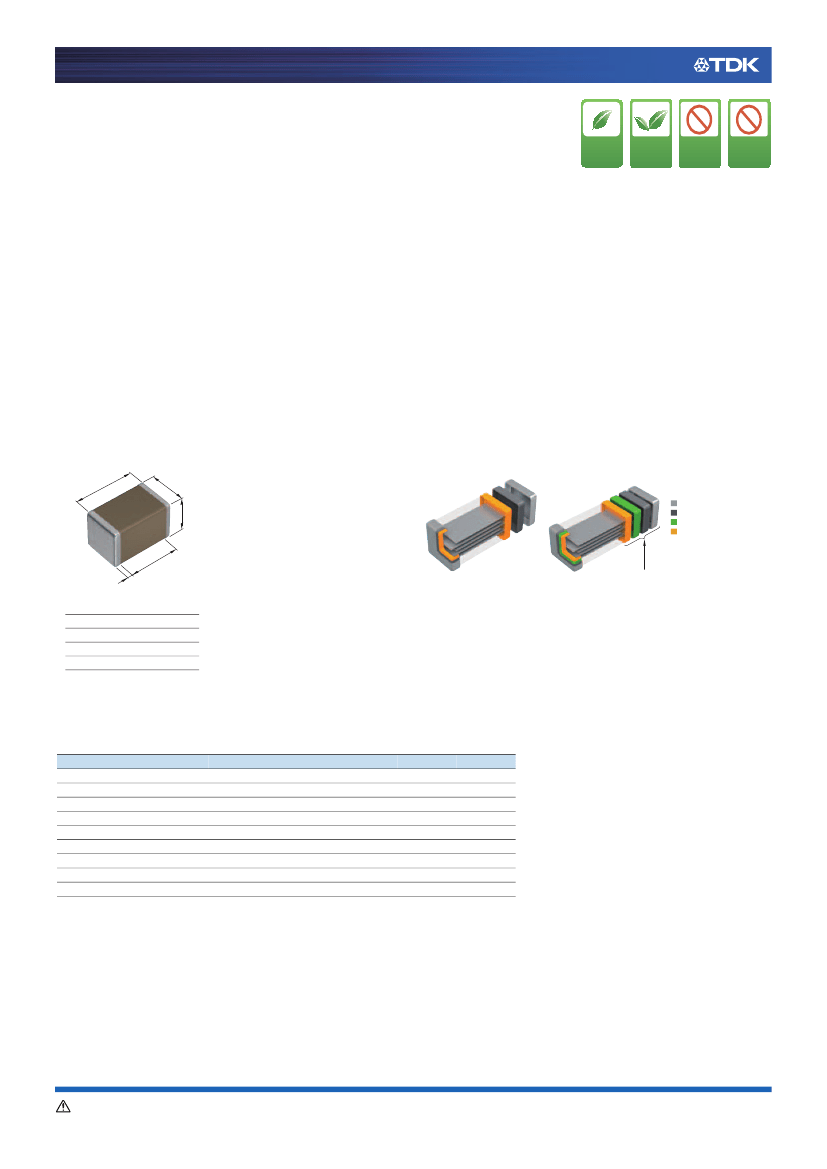

SHAPE & DIMENSIONS
L
■
ELECTRODE STRUCTURE DRAWING
Standard termination
Soft termination
W
T
Sn
Ni
Conductive resin layer
Cu
G
B
Termination consists of 3
layers by Cu, Ni and Sn.
Termination consists of 4 layers
including conductive resin layer.
L
W
T
B
G
Body length
Body width
Body height
Terminal width
Terminal
spacing
Type
L
W
C1005
1.00+0.15,-0.05
0.50+0.10,-0.05
C1608
1.60+0.20,-0.10
0.80+0.15,-0.10
C2012
2.00+0.45,-0.20
1.25+0.25,-0.20
C3216
3.20+0.40,-0.20
1.60+0.30,-0.20
C3225
3.20+0.50,-0.40
2.50±0.30
C4520
4.50+0.50,-0.40
2.00+0.30,-0.20
C4532
4.50+0.50,-0.40
3.20±0.40
C5750
5.70+0.50,-0.40
5.00±0.40
C7563
7.50±0.50
6.30±0.50
Dimensional
tolerances are typical values.
T
0.50+0.10,-0.05
0.80+0.15,-0.10
1.25+0.25,-0.20
1.60+0.30,-0.20
2.50±0.30
1.30±0.20
2.50±0.30
2.50±0.30
3.00 max.
Dimensions in mm
B
G
0.10 min.
0.30 min.
0.20 min.
0.30 min.
0.20 min.
0.50 min.
0.20 min.
1.00 min.
0.20 min.
—
0.20 min.
—
0.20 min.
—
0.20 min.
—
0.30 min.
—
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20170829 / mlcc_commercial_soft_en.fm
(4/18)
MULTILAYER CERAMIC CHIP CAPACITORS
■
CATALOG NUMBER CONSTRUCTION
C
(1)
7563 X7S
(2)
(3)
1C
(4)
107
(5)
M
(6)
280
(7)
L
(8)
E
(9)
(1) Series
(2) Dimensions L x W (mm)
Code
1005
1608
2012
3216
3225
4520
4532
5750
7563
EIA
CC0402
CC0603
CC0805
CC1206
CC1210
CC1808
CC1812
CC2220
CC3025
Length
1.00
1.60
2.00
3.20
3.20
4.50
4.50
5.70
7.50
Width
0.50
0.80
1.25
1.60
2.50
2.00
3.20
5.00
6.30
Terminal width
0.10
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.30
(6) Capacitance tolerance
Code
J
K
M
Tolerance
±5%
±10%
±20%
(7) Thickness
Code
050
060
080
085
115
125
130
160
200
230
250
280
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.30 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
(3) Temperature characteristics
Temperature
characteristics
C0G
X5R
X7R
X7S
X7T
X8R
Temperature coefficient
or capacitance change
0±30 ppm/°C
±15%
±15%
±22%
+22,-33%
±15%
Temperature range
-55 to +125°C
-55 to +85°C
-55 to +125°C
-55 to +125°C
-55 to +125°C
-55 to +150°C
(8) Packaging style
Code
A
B
K
L
Style
178mm reel, 4mm pitch
178mm reel, 2mm pitch
178mm reel, 8mm pitch
330mm reel, 12mm pitch
(4) Rated voltage (DC)
Code
0J
1A
1C
1E
1V
1H
2A
2E
2W
2J
3A
3D
3F
Voltage (DC)
6.3V
10V
16V
25V
35V
50V
100V
250V
450V
630V
1000V
2000V
3000V
(9) Special reserved code
Code
E
Description
Soft termination
(5) Nominal capacitance (pF)
The capacitance is expressed in three digit codes and in units of
pico Farads (pF). The first and second digits identify the first and
second significant figures of the capacitance. The third digit identi-
fies the multiplier. R designates a decimal point.
(Example)0R5 = 0.5pF
101 = 100pF
225 = 2,200,000pF = 2.2µF
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20170829 / mlcc_commercial_soft_en.fm
(5/18)
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance range chart
Capacitance
(pF)
100
150
220
330
470
680
1,000
2,200
4,700
10,000
22,000
47,000
100,000
220,000
470,000
1,000,000
2,200,000
4,700,000
C1005 [0402 inch]
X5R
1V
(35V)
1E
(25V)
1A
(10V)
0J
(6.3V)
1H
(50V)
X7R
1V
(35V)
1E
(25V)
1C
(16V)
C0G
2A
(100V)
1H
(50V)
Code
101
151
221
331
471
681
102
222
472
103
223
473
104
224
474
105
225
475
Capacitance
(pF)
150
220
330
470
680
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
22,000
33,000
47,000
X8R
2A
(100V)
1H
(50V)
1E
(25V)
1C
(16V)
Code
151
221
331
471
681
102
152
222
332
472
682
103
153
223
333
473
Standard thickness
0.50 mm
Background gray: The product which is not recommended to a new design.
■
Please refer to the capacitance range table after P-11 for the details such as product thickness and capacitance tolerance.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
