597D337X9010E2T

Description
Tantalum Capacitors - Solid SMD 330uF 10volts 10% E case Conformal
CategoryPassive components    capacitor
File Size295KB,20 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

597D337X9010E2T Online Shopping

Suppliers Part Number Price MOQ In stock
597D337X9010E2T - - View Buy Now

597D337X9010E2T Overview

Tantalum Capacitors - Solid SMD 330uF 10volts 10% E case Conformal

597D337X9010E2T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction, 3017
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time27 weeks
Samacsys DescriptionSolid Tantalum Chip Capacitors TANTAMOUNT(TM), Ultra-Low ESR, Conformal Coated, Maximum CV
Other featuresESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance330 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR35 mΩ
high4 mm
JESD-609 codee3
leakage current0.033 mA
length7.6 mm
Installation featuresSURFACE MOUNT
multi-layerNo
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTR, EMBOSSED PLASTIC, 7 INCH
polarityPOLARIZED
positive tolerance10%
Rated (DC) voltage (URdc)10 V
ripple current1 mA
size code3017
surface mountYES
Delta tangent0.06
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width4.4 mm

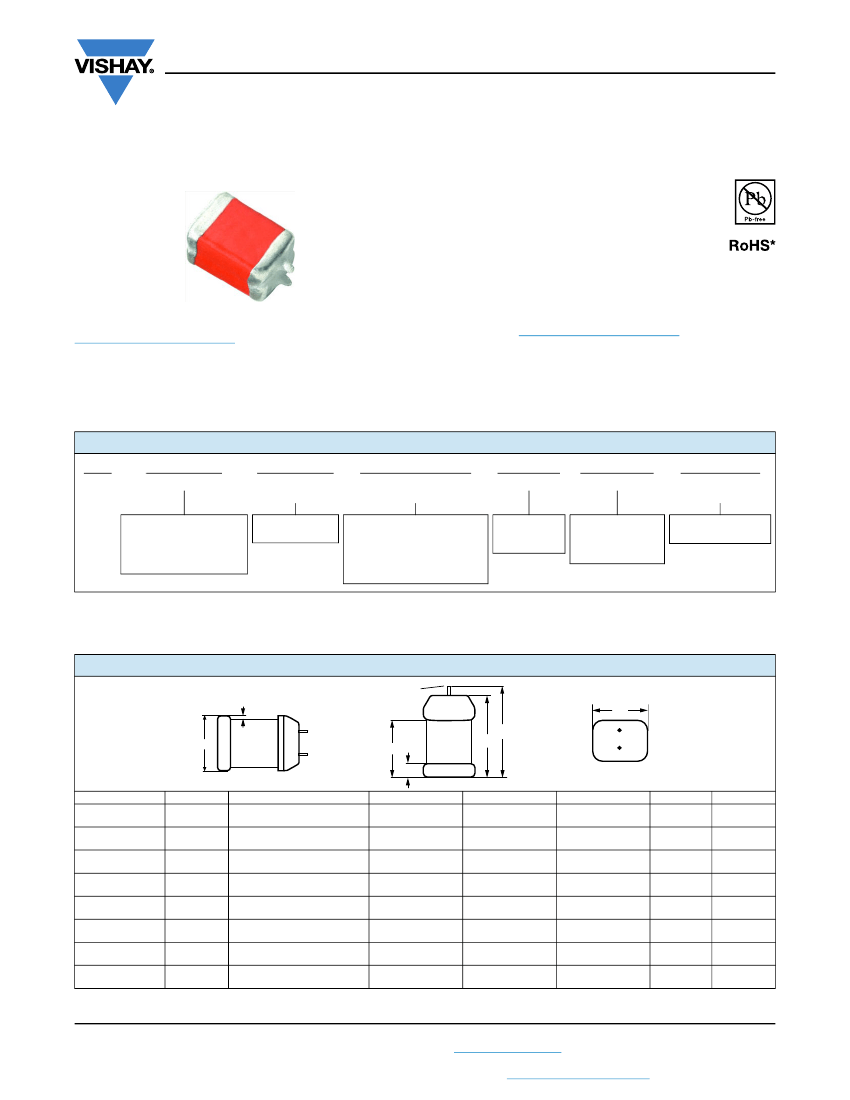

597D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors, T
ANTAMOUNT
™,
Ultra-Low ESR, Conformal Coated, Maximum CV
FEATURES
• New case size offerings
• Terminations: 100 % tin (2) standard; tin / lead
available
• Extremely low ESR
• Mounting: surface mount
• Ripple current up to 4.1 A
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
Available
Available
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40194
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
10 μF to 1500 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 75 V
DC
ORDERING INFORMATION
597D
TYPE
687
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
6R3
DC VOLTAGE RATING
AT +85 °C
This is expressed in V.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
E
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = tape and reel
7" [178 mm] reel
This is expressed in pF.
The first two digits are
the significant figures.
The third is the number
of zeros to follow.
See Ratings
and Case
Codes table
2 = 100 % tin
8 = solder plated
(60/40)
special order
Note
• Preferred tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting
DIMENSIONS
in inches [millimeters]
J
Tantalum wire
nib identifies
anode (+)
terminal
L
H
B
A
D
W
CASE CODE
V
D
E
R
F
Z
M
H
L (MAX.)
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.315
[8.0]
0.315
[8.0]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
H
0.079
[2.0 max.]
0.138
[3.5 max.]
0.157 ± 0.016
[4.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.185 ± 0.016
[4.7 ± 0.4]
0.236 ± 0.016
[6.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.205 ± 0.016
[5.2 ± 0.4]
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
0.055 ± 0.016
[1.4 ± 0.4]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
B
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
D (REF.)
0.252
[6.4]
0.252
[6.4]
0.252
[6.4]
0.244
[6.2]
0.244
[6.2]
0.244
[6.2]
0.260
[6.6]
0.260
[6.6]
J (MAX.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note
• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
Revision: 22-Jan-18
Document Number: 40047
1
For technical questions, contact:
tantalum@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
