7W-16384MBE-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 7W-16384MBE-T

7W-16384MBE-T: DescriptionStandard Clock Oscillators 16.384MHz 3.3V 50ppm -40C +85C; CategoryPassive components; File Size277KB，1 Pages; ManufacturerTXC Corporation; Websitehttp://www.txccrystal.com/

Download Datasheet Parametric View All

7W-16384MBE-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7W-16384MBE-T	-	-	View	Buy Now

7W-16384MBE-T Overview

Standard Clock Oscillators 16.384MHz 3.3V 50ppm -40C +85C

7W-16384MBE-T Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TXC Corporation
Product Category	Standard Clock Oscillators
RoHS	Details
Product	Standard Clock Oscillators
Frequency	16.384 MHz
Frequency Stability	50 PPM
Load Capacitance	-
Operating Supply Voltage	3.3 V
Output Format	CMOS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	7 mm
Width	5 mm
Height	1.3 mm
Packaging	Cut Tape
Packaging	Reel
Type	SMD CMOS CXO
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Oscillators

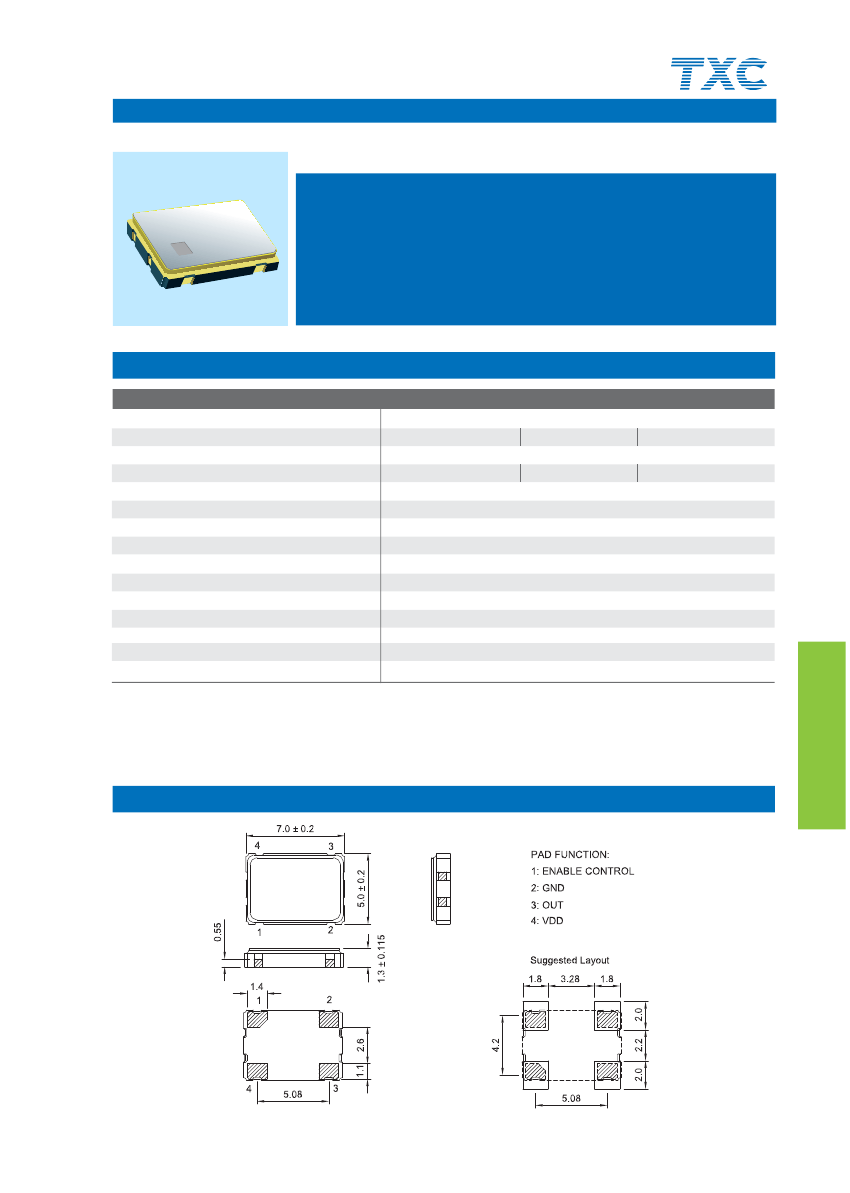

7 X 5 mm SMD CMOS CXO

7W SERIES

Features

Small SMD seam sealed clock crystal oscillator units.

TXC

EL 0

66.

High precision characteristic covering up to wide frequency range.

Designed for automatic mounting and reflow soldering.

Optionable stand-by function for output: Tri-state output.

Supply voltage range : 1.8 V ~ 5 V.

High stability, low jitter, low power consumption.

Main application : wireless communication, PC, and LCDM.

RoHS Compliant / Pb Free.

Electrical Specifications

Item / Type

Output Type

Output Load

Oscillation Mode

Supply Voltage

Frequency Range

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Voltage Vol (Max.) / Voh (Min.)

Rise (Tr) / Fall (Tf) Time

Supply Current

Symmetry

Start-up Time

Phase Jitter (12 KHz ~ 20 MHz)

Aging (at 25 ºC)

1.8 V

15 pF

CMOS

15 pF , 30 pF

Fundamental / 3rd Overtone

2.5 V , 2.8 V , 3.3 V

1 ~ 170 MHz

± 50 ppm (-10 ~ + 70 ºC), or specify

- 40 ~ + 85 ºC

- 55 ~ + 125 ºC

0.1 VDD / 0.9 VDD

10 ns (1 ~ 10 MHz) , 7 ns (20 ~ 50 MHz) , 5 ns (> 50 MHz) Max.

20 mA Max.

40 ~ 60 %

10 ms Max.

1 ps Max.

± 3 ppm / year Max.

15 pF , 50 pF

Oscillators

Dimensions

Units:mm

Remark : Specification subject to change without prior notice. Please confirm with our sales. http://www.txccorp.com
