4814P-T02-560LF datasheet, PDF

Datasheet> All Categories > Passive components> 4814P-T02-560LF

4814P-T02-560LF: DescriptionResistor Networks & Arrays 56ohm 2% 14Pin; CategoryPassive components; File Size413KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

4814P-T02-560LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4814P-T02-560LF	-	-	View	Buy Now

4814P-T02-560LF Overview

Resistor Networks & Arrays 56ohm 2% 14Pin

4814P-T02-560LF Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Bourns
Product Category	Resistor Networks & Arrays
RoHS	Details
Product	Networks
Termination Style	SMD/SMT
Resistor Values	56 Ohms
Tolerance	2 %
Circuit Type	Bussed
Number of Resistors	13
Number of Pins	14
Temperature Coefficient	150 PPM / C
Operating Temperature Range	- 55 C to + 125 C
Package / Case	SOM-14
Length	8.26 mm
Width	7.62 mm
Height	2.03 mm
Packaging	Tube
Lead Spacing	1.27 mm
Power per Element	0.08 W
Factory Pack Quantity	50
Unit Weight	0.035274 oz

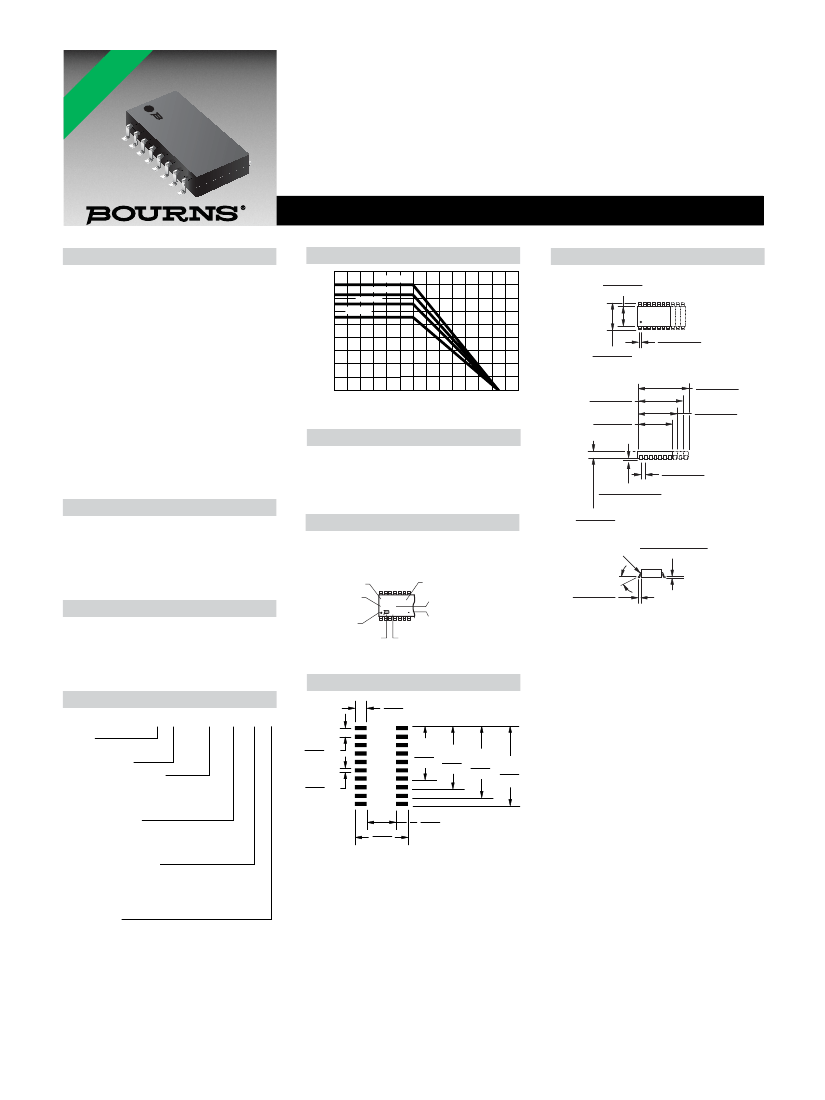

Preview

Download Datasheet

View All

VE *Ro

AE RSI HS

C- ON CO

Q2 S M

00 AV PLI

QU AIL AN

AL AB T

IE E

Features

■

RoHS compliant* (see How to Order

■

Compliant leads to reduce solder joint

“Termination” option)

■

Standard E.I.A. package compatible with

automatic placement equipment

■

Tape and reel packaging standard

■

Custom circuits are available

■

AEC-Q200 qualiﬁed

fatiguing

■

Standard electrical schematics: isolated,

bussed, dual terminator

■

Now available with improved tolerance to

±0.5 %

3312 - 2 mm SMD Trimming Potentiometer

Surface Mount Medium Body

4800P Series - Thick Film

Product Characteristics

Resistance Range

................... 10 ohms to 2.2 megohms

Maximum Operating Voltage ...........50 V

Temperature Coefﬁcient of Resistance

and above..............±100 ppm/°C

below 50

.....................±250 ppm/°C

TCR Tracking

(for equal values within a package)

.....50 ppm/°C max. for values > 50

Ω;

.............100 ppm/°C for values

≤

Operating Temperature

................................-55 °C to +125 °C

Insulation Resistance

........................ 10,000 megohms min.

Dielectric Withstanding Voltage

...........................................200 VRMS

Lead Solderability .....Meet requirements

of MIL-STD-202 Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ...... ∆R MAX.

Short Time Overload..................±0.25 %

Load Life ....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat ....±0.25 %

Thermal Shock ..........................±0.25 %

Physical Characteristics

Flammability ........ Conforms to UL94V-0

Lead Frame Material

.........................Copper, solder coated

Body Material................... Thermoplastic

How To Order

Package Power Temp. Derating Curve

1.6

1.4

WATTS

1.2

1.0

125

AMBIENT TEMPERATURE (

C )

4820P

4818P

4816P

4814P

48 16 P - 1 - 103 __ __

Model

(48 = SOM Pkg.)

Number of Pins

Electrical Conﬁguration

• 1 or 4 = Isolated*

• 2 = Bussed*

• 3 = Dual Terminator*

Resistance Code

• First 2 digits are signiﬁcant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• All electrical conﬁgurations EXCEPT T03:

LF = RoHS compliant

• ONLY electrical conﬁguration T03:

L = RoHS compliant

• Blank = Tin/Lead-plated

*For tube packaging, use T01, T02, T03 or T04.

Consult factory for other available options.

1.27

TYP.

(.050)

.63

TYP.

(.025)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

8 82 13

–6 C1

Product Dimensions

5.59

.12

(.220

.005)

7.62

.25

(.300

.010)

.432

.076

TYP.

(.017

.003)

12.45

.12

(.490

.005)

9.91

.12

(.390

.005)

13.72

.12

(.540

.005)

11.18

.12

(.440

.005)

Package Power Rating at 70 °C

4814P .....................................1.12 watts

4816P .....................................1.28 watts

4818P .....................................1.44 watts

4820P .....................................1.60 watts

Typical Part Marking

Represents total content. Layout may

vary.

PART

NUMBER

RoHS COMPLIANCY

INDICATOR

4816P LF

2-682

CYYWW

.13 + .12/ - .00

(.005 + .005/ - .000)

2.03

.12

(.080

.005)

R = .008" TYP.

8° MAX.

.611

.101

(.024

.004)

1.27

.076

TYP.

(.050

.003*)

.305 + .000/ - .101

(.012 + .000/ - .004)

CIRCUIT

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

RESISTANCE CODE

DATE CODE

COUNTRY OF MANUFACTURE

(C = COSTA RICA)

Lead coplanarity .102mm (.004 inch) max. at mounting surface.

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

Recommended Land Pattern

2.0

TYP.

(.079)

SOM-14

8.26 SOM-16 SOM-18

9.53

(.325)

10.80 SOM-20

(.375)

(.425) 12.07

(.475)

8.9

(.350)

4.9

(.193)

NOTE: Land pattern dimensions are based on

design rules established by the Institute for Inter-

connecting and Packaging Electronic Circuits in

IPC-SM-782.

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.
