KC3225A400000C3GE00 datasheet, PDF

Datasheet> All Categories > Passive components> KC3225A400000C3GE00

KC3225A400000C3GE00: DescriptionStandard Clock Oscillators 40.0000MHZ 3.3V; CategoryPassive components; File Size442KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

KC3225A400000C3GE00 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KC3225A400000C3GE00	-	-	View	Buy Now

KC3225A400000C3GE00 Overview

Standard Clock Oscillators 40.0000MHZ 3.3V

KC3225A400000C3GE00 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Standard Clock Oscillators
RoHS	Details
Product	Standard Clock Oscillators
Frequency	40 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	3.46 V
Supply Voltage - Min	3.14 V
Supply Voltage - Max	3.46 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	1210 (3225 metric)
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	3.2 mm
Width	2.5 mm
Height	0.89 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Current Rating	8 mA
Type	Clock Oscillator
Mounting Style	SMD/SMT
Factory Pack Quantity	2000
Unit Weight	0.000564 oz

Preview

Download Datasheet

View All

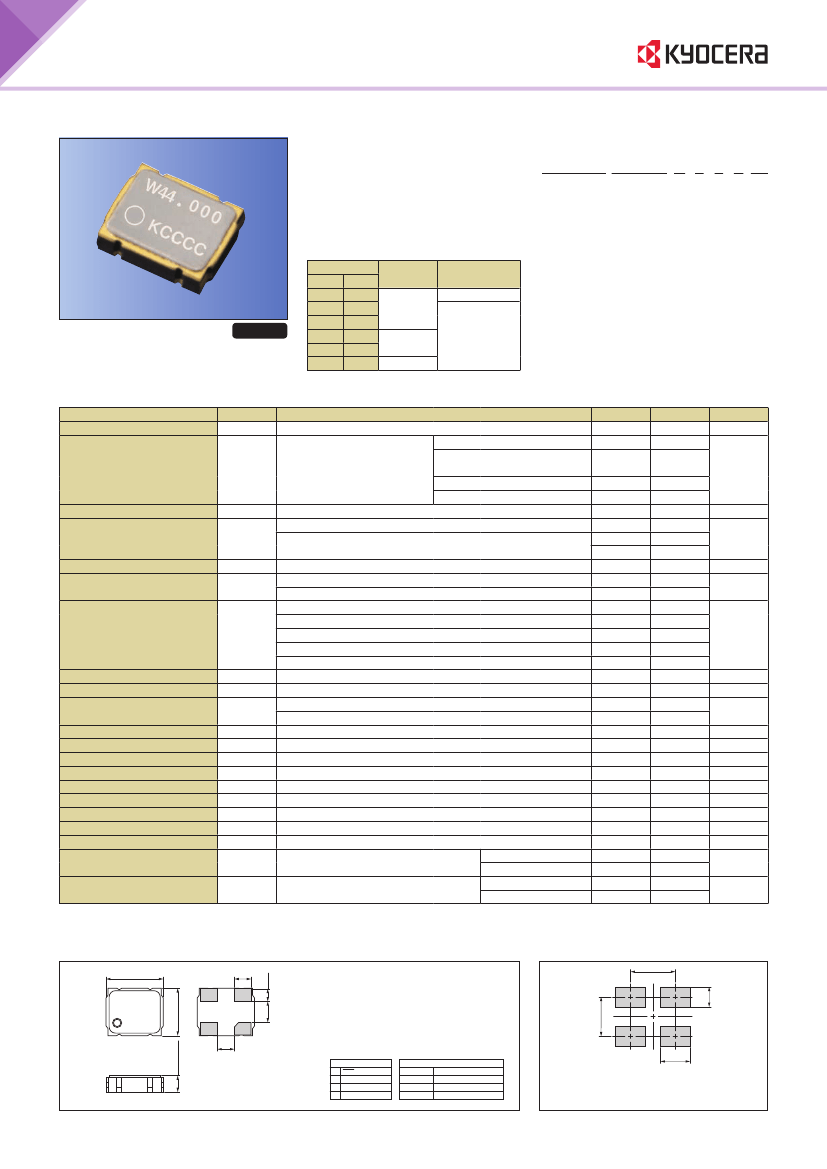

Clock Oscillators Surface Mount Type

KC3225A-C3 Series

CMOS/ 3.3V/ 3.2

2.5mm

Features

• Miniature ceramic package

• Highly reliable with seam welding

• CMOS output

• Supply voltage V

3.3V

•

−

available

How to Order

KC3225A 25.0000 C 3 0 E 00

①

②

③ ④ ⑤ ⑥ ⑦

①

Series

②

Output Frequency

③

Output Type (CMOS)

④

Supply Voltage (3.3V)

⑤

Frequency Tolerance (See Table 1)

⑥

Symmetry/ INH Function

(45/ 55%, Stand-by)

Customer Special Model Suf x

⑦

(STD Speci cation is “00”)

Table 1

Operating

Freq. Tol.

Temperature

Note

−

Range (

Code

Standard speci cations

−

10 to

With only certain

100

−

40 to

85 frequencies

−

40 to

105

RoHS Compliant

Packaging (Tape & Reel 2000 pcs./ reel)

Speciﬁcations

Item

Output Frequency Range

Symbol

Conditions

Ini ti a l tol e ra nc e , Ope ra t -

ing temperature range,

Rated power supply voltage

change, Load change, Aging

(1 year @25

C), Shock and

vibration

Standard Speci cations

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

_use

—

Freq. Tol.Code: 0, S, F

Freq. Tol.Code: U, G, 6

1.5

≤

26MHz

≤

50MHz

≤

67.5MHz

67.5

≤

95MHz

≤

125MHz

Extend (Option)

Op. Temp.:

−

40 to

Op. Temp.:

−

10 to

−

40 to

−

40 to

105

Op. Temp.:

−

10 to

Op. Temp.:

−

10 to

Min.

1.5

−

100

−

0.5

2.97

3.14

—

90% V

—

70% V

—

Max.

125

100

125

105

7.0

3.63

3.46

10% V

—

30% V

—

150

Units

MHz

−

Frequency Tolerance

_tol

Storage Temperature Range

_stg

Current Consumption

(Maximum Loaded)

Stand-by Current

Symmetry

Rise/ Fall Time

(10% V

to 90% V

Maximum Loaded)

Low Level Output Voltage

High Level Output Voltage

CMOS Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

1 Sigma Jitter

Peak to Peak Jitter

@50% V

1.5

≤

67.5MHz

tr/ tf

67.5

≤

125MHz

4mA

=−

4mA

L_CMOS CMOS Output

_dis

_ena

_str

@Minimum operating voltage to be 0 sec.

1.5

≤

60MHz

Sigma

Measured with Wavecrest SIA-3000

≤

125MHz

1.5

≤

60MHz

PK-PK

Measured with Wavecrest SIA-3000

≤

125MHz

_std

SYM

Note: All electrical characteristics are defined at the maximum load and operating temperature range.

Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Dimensions

0.67

3.2

0.90

(Unit: mm)

Recommended Land Pattern

2.2

0.95

1.75

1.2

(Unit: mm)

2.5

0.89 (1.0 max.)

1.00

Pad Connections

#1 INH

#2 Case GND

#3 Output

#4 V

INH Function

Pad1

Pad3 (Output)

Open

Active

"H" Level

Active

"L" Level High Z (No-Oscillation)

1.0

Plating: Ni+Au

Tolerance:

±0.1

Note: A capacitor of value 0.01µF between V

and GND is recommended.

Recommended Resources

pulse delay circuit

transmitter toy circuit

Zener tube undervoltage indication circuit

555 RF driver audio oscillator circuit diagram

Optical communication receiving circuit

Charging circuit composed of LTC4058

【CN0189】Tilt measurement using a dual-axis accelerometer: CIRCUIT FUNCTION AND BENEFITS The circuit shown in Figure 1 integrates the ADXL203 dual-axis accelerometer and the AD7887 12-bit successive approximation register (SAR) ADC to create a dual-axis tilt ...; EEWORLD社区 ADI Reference Circuit

Design a circuit for corridor voice-controlled lights that includes a single-chip microcomputer.: 1. Requirements: 1. Produce a complete circuit board with reasonable layout and wiring, and uniform and reliable solder joints. 2. The circuit board can download the program, that is, the microcontrol...; 辰慕璇 Electronics Design Contest

Help, looking for a BIOS expert: Urgently need to hire a BIOS expert, national scientific research unit, interested parties please contact. Email lzh@tjhn.com.cn msn: hzl_1999@yahoo.com...; huangxu20051207 Embedded System

Getting Started with the ST SensorTile.box Sensor Kit (2) Getting Started Mode Experience: [i=s]This post was last edited by nich20xx on 2020-6-9 07:17[/i]1 Introduction The Basic Mode of SensorTile.box allows users to experience the SensorTile.box without any programming. After unboxing th...; nich20xx ST MEMS Sensor Creative Design Competition

Help with AT89C51 single-chip temperature acquisition design: The sensor measures the water temperature and uses it as feedback to control the heating water temperature (using the PID algorithm). The water temperature can be kept within a stable range and the wa...; xuyuesheng110 51mcu

LM3S811 Timer: In KEIL 4 software simulation, when it is in capture timing mode, no matter how the interrupt trigger condition is set, both edges can enter the interrupt. For example, if it is set to falling edge ca...; 淮海的大学 Microcontroller MCU
