xxx = Inductance in uH. R = decimal point. If no R is present
last
character
equals number
of zeros. wwllyy = Date code, R = Revision level.
Do not route traces or vias underneath the inductor

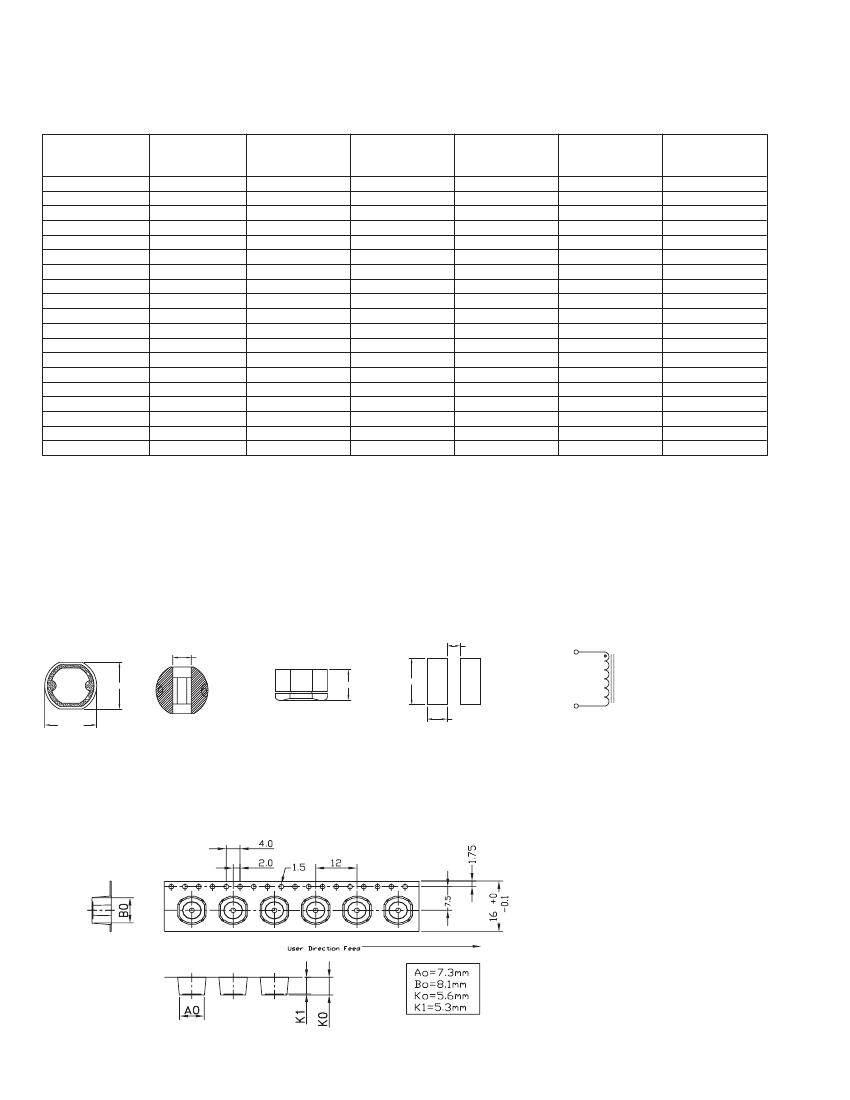

Packaging information- mm
Parts packaged on 13" Diameter reel,
1,000 parts per reel.
2
www.eaton.com/electronics

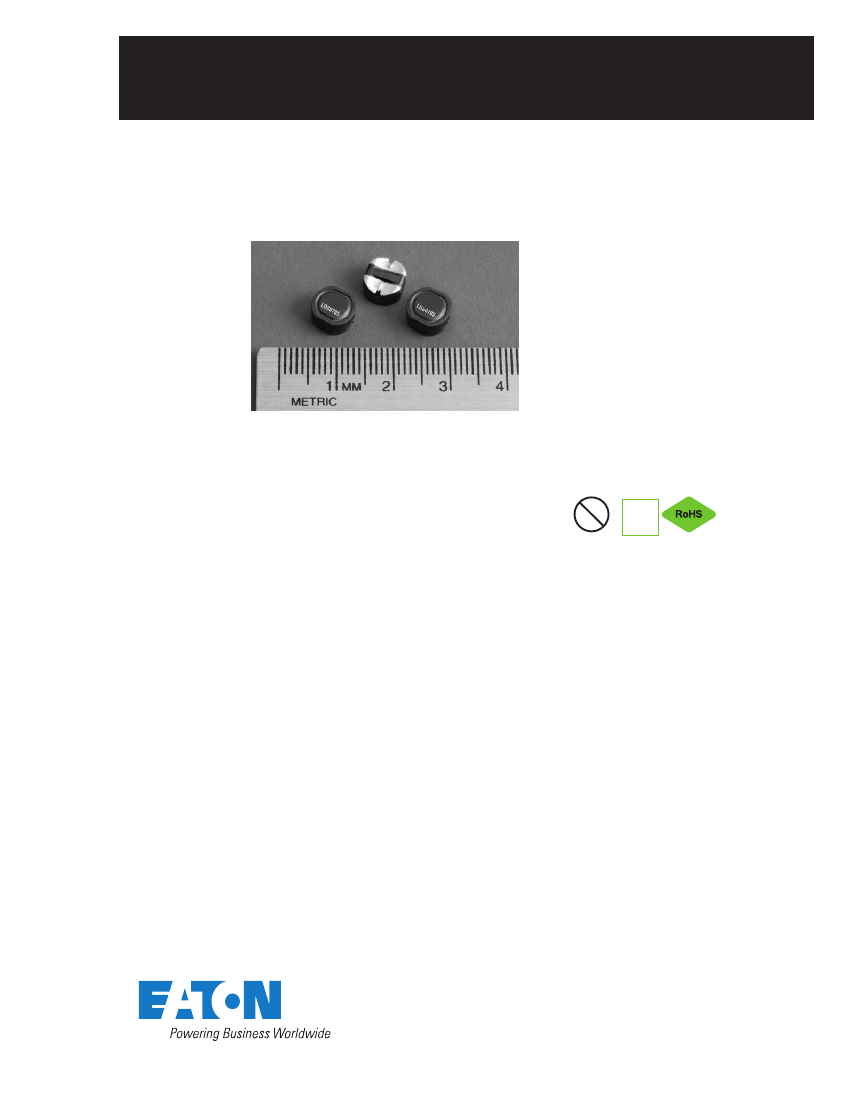

LDS0705
Shielded metalized drum core power inductors

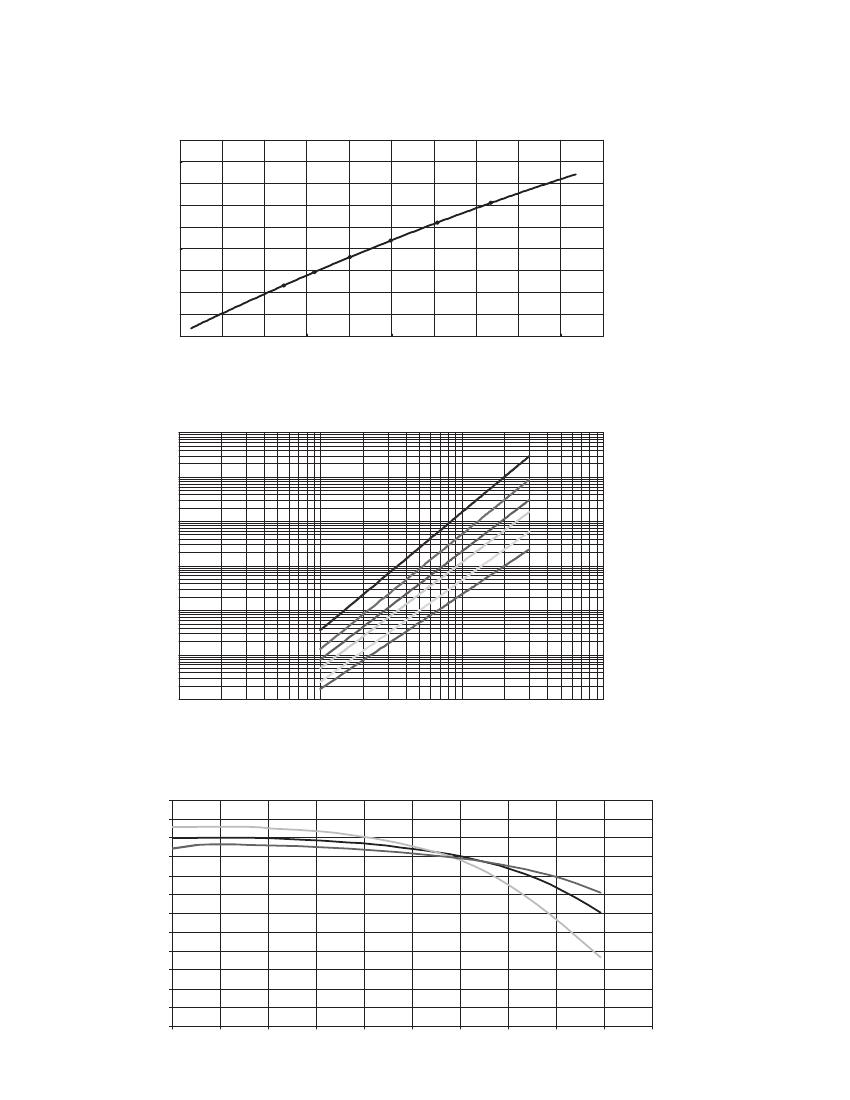

Temperature
rise
vs.
total loss
90
80
70
Technical Data
4142
Effective
July
2017
Temperature
Rise (°C)
60
50
40
30
20
10
0
0
0.1
0.2
0.3
0.4
0.5
Tot al Loss (W)
0.6
0.7
0.8
0.9
1
Core
loss
vs Bp-p
100
1 MHz
10
500 kHz
300 kHz
1
Core Loss (W)
200 kHz
100 kHz
50 kHz
0.1
0.01
0.001
0.0001
1
10
Bp-p (mT)
100
1000
Inductance characteristics
OCL vs. Isat
120%
110%
100%
90%
80%
% of OCL
70%
60%
50%
40%
-40
25
85
30%
20%
10%
0%
0%
20%
40%
60%
80%
100%
% of Isat
120%
140%
160%
180%
200%
www.eaton.com/electronics
3
Technical Data
4142
Effective
July
2017
LDS0705
Shielded metalized drum core power inductors
Solder Reflow Profile
T
P
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
T
L
Preheat
A
t
t
P
T
C
-5°C
T
ab
l
e
1 -
S
t
a
n
da
r
d S
nP
b S
ol
de
r (T c)
Package
Thickness
<2.5mm
_
>2.5mm
Volume
mm
3
<350
235°C
220°C
Volume
mm
3
_
>350
220°C
220°C
Temperature
T
smax
T
ab
l
e
2 - L
ead
(P
b
) Fr
ee S
ol
de
r (T c)
T
smin
t
s
Package
Thickness
<1.6mm
1.6 – 2.5mm
>2.5mm
Time
Volume
mm
3
<350
260°C
260°C
250°C
Volume
mm
3
350 - 2000
260°C
250°C
245°C
Volume
mm
3
>2000
260°C
245°C
245°C
25°C
Time 25°C to Peak
Reference JDEC J-STD-020
Profile Feature
Preheat
and Soak
• T
e
mperature min. (Tsmin)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
Average ramp up rate Tsmax to Tp
Liquidous temperature (T
L
)
Time
at
liquidous (tL)
Peak package
body
temperature (TP)*
Time (tp)** within 5 °C of the specified classification temperature (Tc)
Average ramp-down rate (Tp to Tsmax)
Time 25°C to Peak Temperature
Standard SnPb Solder
100°C
150°C
60-120 Seconds
3°C/
Second
Max.
183°C
60-150 Seconds
Table 1
20
Seconds**
6°C/ Second
Max.
6
Minutes Max.
Lead (Pb) Free Solder
150°C
200°C
60-120 Seconds
3°C/
Second
Max.
217°C
60-150 Seconds
T
able
2
30
Seconds**
6°C/ Second
Max.
8 Minutes Max.
*
Tolerance for peak profile temperature (Tp) is
defined as a
supplier minimum
and a
user maximum.
**
Tolerance for time
at
peak profile temperature (tp) is
defined as a
supplier minimum
and a
user maximum.
