5962-9203501MCA datasheet, PDF

5962-9203501MCA: DescriptionSingle-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,; CategoryAnalog mixed-signal IC The signal circuit; File Size1MB，8 Pages; ManufacturerComlinear Corporation

Download Datasheet Parametric Compare View All

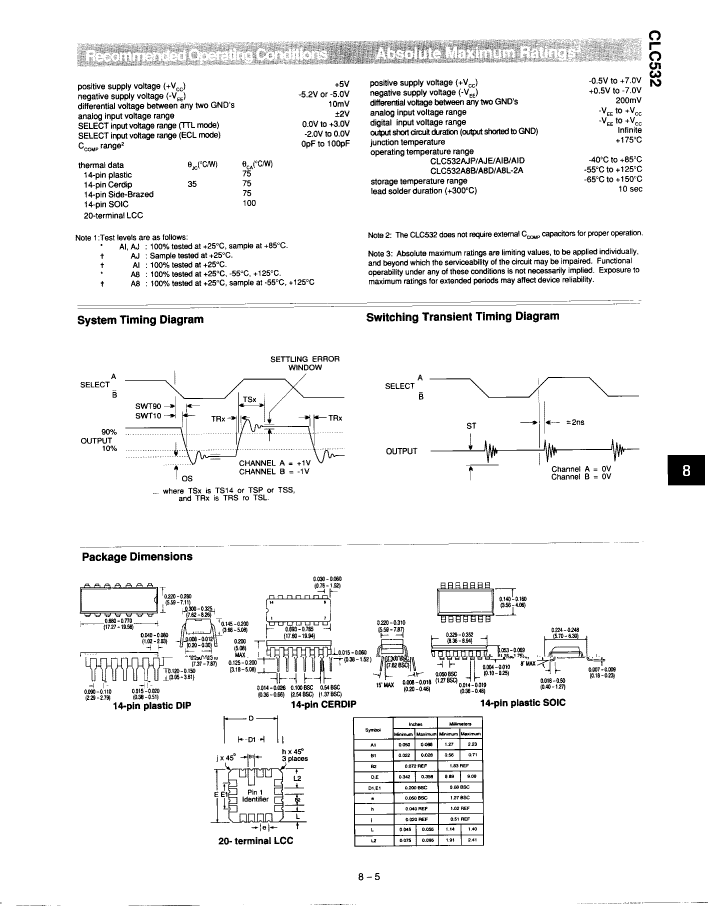

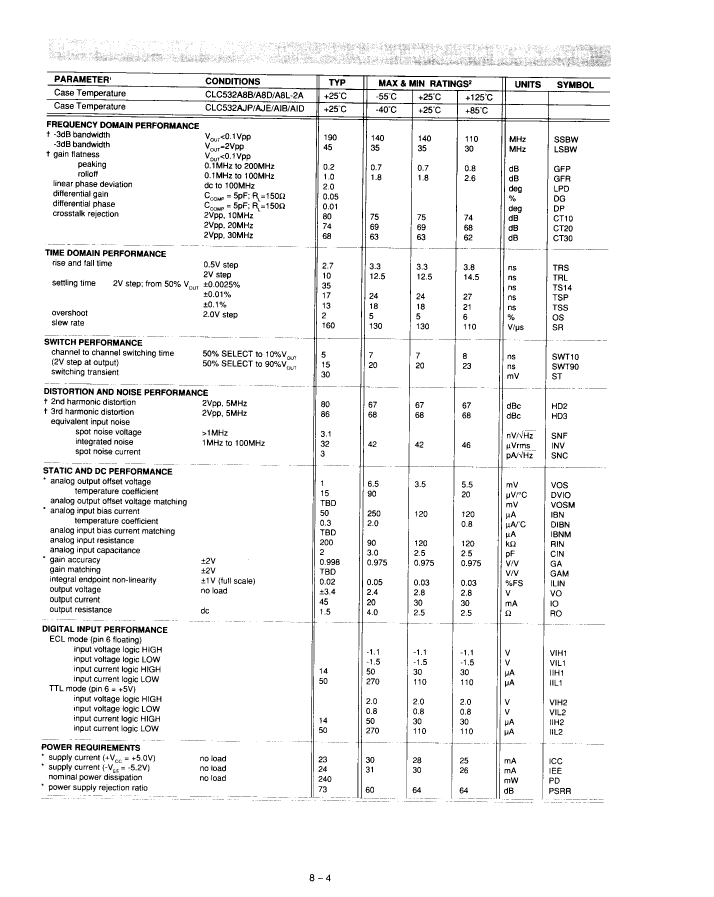

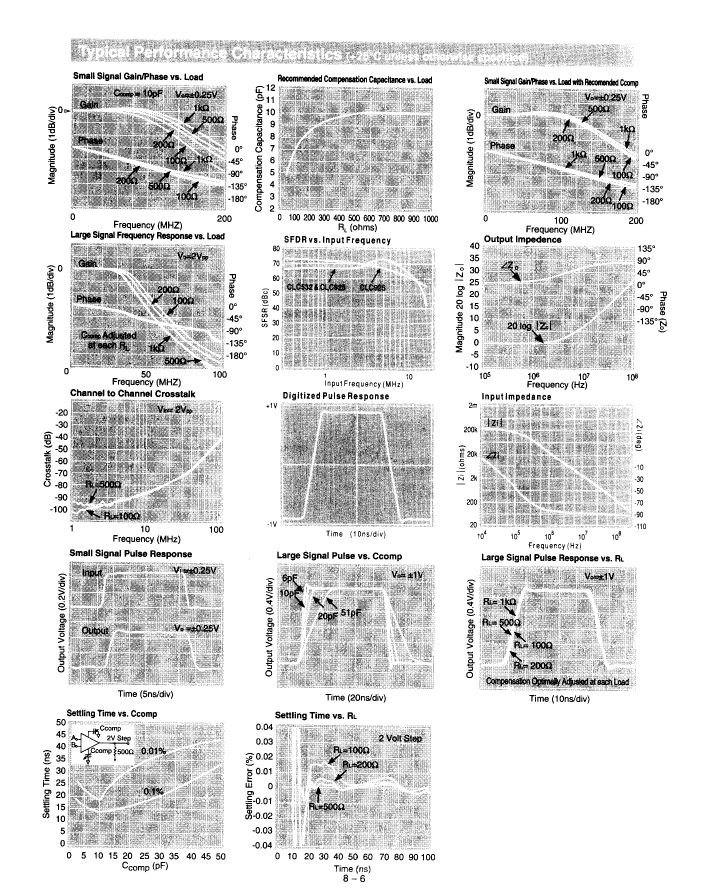

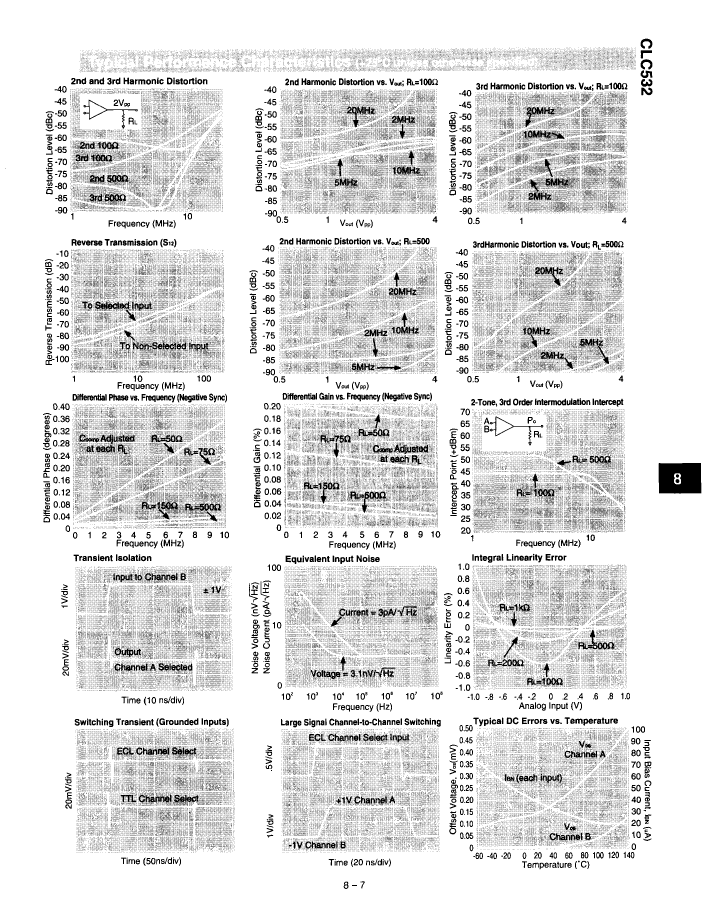

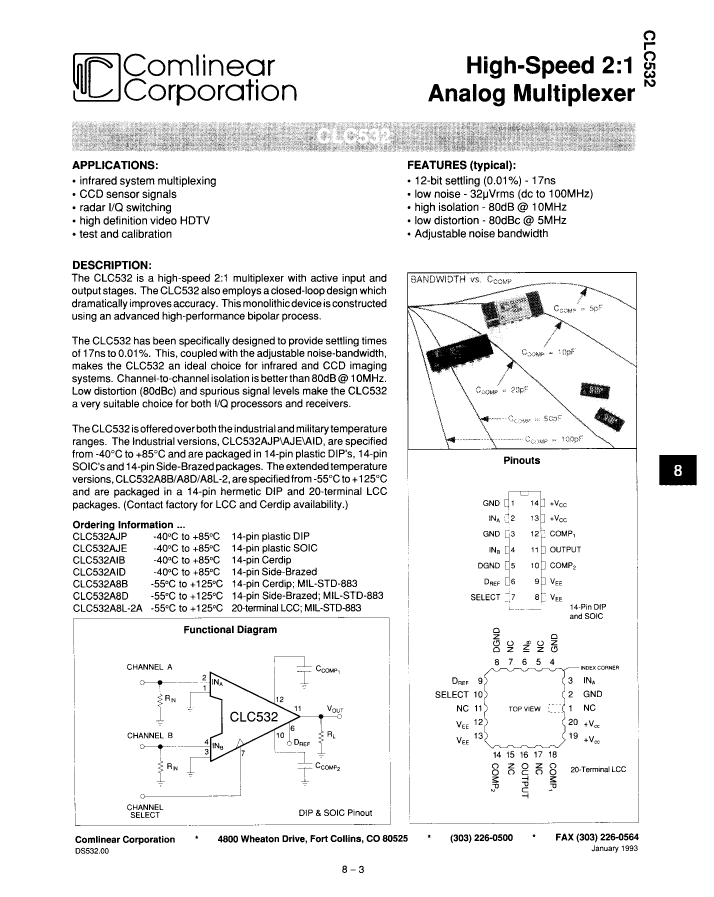

5962-9203501MCA Overview

Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-5.2 V
Number of channels	2
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply current (Isup)	31 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Maximum disconnect time	20 ns
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	5962-9203501MCA	5962-9203501M2A
Description	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CDIP14,	Single-Ended Multiplexer, 1 Func, 2 Channel, BIPolar, CQCC20,
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-GDIP-T14	S-CQCC-N20
JESD-609 code	e0	e0
Nominal Negative Supply Voltage (Vsup)	-5.2 V	-5.2 V
Number of channels	2	2
Number of functions	1	1
Number of terminals	14	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum supply current (Isup)	31 mA	31 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
Maximum disconnect time	20 ns	20 ns
technology	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	NO LEAD
Terminal location	DUAL	QUAD
Base Number Matches	1	1
